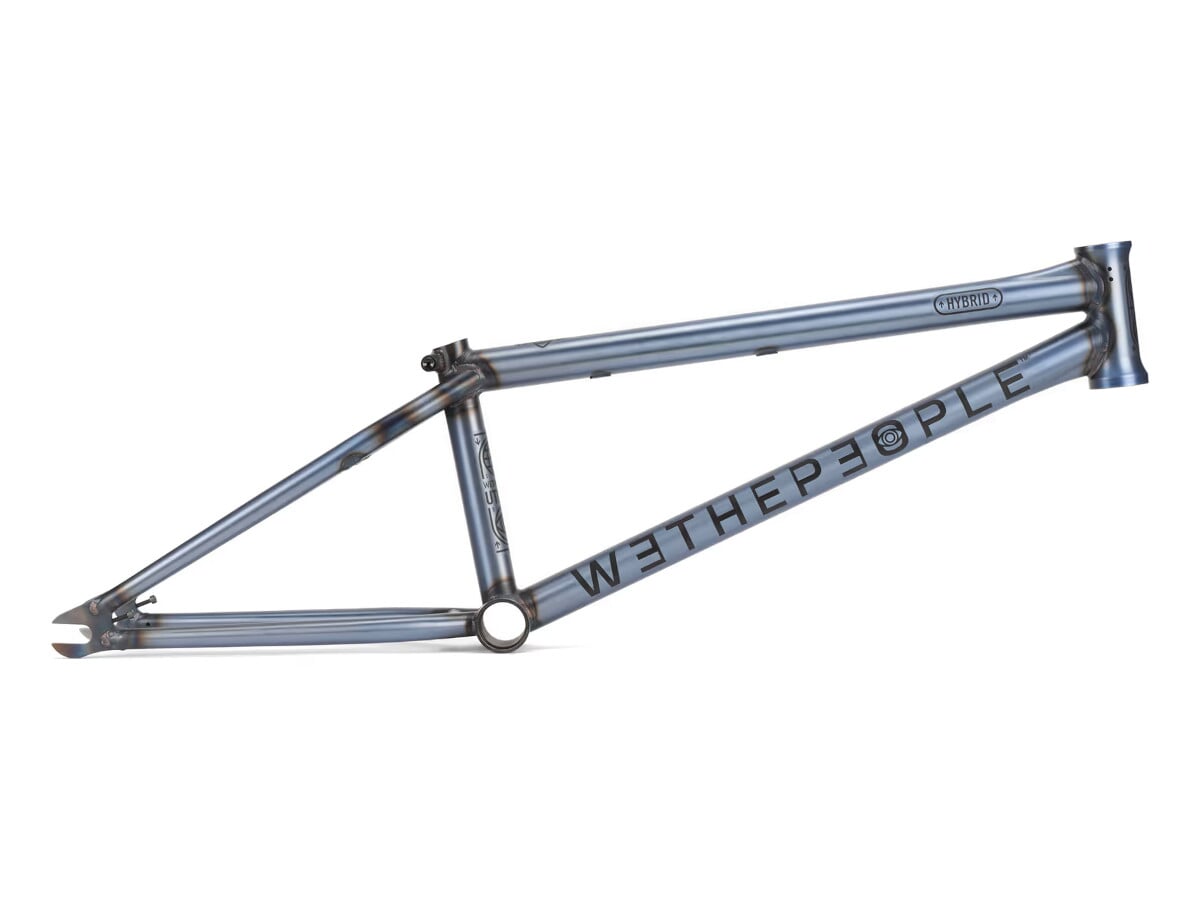

wethepeople "Utopia Hybrid" BMX Frame
-
Weight : 2.28kg / 5.03lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20977
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The perfect blend of Flatland, Street & Park, the
wethepeople "Utopia Hybrid" BMX Frame
takes DNA from many of WTP's current frames and blends it into a super tough, responsive and incredibly lightweight do-it-all frame. Just as capable in the streets as it is in the parking lot, the
wethepeople "Utopia Hybrid" BMX Frame
is also the chance for smaller and younger riders to ride one of the most advanced frames wethepeople has ever produced. Utilizing new super-lightweight hydroformed tubing and an exceptionally short chainstay, the
wethepeople "Utopia Hybrid" BMX Frame
.
Brake set not included!
Brake set not included!
Facts: wethepeople "Utopia Hybrid" BMX Frame
- Wheel Size: 20"
- Material: 100% Japanese Seamless 4130 CrMo, butted
- Geometry:
- Top Tube Length (TT): 20.0" or 20.5"
- Chainstay Length (CS): 12.4" (31.5cm) - 13.2" (33.53cm)
- Head Tube Length: 4.6" (11.68cm)
- Head Tube Angle (HA): 75°
- Seat Tube Angle (SA): 71.5°
- Bottom Bracket Height: 11.8" (29.97cm)
- Standover Height (SO): 7.7" (19.56cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Spanish BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: not included with delivery
- Gyro compatible: Yes
- Features:
- technical street/flatland frame, shorter top tube and lower seat tube for younger riders
- hydroformed top and down tube for superior strength and stiffness
- frame comes with 14mm slot dropouts
- extruded top tube with integrated threads for cable guides
- tapered seat stays and chain stays with bullet tipped ends
- curved seat stay bridge and chain stay bridge
- wider rear triangle allows clearance for a 2.3" tire
- WTP top tube and down tube gusset
- 6mm seat clamp bolt
