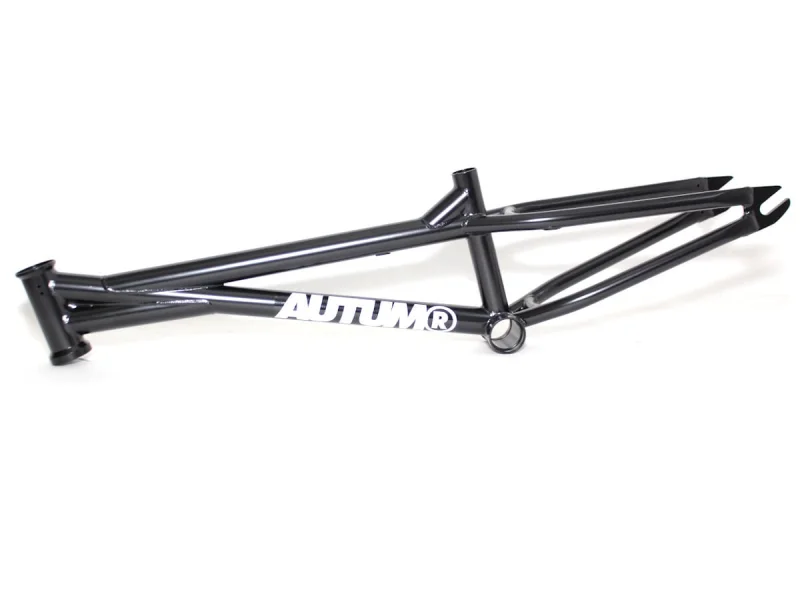

Autum Bikes "The Blitz V3" BMX Frame - With Brakemounts

420.13 EUR

Color | Top Tube Length
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
Berlin Please select a product option!
  • Weight : 2.3kg / 5.07lbs
  • Packaging Unit: 1 Piece
  • Product ID (PID): 26332

The Autum Bikes "The Blitz V3" BMX Frame - With Brakemounts emerges as the latest iteration of the esteemed frame specifically crafted for BMX Flatland, constructed from high-quality 4130 CrMo material. Stemming from the Berlin-based BMX brand, this Autum Bikes "The Blitz V3" BMX Frame - With Brakemounts has undergone further refinement. It now boasts a 71°(SA) seat tube angle and an extended top tube(TT) measuring 19.3 inches. Additionally, it remains available in a compact version with a length of 18.7 inches.

Facts: Autum Bikes "The Blitz V3" BMX Frame - With Brakemounts

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo
  • Geometry:
    Top Tube (TT): 18.7" or 19.3"
    Chain Stay (CS): 12.4" (31.5cm) (slammed)
    Head Tube Angle (HA): 74°
    Seat Tube Angle (SA): 71°
    BB Height: 11.8"
    Standover Height (SO): 5.9" (15cm)
  • Seat Clamp: without
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Spanish BB
  • Dropouts:
  • Chain Tensioners: Integrated
  • Brake Type: U-Brake
  • Brakemounts: with (screwable, M8) included with delivery
  • Extras: Special geometry for BMX Flatland
  • Model Year: 2024
