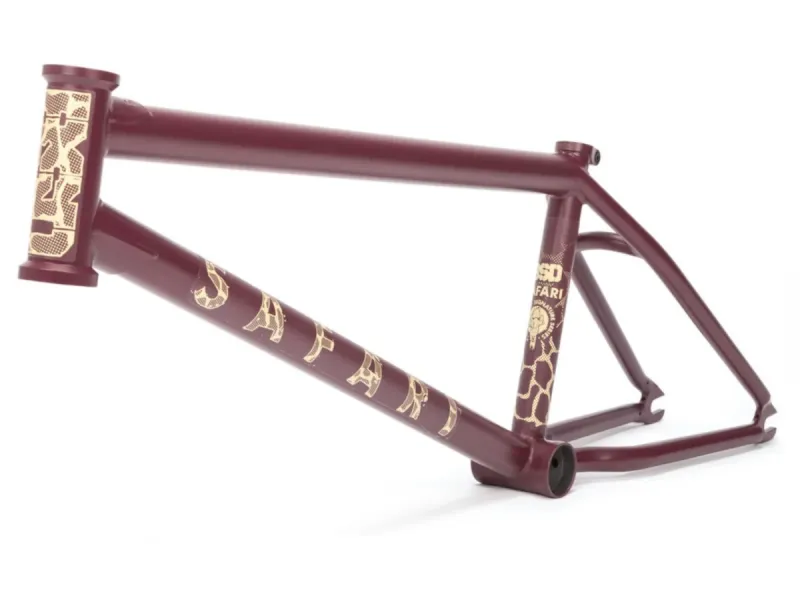

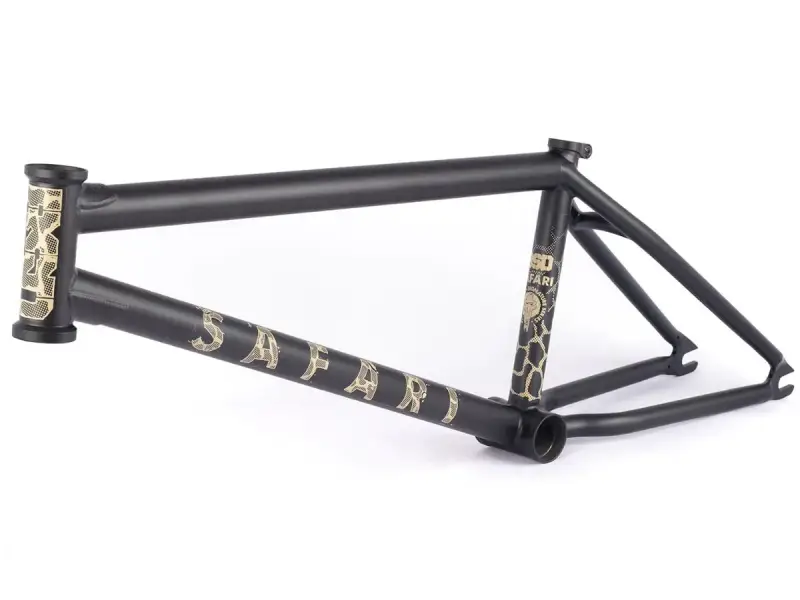

BSD "Safari V3" BMX Frame
-
Weight : 2.4kg / 5.29lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 24362
The BSD "Safari V3" BMX Frame is Reed Stark's signature frame and was designed and manufactured according to his personal wishes, his riding style, for modern and technical pro level street riding. The BSD "Safari V3" BMX Frame comes in the V3 version with a shorter rear end, which makes the frame even more manoeuvrable. Reed Stark is relatively tall and therefore wanted a long front frame section combined with an agile, short rear end. With high-quality investment cast dropouts, an integrated seat clamp and brakeless design, the frame has everything to be ridden in the streets at pro level.
Facts: BSD "Safari V3" BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, integrated headset
- Geometry:
Top Tube Length (TT): 20.6", 21.0" or 21.4"
Chainstay Length (CS): 12.8" (32.51cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.75" (29.85cm)
Standover Height (SO): 9.5" (24.13cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Reed Stark's Signature frame, wide rear end for fat 2.4" tires, Superscoop chainstay tubing
