Ryde "Andra 40 Disc" MTB Rim - 29" Inch

Name: Ryde Andra 40 Disc MTB Rim - 29 Inch - black
Brand: Ryde
SKU: 36964-2-1-1,22-787
Price: 34.95 EUR
Availability: InStock

34.95 EUR

Taxfree excl. shipping

Color | Holes

Please Select
- - black | 36H

Straight to the checkout with PayPal. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 0.87kg / 1.92lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Piece
Product ID (PID): 36964
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

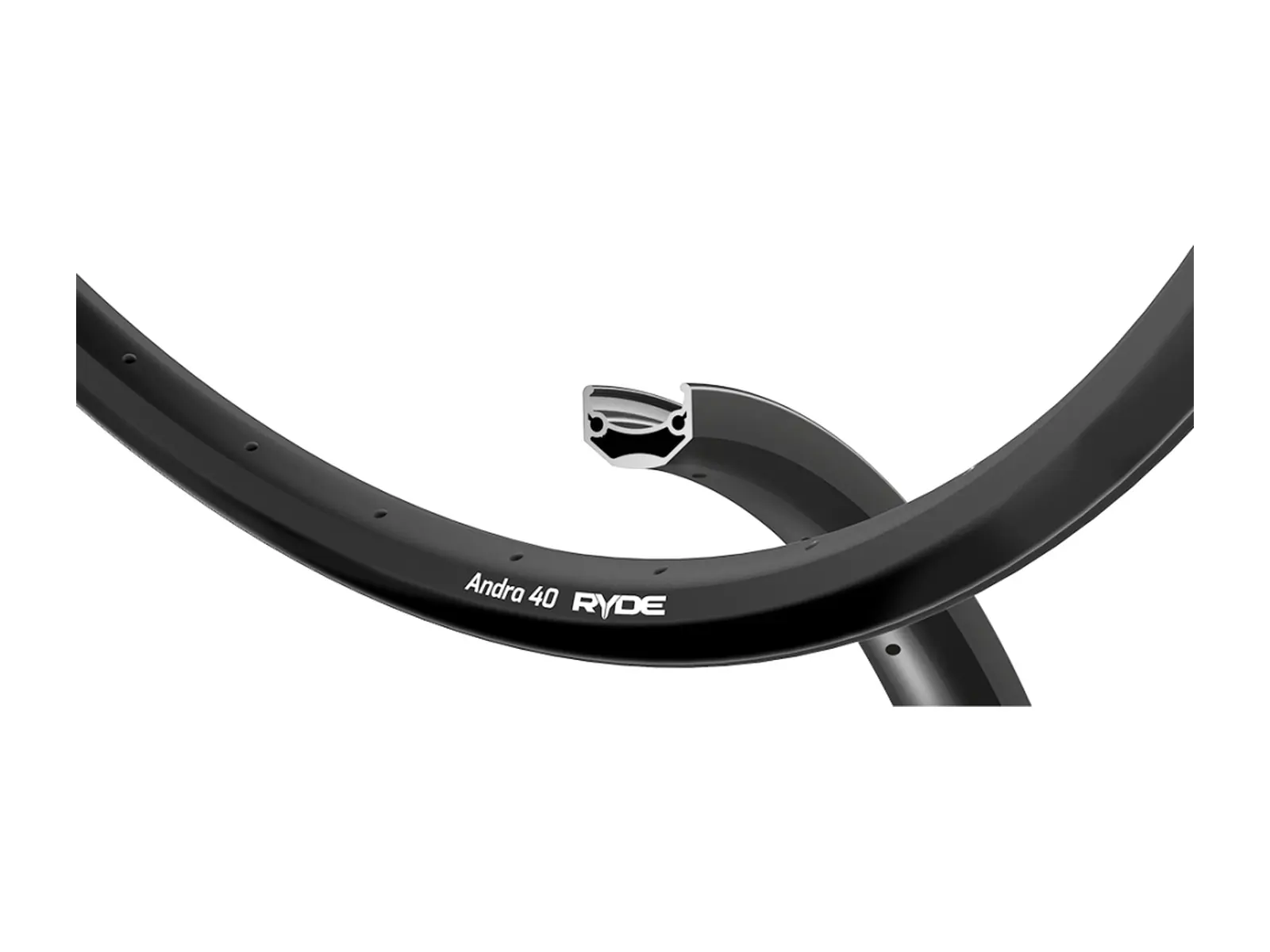

The Ryde "Andra 40 Disc" MTB Rim - 29" Inch is the disc brake version of Ryde's Andra 40, the profile the maker developed for cargo bikes: a pinned double wall rim made of 6063-T6 aluminium, powder coated, 25mm internal width for tyres from 29 to 71mm, built for a 120kg axle load and 1400N spoke tension. Without a CNC machined brake track the rim hook is particularly dent resistant. The nipple bed is thick and internally reinforced, the spoke holes are drilled 8 degrees radially and 2 degrees axially towards the hub, the valve hole takes Schrader valves. For 29 inch wheels that have to carry a lot, under heavy riders or on an e-MTB.

Facts: Ryde "Andra 40 Disc" MTB Rim - 29" Inch

Wheel Size: 29"
Material: 6063-T6 aluminium, double wall, powder coated
Seam: Pinned
Holes: 36H

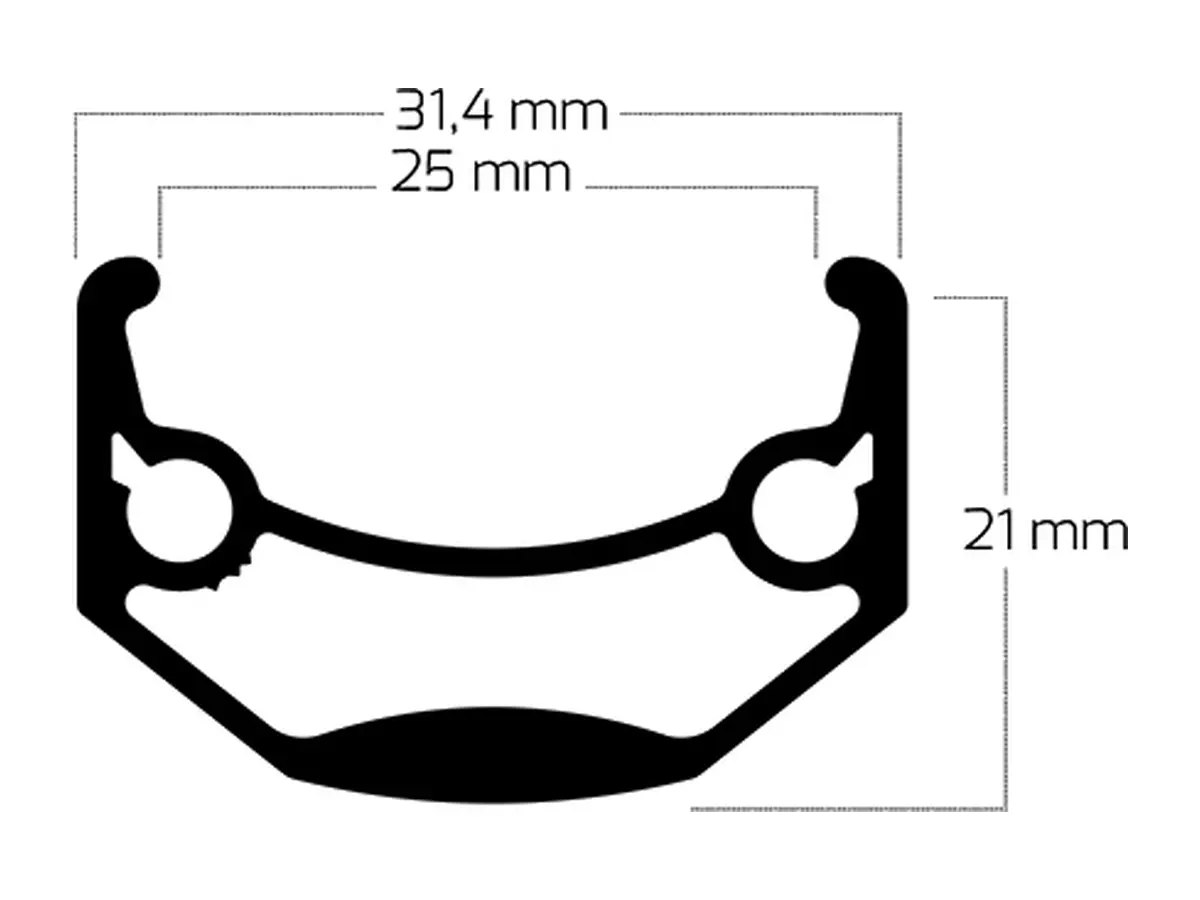

Width: 25mm internal, 31.4mm external
Height (Rim Wall): 21mm
Rim Wall: no brake track, disc brake only
Valve Hole Diameter: 8.5mm for Schrader valve
Contains: 1 rim
Extras:
- not tubeless ready, for tube tyres
- hooked rim (crotchet)
- no eyelets, internally reinforced nipple bed
- French drilling pattern (staggered holes)
- spoke holes drilled 8° radial and 2° axial
- max. spoke tension 1400N
- recommended tyre width 29mm to 71mm
- axle load up to 120kg
- ERD 600mm (maker figure)
- developed by Ryde for cargo bikes and high loads
