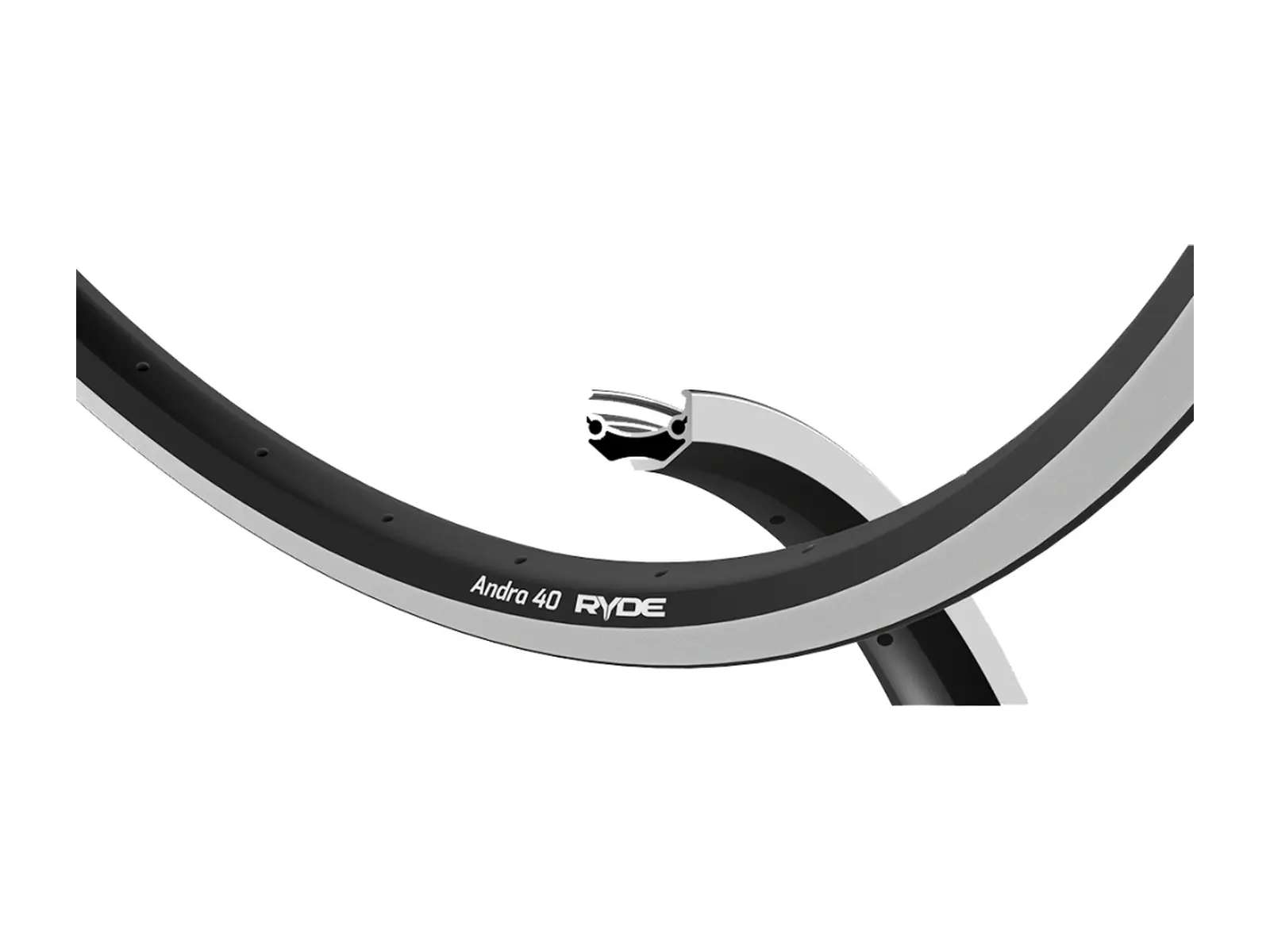

Ryde "Andra 40" BMX Race Rim - 20 Inch V-Brake
-
Weight : 0.53kg / 1.17lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36969
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The Ryde "Andra 40" BMX Race Rim - 20 Inch V-Brake is Ryde's Andra 40 in 20 inch (406) with a CNC machined brake track for V-brakes: a pinned double wall rim made of 6063-T6 aluminium, powder coated, 25mm internal width for tyres from 29 to 71mm, built for a 120kg axle load and 1400N spoke tension. The nipple bed is thick and internally reinforced, the spoke holes are drilled 8 degrees radially and 2 degrees axially towards the hub, the valve hole takes Schrader valves. With 32 or 36 holes for 20 inch rim brake wheels, on a BMX race bike as on a kids bike.
Facts: Ryde "Andra 40" BMX Race Rim - 20 Inch V-Brake
- Wheel Size: 20"
- Material: 6063-T6 aluminium, double wall, powder coated, CNC machined brake track
- Seam: Pinned
- Holes: 32H or 36H

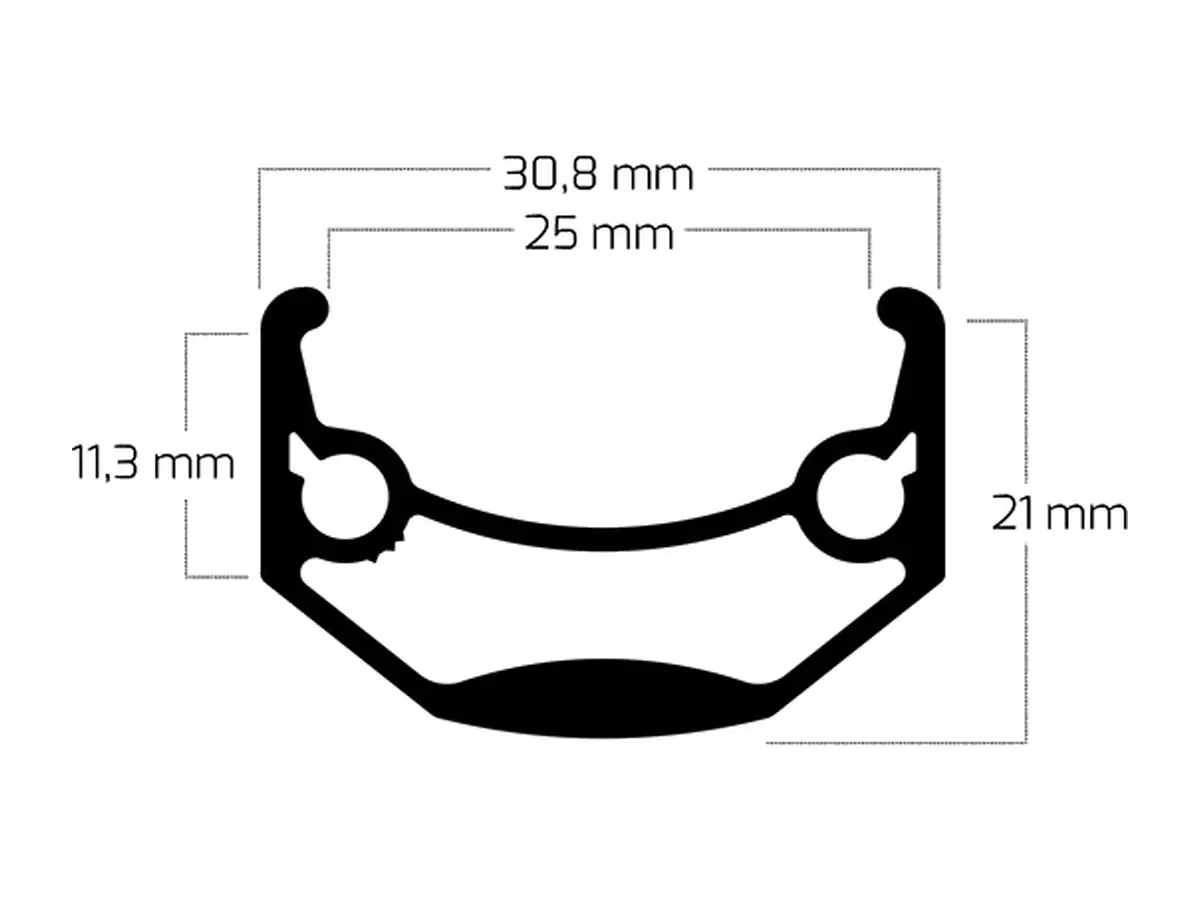

- Width: 25mm internal, 30.8mm external
- Height (Rim Wall): 21mm
- ETRTO ⌀: 406mm
- Rim Wall: straight wall, 11.3mm CNC machined brake track for rim brakes (V-brake)
- Valve Hole Diameter: 8.5mm for Schrader valve
- Spoke Arrangement: Regular, cross laced
- Contains: 1 rim
- Extras:
- not tubeless ready, for tube tyres
- hooked rim (crotchet)
- no eyelets, internally reinforced nipple bed
- French drilling pattern (staggered holes)
- spoke holes drilled 8° radial and 2° axial
- max. spoke tension 1400N
- recommended tyre width 29mm to 71mm
- axle load up to 120kg
- developed by Ryde for cargo bikes and high loads
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
