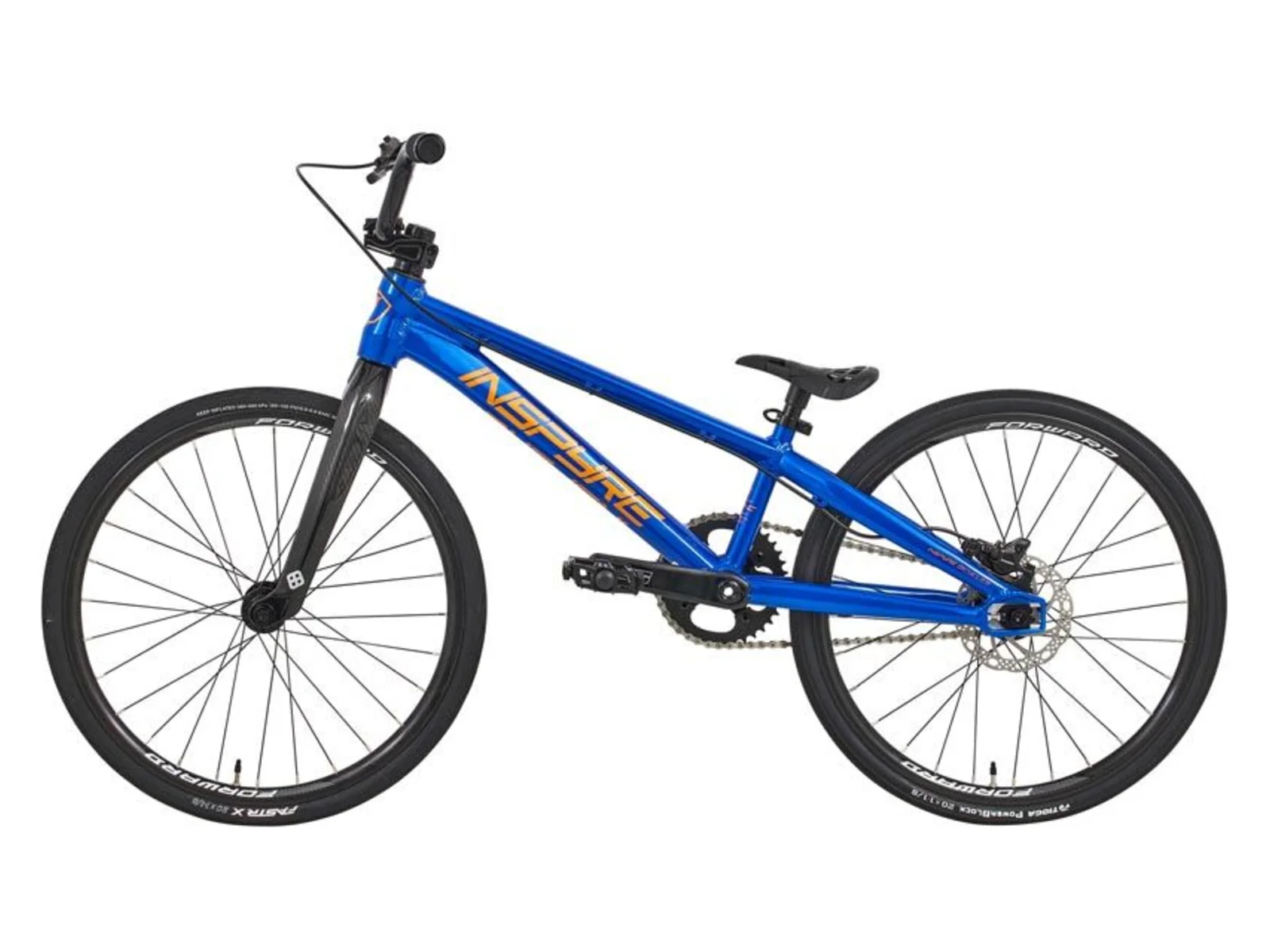

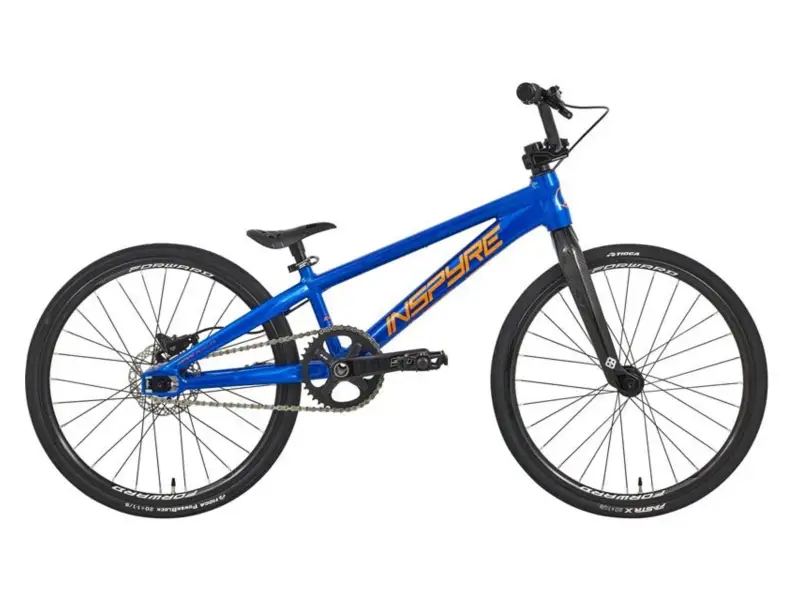

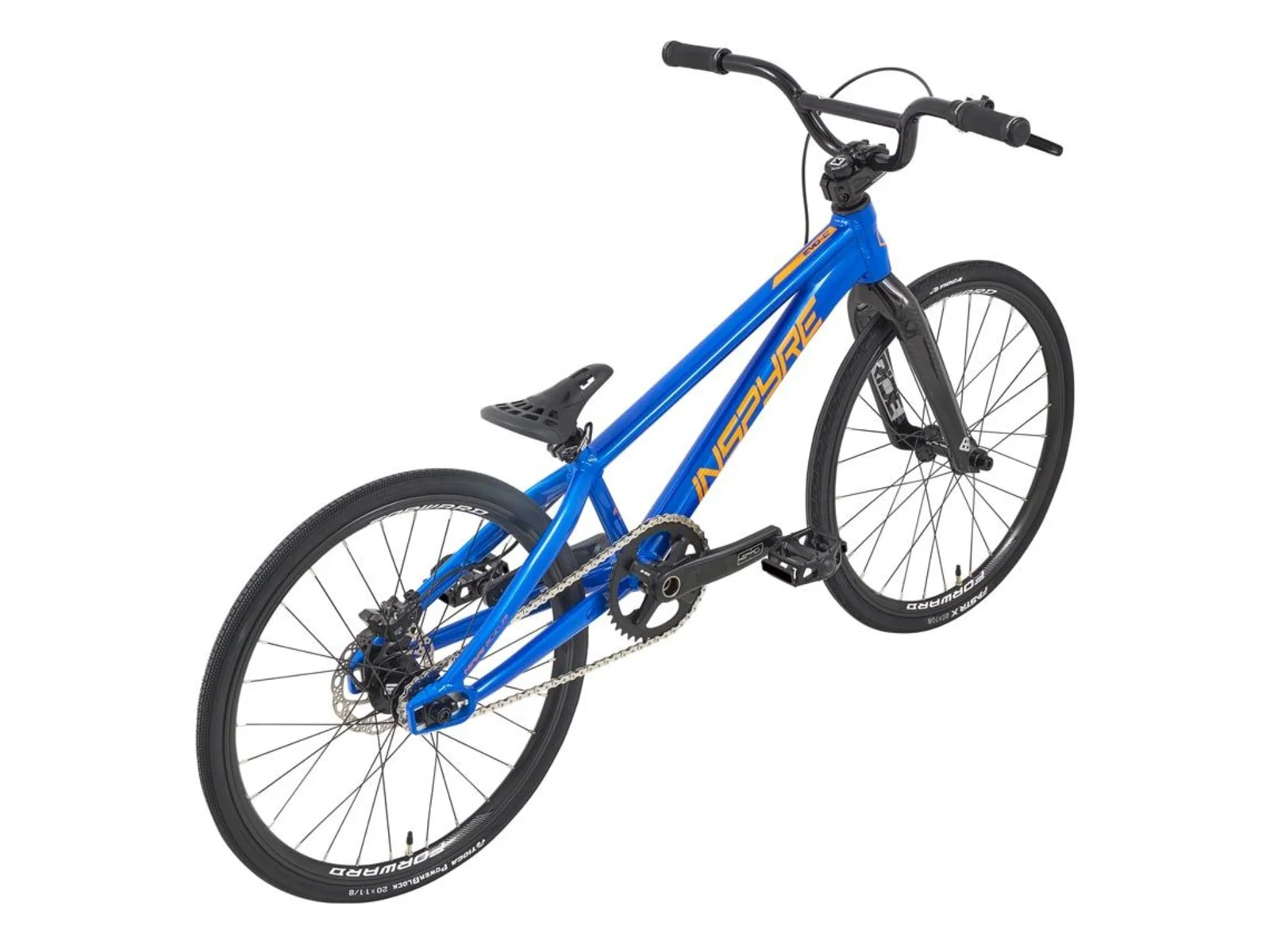

Inspyre Bicycles "Evo-C Disk Junior" BMX Race Bike - Blue
-
Weight : 7.6kg / 16.76lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 30307
The Inspyre Bicycles "Evo-C Disk Junior" BMX Race Bike - Blue is the ultimate racing machine for young talents, offering no compromises in speed and agility thanks to its hydroformed aluminum frame and Pride Racing Apex carbon fork. With precise Shimano hydraulic disc brakes and the high-efficiency Forward Joyride V2 drivetrain, the Inspyre Bicycles "Evo-C Disk Junior" BMX Race Bike - Blue gives you the performance needed to head straight for the podium on the race track.
Facts: Inspyre Bicycles "Evo-C Disk Junior" BMX Race Bike - Blue
- Wheel Size: 20"
- Race Size: Junior
- BMX Frame: Inspyre Evo-C Disk Junior 18.75’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts
- Frame Geometry:
- Top Tube (TT): 18.75"
- Chainstay (CS): 12.8"
- Head Tube (HA): 73°
- Seat Tube (SA): 71°
- BB Height (BB): 10.8"
- Frame Height: N/A
- Standover (SO): N/A - BMX Fork: Pride Racing APEX - Carbon - 1-1/8’’ Aluminum Steerer - 10mm dropouts
- BMX Handlebar: Inspyre Evo - Aluminium - 22.2mm clamping
- Rise: 4.25"
- Width: 22"
- Backsweep: 7°
- Upsweep: 2°
- Bar Clamping: 22.2mm - Grips: Forward Lock On 95mm - Kraton
- Stem: Forward - Top Load - Aluminum 6061-T6 - 40mm reach
- Headset: Semi Integrated - Sealed bearings - ZS44 | ZS44
- Brake Lever (Right): Shimano BL-MT401 - Aluminium - 2-finger
- Brake (Rear): Shimano BR-MT410 Hydraulic Disc Brake - Post Mount - Resin Pads - 140mm Disc
- Saddle: Combo Saddle Nylon - Padded - 168x108mm
- Seat Post: PC Combo - Aluminium - 162mm - 22.2mm
- Seat Clamp: Forward AM 25.4mm - Aluminium
- Pedals: Aluminum Mini 9/16"
- Chain: KMC® Z-1 - 1/2’’ x 3/32’’
- Sprocket: Aluminium - 4-bolt (104 BCD) - 38T
- Crank: SD B85 - 2-piece - 4-bolt - 150mm
- Bottom Bracket: FORWARD® external BSA - Sealed bearings
- Hub (Front): Forward Joyride V2 - Aluminum - Sealed bearings - 10mm Female bolts - 28H
- Hub (Rear): Forward Joyride V2 Disc - Aluminum Cassette - Sealed bearings - 10mm Female bolts - 28H
- Driver: 16T Cog (Chromoly) - 150 engagement points - 6-pawl system - Rim (Front): Forward Joyride - Aluminum - Double-wall - 28H
- Rim (Rear): Forward Joyride - Aluminum - Double-wall - 28H
- Tire (Front): Tioga Fastr X BMX Race Tire
- Width: 20" x 1-1/8" - Tire (Rear): Tioga Powerblock BMX Race Tire
- Width: 20" x 1-1/8" - Delivery: The BMX bike is delivered pre-assembled in a box. For final assembly, only the handlebars, front wheel, pedals, and seat need to be attached. Tools not included.
- Scope of Application: BMX Race – developed for BMX race tracks or pump tracks
