Pride Racing "ZS56/40" Lower Headset (semi-integrated)
- Weight : 0.05kg / 0.11lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 35819
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/pride-racing-zs5640-lower-headset-semi-integrated-p-35819
Printed: 10/31/2026
Printed: 10/31/2026

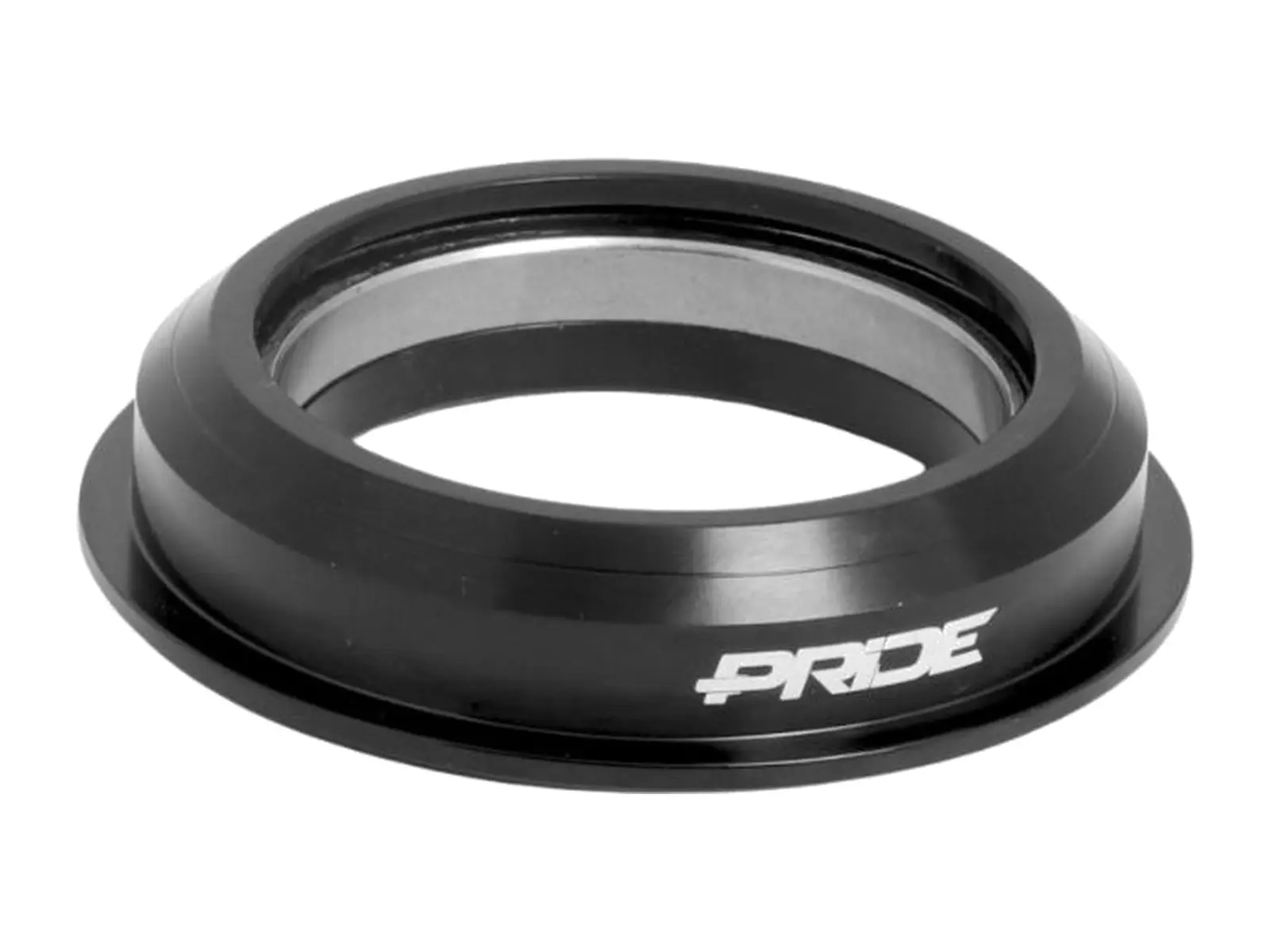

The Pride Racing "ZS56/40" Lower Headset (semi-integrated) is the lower headset assembly in ZS56/40 for semi-integrated head tubes with a 56mm inner diameter at the bottom and a tapered 1.5 inch steerer. The set holds the lower cup, the sealed bearing and the 1.5 inch fork crown race, the cup is CNC machined from aluminium. The matching upper part is the Pride Racing ZS44/28.6. Pride recommends installation by a professional as it requires specific tools.
Facts: Pride Racing "ZS56/40" Lower Headset (semi-integrated)
- Material: aluminium, CNC machined, steel bearing
- Size: 1-1/8" - 1.5" (28.6mm - 38.1mm) 45°x45°
- SHIS: ZS56/40, semi-integrated (lower part), head tube 56mm inner diameter
- Fork compatibility: tapered 1-1/8" to 1.5" (40mm) - Bearing: 1 x sealed bearing, 51.9 x 40mm, 45°x45°

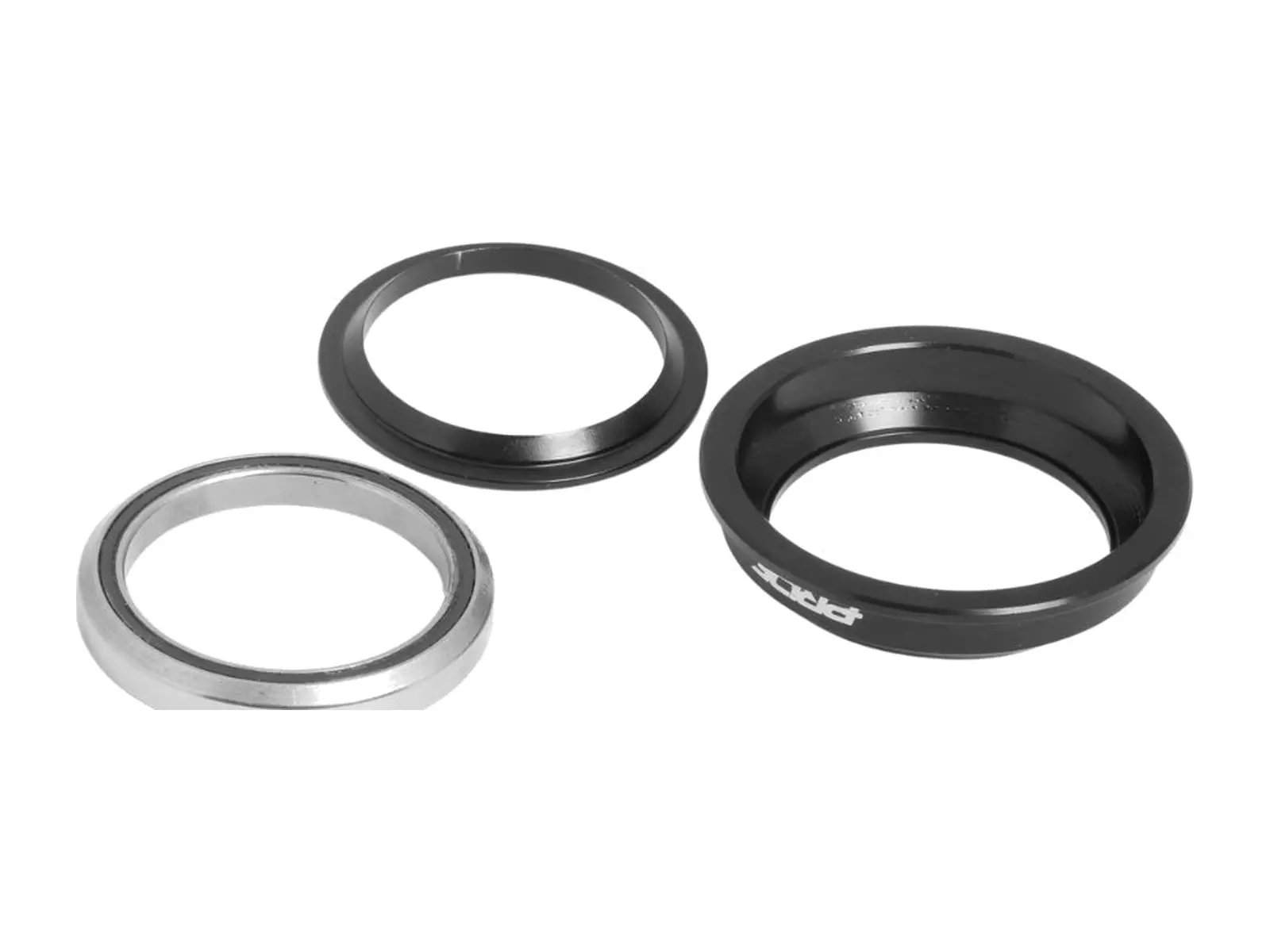

- Kit contents: 1x lower cup, 1x bearing, 1x fork crown race 1.5", weight: 52g, matching upper part: Pride Racing ZS44/28.6, installation by a professional recommended
