Pride Racing "ZS44/28.6" Upper Headset (semi-integrated)
- Weight : 0.05kg / 0.11lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 35818
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/pride-racing-zs44286-upper-headset-semi-integrated-p-35818
Printed: 10/31/2026
Printed: 10/31/2026

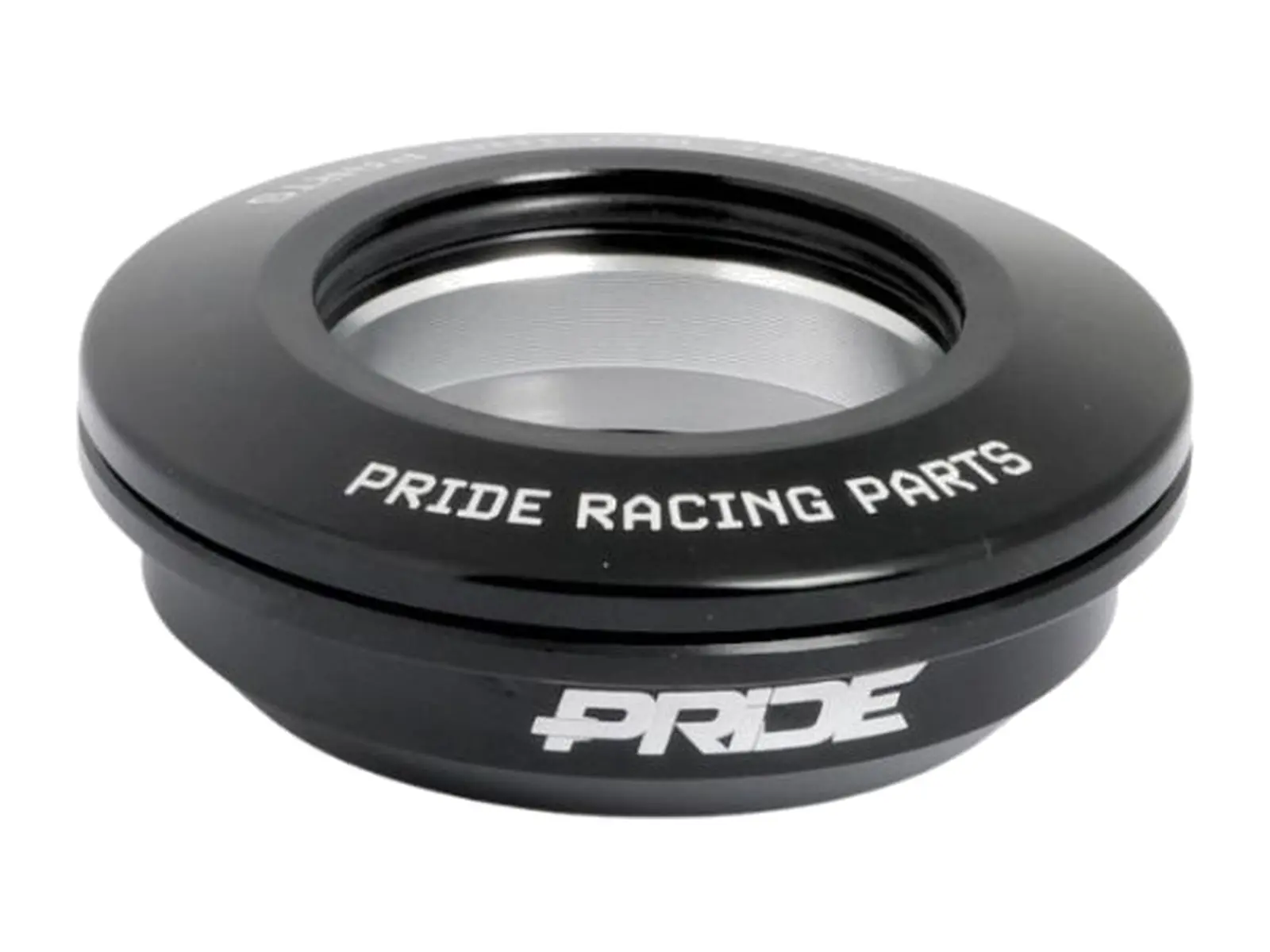

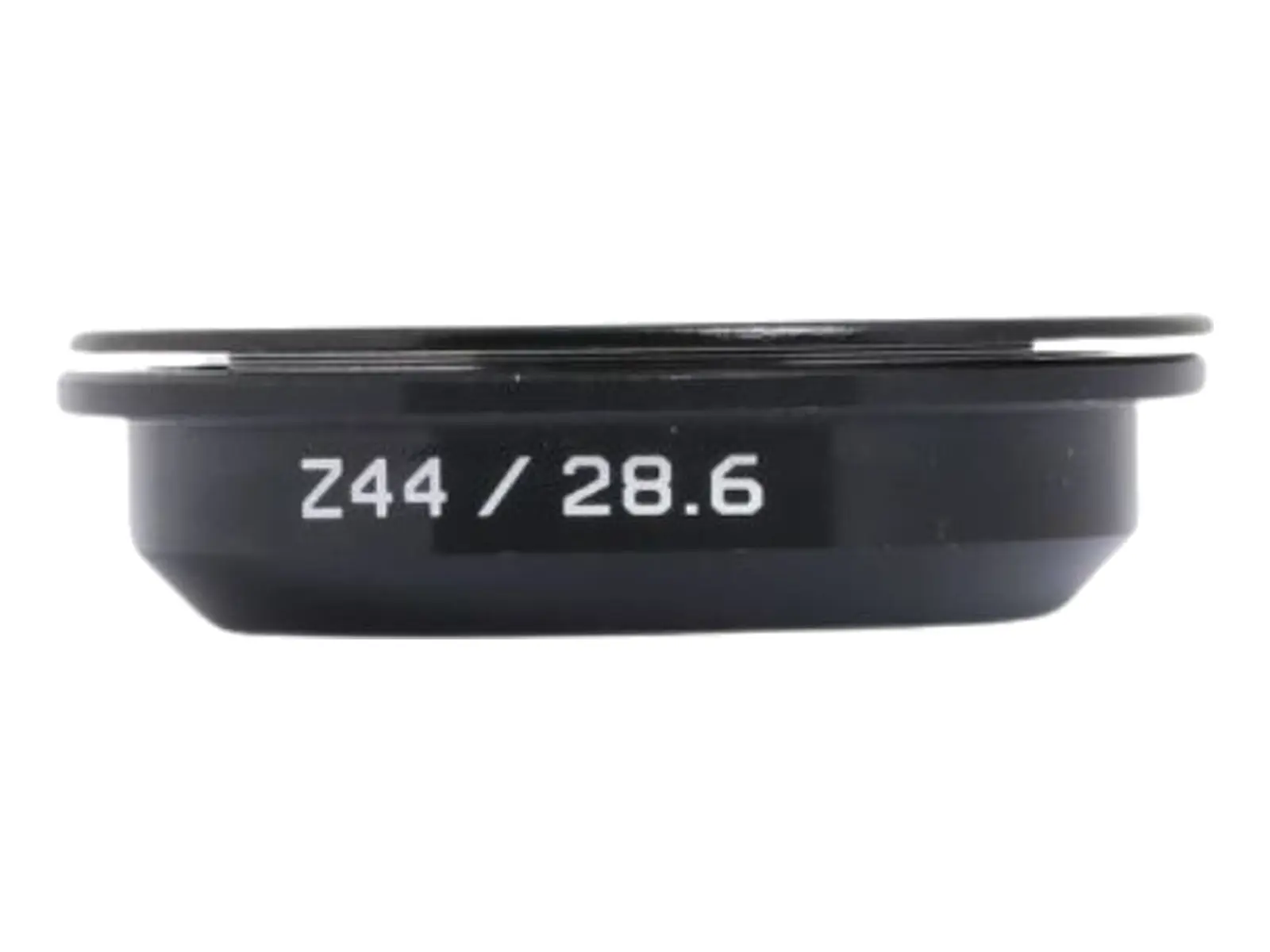

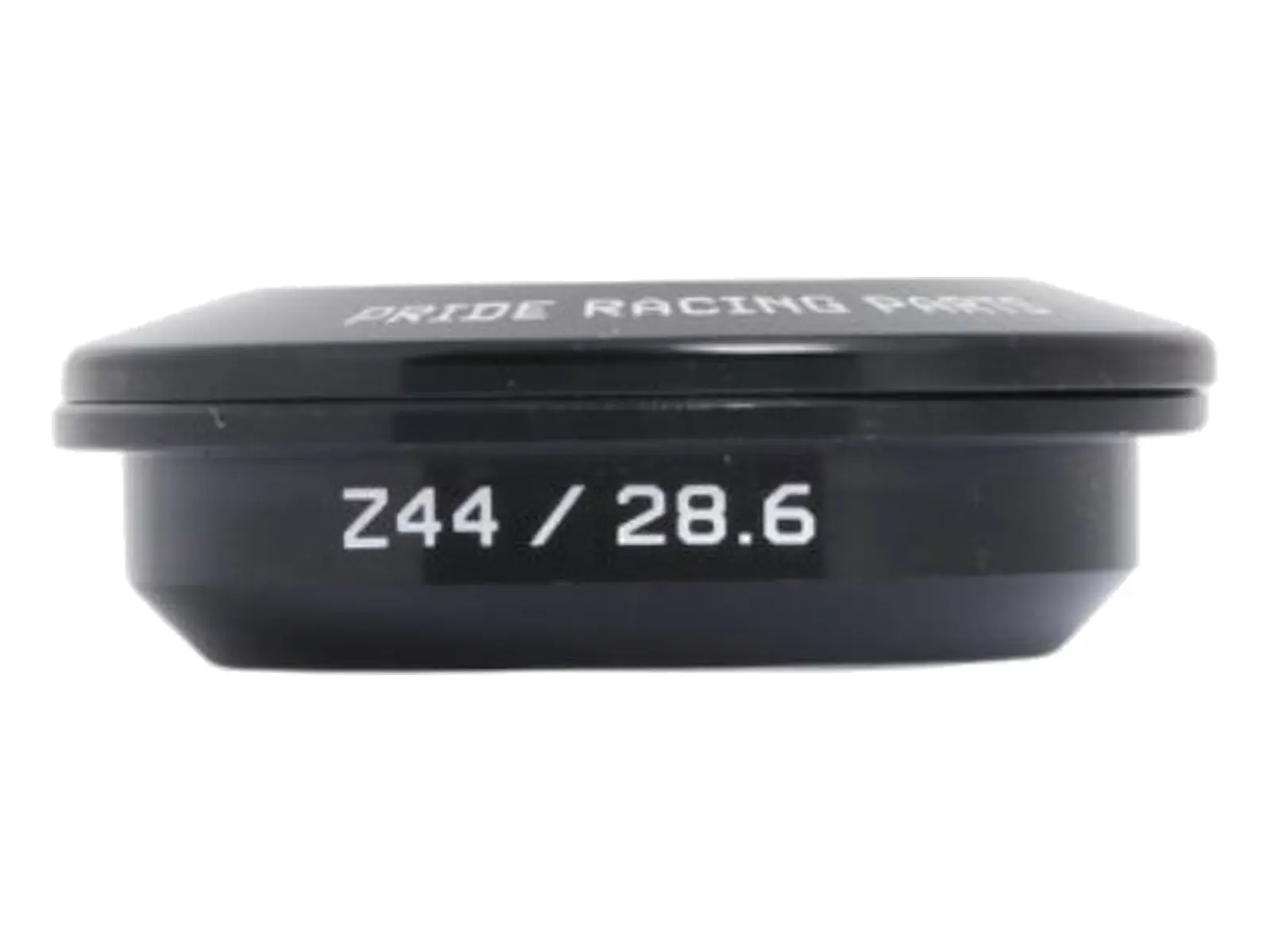

The Pride Racing "ZS44/28.6" Upper Headset (semi-integrated) is the upper headset assembly in ZS44/28.6 for semi-integrated head tubes with a 44mm inner diameter at the top. The cup is CNC machined from aluminium, the bearing is sealed. The set comes with two top covers of 1mm and 5mm height, so the stack height at the cockpit can be adjusted. Fits 1-1/8 inch steerers, as the upper part also on tapered forks with 1-1/8 to 1.5 inch. The matching lower part is the Pride Racing ZS56/40. Pride recommends installation by a professional as it requires specific tools.
Facts: Pride Racing "ZS44/28.6" Upper Headset (semi-integrated)
- Material: aluminium, CNC machined, steel bearing
- Size: 1-1/8" (28.6mm) or 1-1/8" - 1.5" (28.6mm - 38.1mm) Campagnolo 45°x45°
- SHIS: ZS44/28.6, semi-integrated (upper part), head tube 44mm inner diameter
- Fork compatibility: 1-1/8" (28.6mm), as the upper part also tapered 1-1/8" to 1.5" - Bearing: 1 x sealed bearing, 41 x 30.15mm, 45°x45°

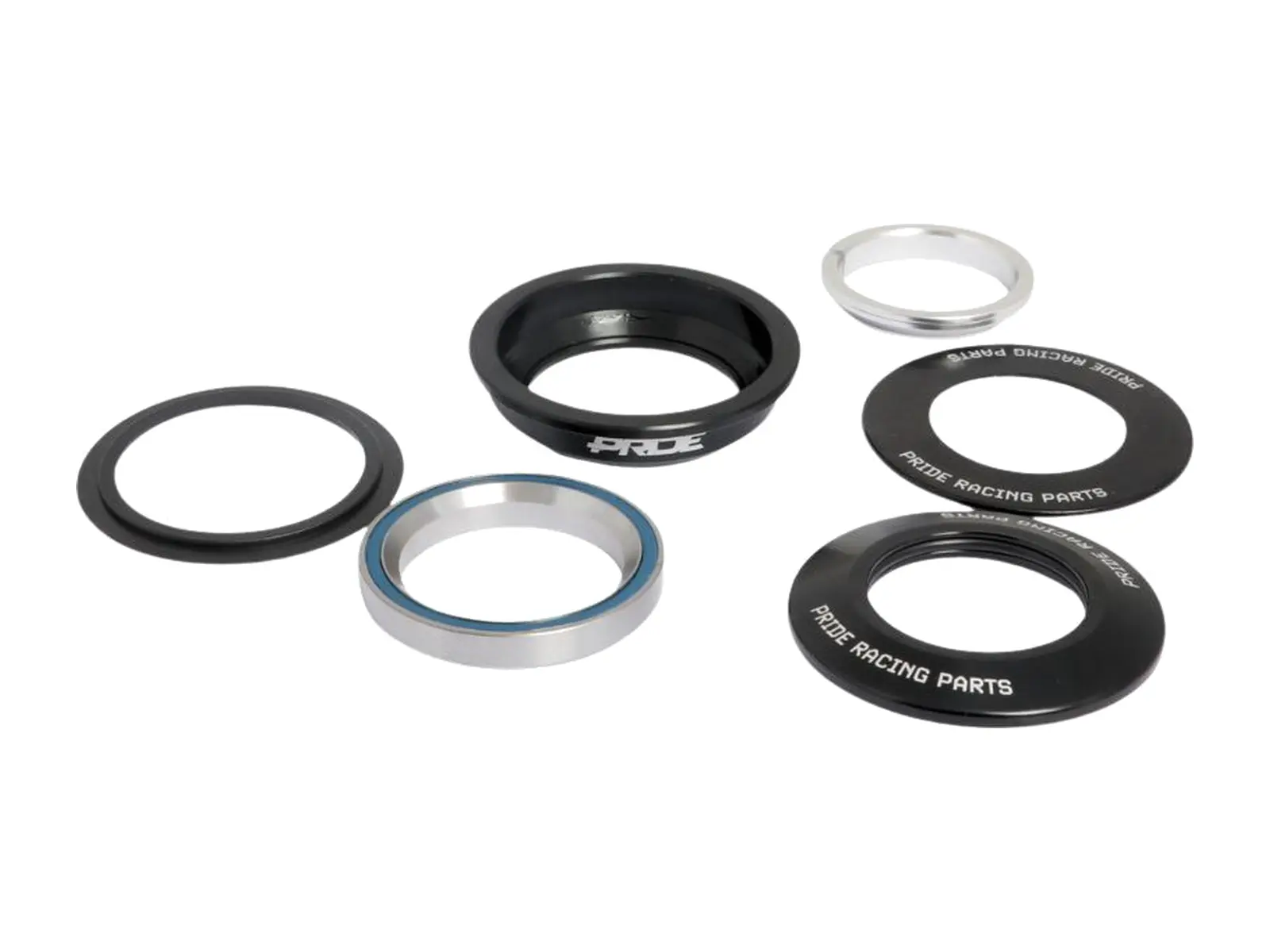

- Kit contents: 1x upper cup, 1x bearing, 1x compression ring, 1x bearing seal, 2x top cover (1mm and 5mm) for two stack heights, weight: 34g (1mm cover) / 44g (5mm cover), matching lower part: Pride Racing ZS56/40, installation by a professional recommended
