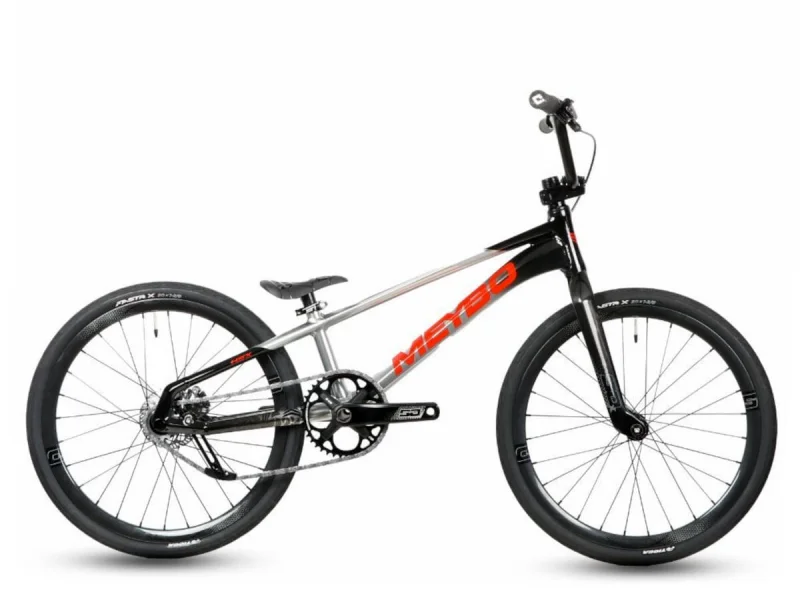

Meybo "HSX Alu Expert" 2025 BMX Race Bike - Black/Red/Grey
-
Weight : 7.2kg / 15.87lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28489
The Meybo "HSX Alu Expert" 2025 BMX Race Bike - Black/Red/Grey is a high-quality BMX race bike designed specifically for riders who want to maximize their performance on the track. This model stands out with its advanced geometry and top-tier components, such as a Shimano XT M-8110 Flatmount hydraulic brake, Tioga "Fastr X" tires, a fort made of carbon and a frame made of 6061-T6 aluminum, multi-butted and hydroformed, ensuring optimal control, responsiveness, and speed. The top tube length of the Meybo "HSX Alu Expert" 2025 BMX Race Bike - Black/Red/Grey ,measuring 19.96", is suitable for riders up to approximately 1.60m in height.
Facts: Meybo "HSX Alu Expert" 2025 BMX Race Bike - Black/Red/Grey
- Wheel size: 20"
- BMX frame: Meybo "HSX", T6-6061 hydro aluminum
Top tube (TT): 19.69"
Chain stay (CS): 13.58"
Head tube (HA): 73.5°
Seat tube (SA): 71° - BMX fork: SD "Carbon V2", 1-1/8" 10mm
- BMX handlebar: SD, aluminum, 5.5", 1-piece
- Grips: ODI x Meybo "Ruffian" - 135mm long
- Stem: SD, topload, 40mm offset
- Headset: SD, sealed, 1-1/8" A-head set
- Rotor: -
- Brake lever: Shimano "XT", flatmount M8110, aluminum, hydraulic
- Brake (rear): Shimano "XT MT-8110" Flatmount aluminum, hydraulic, SD "Grimeca" 120mm rotor disc
- Saddle: Box "Mini" Combo
- Seat post: Combo, aluminum, 25.4mm
- Seat clamp: SD, aluminum, 28.5mm
- Pedals: -
- Chain: KMC "Z1EHX Narrow" - Ti-N GOLD 1/2" x 3/32"
- Chainring: SD "CNC V2" Alu 6061, aluminum, 4H, 40T
- Crank: SD "B-85" 4H, 160mm long, 9/16"
- Bottom bracket: SD "Threaded Lock", BB86, 24mm, Sealed Bearing
- Hub (front): SD "X-Lite", aluminum, sealed, 10mm, female screws, 36h
- Hub (rear): SD "HSX Expert" cassette, disc brake mount, 36H, 15mm female screws
Driver: 16T - Rim (front): SD "M08", carbon, 36H, 20" x 1-3/8"
- Rim (rear): SD "M08", carbon, 36H, 20" x 1-3/8"
- Tires (front): Tioga "Fastr X" BMX Race Tires
Width: 20" x 1-3/8" - Tires (rear): Tioga "Fastr X" BMX Race Tires
Width: 20" x 1-3/8" - Pegs: -
