Volume Bikes "Velocity" BMX Frame
- Weight (in kg): 2.4
- Weight (in lbs): 5.29
- Packaging Unit: 1 Piece
- Product ID (PID): 25078

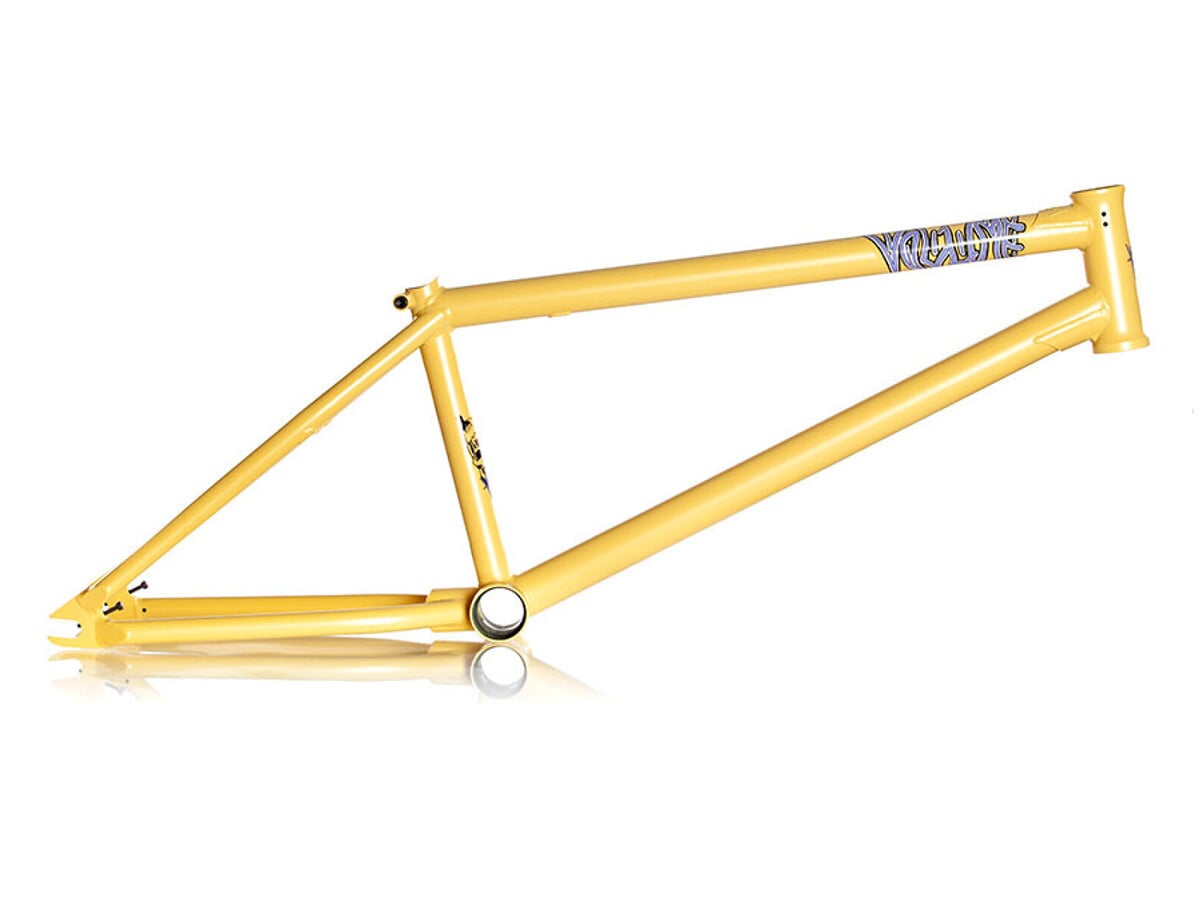

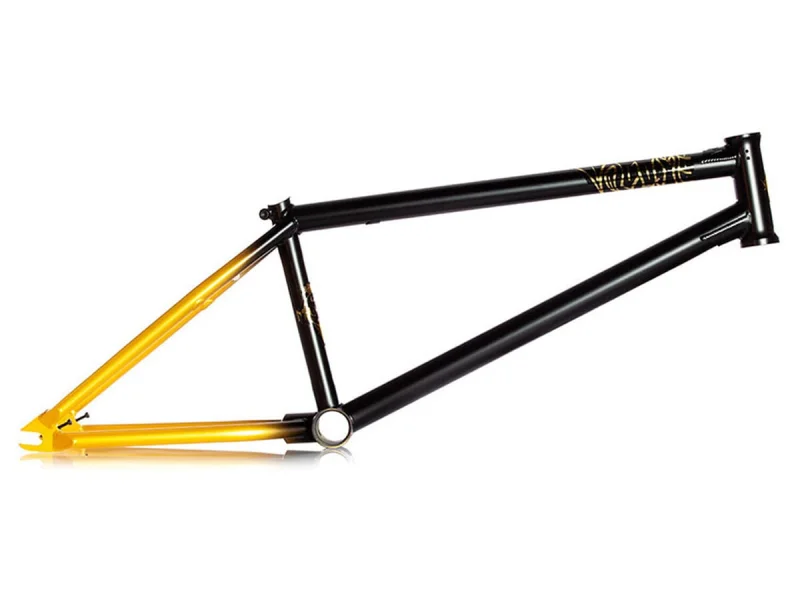

The Volume Bikes "Velocity" BMX Frame offers a technical riding experience thanks to the short 12.75" rear end. The frame is made of high-quality, 100% heat-treated 4130 CrMo and has a 75.5° head tube with small 6mm dropouts and a 11.8" high bottom bracket.
Facts: Volume Bikes "Velocity" BMX Frame
- Wheel Size: 20"
- Material: 100% heat treated 4130 CrMo, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated seatclamp, removable brake hardware, Mid BB
- Geometry:
Top Tube Length (TT): 20.75" or 21.0"
Chainstay Length (CS): 12.75" (32.39cm) - 13.25" (33.65cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.8" (29.97cm)
Standover Height (SO): 9.5" (24.13cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: heat treated, 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: wide rear end for fat 2.4" tires
- Model Year: 2023
