Chromag "Rootdown" MTB Frame - 29 Inch
-
Weight : 3.5kg / 7.72lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 37680
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

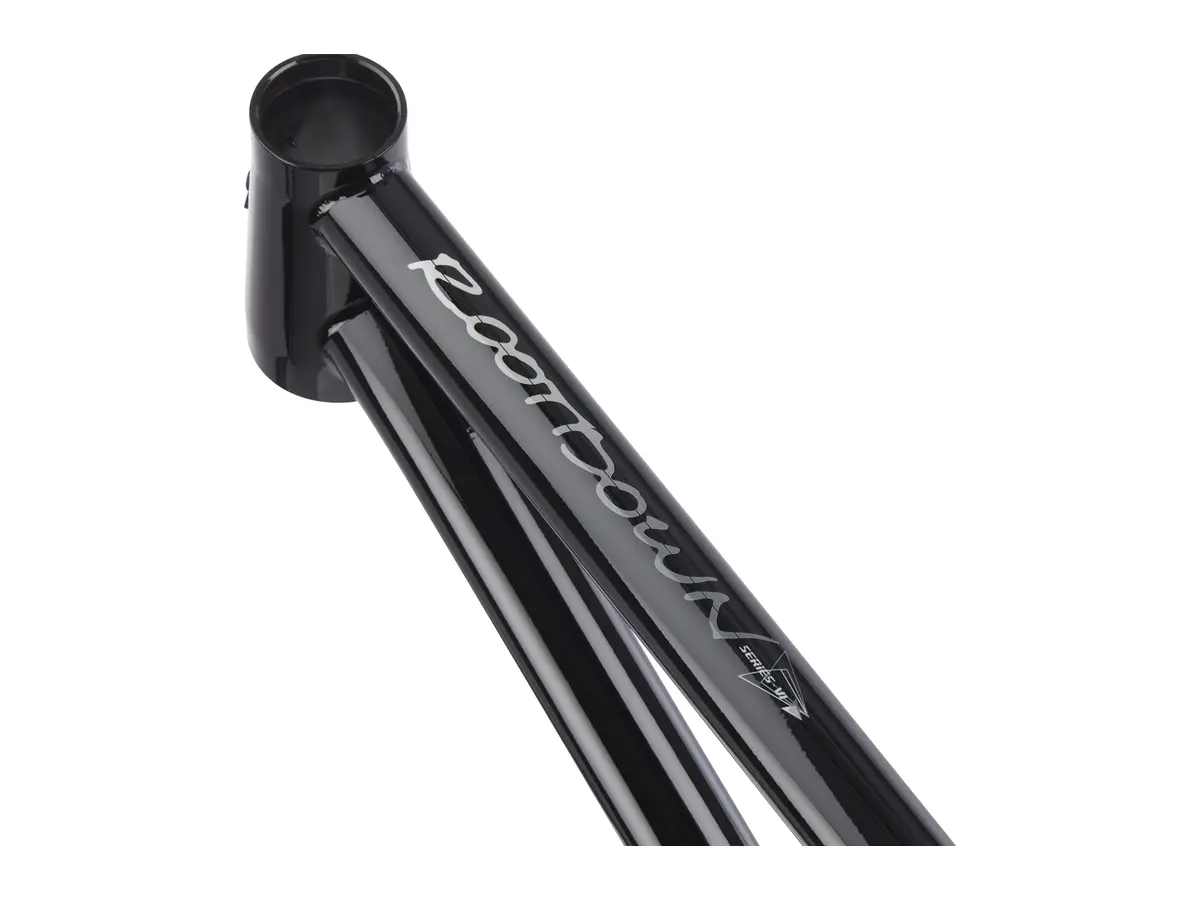

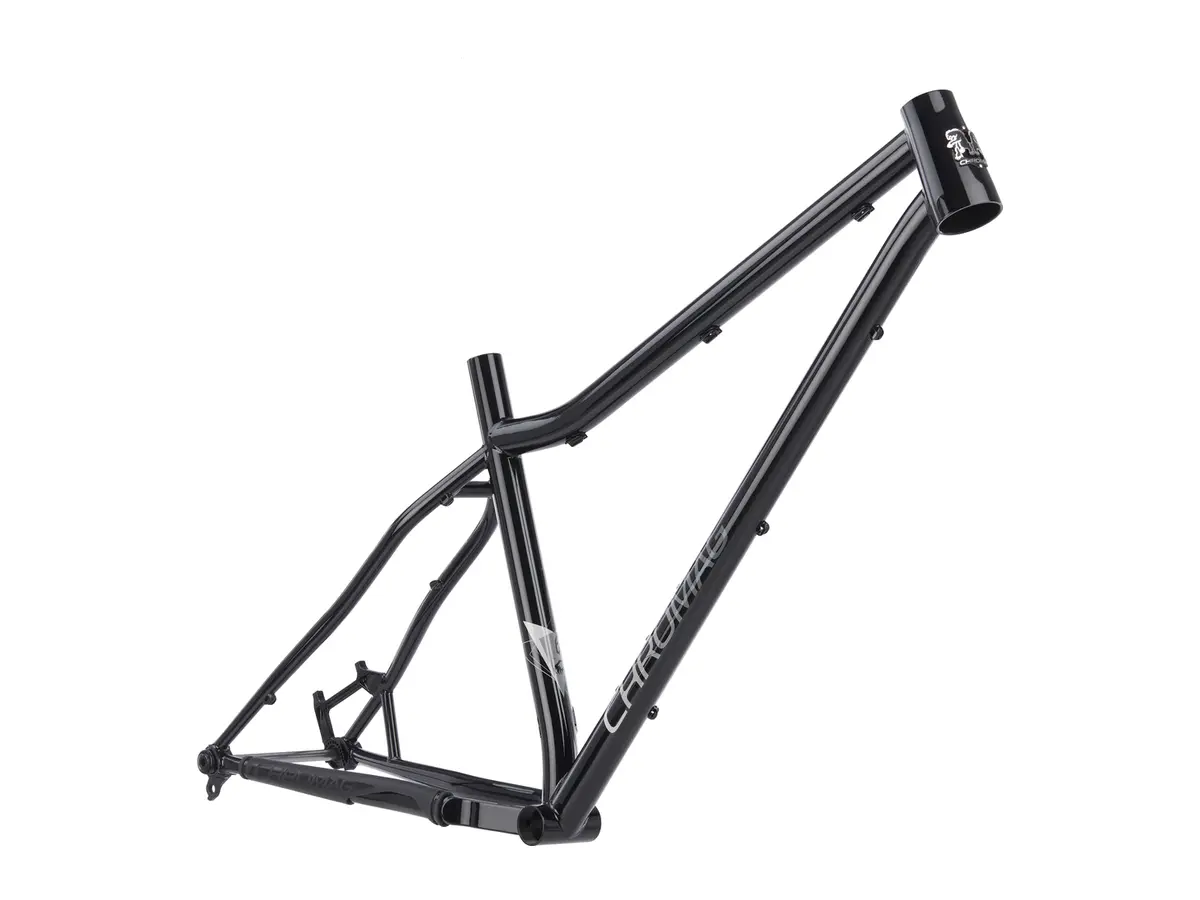

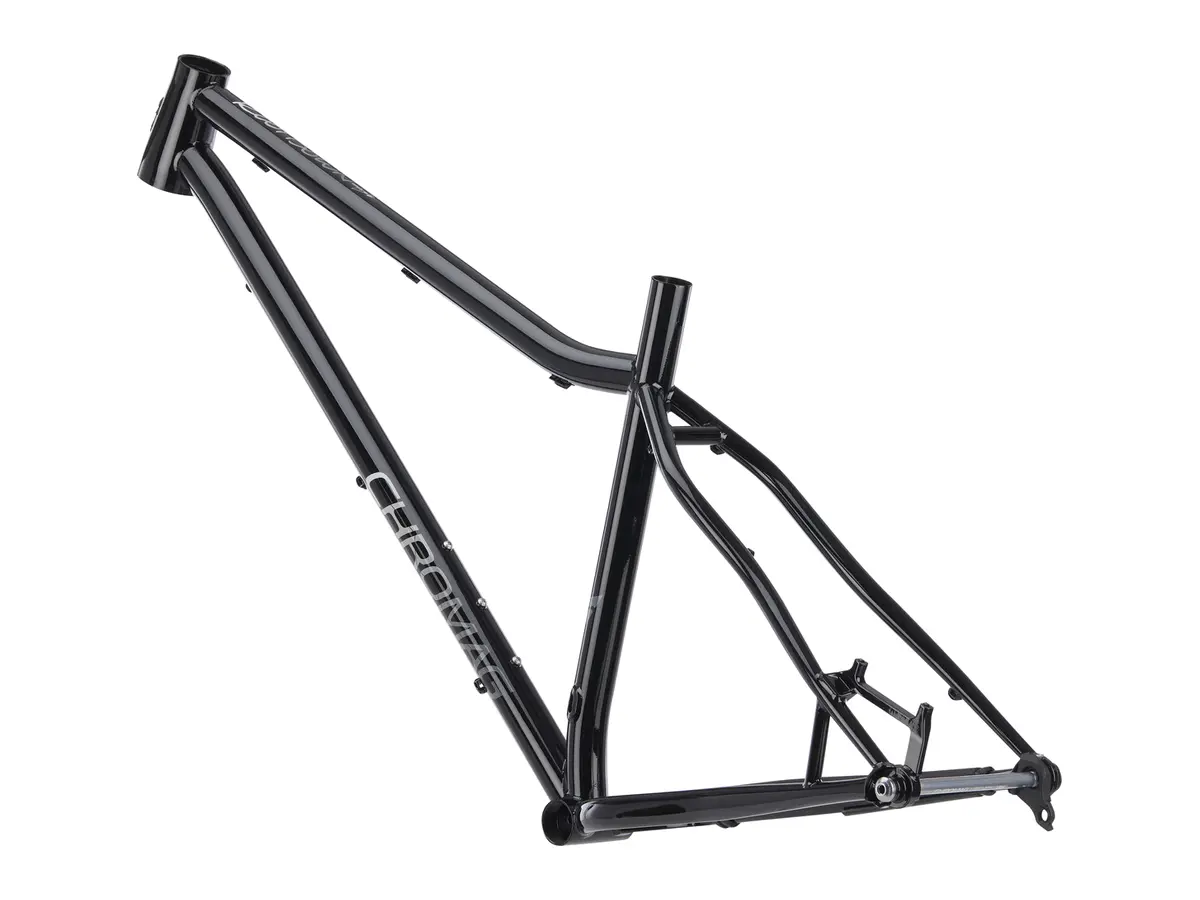

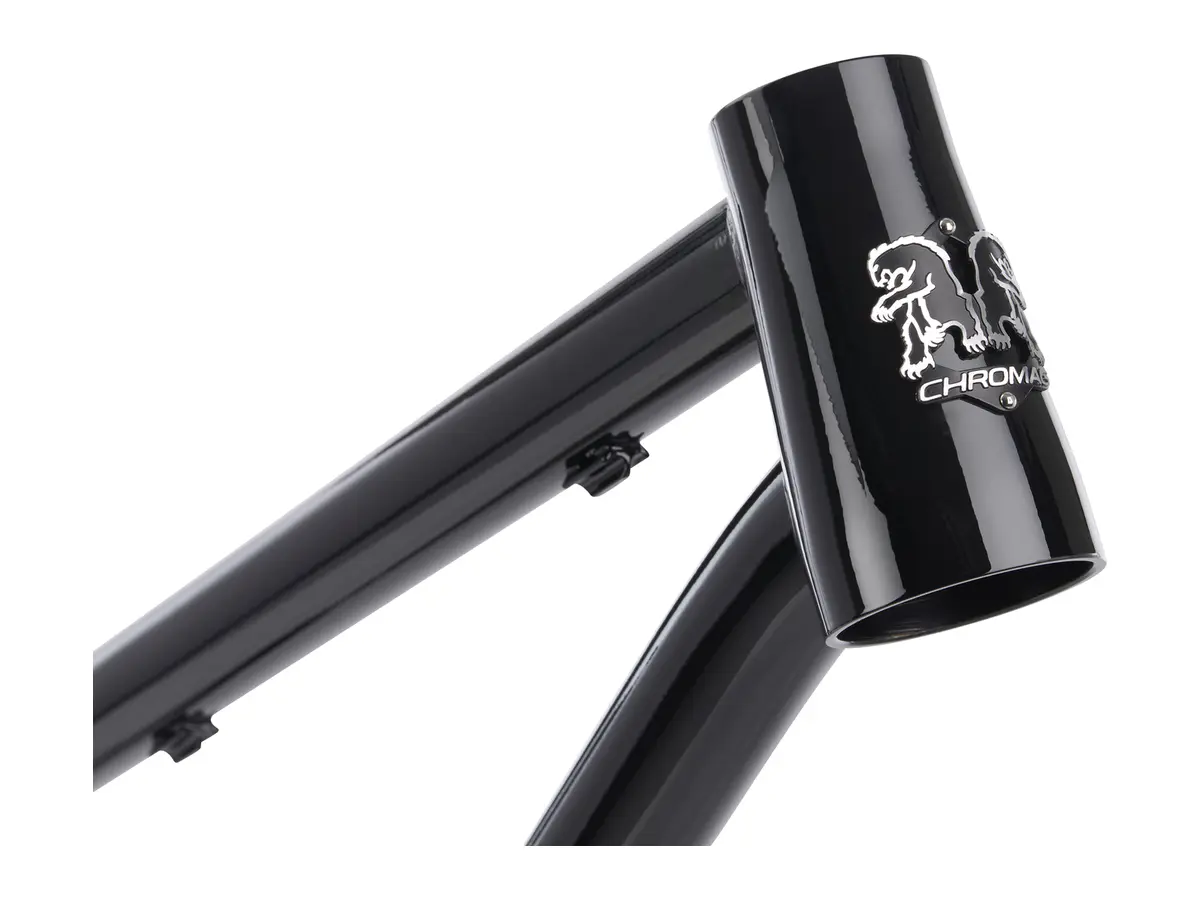

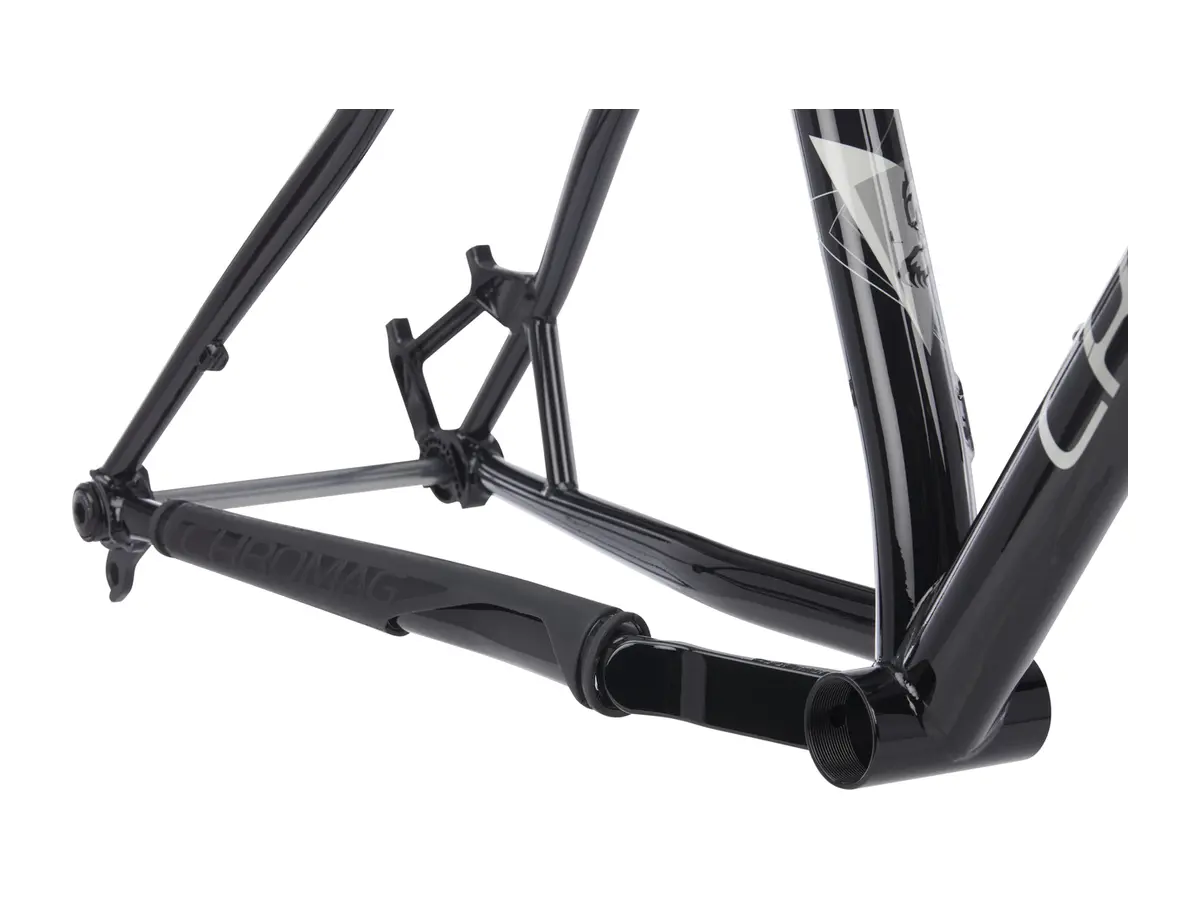

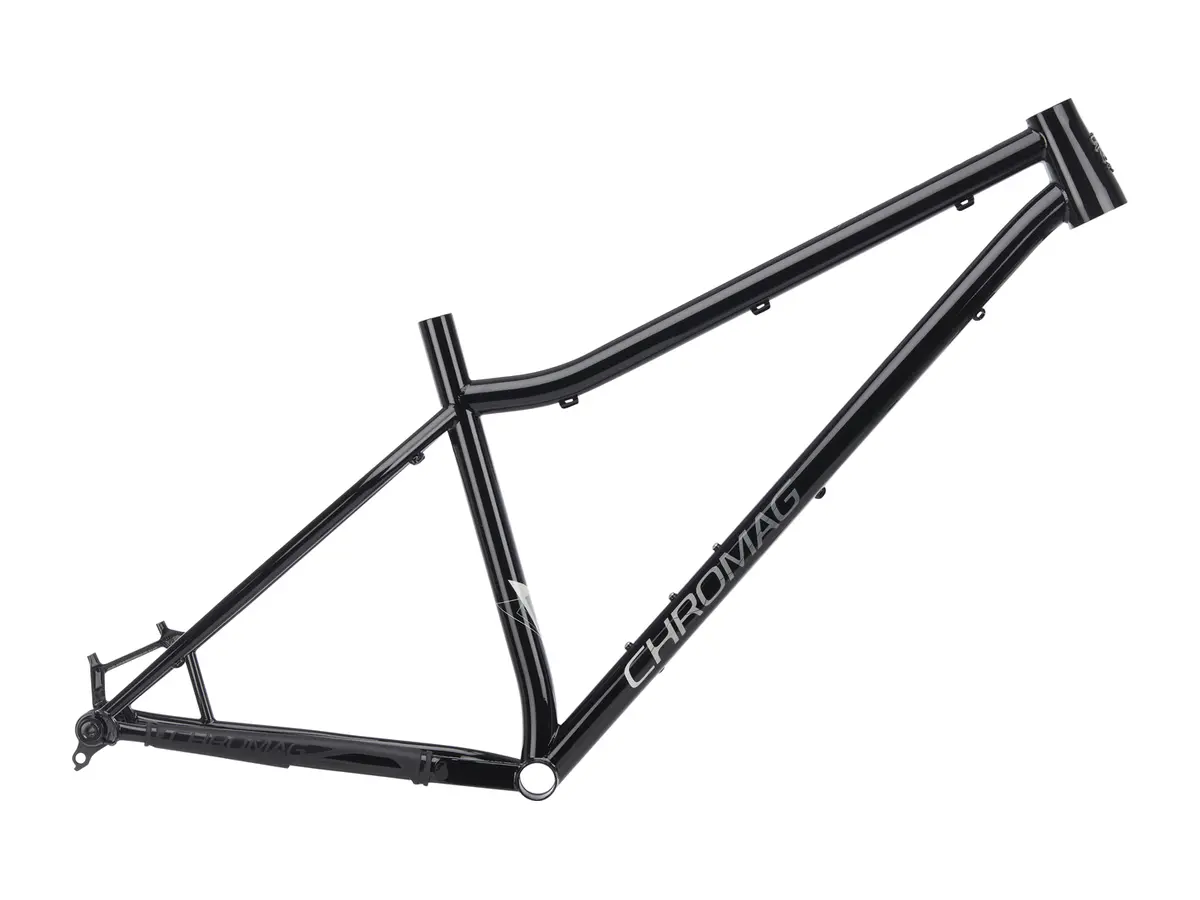

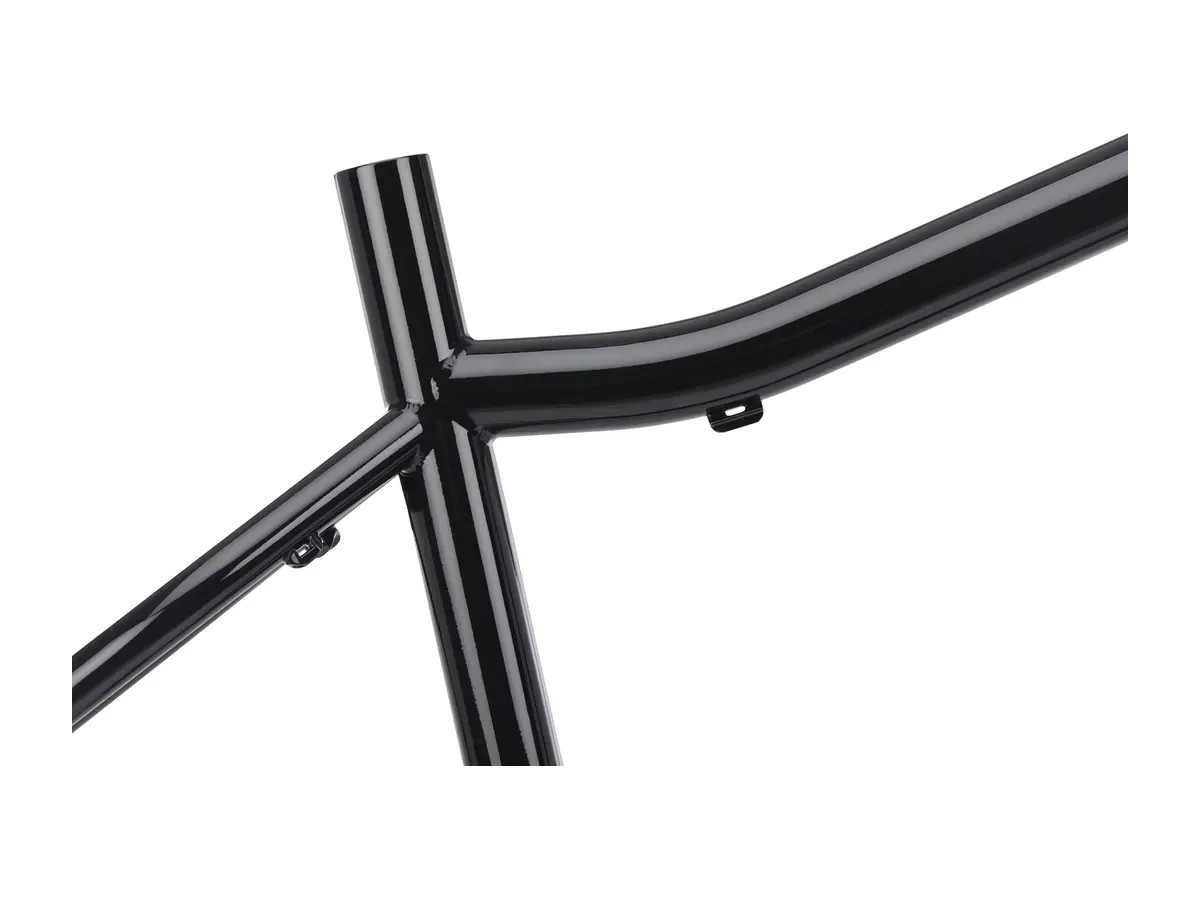

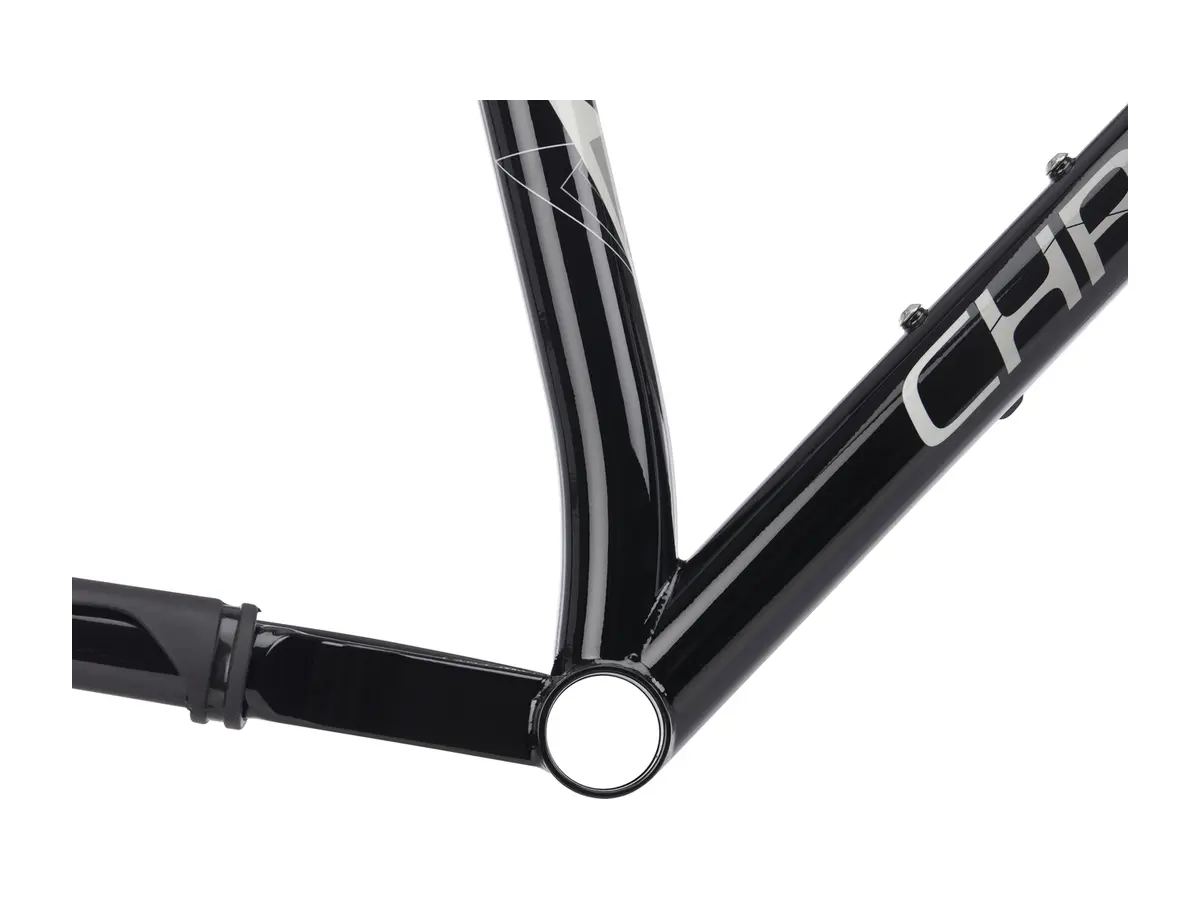

The Chromag "Rootdown" MTB Frame - 29 Inch is Chromag's enduro hardtail in 4130 CrMo steel, 29 inch (also rideable with 27.5") and designed for a 160 mm fork. 64° head angle, 76° seat angle, 425 mm chainstays and a low bottom bracket with 50.8 mm BB drop make it the hardtail for steep trails and the bike park. BSA bottom bracket, 31.6 mm seatpost with 35 mm clamp, Boost thru axle, PM7 brake mount for 180 mm rotors, room for 29 x 2.5" tyres, one bottle mount, 1x drivetrain only. Supplied with thru axle, chainstay protector and derailleur hanger, here in size S in Black Gradient.
Facts: Chromag "Rootdown" MTB Frame - 29 Inch
- Recommended rider height:
- S: 155-165 cm - Wheel size: 29"
- Material: 4130 CrMo steel
- Geometry:
- Reach: 421 mm (S)
- Stack: 630 mm (S)
- Effective toptube (TT): 578 mm (S)
- Headtube length: 105 mm (S)
- Seattube length: 368 mm (S)
- Wheelbase: 1177 mm (S)
- Standover (SO): 677 mm (S)
- Chainstay (CS): 425 mm
- Headtube angle (HA): 64°
- Seattube angle (SA): 76°
- BB height: BB drop 50.8 mm - Seat clamp: 35 mm, bolt clamp
- Bottom Bracket: BSA, 73 mm
- Seatpost (dropper):
- Diameter: 31.6 mm
- Max. insertion: 188 mm (S) - Dropouts: 12 x 148 mm Boost thru axle
- Brake type: disc brake
- Brake mount: disc PM7 (direct mount 180 mm), max. 180 mm rotor rear
- Headset: 1 1/8" - 1.5" tapered
- Suspension (not included):
- Fork: 160 mm travel, tapered - Features:
- hardtail for 29" and 27.5" wheels
- 1x drivetrain only, no front derailleur mount
- tyre clearance 29 x 2.5"
- 1 bottle mount
- frame weight 3.5 kg according to the manufacturer - Contains: 1 frame, 1 rear axle Boost 148 x 12 mm, 1 chainstay protector, 1 derailleur hanger
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
