Chromag "Pilot BA" MTB Clipless Pedals
- Weight : 0.6kg / 1.32lbs
- Packaging Unit: Pair
- Product ID (PID): 37652
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/chromag-pilot-ba-mtb-clipless-pedals-p-37652
Printed: 11/03/2026
Printed: 11/03/2026

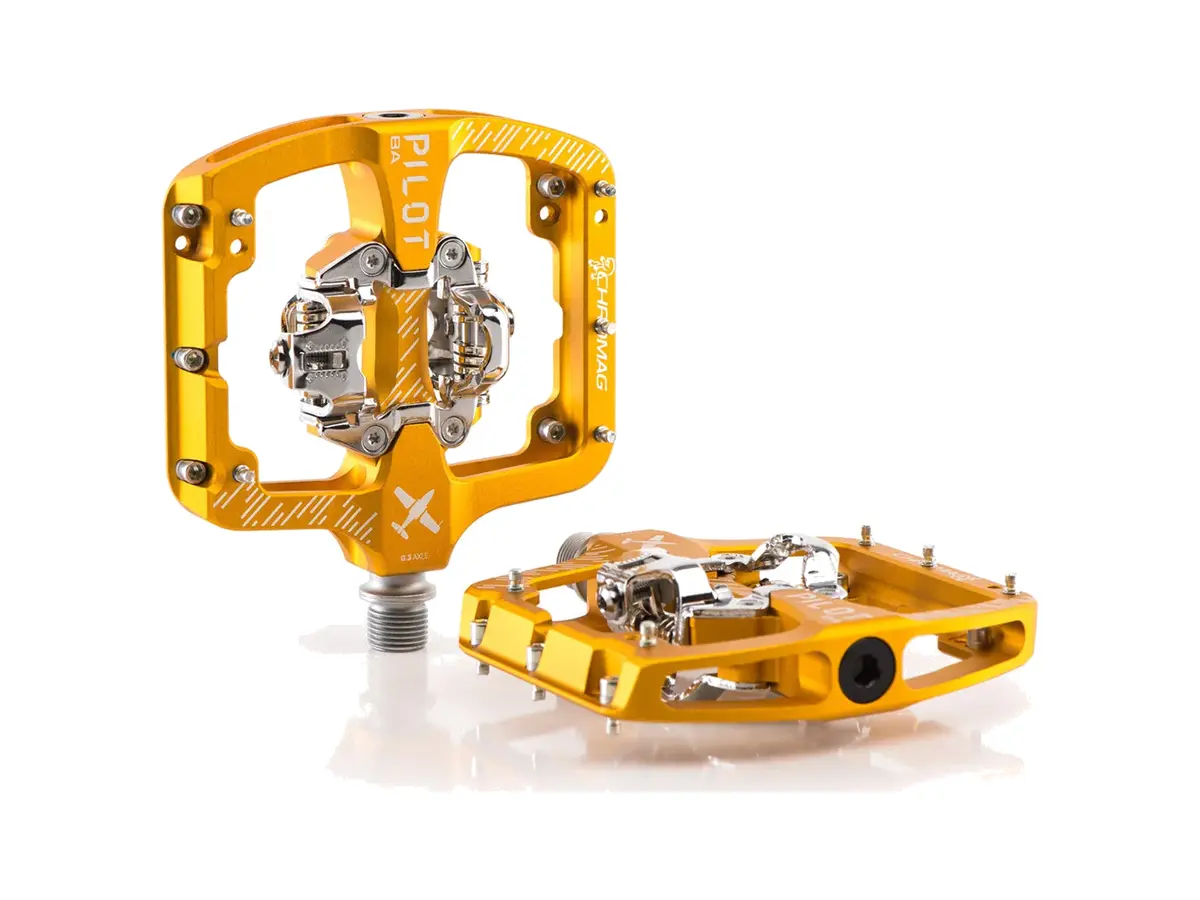

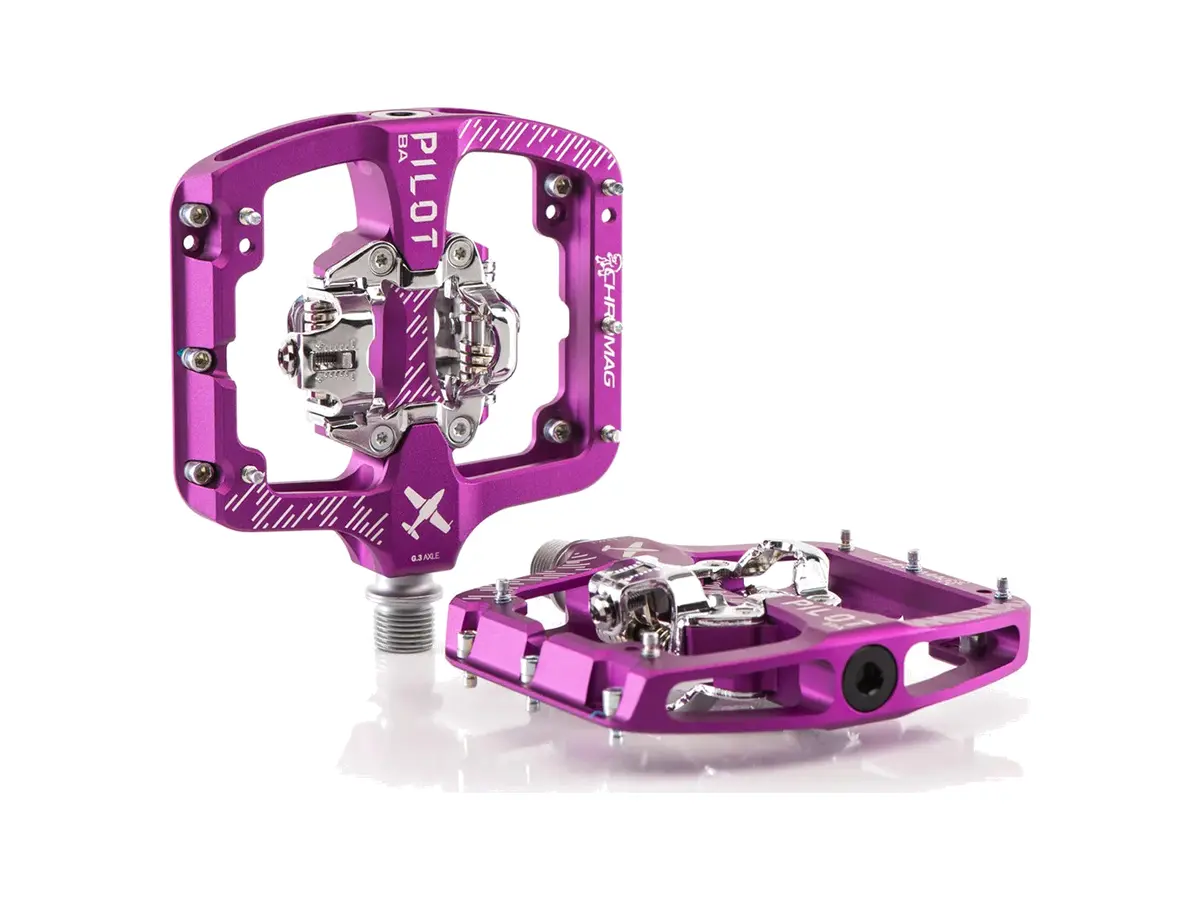

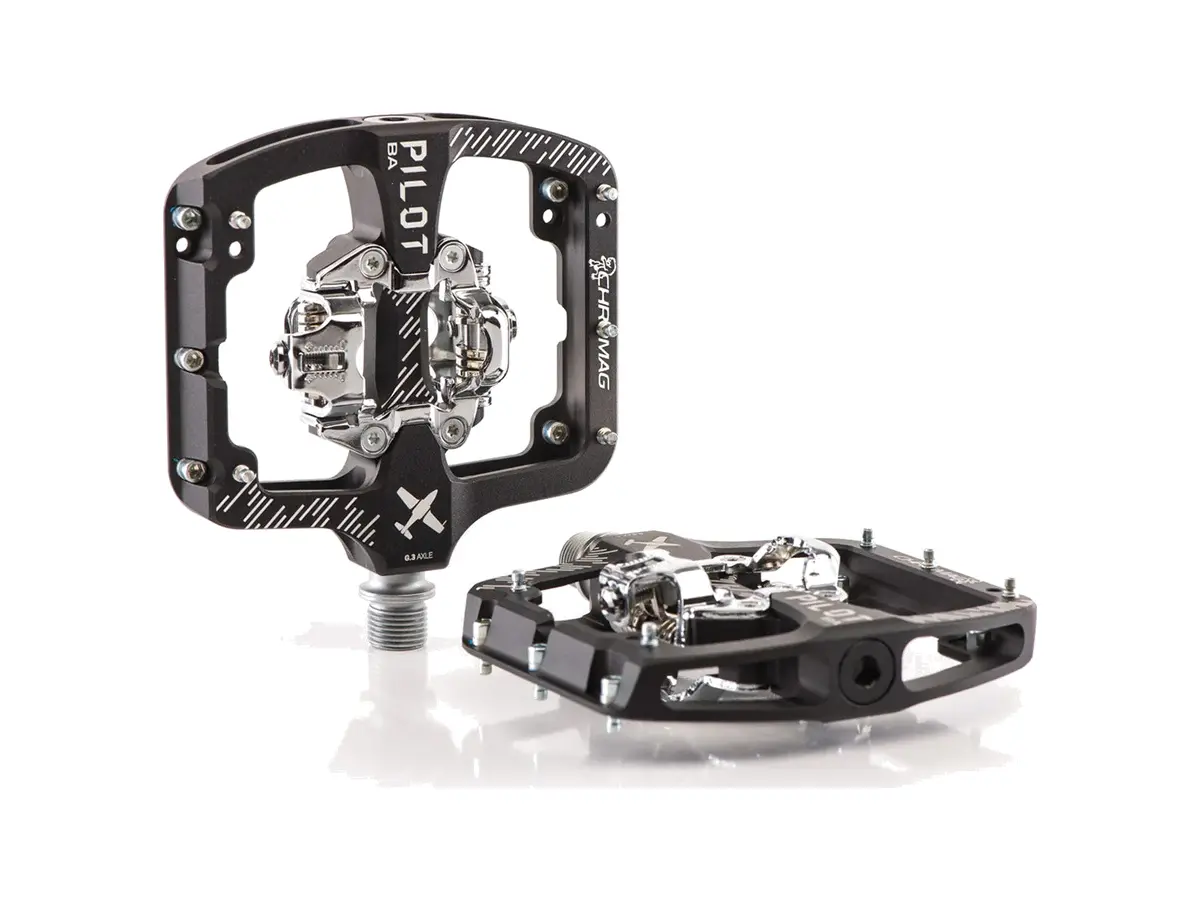

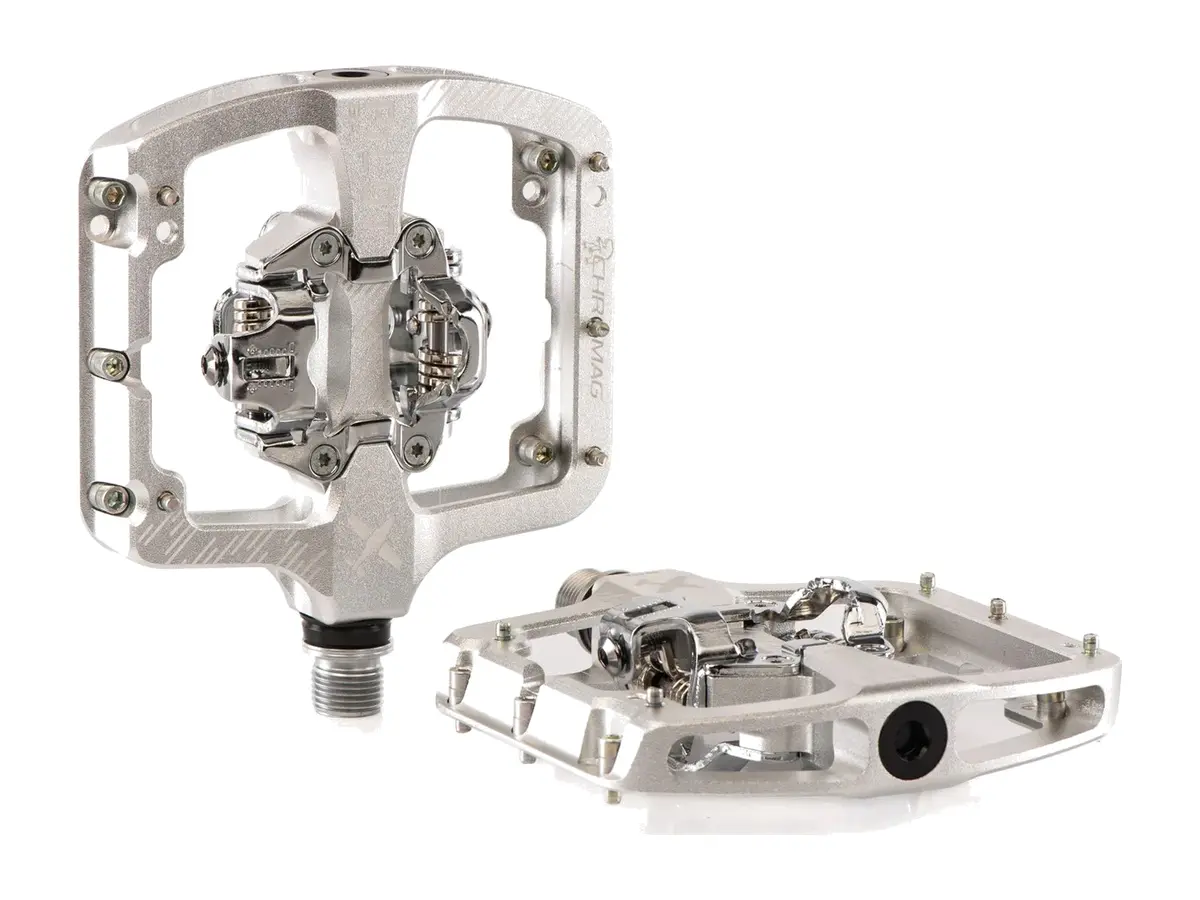

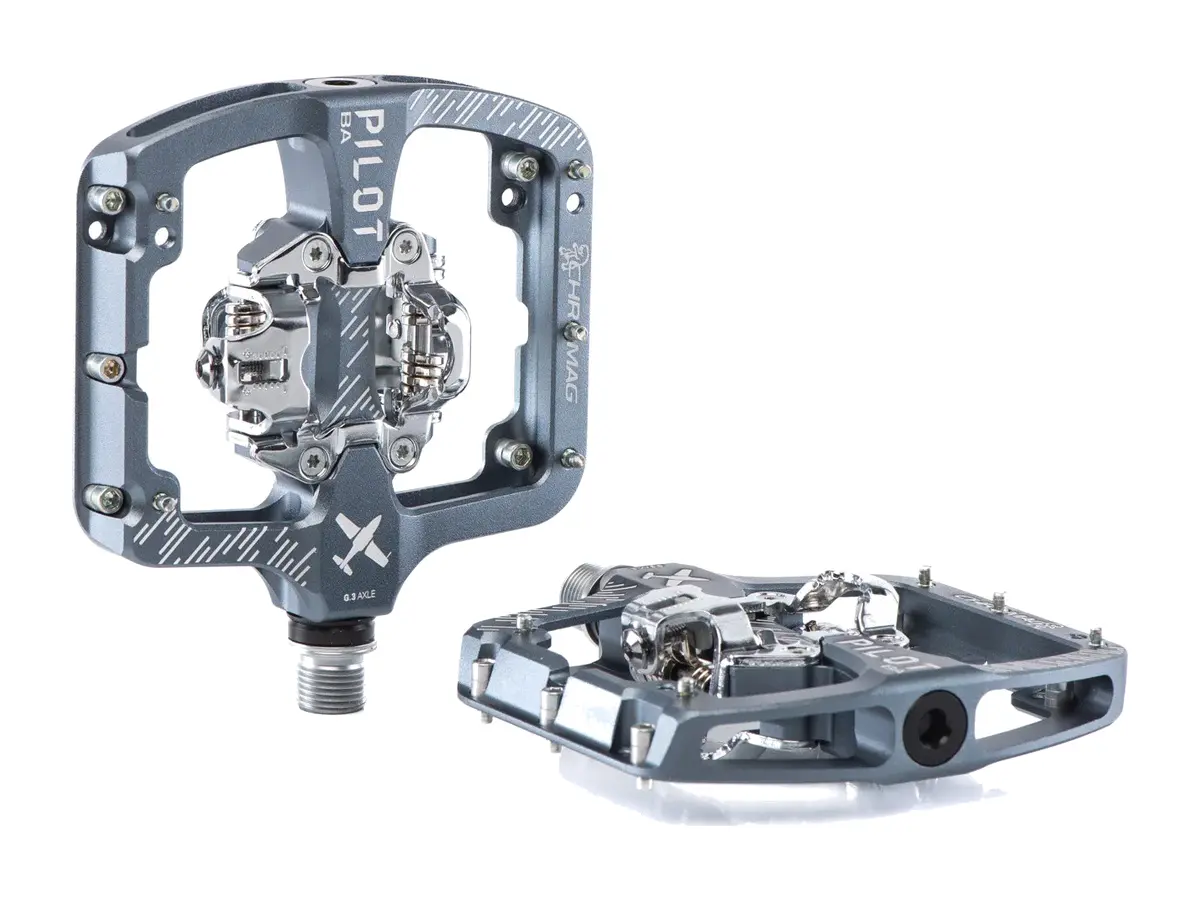

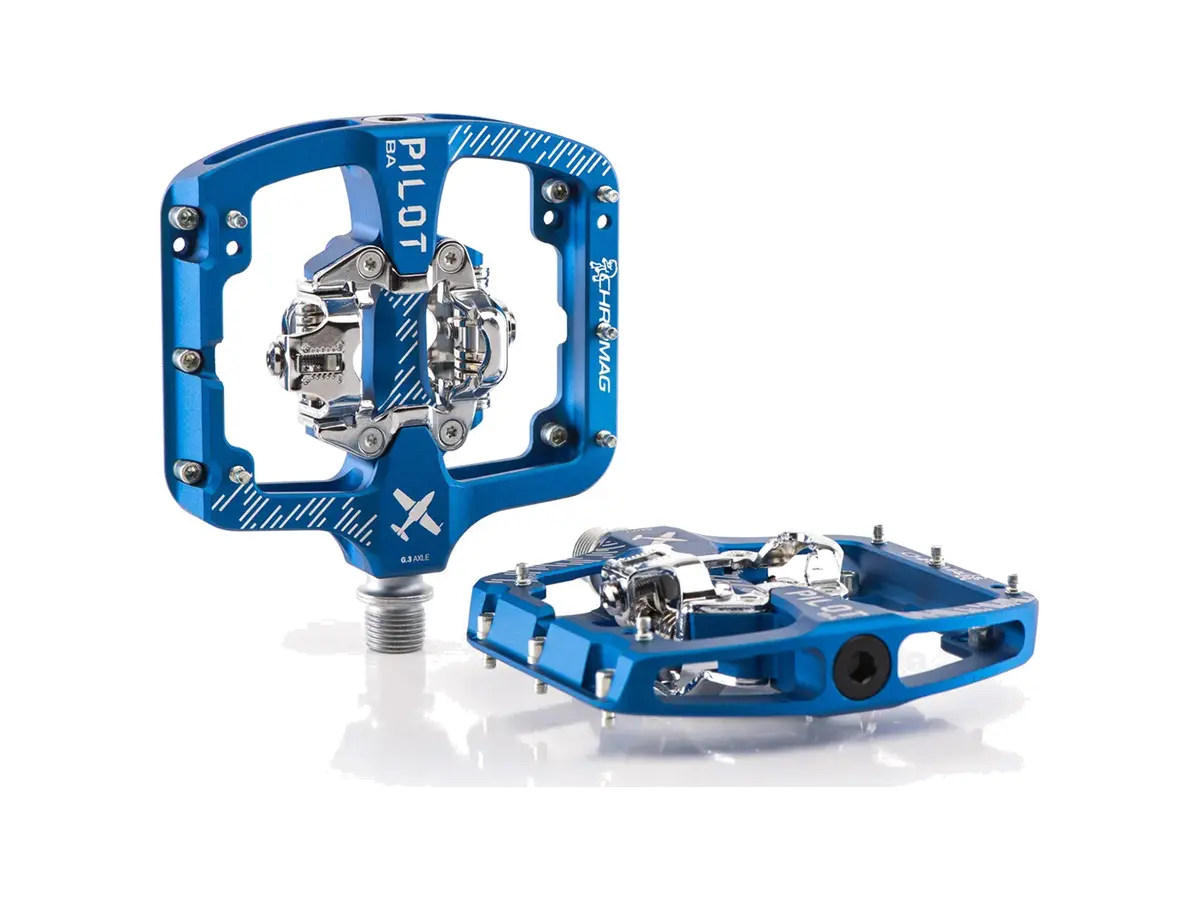

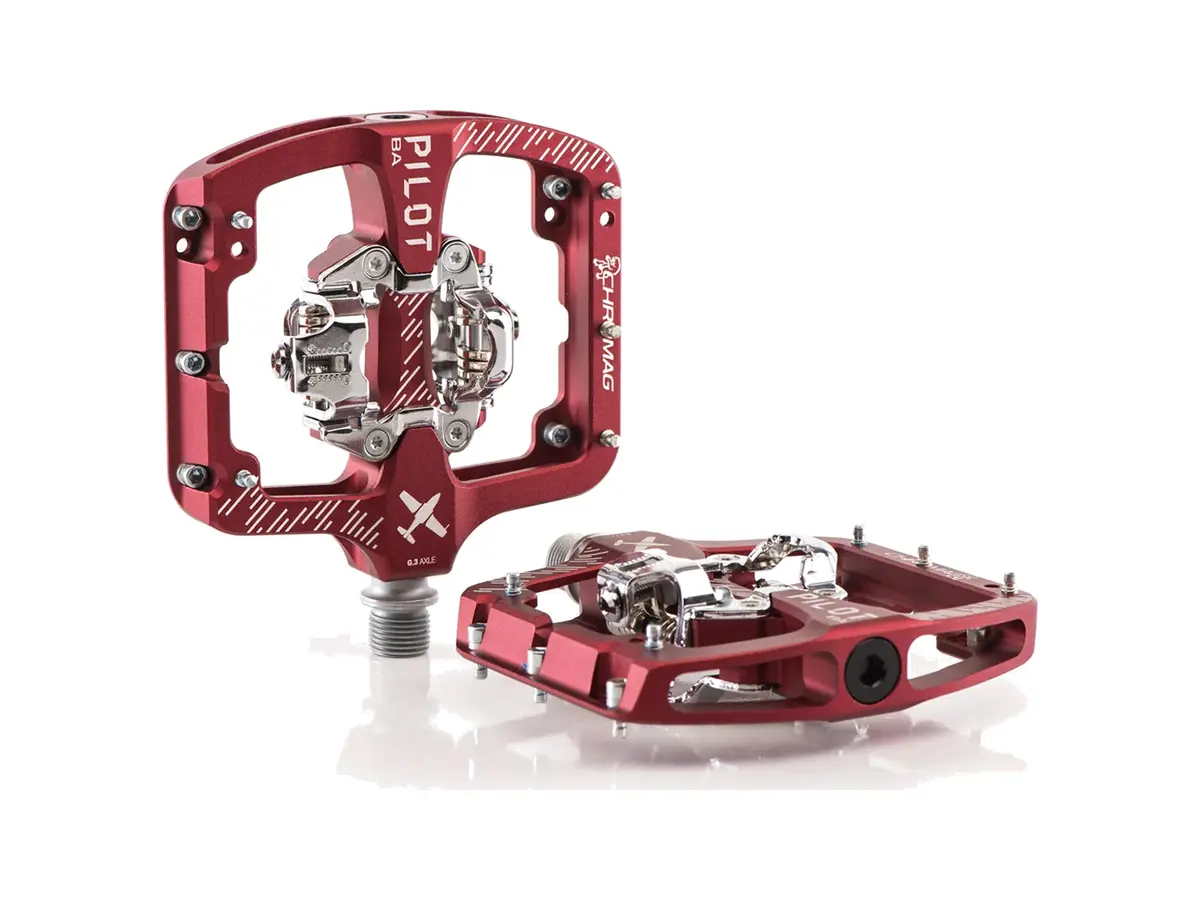

The Chromag "Pilot BA" MTB Clipless Pedals are Chromag's clipless pedals with a big platform (BA stands for Big Area): 105 x 110 mm, 21 mm high at the centre, 10 height-adjustable pins per pedal around the SPD-compatible mechanism with a 12° release angle. The body is extruded from aluminium and CNC machined, the axle is CrMo steel. The platform supports the shoe even when unclipped, so the pedal works with clipless shoes and with flat shoes. 595 g per pair, 60 mm stance, cleats included.
Facts: Chromag "Pilot BA" MTB Clipless Pedals
- Material:
- pedal body: aluminium, extruded and CNC machined
- axle: CrMo steel - Bearing: sealed cartridge bearing and bushing per pedal
- Extras:
- clipless pedal with big platform, SPD compatible (2-bolt cleats)
- release angle 12°
- 105 x 110 mm platform, 21 mm at centre
- 10 height-adjustable pins per pedal
- stance 60 mm
- axle kit available separately
- weight 595 g per pair - Width: 110 mm
- Length: 105 mm
- Height: 21 mm (centre)
- Scope of Delivery: 1 pair of pedals, 1 pair of cleats
