Chromag "Darco" MTB Frame (with Shock) - 29 Inch
-
Weight : 5kg / 11.02lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 37678
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

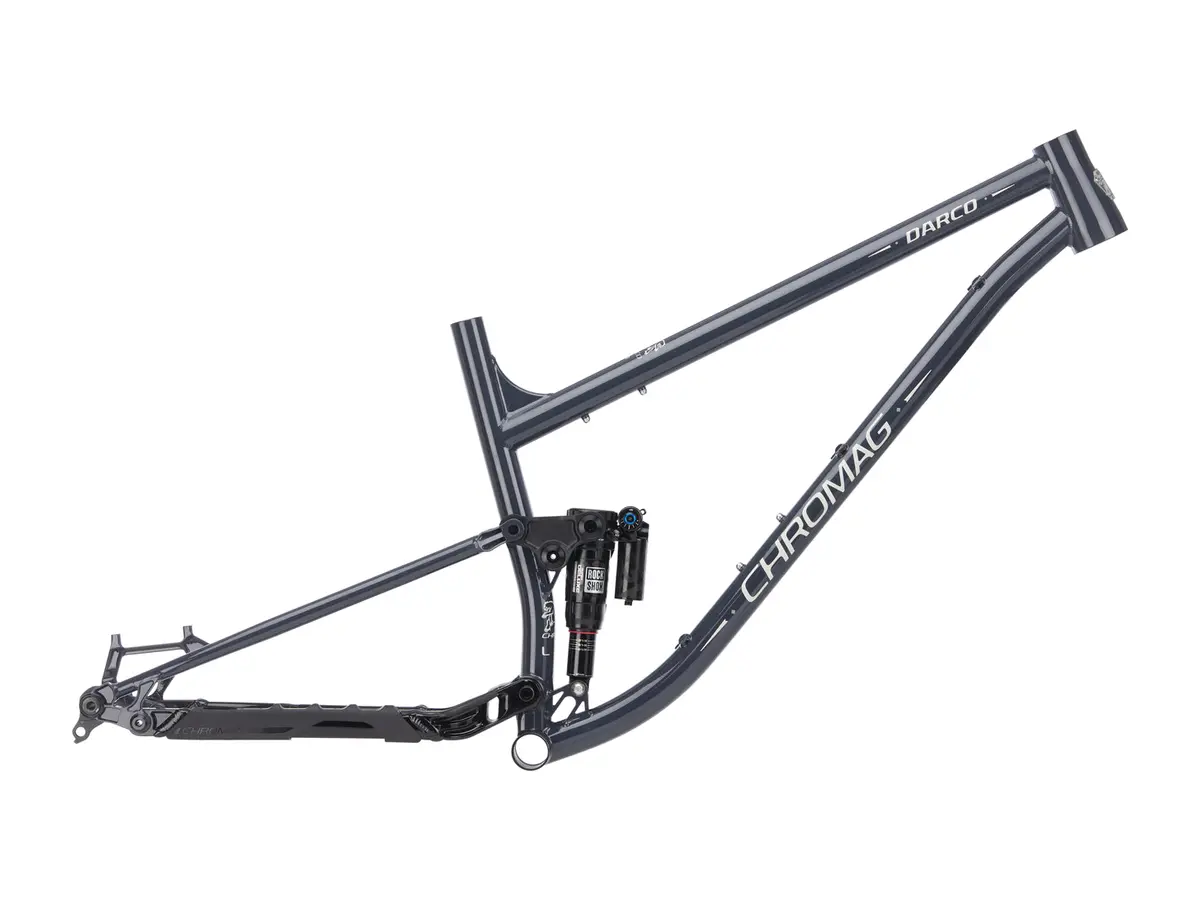

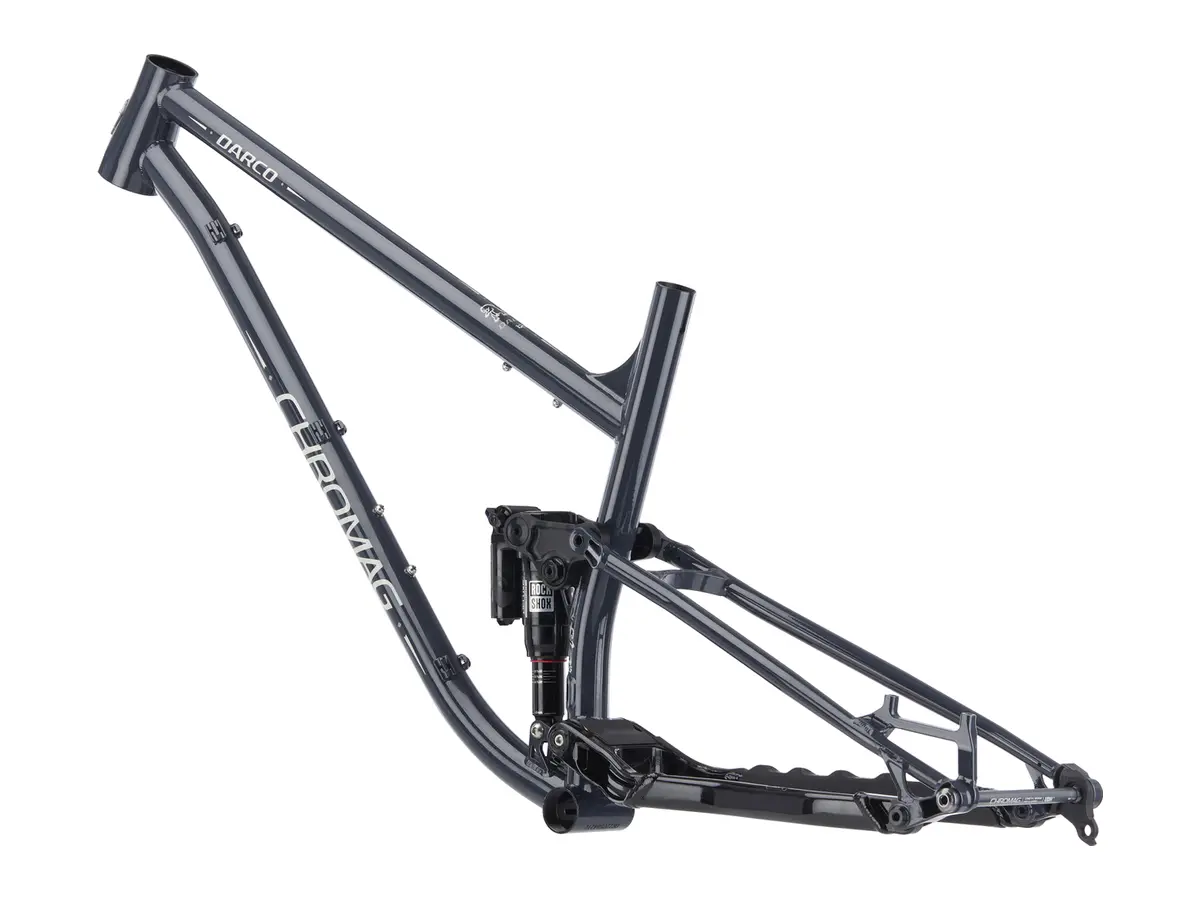

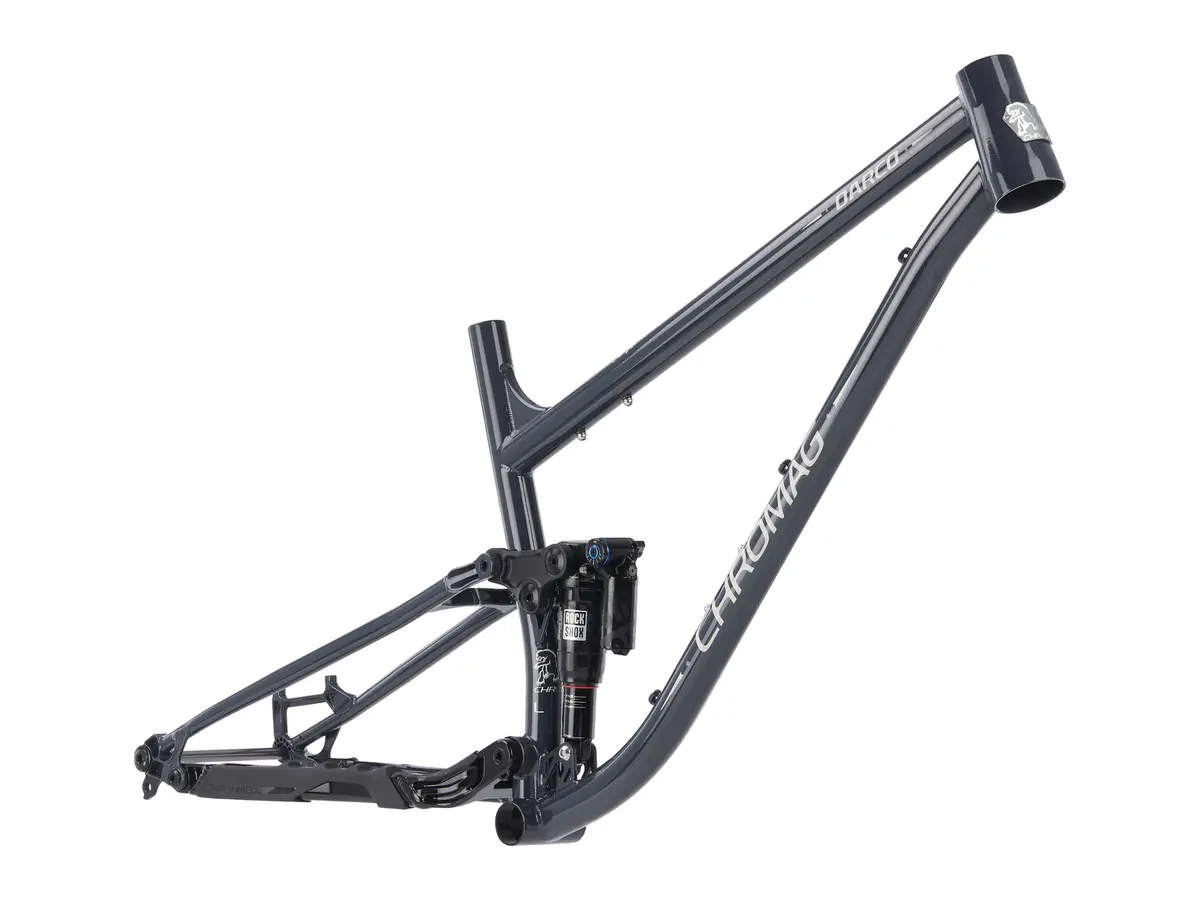

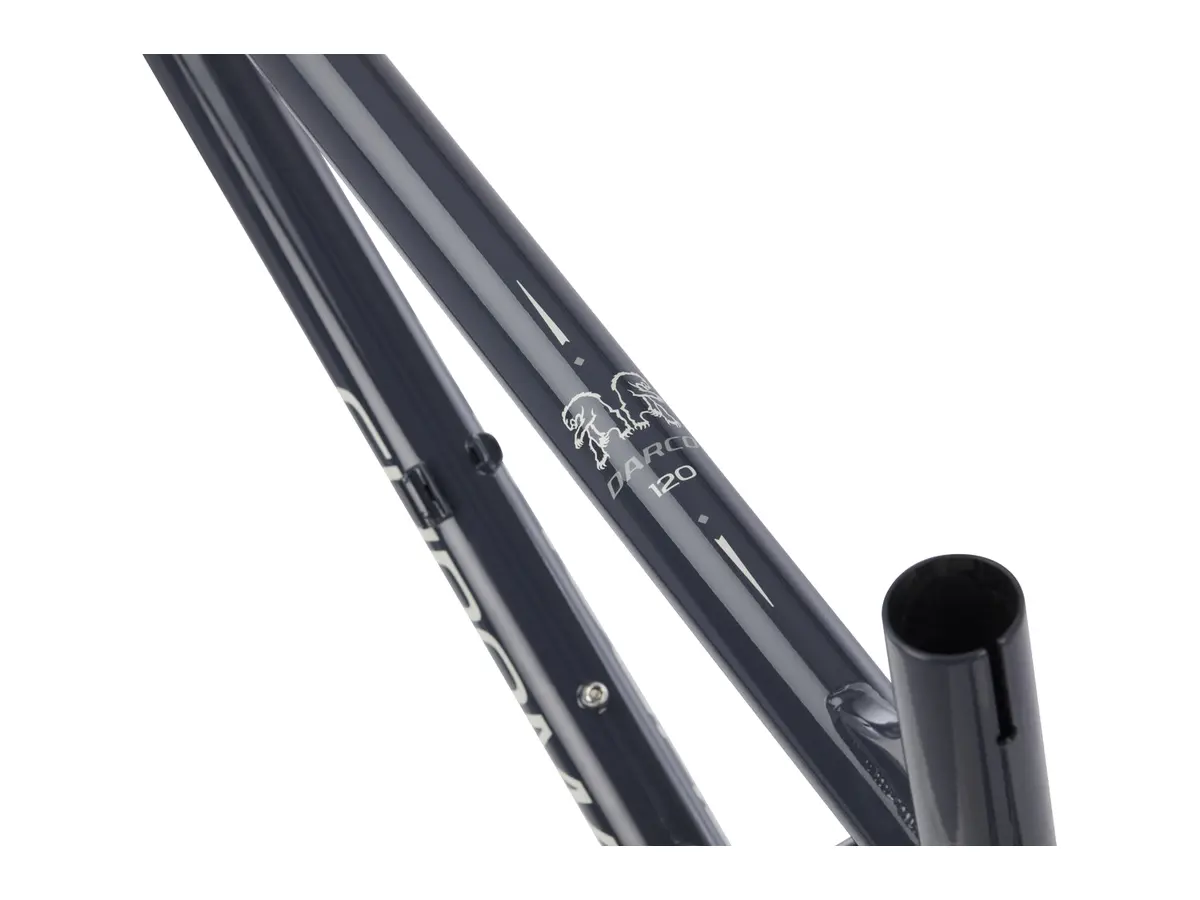

The Chromag "Darco" MTB Frame (with Shock) - 29 Inch is Chromag's steel trail full suspension frame: 29 inch, 120 mm rear travel through a four-bar linkage with trunnion shock, designed for a 150 to 160 mm fork up front. The geometry comes from the brand's hardtails, 64° head angle, 78° seat angle and 490 mm reach in M/L, made for the steep climbs and descents around Squamish. The CrMo steel frame comes with a RockShox Super Deluxe Ultimate RCT shock, Boost thru axle, chainstay protector and derailleur hanger, has a BSA bottom bracket, 31.6 mm seatpost, room for 29 x 2.5" tyres and one bottle mount. Named after D'Arcy Burke, the Chromag mechanic who passed away in 2020.
Facts: Chromag "Darco" MTB Frame (with Shock) - 29 Inch
- Recommended rider height:
- S: 155-168 cm
- M: 162-173 cm
- M/L: 170-183 cm
- L: 180-190 cm - Wheel size: 29"
- Material: CrMo steel
- Geometry:
- Reach: 450 mm (S), 472 mm (M), 490 mm (M/L), 514 mm (L)
- Stack: 617 mm (S), 617 mm (M), 622 mm (M/L), 631 mm (L)
- Effective toptube (TT): 584 mm (S), 603 mm (M), 622 mm (M/L), 648 mm (L)
- Headtube length: 100 mm (S), 100 mm (M), 105 mm (M/L), 115 mm (L)
- Seattube length: 350 mm (S), 380 mm (M), 410 mm (M/L), 440 mm (L)
- Wheelbase: 1214 mm (S), 1236 mm (M), 1256 mm (M/L), 1284 mm (L)
- Standover (SO): 677 mm (S), 707 mm (M), 736 mm (M/L), 765 mm (L)
- Chainstay (CS): 435 mm
- Headtube angle (HA): 64°
- Seattube angle (SA): 78°

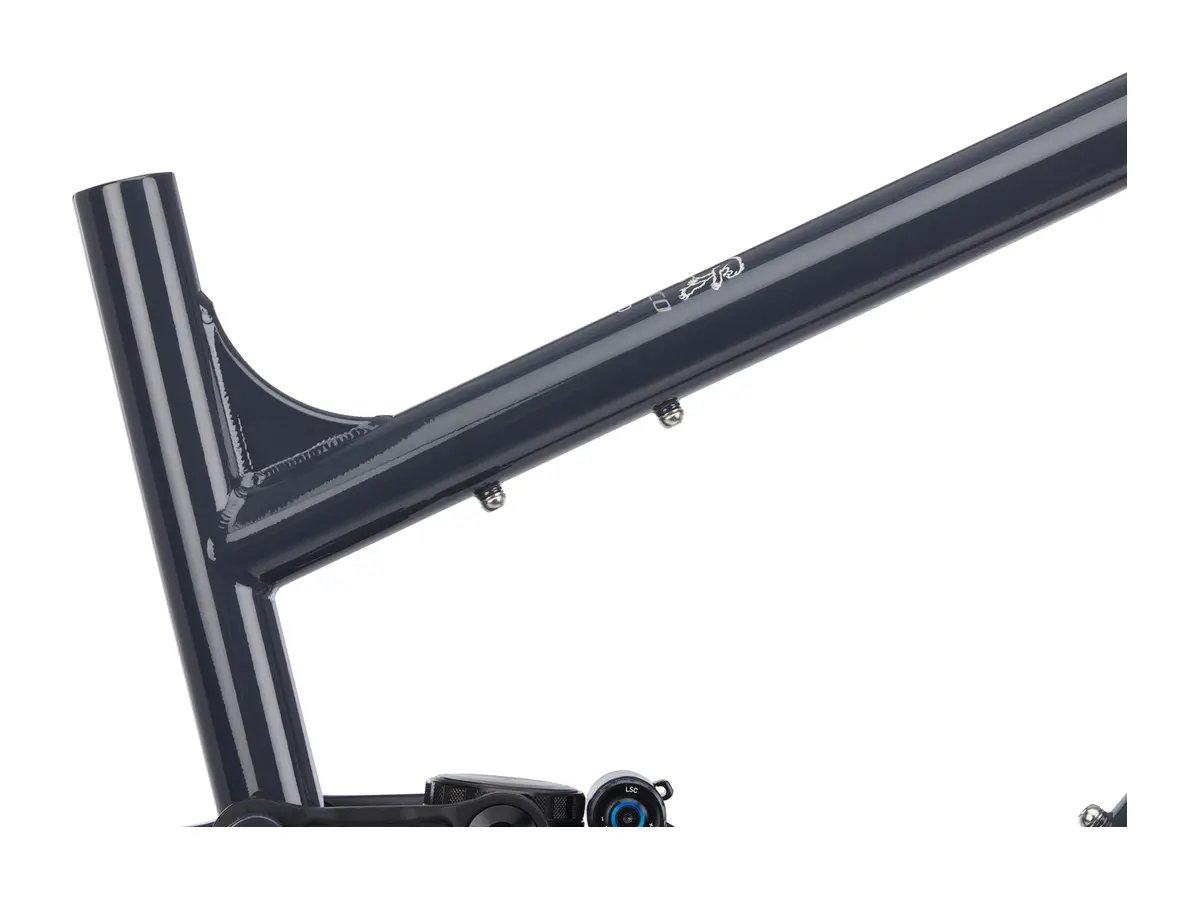

- BB height: BB drop 39 mm - Seat clamp: 35 mm, bolt clamp
- Bottom Bracket: BSA, 73 mm
- Seatpost (dropper):
- Diameter: 31.6 mm
- Max. insertion: 193 mm (S), 224 mm (M), 254 mm (M/L), 284 mm (L) - Dropouts: 12 x 148 mm Boost thru axle
- Brake type: disc brake
- Brake mount: disc PM7 (direct mount 180 mm), max. 180 mm rotor rear

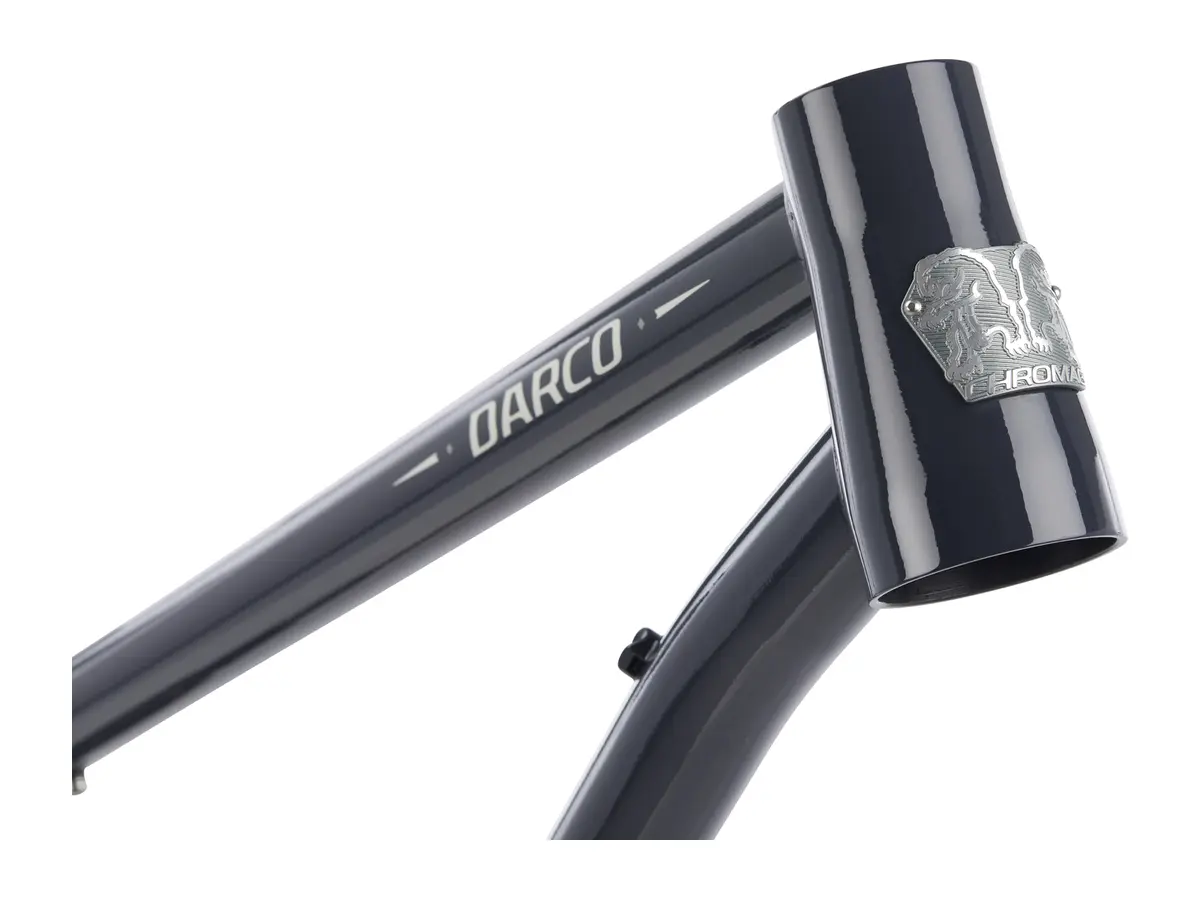

- Headset: 1 1/8" - 1.5" tapered
- Suspension (not included):
- Fork: 150 to 160 mm travel, tapered

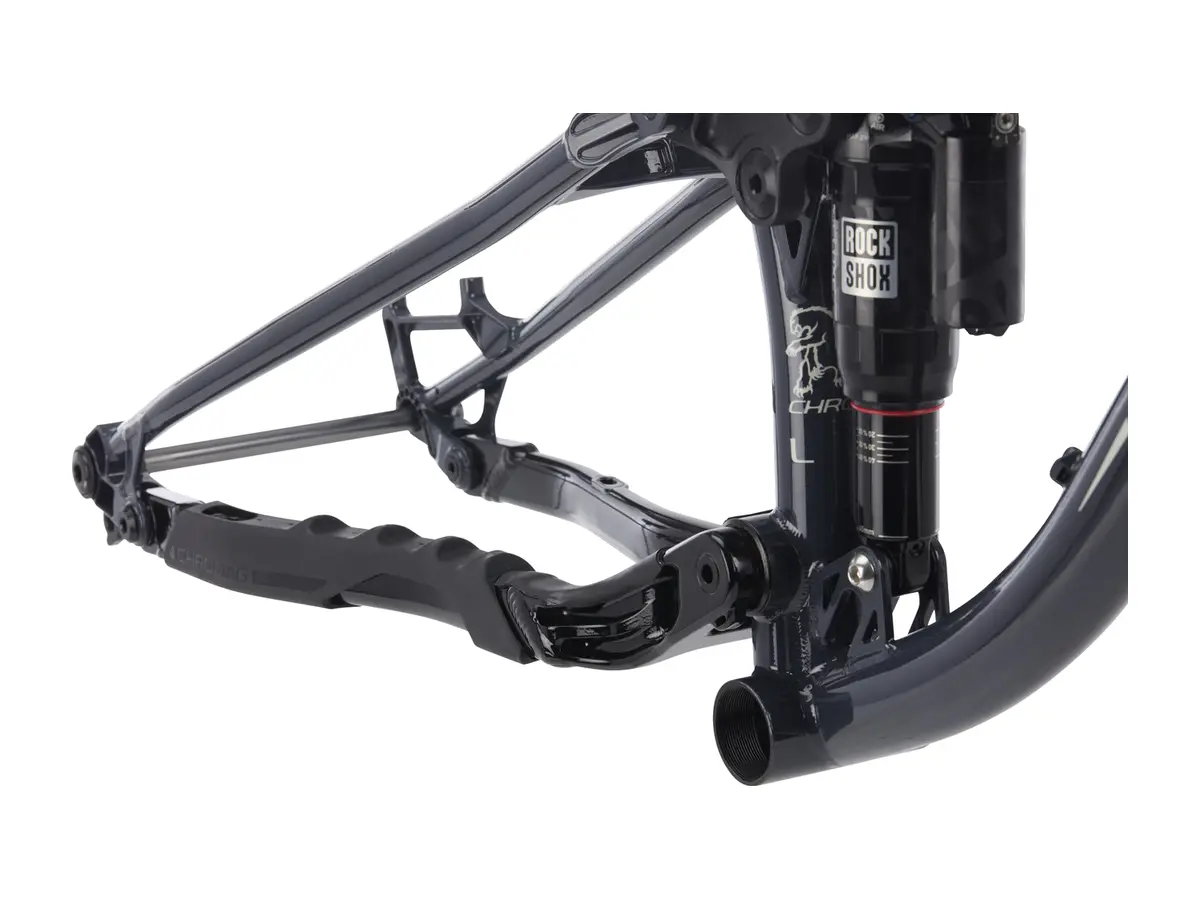

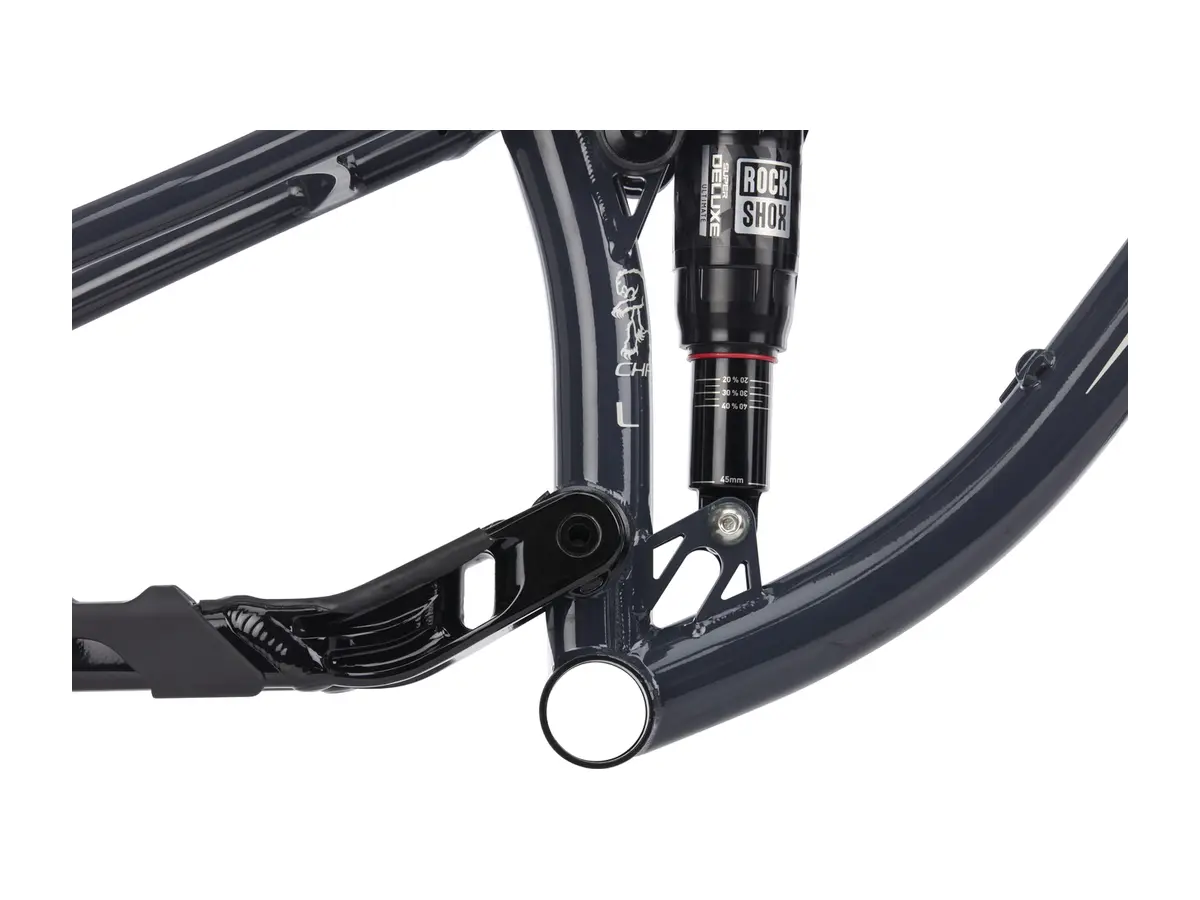

- Shock: trunnion mount, 165 x 45 mm, shock hardware 20 x 8 mm (RockShox Super Deluxe Ultimate RCT included) - Features:
- 120 mm rear travel, four-bar linkage
- 1x drivetrain only, max. 34 teeth, no front derailleur mount
- tyre clearance 29 x 2.5"
- 1 bottle mount
- frame weight 5.0 kg with shock according to the manufacturer - Contains: 1 frame, 1 RockShox Super Deluxe Ultimate RCT shock, 1 rear axle 148 x 12 mm, 1 chainstay protector, 1 derailleur hanger
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
