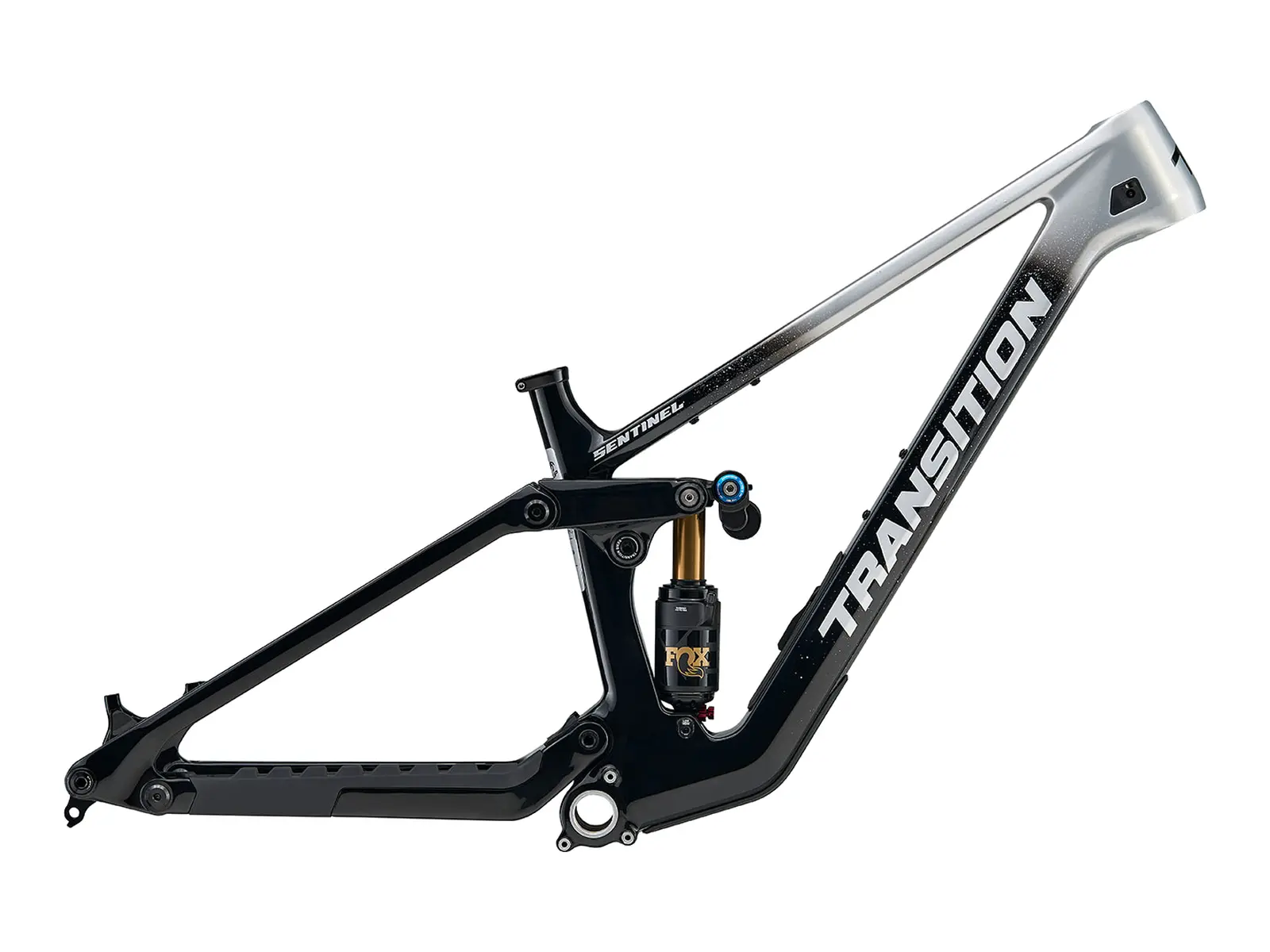

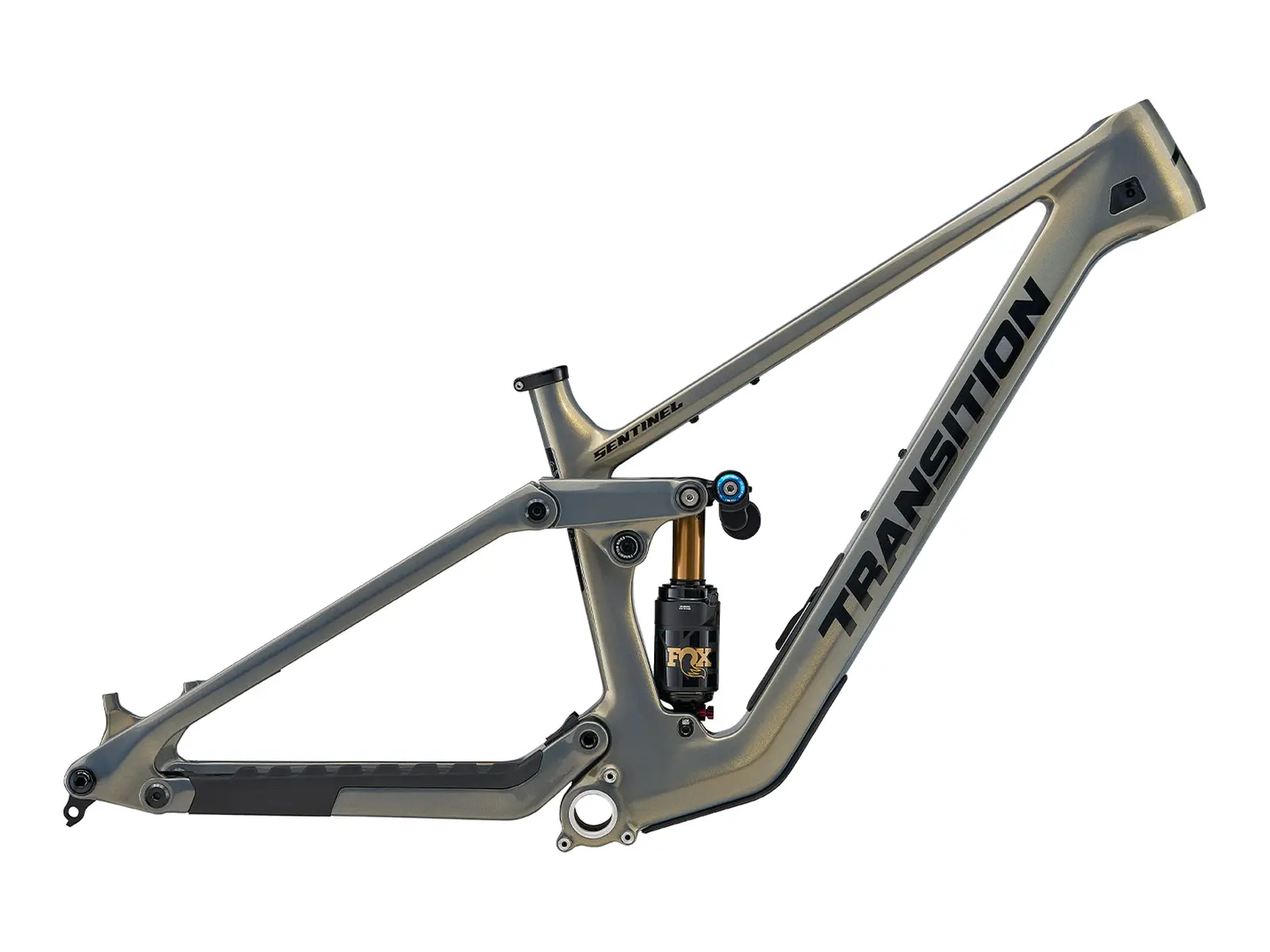

Transition "Sentinel Carbon" MTB Frame - 29 Inch
-
Weight : 3.36kg / 7.41lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 37681
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The Transition "Sentinel Carbon" MTB Frame - 29 Inch is the carbon frame of Transition's Sentinel trail and enduro bike, built for everything the home trails throw at you: 150 mm of rear travel (160 mm with a 205 x 65 mm shock), a 160 mm fork, a 64° head angle and a carbon frame that runs a 29" rear wheel or a 27.5" mullet setup via the geo-adjust flip chip. The leverage curve is 24 % progressive and made for air and coil shocks, the Fox Float X2 Factory comes in the kit. Add the B.O.O.M. Box in the downtube with two bags, headtube cable ports for mechanical or wireless shifting, a UDH hanger, ISCG 05 tabs, a 73 mm BSA bottom bracket and clearance for 2.5" tires. Sizes are listed by effective top tube here, S is 549 mm, M 577 mm, L 605 mm with a reach of 430, 455 and 480 mm. Transition backs it with a lifetime warranty for the original owner.
Facts: Transition "Sentinel Carbon" MTB Frame - 29 Inch
- Recommended Rider Height: approx. 155 to 170 cm (S), 165 to 180 cm (M), 175 to 190 cm (L), 185 to 200 cm (XL), per Transition sizing chart with overlap, Transition recommends choosing by reach
- Wheel Size: 29" or mullet (29" front, 27.5" rear), switchable via the geo-adjust flip chip
- Material: carbon (main frame and rear triangle), four-bar linkage with 150 mm of travel
- Wheel Size (front): 29"
- Geometry:
- Toptube (TT): 21.6", 22.7" or 23.8"
- Chainstay (CS): 442 mm (S, M, L), 448 mm (XL)
- Headtube Angle (HA): 64° (low, 29" rear wheel), 63.6° (high, 27.5" rear wheel)
- Seattube angle: 73° (actual), effective 79.3° (S), 78.7° (M), 78.3° (L), 77.9° (XL)
- Dropouts: 12 x 148 mm Boost, SRAM UDH - Wheel Size (rear): 29" (flip chip low) or 27.5" (flip chip high)
- Geometry (low flip chip position, 29" rear wheel, 160 mm fork):
- Reach: 430 mm (S), 455 mm (M), 480 mm (L), 505 mm (XL)
- Chainstay: 442 mm (S, M, L), 448 mm (XL)
- Headtube length: 100 mm (S), 110 mm (M), 120 mm (L), 130 mm (XL)
- Headtube angle: 64°
- Seattube angle (SA): 79.3° (S), 78.7° (M), 78.3° (L), 77.9° (XL)
- BB height: 350 mm (BB drop 25 mm)
- Wheelbase: 1208 mm (S), 1237 mm (M), 1267 mm (L), 1302 mm (XL)
- Stack: 615 mm (S), 621 mm (M), 633 mm (L), 642 mm (XL) - Geometry (high flip chip position, 27.5" rear wheel, 160 mm fork):
- Reach: 426 mm (S), 451 mm (M), 476 mm (L), 501 mm (XL)
- Chainstay: 440 mm (S, M, L), 446 mm (XL)
- Headtube length: 100 mm (S), 110 mm (M), 120 mm (L), 130 mm (XL)
- Headtube angle: 63.6°
- Seattube angle: 78.9° (S), 78.3° (M), 77.9° (L), 77.5° (XL)
- BB height: 344 mm (BB drop 31 mm front, 11 mm rear)
- Wheelbase: 1208 mm (S), 1237 mm (M), 1269 mm (L), 1302 mm (XL)
- Stack: 618 mm (S), 624 mm (M), 636 mm (L), 646 mm (XL) - Seattube length: 360 mm (S), 390 mm (M), 430 mm (L), 460 mm (XL), standover height 690 mm (S, M), 695 mm (L), 705 mm (XL)
- Seat clamp: 37.0 mm, bolt type
- Bottom Bracket: BSA 73 mm threaded
- Seatpost (dropper): 31.6 mm diameter
- Dropouts: 12 x 148 mm thru axle (Boost), SRAM UDH derailleur hanger
- Brake Type: disc brake
- UDH equipped: yes, SRAM Universal Derailleur Hanger
- Brake Mounts: 180 mm post mount rear, max. 223 mm rear rotor
- Headset: ZS44 top, ZS56 bottom (zero stack), for tapered 1 1/8" to 1.5" steerer, not included
- Shock (included):
- Fox Float X2 Factory, 205 x 60 mm (trunnion)
- Shock hardware: trunnion top, 30 x 8 mm bottom
- Rear travel: 150 mm, 160 mm with a 205 x 65 mm shock
- Fork: 160 mm travel, 44 mm offset, 578 mm axle to crown incl. headset - Chain guide: ISCG 05, single chainring max. 34T, chainline 52 to 55 mm
- Tire clearance: max. 29 x 2.5" or 27.5 x 2.5"
- Features: B.O.O.M. Box internal downtube storage with two bags, geo-adjust flip chip at the lower shock mount for a 29" or 27.5" rear wheel, cable ports on the side of the headtube for mechanical or wireless shifting and left or right rear brake, pillow-top chainstay protector, pre-installed main pivot mud guard, size-specific chainstays, designed for air and coil shocks, lifetime warranty for the original owner
- Contains: 1 frame with Fox Float X2 Factory shock (205 x 60 mm), 2 bags for the B.O.O.M. Box
- Model Year: 2026
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
