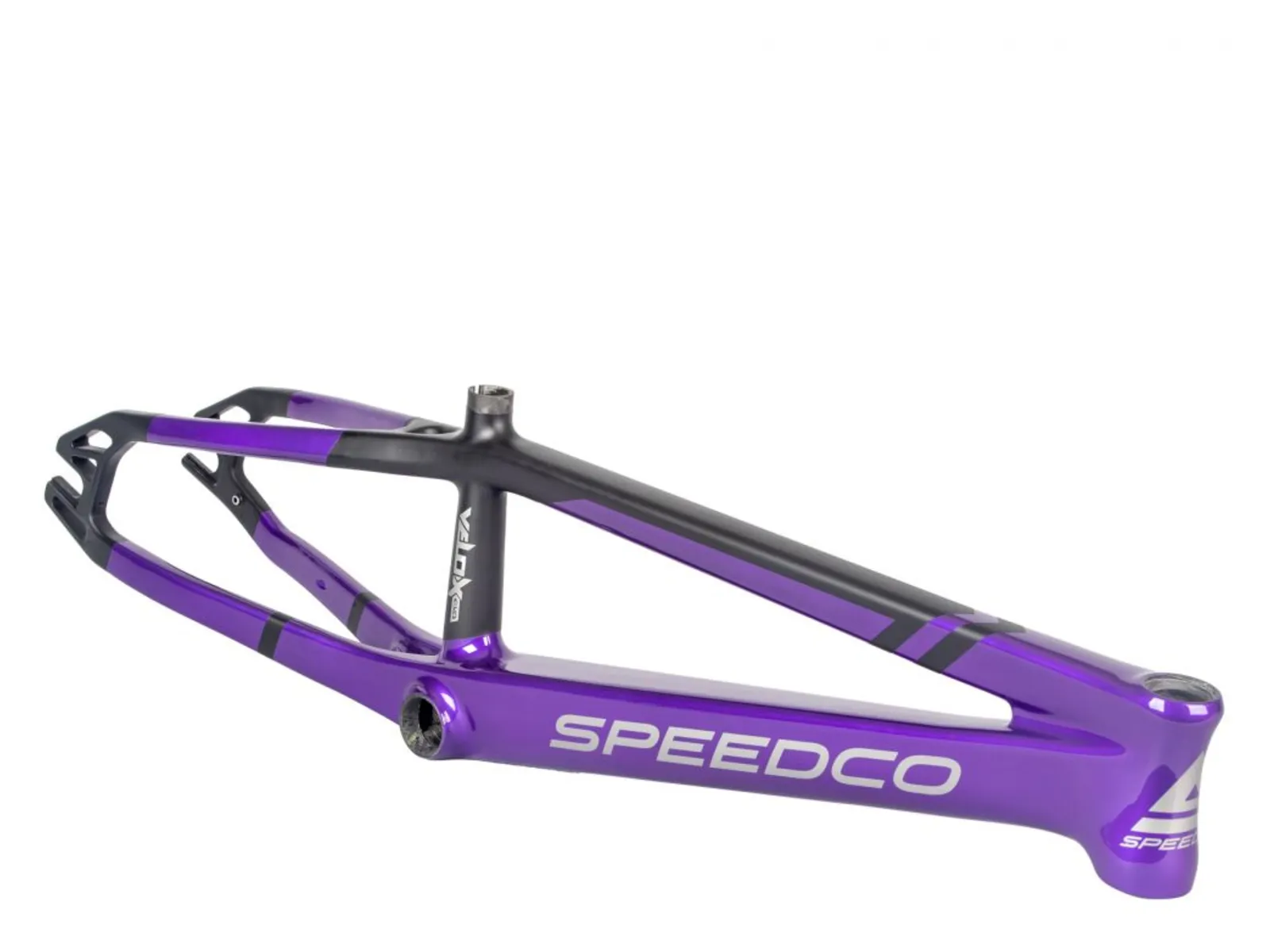

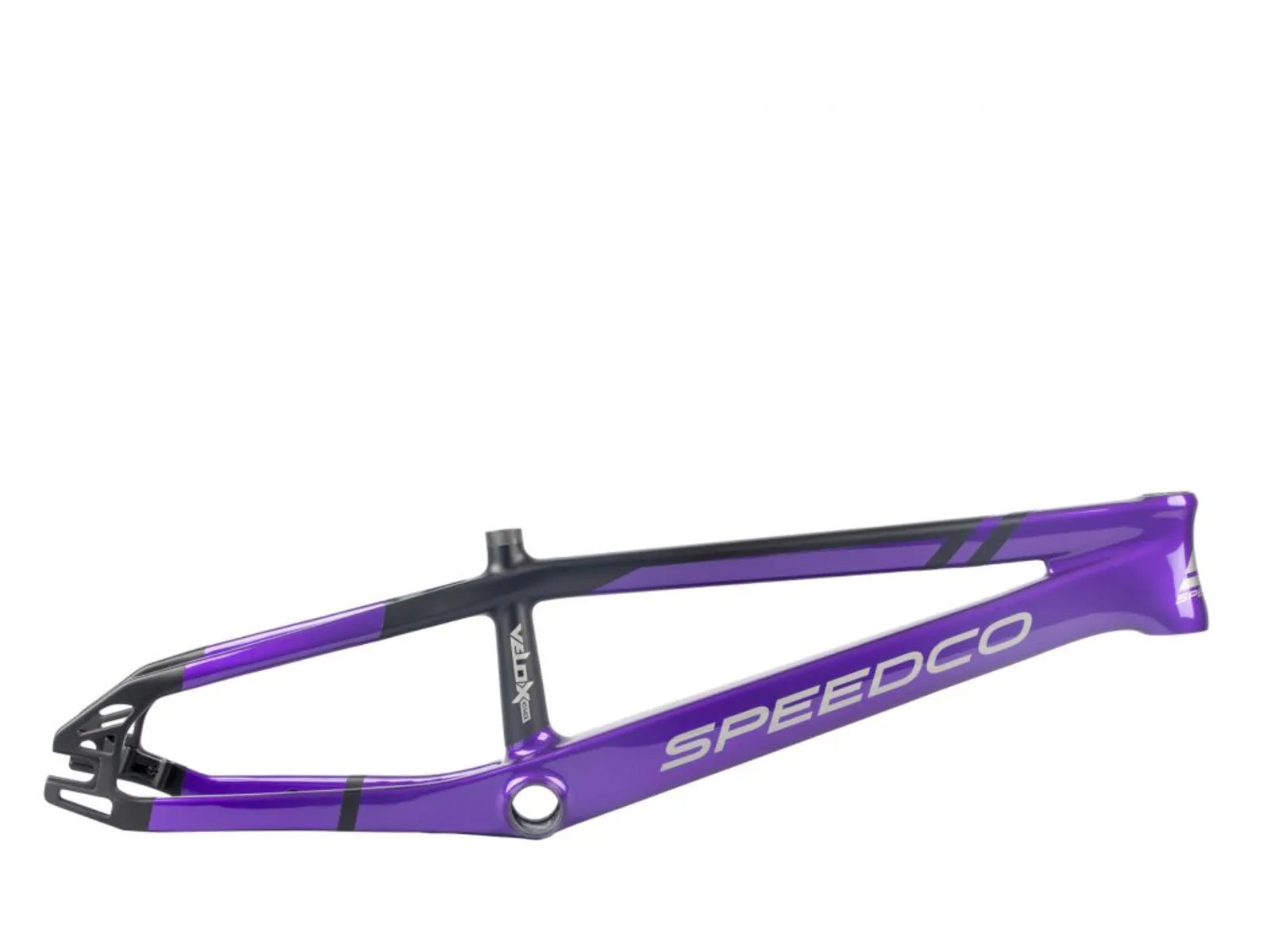

Speedco "Velox Evo Pro 3XL" BMX Race Frame (Disc Brake)

Name: Speedco "Velox Evo Pro 3XL" BMX Race Frame (Disc Brake)
Brand: Speedco
SKU: 30947-2
Availability: InStock

1,344.50 EUR

Taxfree excl. shipping

Color | Top Tube Length

Please Select
- - purple/black | 22.5"

Qty.:

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 1.41kg / 3.11lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Piece
Product ID (PID): 30947

The Speedco "Velox Evo Pro 3XL" BMX Race Frame (Disc Brake) is Speedco's carbon flagship, developed for competition at UCI World Cup level. The aerodynamic tube shapes are inspired by the fastest road bikes of the pro peloton. The down tube connects directly through the bottom bracket shell into the chainstays ("Power Junction") – for maximum stiffness out of the gate and out of the turns. The raised seat stays eliminate chain slap when running taller gear ratios. The frame was tested and raced throughout the 2023 season by Rico Bearman, the U23 World Cup overall winner.

The Speedco "Velox Evo Pro 3XL" BMX Race Frame (Disc Brake) is designed for flat mount disc brakes only (140mm rotor), with the brake hose routed internally through the chainstay. The matching fork is sold separately.

Facts: Speedco "Velox Evo Pro 3XL" BMX Race Frame (Disc Brake)

Wheel size: 20"
Material: Toray carbon, monocoque
Geometry:
- Toptube (TT): 22.5"
- Chainstay (CS): 15.5"
- Headtube angle (HA): 74°
- Seattube angle (SA): 72°
- Bottom bracket height (BB): 11.5"
Headtube: Tapered 1-1/8" - 1.5"
Bottom bracket: BB86 (Ø41mm)
Seat post diameter: 27.2mm
Seat clamp: 31.8mm
Dropouts: 10/15/20mm (thru axle not included)
Brake style: Disc brake only (flat mount, 140mm), internal routing through the chainstay
Weight: 1403g (manufacturer claim)
Scope of delivery: 1 frame (fork not included)
