Marin Bikes "Alcatraz 2" MTB Frame - 26 Inch
-
Weight : 3.5kg / 7.72lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 37631
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

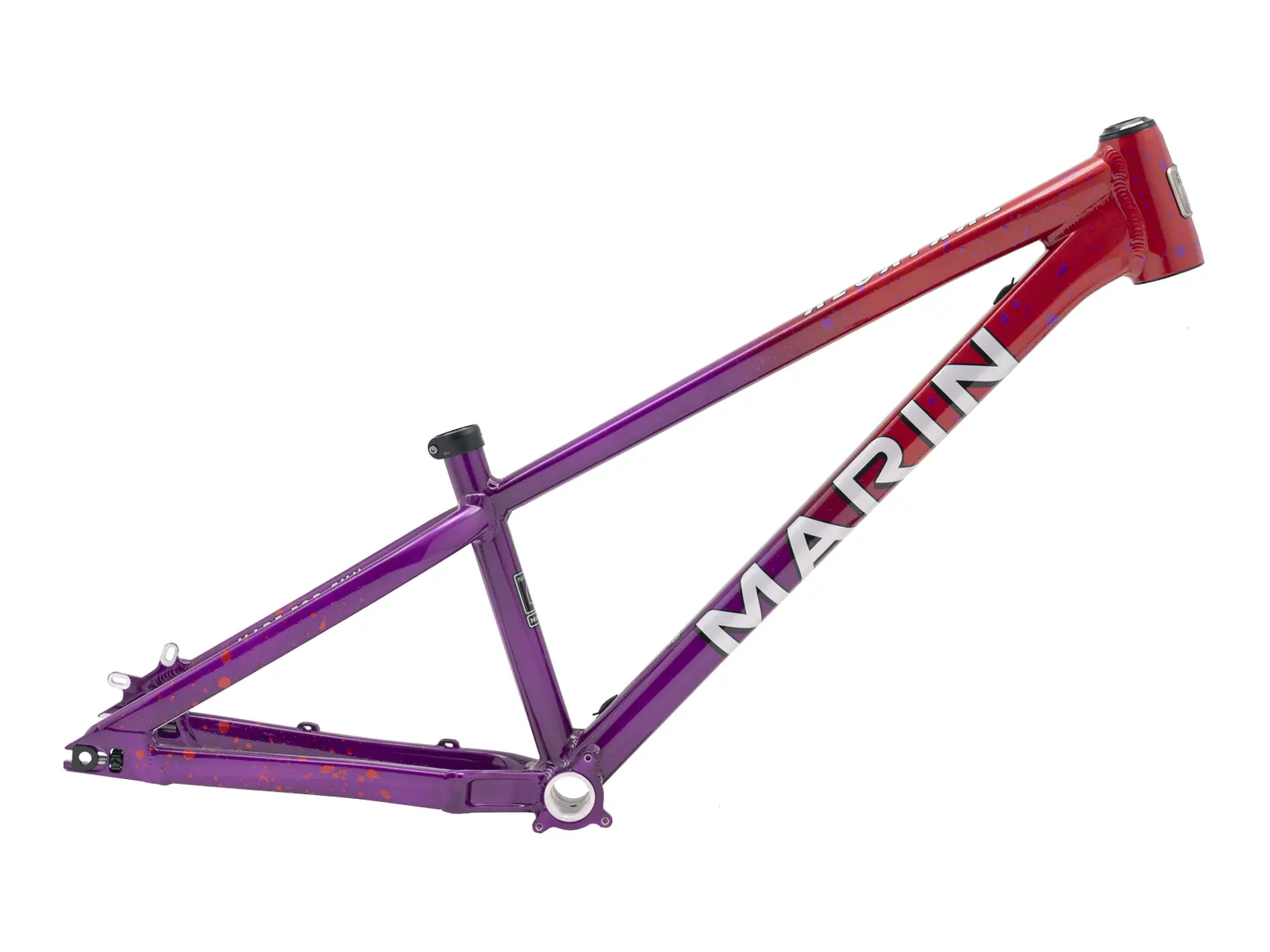

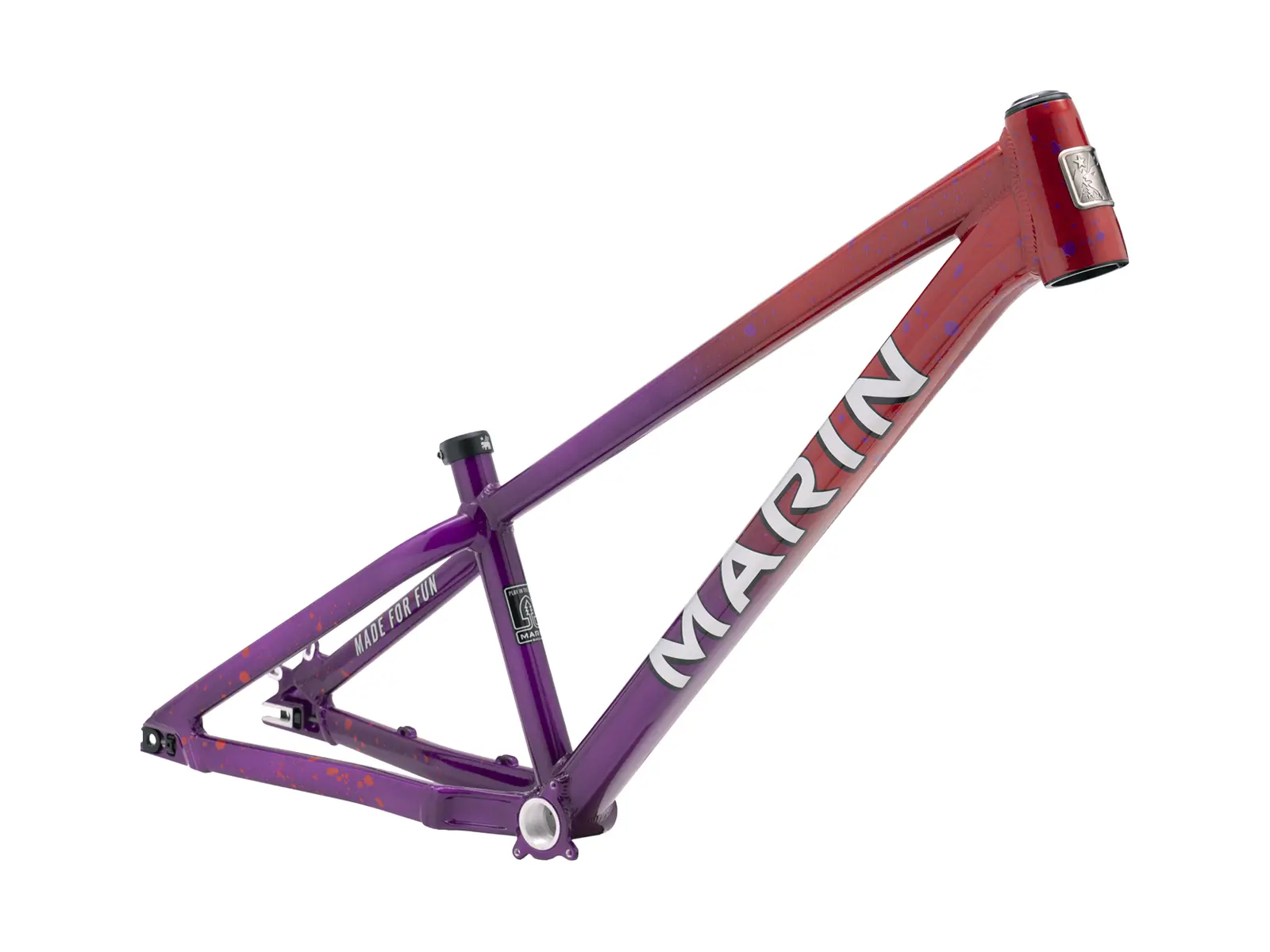

The Marin Bikes "Alcatraz 2" MTB Frame - 26 Inch is Marin's dirt jump frame with a geometry fine-tuned by Matt Jones. The Series 3 frame made of 6061 aluminum has short chainstays for poppy manuals and a low standover, and the cables run internally. Horizontal 135 x 10 mm dropouts with Marin's chain tension device, a 73 mm BSA bottom bracket and ISCG 05 tabs for a chain guide are part of it, as are the FSA headset and the seat clamp that come in the box. There are two sizes: Short keeps you close to your BMX roots, Long rides calmer and is made for taller riders.
Facts: Marin Bikes "Alcatraz 2" MTB Frame - 26 Inch
- Recommended Rider Height: 155 to 175 cm (Short), 165 to 195 cm (Long)
- Wheel Size: 26"
- Material: Marin "Series 3" 6061 aluminum, tapered head tube, internal cable routing
- Geometry:
- Toptube (TT): 23.6" or 25.4"
- Reach: 385 mm (Short), 430 mm (Long)
- Stack: 575 mm (Short), 580 mm (Long)
- Chainstay (CS): 395 mm
- Headtube Angle (HA): 69°
- Seattube angle: 69°
- Headtube length: 115 mm (Short), 120 mm (Long)
- Seattube length: 320 mm
- BB height: 317 mm (BB drop 22 mm)
- Wheelbase: 1037 mm (Short), 1083 mm (Long)
- Standover height: 370 mm (Short), 400 mm (Long)
- Dropouts: horizontal, 10 x 135 mm - Seat clamp: Marin MTB seat clamp, bolt type, included
- Seatpost Diameter: 30.9 mm
- Bottom Bracket: BSA 73 mm threaded
- Dropouts: horizontal, 10 x 135 mm
- Chain tensioner: Marin Chain Tension Device, included
- Chain guide: ISCG 05 tabs
- Chainline: 49 to 52 mm
- Brake Type: disc brake
- Brake Mounts: IS 2000, max. 180 mm rear rotor
- Headset: FSA "No. 57E", semi-sealed cartridge bearings, tapered 1 1/8" to 1 1/2", included
- Tire clearance: max. 26 x 2.4"
- Features: geometry fine-tuned by Matt Jones, short chainstays, low standover, internal cable routing, ISCG 05 chain guide tabs, two sizes Short and Long
- Contains: 1 frame, 1 headset, 1 chain tensioner, 1 seat clamp
- Model Year: 2026
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
