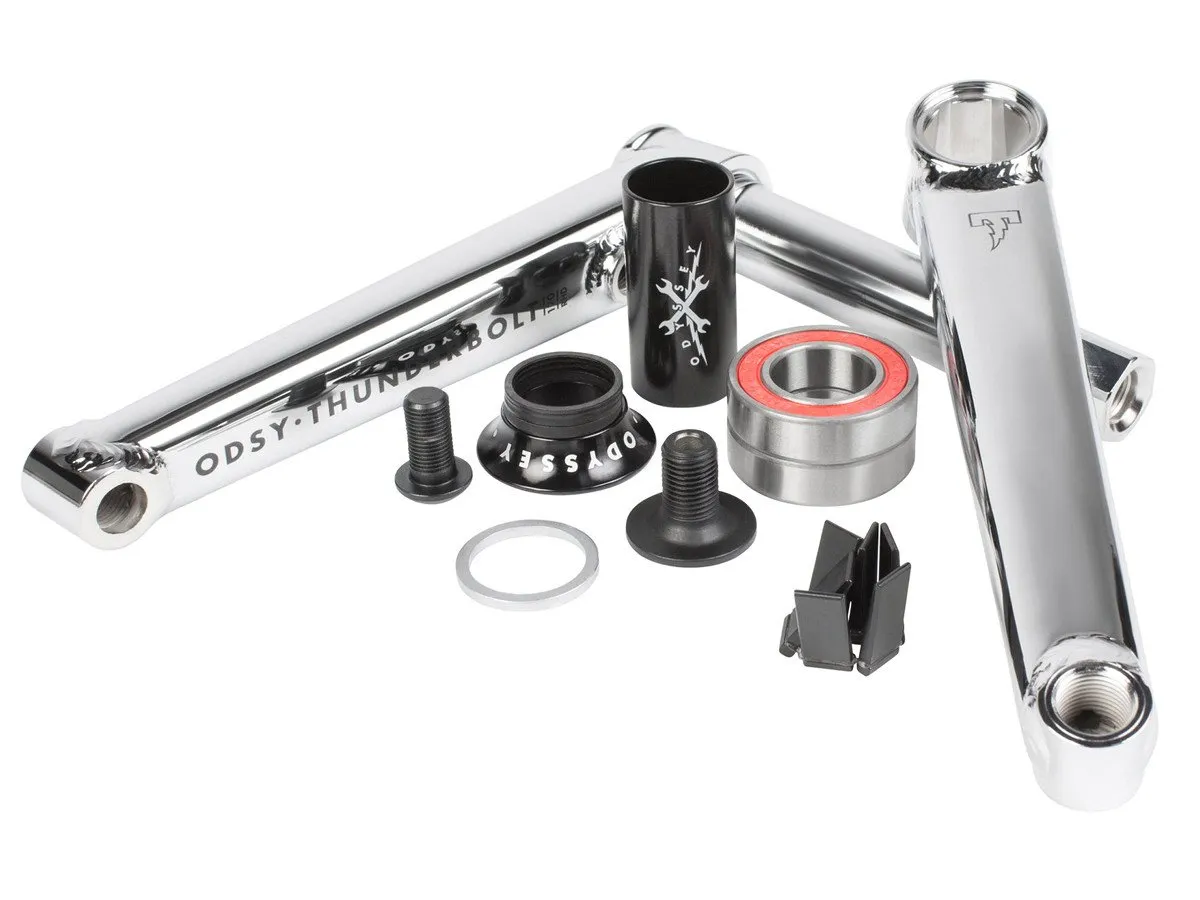

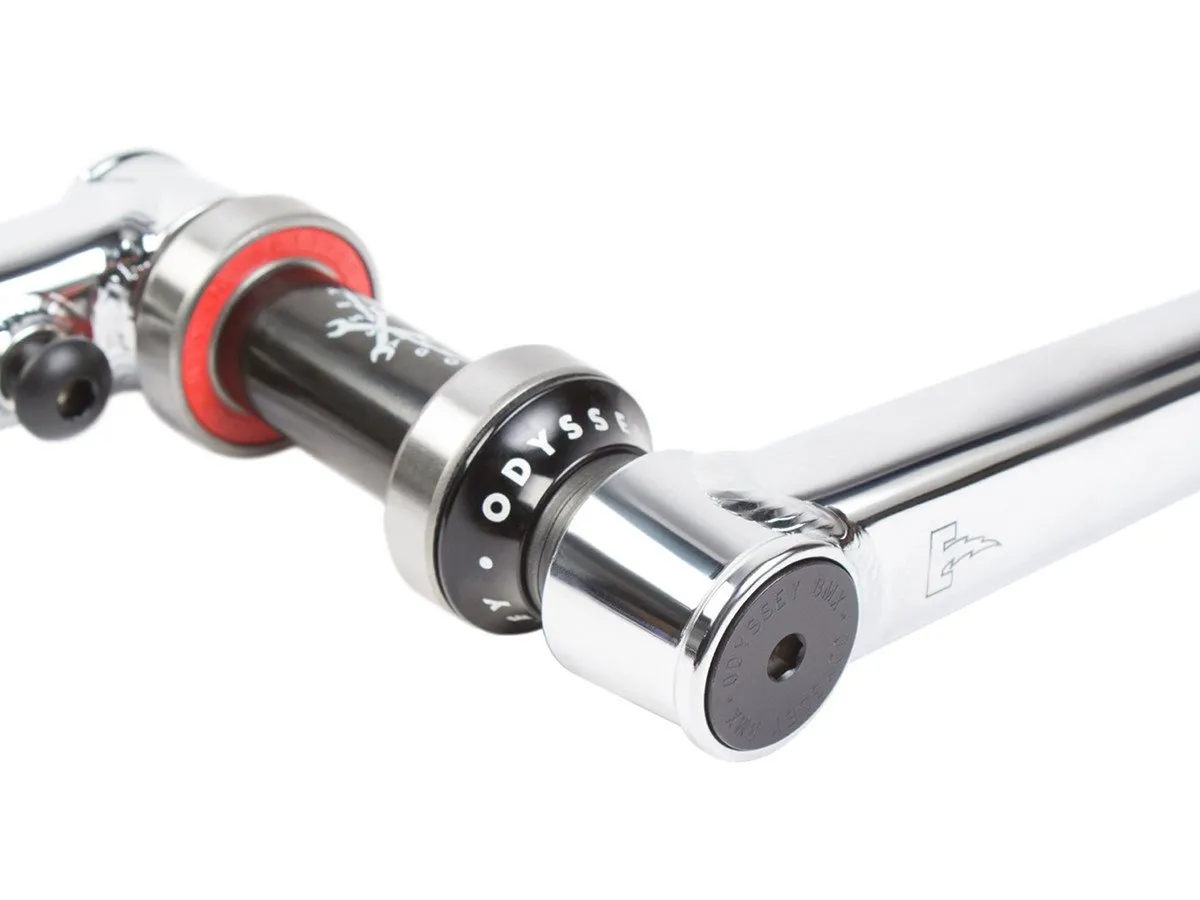

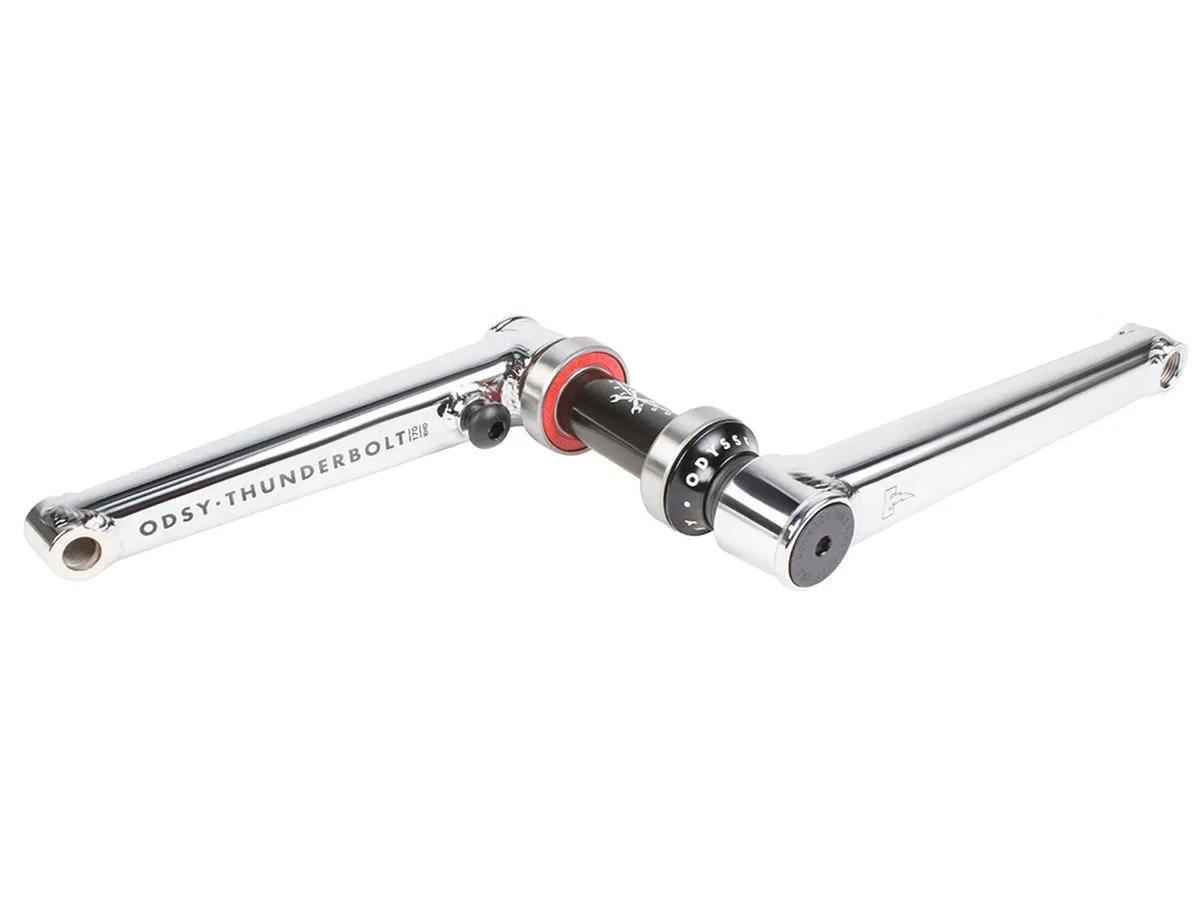

The Odyssey BMX "Thunderbolt+" BMX Crank - Chrome is Odyssey's tried and true Thunderbolt cranks, along with new branding it also now includes a highquality Mid BB. The Odyssey BMX "Thunderbolt+" BMX Crank - Chrome is one of the most technically advanced crank designs on the market. Due to continued advancements in our legendary 41-Thermal processing and heat-treatment system, fatigue life has been increased by a massive margin.

Facts: Odyssey BMX "Thunderbolt+" BMX Crank - Chrome

• Material Crank Arms: 41 Thermal, heat treated
• Material Crank Spindle: 4130 CrMo, heat treated, hollow
• Crank-Type: 2-piece
• Crank Arm Length: 165mm or 170mm (selectable as an option)
• Spindle Diameter: 22mm
• Spindle-Type: Hexagon
• possible Sprocket Mount by:
  Bolt-Drive (25T or larger): left (LHD)
• Pedal Threat: for 9/16" pedals
• Spindle Bolt: 1x bolts (12x1.25mm) with 6mm allen key
• Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
• Extras: completely surround welded axle and pedal jacks, including cuff to fix, including Mid BB Buttom Bracket
• Recommended for: Street, Park, Trails or Flatland
