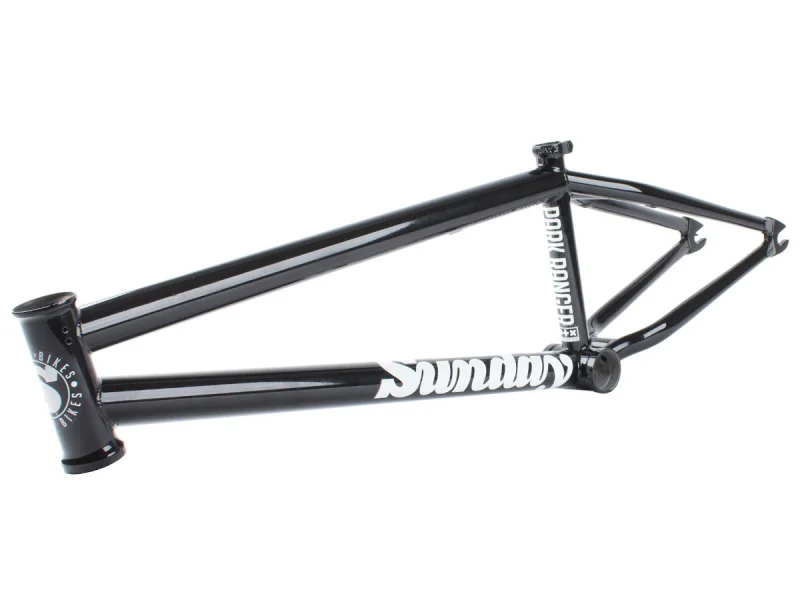

Sunday Bikes "Park Ranger" 2020 BMX Frame
-
Weight : 2.26kg / 4.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 18712
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Sunday Bikes "Park Ranger" 2020 BMX Frame
was designed for BMX Park.
The
Sunday Bikes "Park Ranger" 2020 BMX Frame
comes with a short chain stay of 12.7" - 13", a headtube angle of 75.25° and a frame height of 7.625" which makes it very interesting for transition riding.
Facts: Sunday Bikes "Park Ranger" 2020 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, hidden top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset, removable brake hardware, Mid BB
- Geometry:
Top Tube Length (TT): 20.75"
Chainstay Length (CS): 12.7" (32.26cm) - 13" (33cm)
Head Tube Angle (HA): 75.25°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.625" (29.53cm)
Standover Height (SO): 7.625" (19.37cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Features: Modern transition BMX frame, Wide rear end for fat 2.4"
- Model Year: 2020
