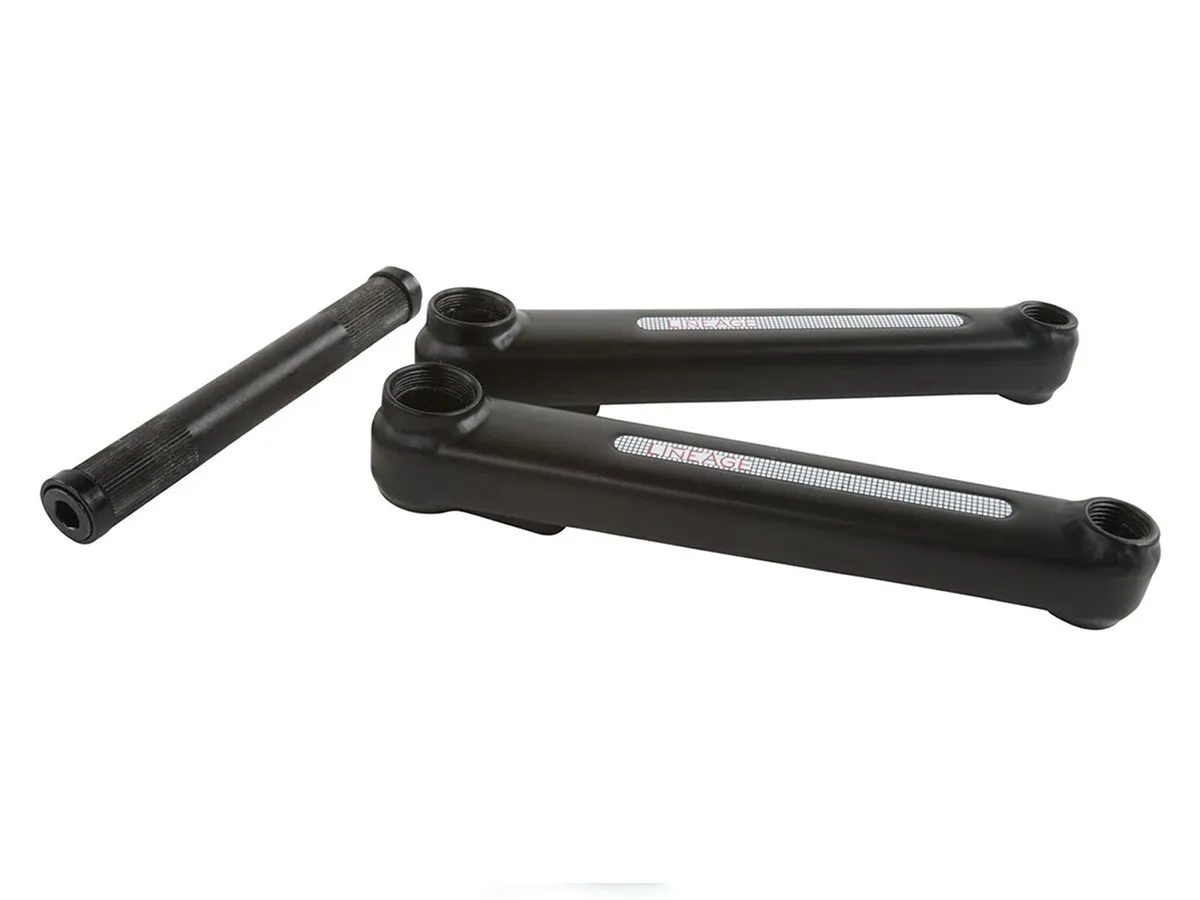

Haro Bikes "Lineage" BMX Crank

159.95 EUR

[incl. 19% VAT excl. shipping]
Color
lenght
Qty.

The Haro Bikes "Lineage" BMX Crank is a classic, high quality 3-pc. CrMo crank with a 19mm hollow axle. The Haro Bikes "Lineage" BMX Crank is compatible with nearly all BMX sprockets (Bolt Drive, Micro-Bolt-Drive, Spline Drive) and can be used as LHD or RHD crank.

Facts: Haro Bikes "Lineage" BMX Crank

  • Material Crank Arms: 4130 CrMo, heat treated
  • Material Crank Spindle: 4130 CrMo, heat treated, hollow
  • Crank-Type: 3-piece
  • Crank Arm Length: 170mm or 175mm (selectable as an option)
  • Spindle Diameter: 19mm
  • Spindle-Type: 48-Spline
  • possible Sprocket Mount by:
    Micro-Bolt-Drive (smaller then 25T): right (RHD) and left (LHD)
    Bolt-Drive (25T or larger): right (RHD) and left (LHD)
    Spline-Drive: right (RHD) and left (LHD)
  • Pedal Threat: for 9/16" pedals
  • Spindle Bolt: 2x bolts (12x1mm, 19mm Axle) with 8mm and 6mm allen key
  • Sprocket Bolt: 1x bolt (10x1.5mm)(Standard), 1x bolt (8x1.25mm)(Micro-Drive)
  • Extras: completely surround welded axle and pedal jacks, rectangular flattened arms, including assembly grease
  • Recommended for: Street, Park or Trails


  • Weight (in kg): 0.82
  • Weight (in lbs): 1.81
  •
  • Packaging Unit: 1 Set
  •
  • Product ID (PID): 7765
