Haro Bikes "Lineage Spline Drive" BMX Crank
-
Weight : 0.82kg / 1.81lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 7763
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

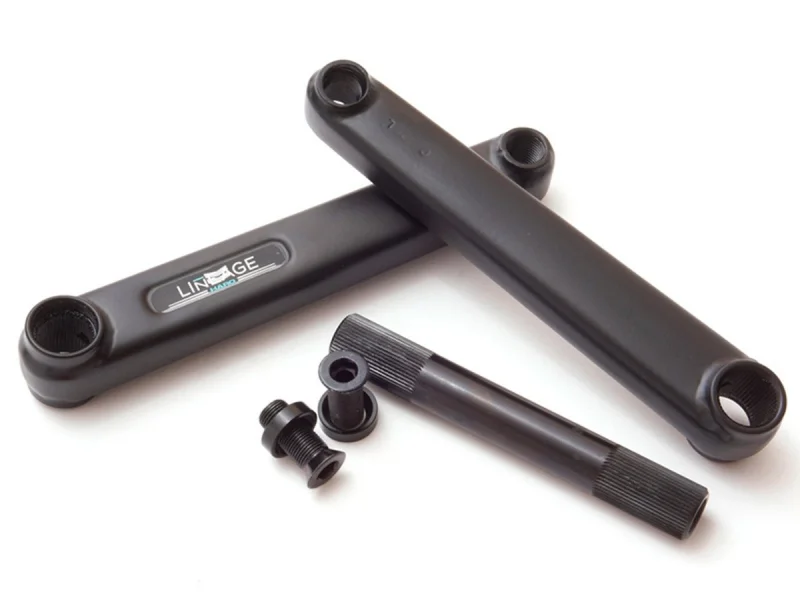

Haro Bikes "Lineage Spline Drive" BMX Crank
is a classic, high quality 3-pc. CrMo crankset with a 19mm hollow axle. The crank arms have no sprocket holes.
The
Haro Bikes "Lineage Spline Drive" BMX Crank
is only compatible with spline drive sprockets, which you also will find in our online shop.
Facts: Haro Bikes "Lineage Spline Drive" BMX Crank
- Material Crank Arms: 4130 CrMo, heat treated
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 3-piece
- Crank Arm Length: 165mm or 175mm
- Spindle Diameter: 19mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
Spline-Drive: right (RHD) and left (LHD) - Pedal Threat: For 9/16" pedals
- Spindle Bolt: 2x bolts (M12x1mm, 19mm Axle) with 8mm allen key
- Sprocket Bolt: No mounting possible (Spline-Drive)
- Extras: Completely surround welded axle and pedal jacks, rectangular flattened arms
- Recommended for: Street, Park or Trails
