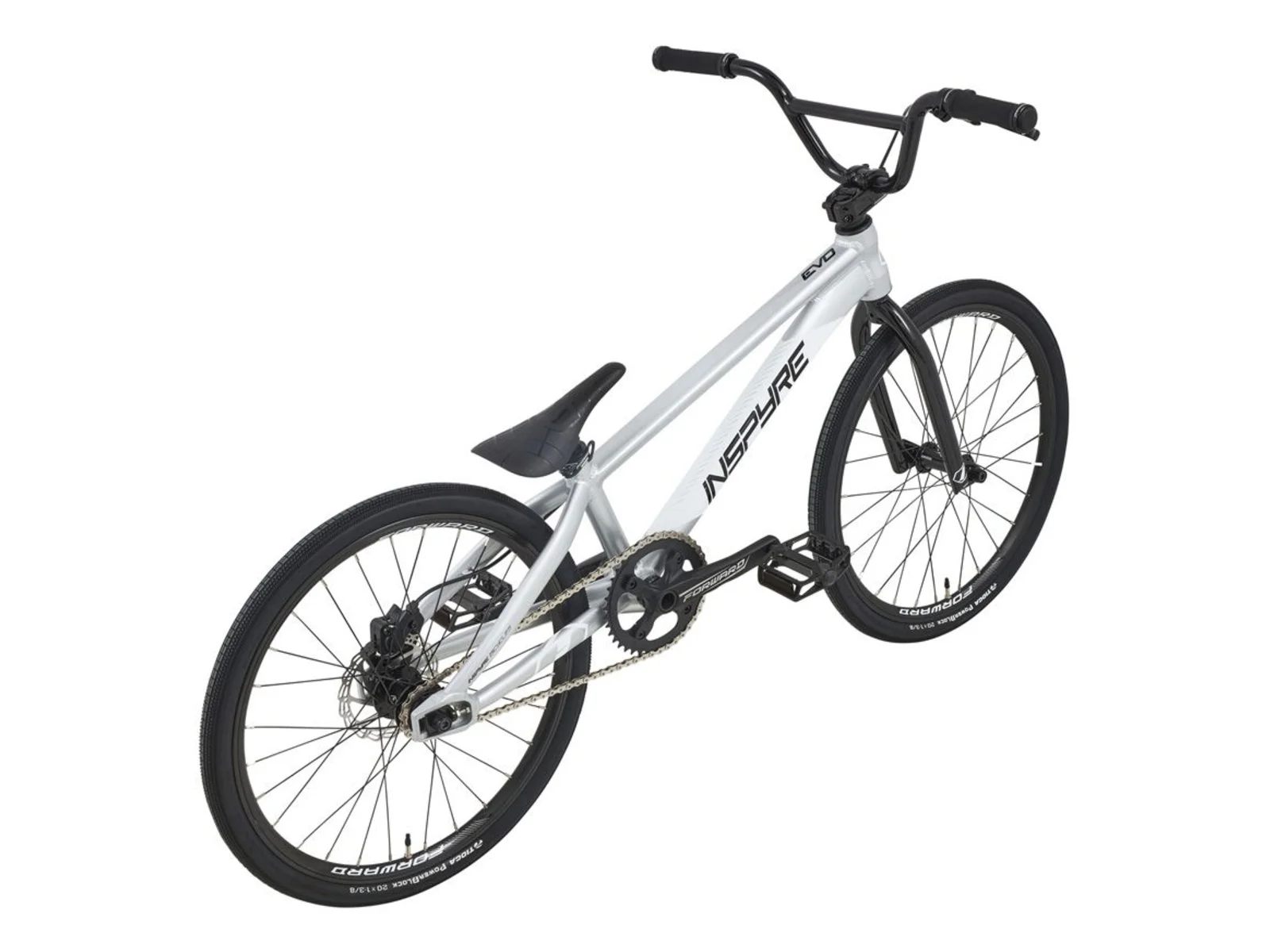

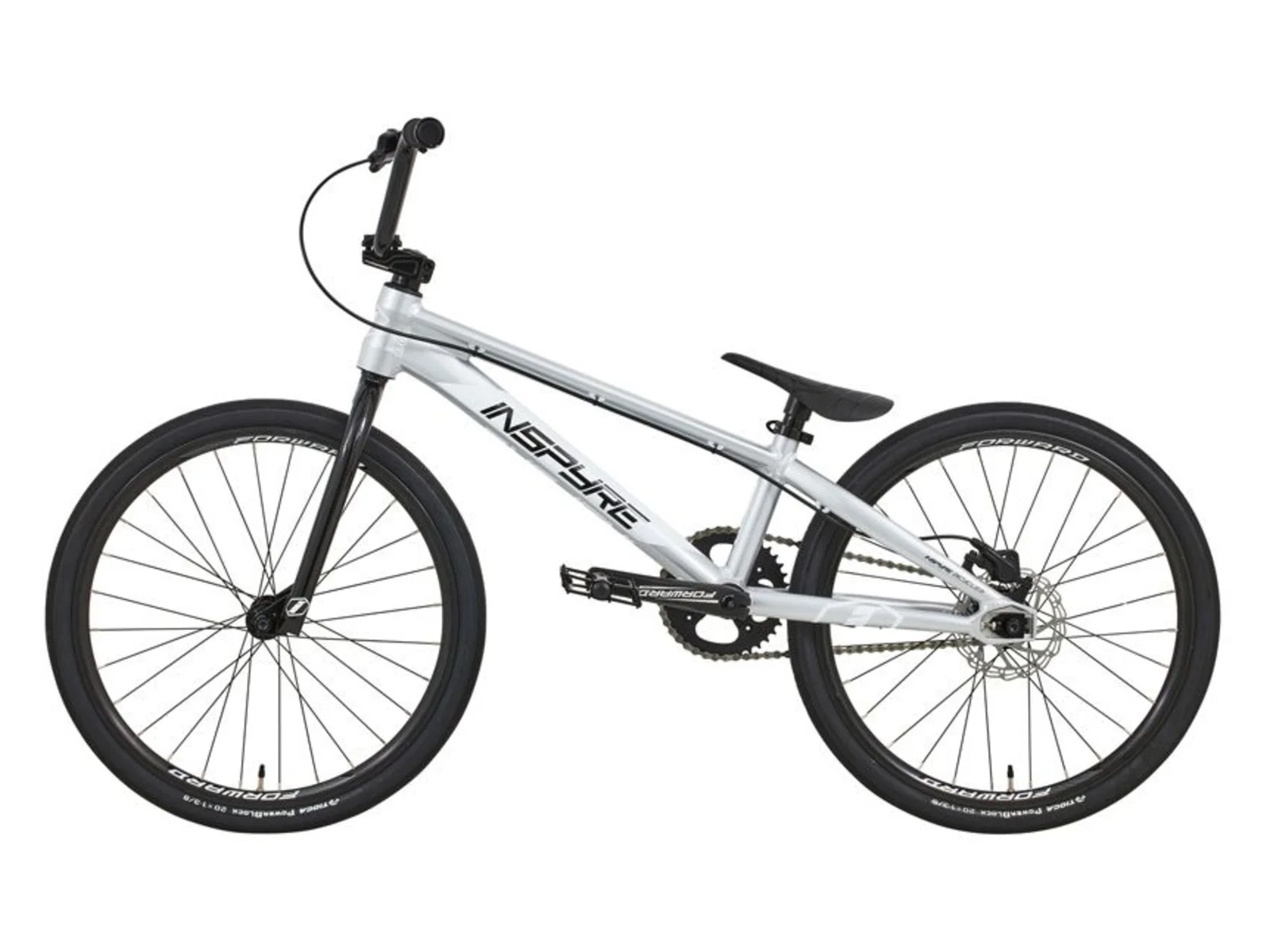

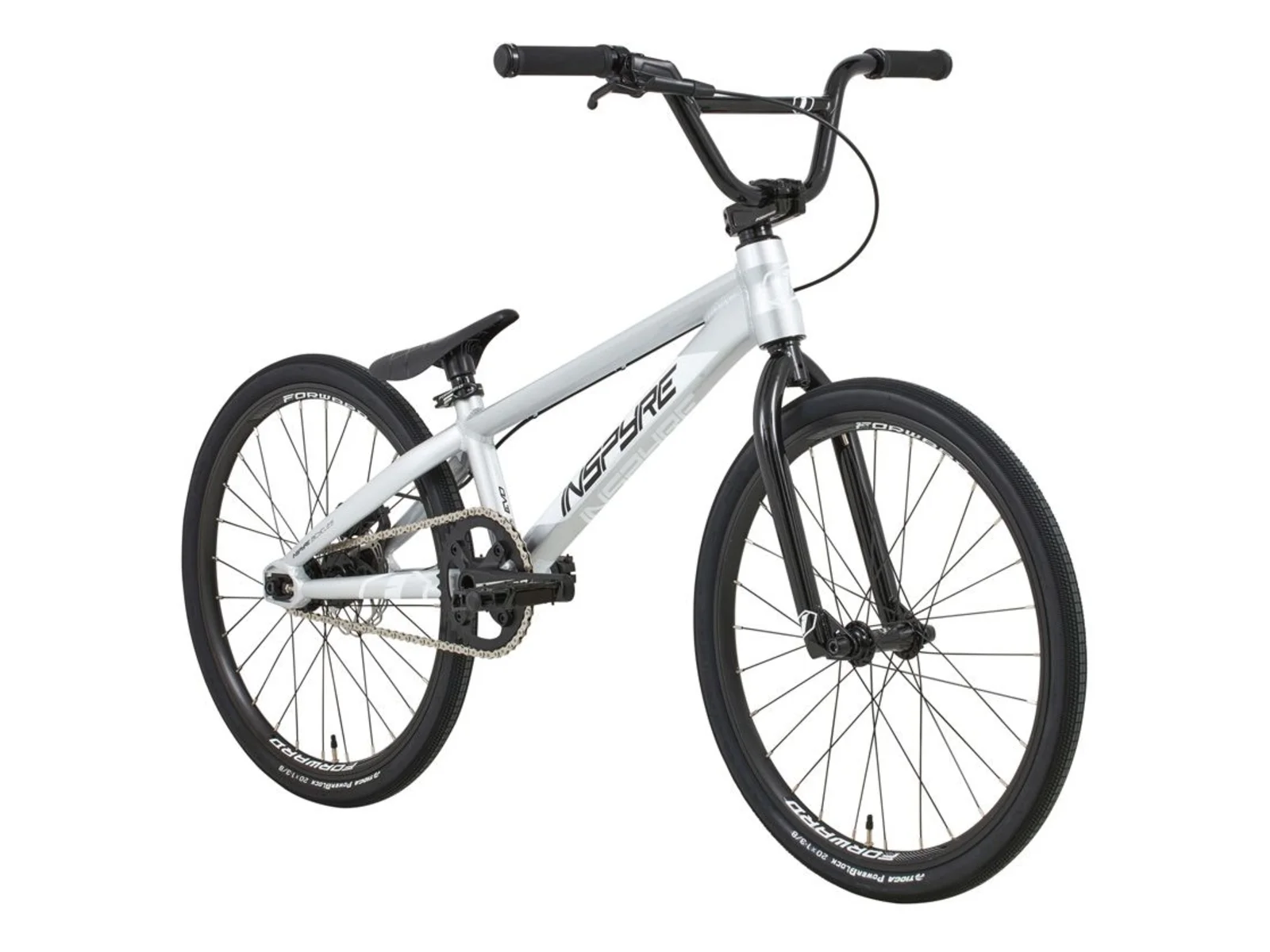

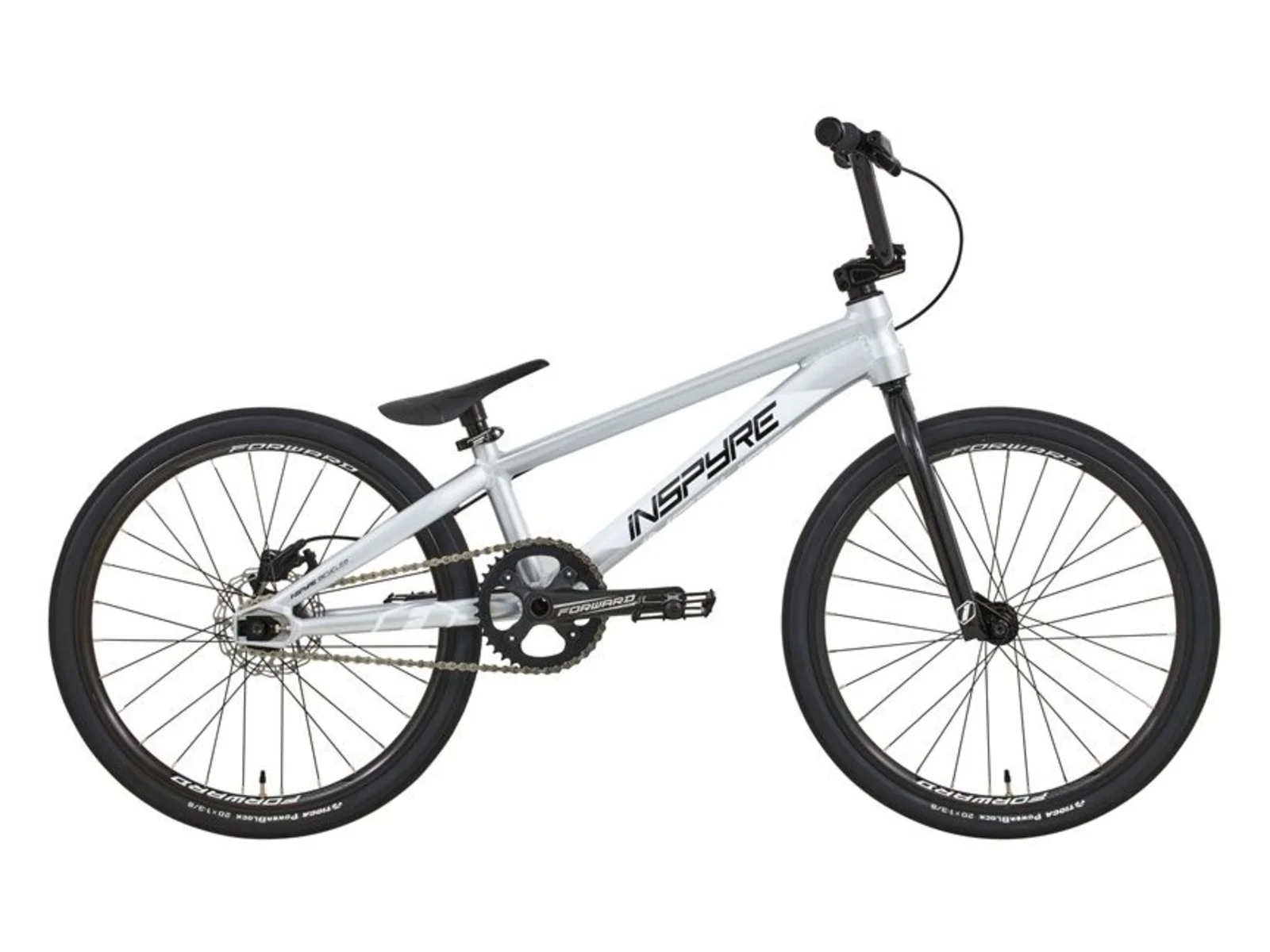

Inspyre Bicycles "Evo Disk Expert" BMX Race Bike - Grey
-
Weight : 7.78kg / 17.15lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 30291
- Product safety
The Inspyre Bicycles "Evo Disk Expert" BMX Race Bike - Grey is an uncompromising race bike made from hydroformed 6061-T6 aluminum, guaranteeing you absolute precision on the track thanks to hydraulic Alhonga disc brakes and grippy Tioga Powerblock tires. With its high-quality Forward Joyride crankset and responsive hub system, the Inspyre Bicycles "Evo Disk Expert" BMX Race Bike - Grey provides the perfect foundation to take your racing performance to the next level.
The Inspyre Bicycles "Evo Disk Expert" BMX Race Bike - Grey is aimed at ambitious riders who already have some racing experience and are now looking for more responsiveness and performance. Designed to support athletic progression, it offers the perfect foundation to take your skills to the next level. The Evo complete range is available in seven different sizes – from Junior to Cruiser. For each frame size, the components are precisely adapted to the rider’s height and needs, ensuring a perfectly tuned setup for maximum support on the track.
Facts: Inspyre Bicycles "Evo Disk Expert" BMX Race Bike - Grey
- Wheelsize: 20"
- Race-Size: Expert
- Wheel Size: 20"
- Race Size: Expert
- BMX Frame: Inspyre Evo Disk Expert 19.5" - Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts
- Frame Geometry:
- Top Tube (TT): 19.5"
- Chainstay (CS): 13.45"
- Head Tube (HA): 73°
- Seat Tube (SA): 71°
- BB Height (BB): 11" - BMX Fork: Inspyre Evo - 100% Chromoly - 1-1/8" Steerer tubing - Tapered legs
- BMX Handlebar:
- Inspyre Evo - Aluminium - 22.2mm
- Rise: 5.5"
- Width: 26"
- Backsweep: 7°
- Upsweep: 2°
- Clamp: 22.2mm - Grips: Forward Lock On 130mm - Kraton
- Stem: Forward - Top Load - Aluminum 6061-T6 - 40mm
- Headset: Semi Integrated - Sealed bearings - ZS44 | ZS44
- Brake Lever (Right): Alhonga Short Lever, Aluminium
- Brake (Rear): Alhonga hydraulic disc brake, 140mm disc
- Seat: PC Combo, 27.2mm
- Seat Post: PC Combo, Aluminium, 27.2mm
- Seat Clamp: Forward AM, Aluminium, 31.8mm
- Pedals: Aluminum, 9/16"
- Chain: KMC® Z-1, 1/2" x 3/32"
- Sprocket: 4-bolt Aluminum, 39T
- Crank: Forward Joyride AM, 2-piece, 4-bolt (104 BCD), 160mm
- Bottom Bracket: FORWARD® external BSA, Sealed bearings
- Hub (Front): Inspyre - Aluminum, 28H, 10mm, 100% Sealed bearings, Female bolts
- Hub (Rear): Inspyre - Aluminum Cassette, 28H, 10mm, 100% Sealed bearings, 120 engagement points, 3 pawls system, Female bolts, 16T Cog, Chromoly
- Rim (Front): Forward Joyride - Aluminum, Double-wall, 28H
- Rim (Rear): Forward Joyride - Aluminum, Double-wall, 28H
- Tire (Front): Tioga Powerblock BMX Race Tire, 20" x 1-3/8"
- Tire (Rear): Tioga Powerblock BMX Race Tire, 20" x 1-3/8"
- Delivery: The BMX bike is delivered pre-assembled in a box. For final assembly, only the handlebars, front wheel, pedals and seat need to be attached. Tools not included.
- Area of use: BMX Race, developed for BMX race tracks or pump tracks
