Subrosa Bikes "MR1" BMX Frame

364.95 EUR

[incl. 19% VAT excl. shipping]
Brake Mounts
Color
Toptube
Qty.

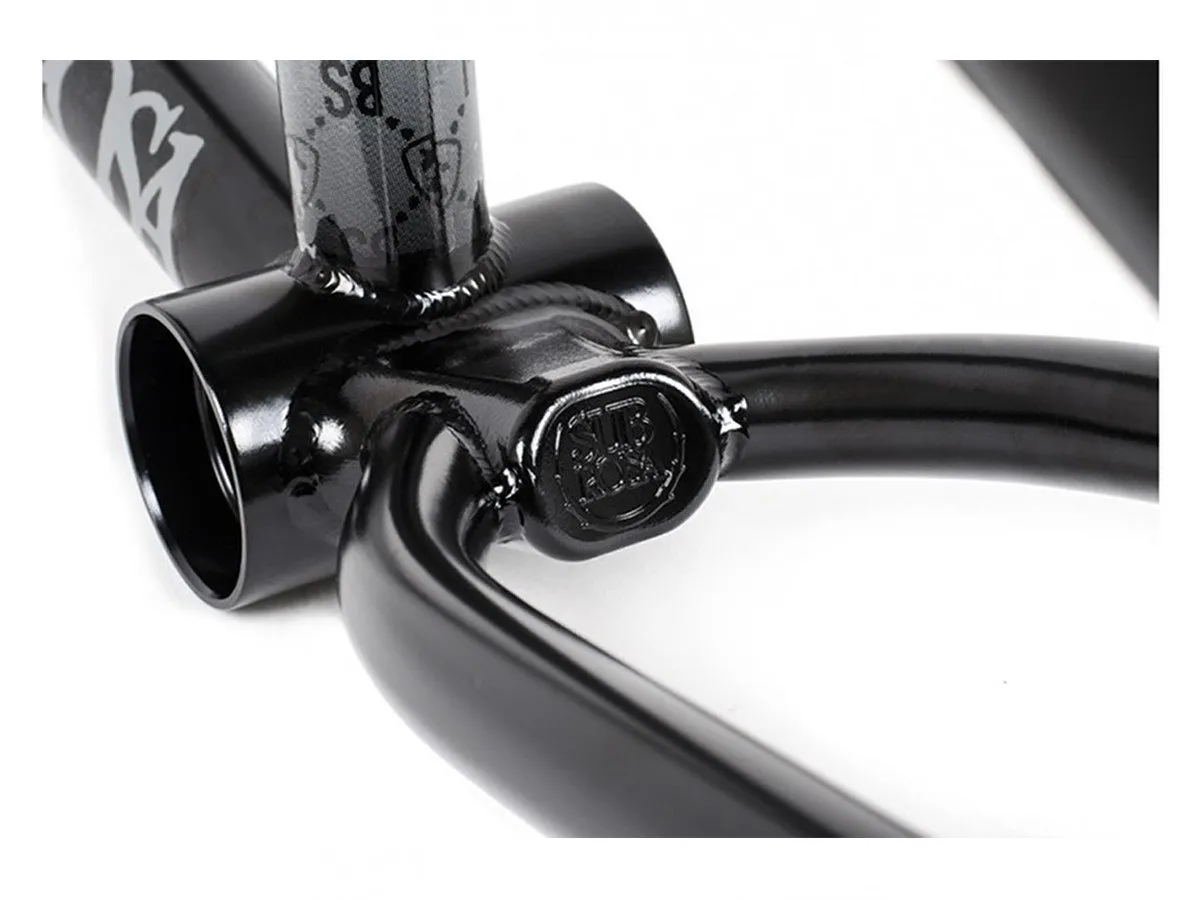

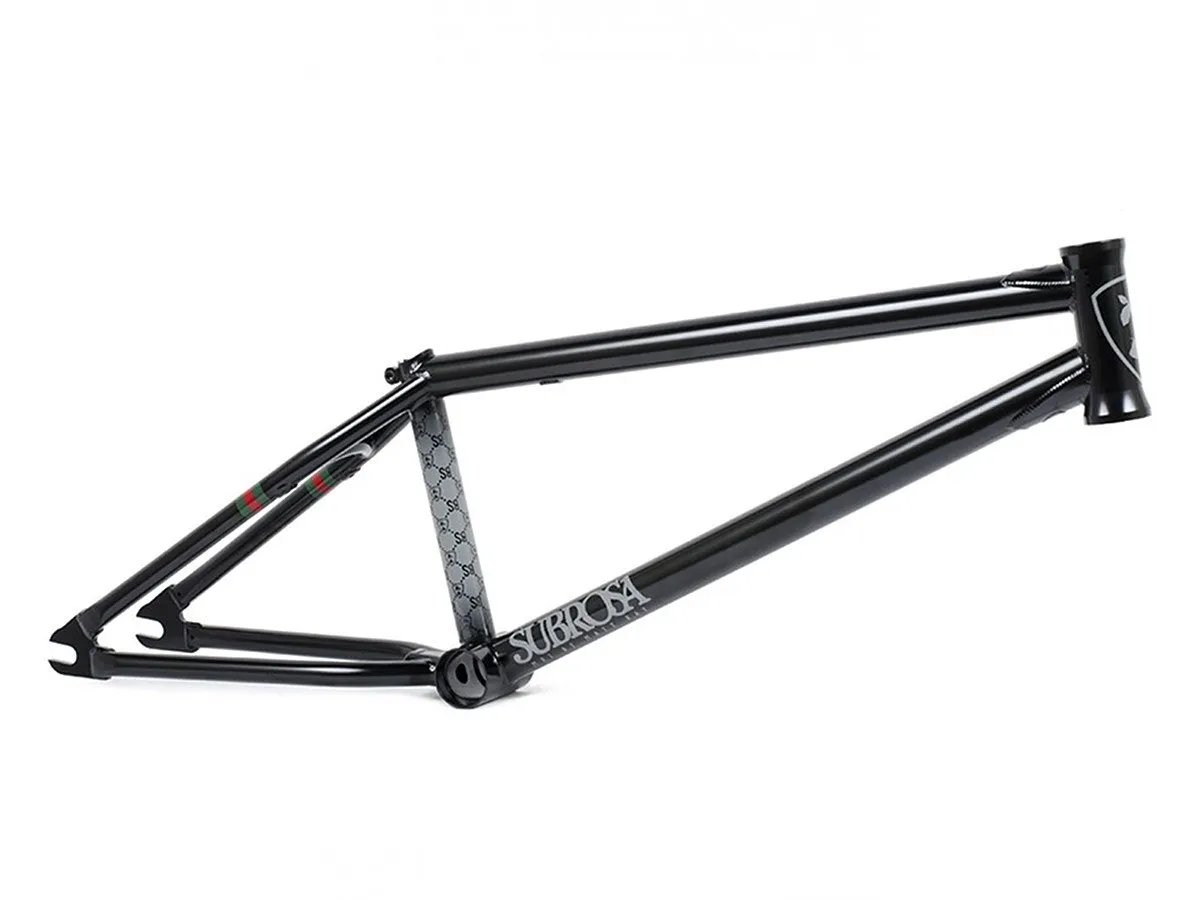

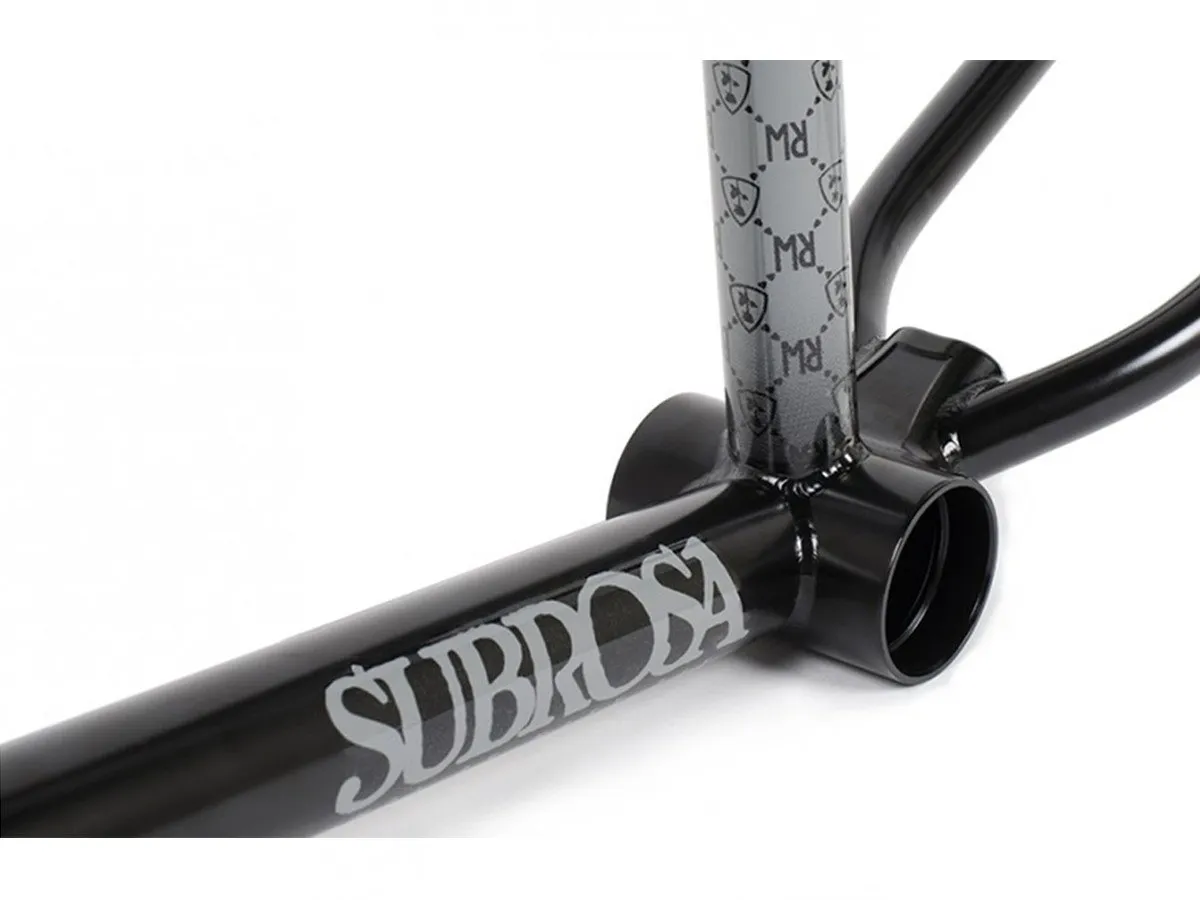

The Subrosa Bikes "MR1" BMX Frame is the first signature BMX frame of Matt Ray. Matt loves to ride and completely destroy everything from street to ramps and this frame is designed to handle it all. Specific geometry from Matt will feel great for all kinds of riding! The Subrosa Bikes "MR1" BMX Frame is made by 100% 4130 Sanko CrMo and utilizing a 13.4" slammed rear end, and double butted top and down tube.

Facts: Subrosa Bikes "MR1" BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 Sanko CrMo, top tube and down tube gussets, butted tubes, integrated headset, removable brake hardware, Mid BB
  • Geometry:
    Top Tube (TT): 21"
    Chain Stay (CS): 13.4" (fully slammed)
    Head Tube Angle (HA): 75°
    Seat Tube Angle (SA): 71°
    BB Height: 11.5"
    Standover Height (SO): 8.75"
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB

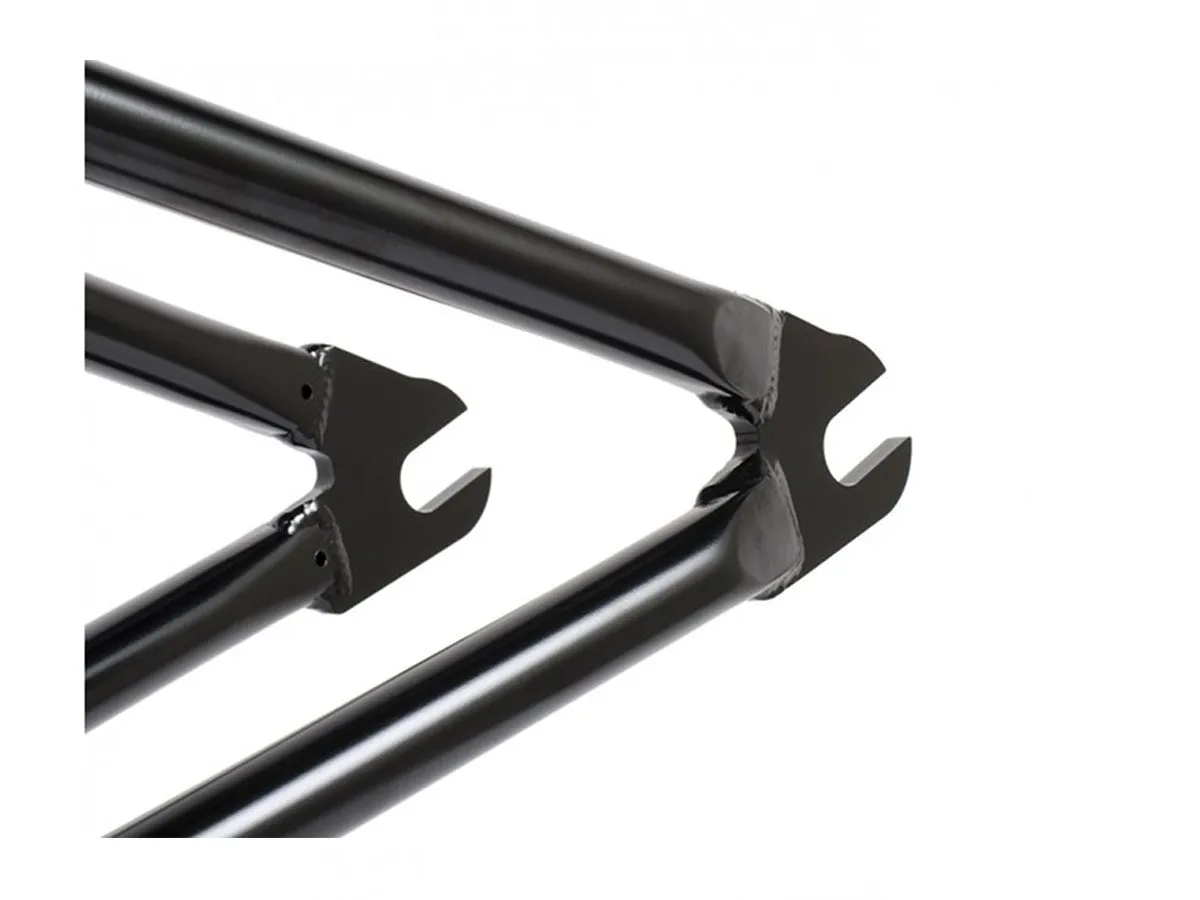

  • Dropouts: 6mm thick, 14mm slots, heat treated
  • Chain Tensioners: without
  • Brakemounts: removable, M6, included with delivery
  • Extras: Matt Ray Signature frame, Wide rear end for fat 2.4" tires and hubguards
  • Model Year: 2018


  • Weight (in kg): 2.18
  • Weight (in lbs): 4.81
  •
  • Packaging Unit: 1 Piece
  •
  • Product ID (PID): 13150
