Sunday Bikes "Blueprint 16" 2019 BMX Bike - 16 Inch - Gloss Red
This product is currently sold out. The date of new availability is unknown.
Current successor: Sunday Bikes "Blueprint 16" 2027 BMX Bike - 16 Inch - Gloss Ocean Blue Show similar products
Current successor: Sunday Bikes "Blueprint 16" 2027 BMX Bike - 16 Inch - Gloss Ocean Blue Show similar products
-
Weight : 9.8kg / 21.61lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 14925
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

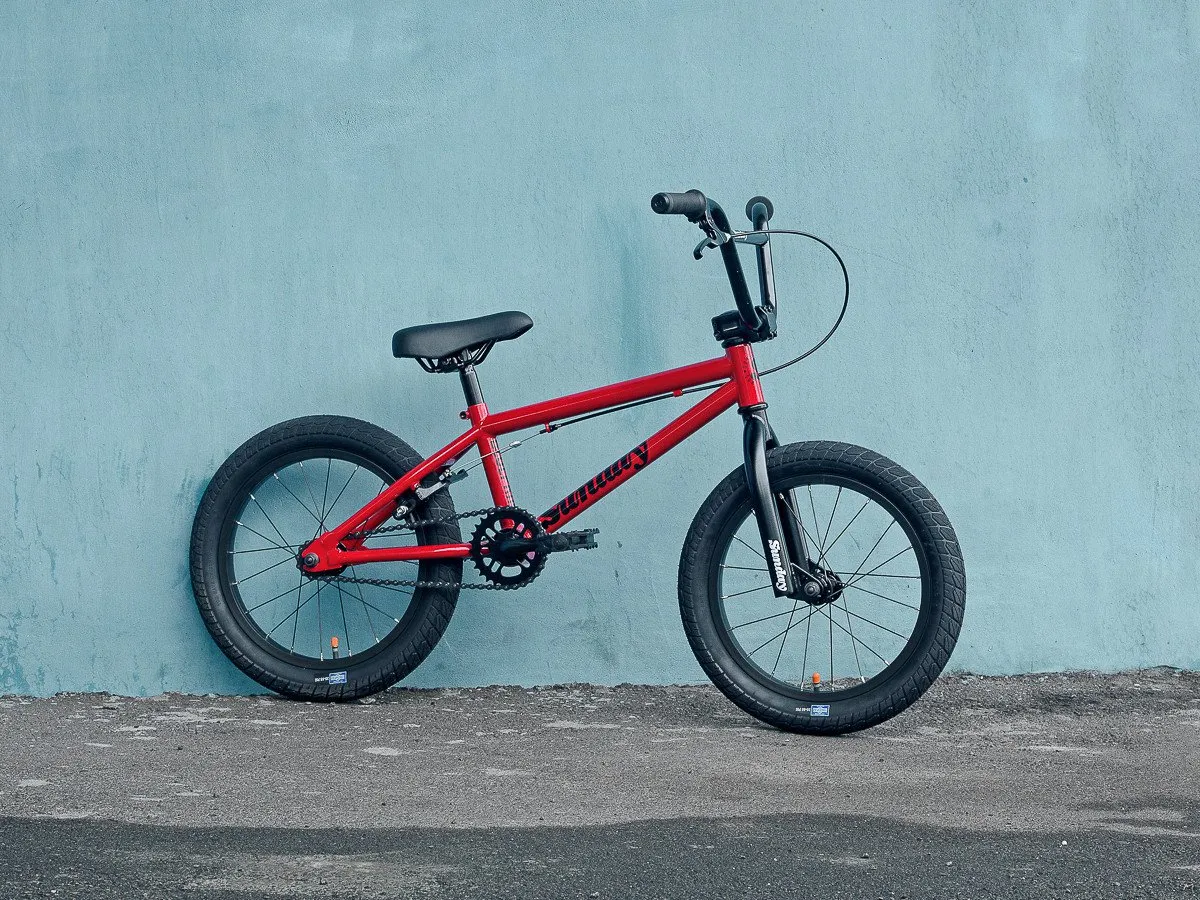

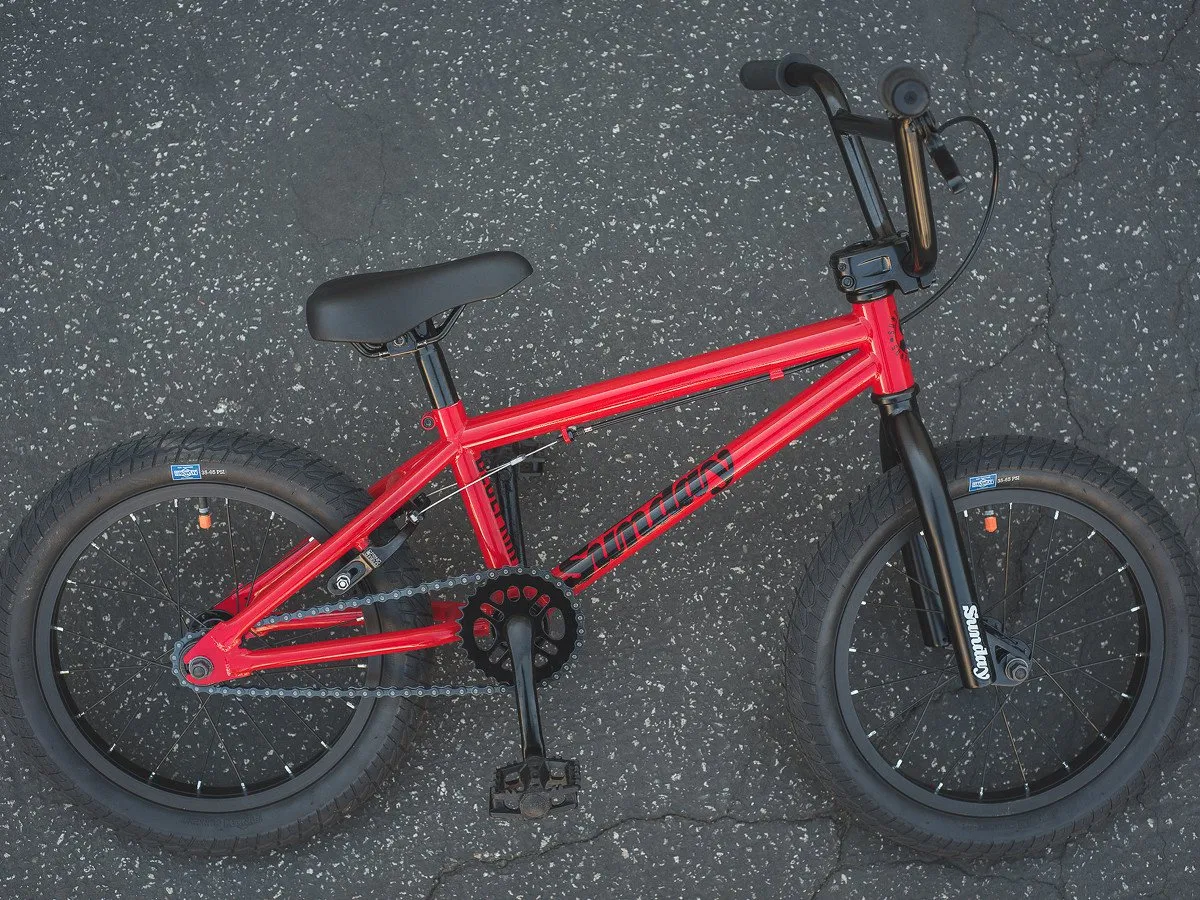

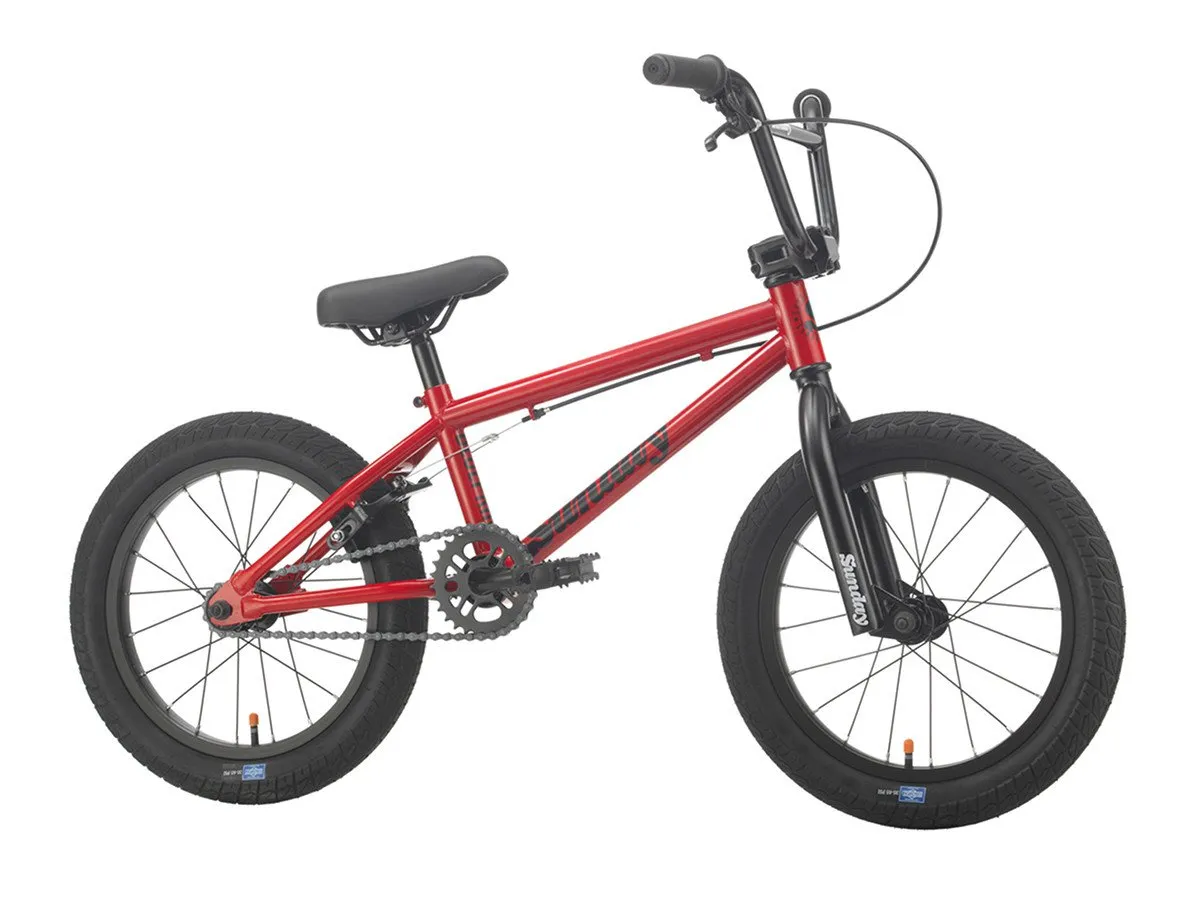

Sunday Bikes "Blueprint 16" 2019 BMX Bike - 16 Inch - Gloss Red
is a 16 inch kids BMX complete bike which is equipped with a Odyssey "Springfield" U-brake to keep the handling for starters as easy as possible. The
Sunday Bikes "Blueprint 16" 2019 BMX Bike - 16 Inch - Gloss Red
offers solid equipment and is suitable for children with an age of aprox. 5 -9 Years and body size of approx. 110cm - 140cm.
Facts: Sunday Bikes "Blueprint 16" 2019 BMX Bike - 16 Inch - Gloss Red
- Wheel Size: 16"

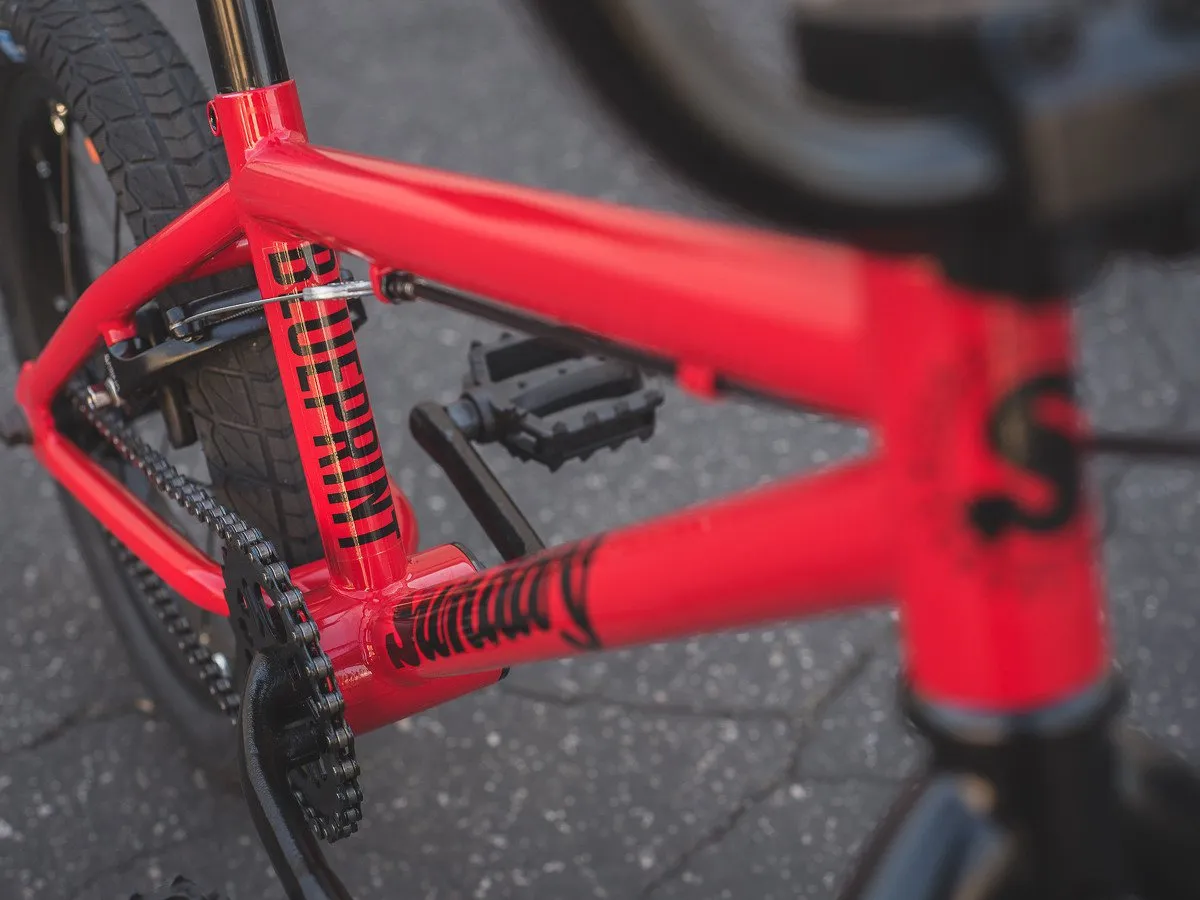

- BMX Frame:
- Hi-Ten
- Top Tube (TT): 16.5"
- Chain Stay (CS): 10.63"
- Head Tube (HA): 74.5°
- Seat Tube (SA): 71°
- BB Height: 9.25"
- Standover: 6.9" - BMX Fork: Blueprint 16", 2-piece steerer, Hi-Ten

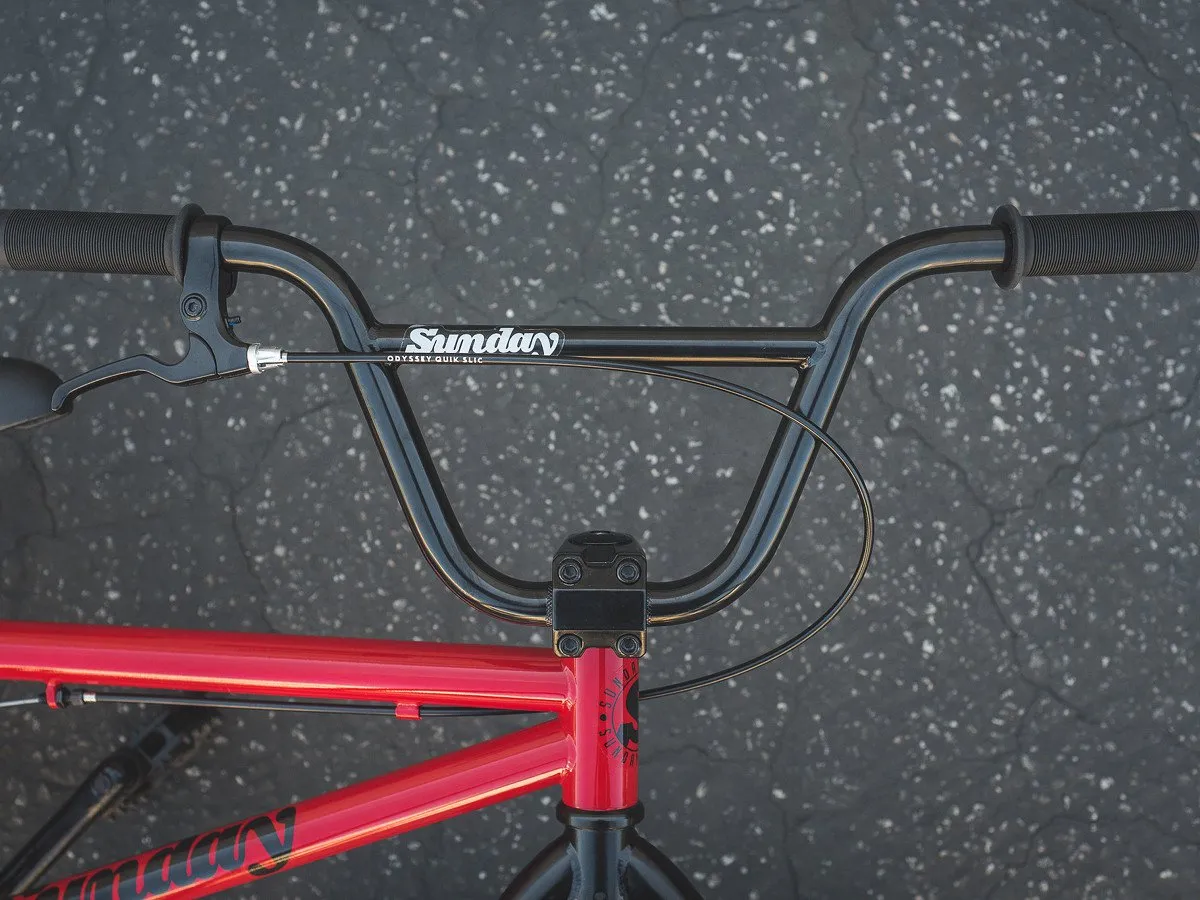

- BMX Bar:
- 2-piece, HiTen
- Height: 6.75"
- Width: 23"
- Backsweep: 12°
- Upsweep: 1° - Grips: Junior, rubber

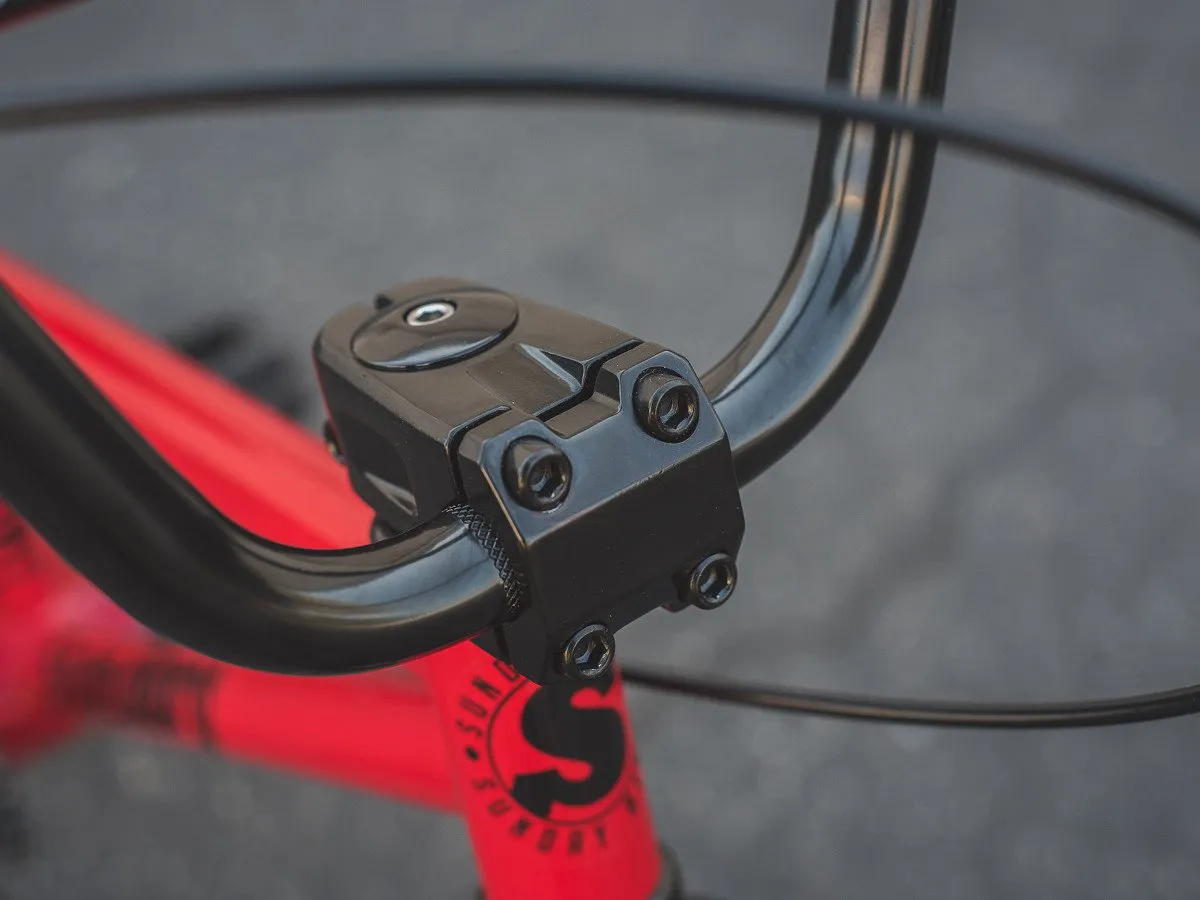

- Stem: Sunday, frontload, Aluminum 40mm reach
- Headset: 1-1/8" A-Head set, loose ball
- Gyro: -

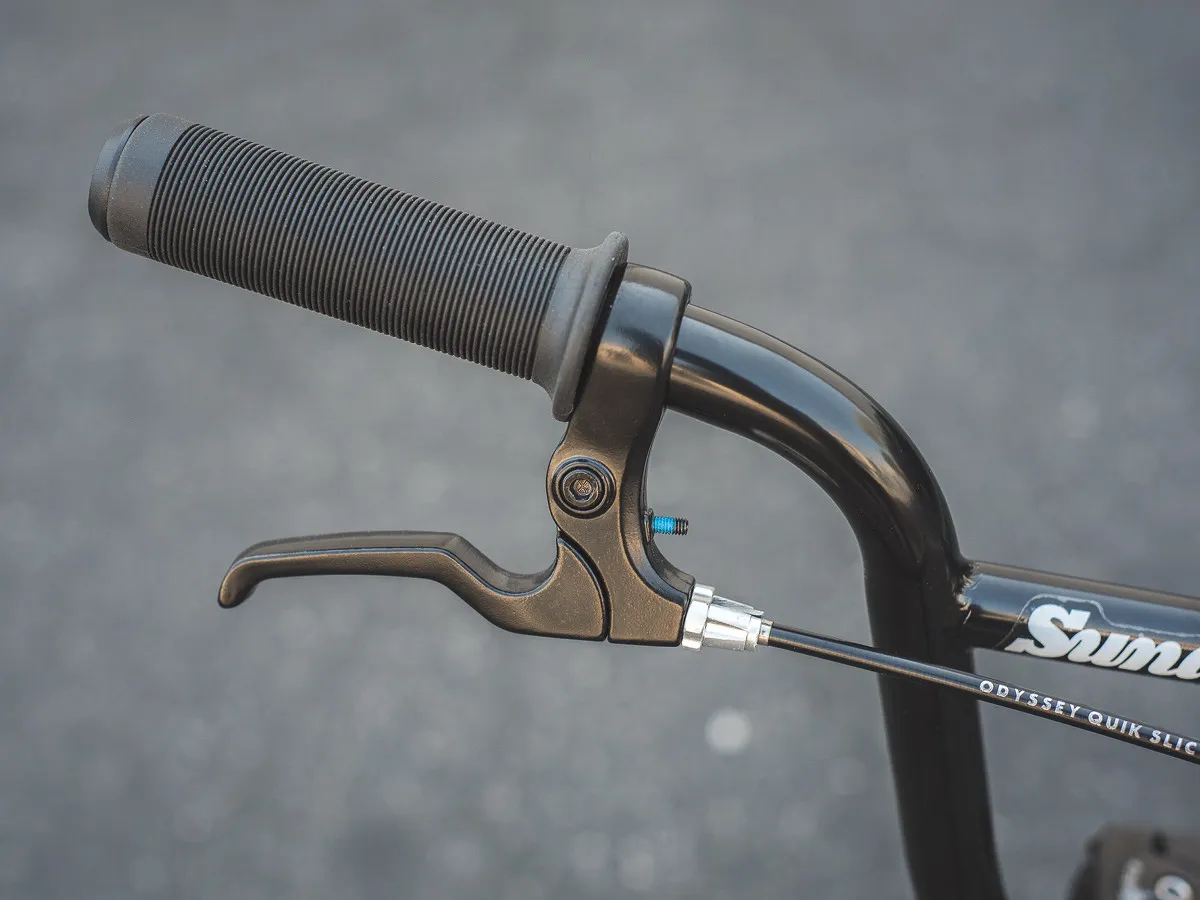

- Brake Lever: Junior Lever (for small hands)

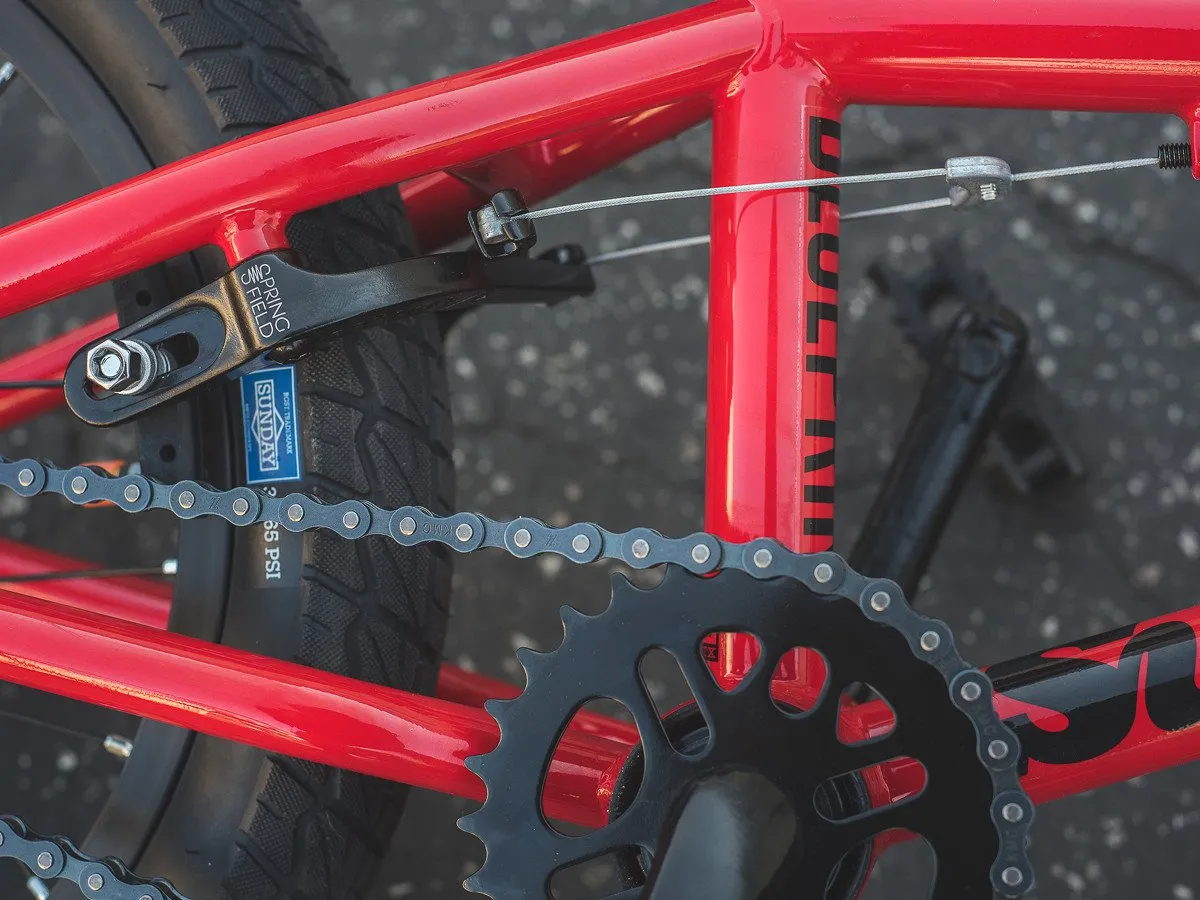

- Brake: Odyssey Springfield U-Brake

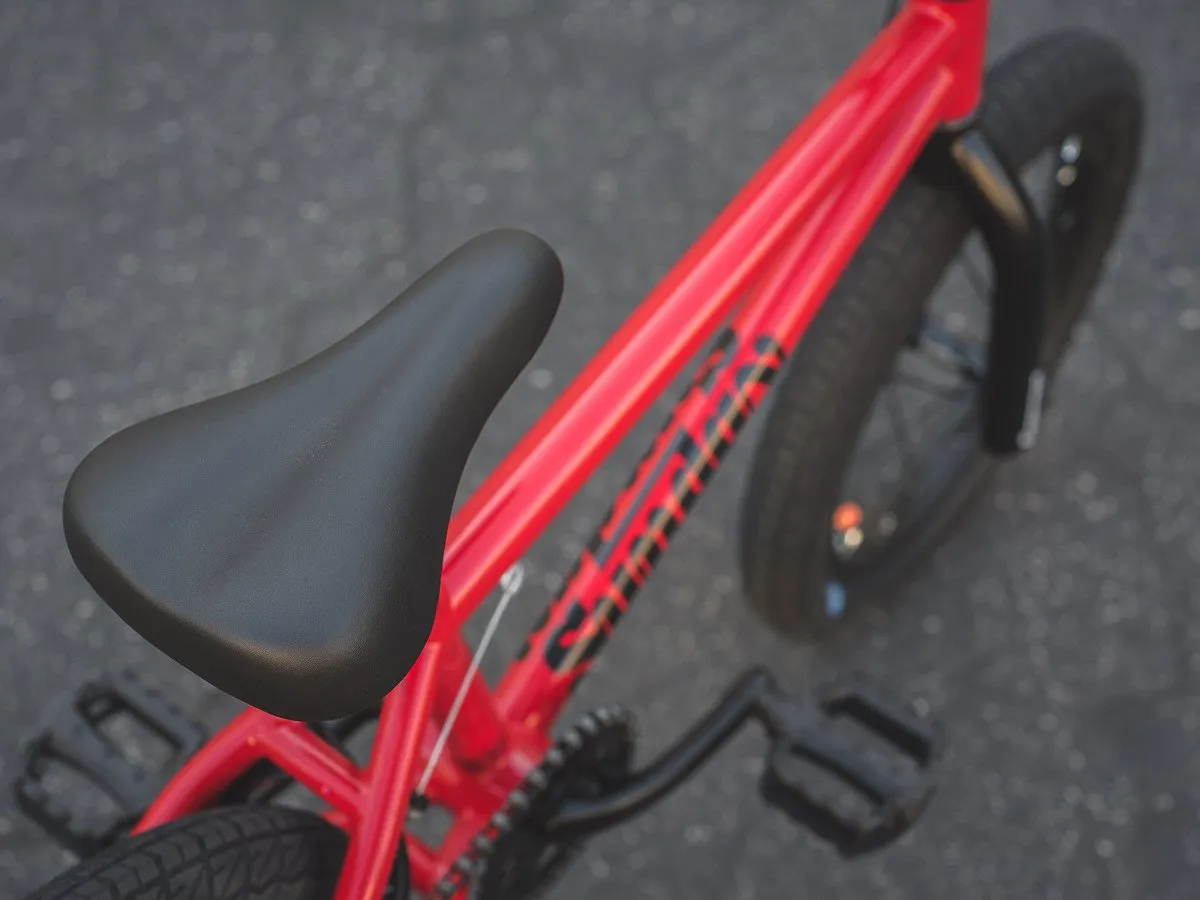

- Seat: Junior, padded, with rails
- Seat Post: 25.4mm, 152mm long, steel
- Seat Clamp: Integrated
- Bottom Bracket: US BB, loose ball
- Pedals: Junior, plastic, 1/2"
- Chain: KMC "Z410"
- Sprocket: Sunday, steel, 28T
- Crank: 1-piece, 115mm
- Hub (front): Sunday, low flange, loose ball, 10mm axle, 20H

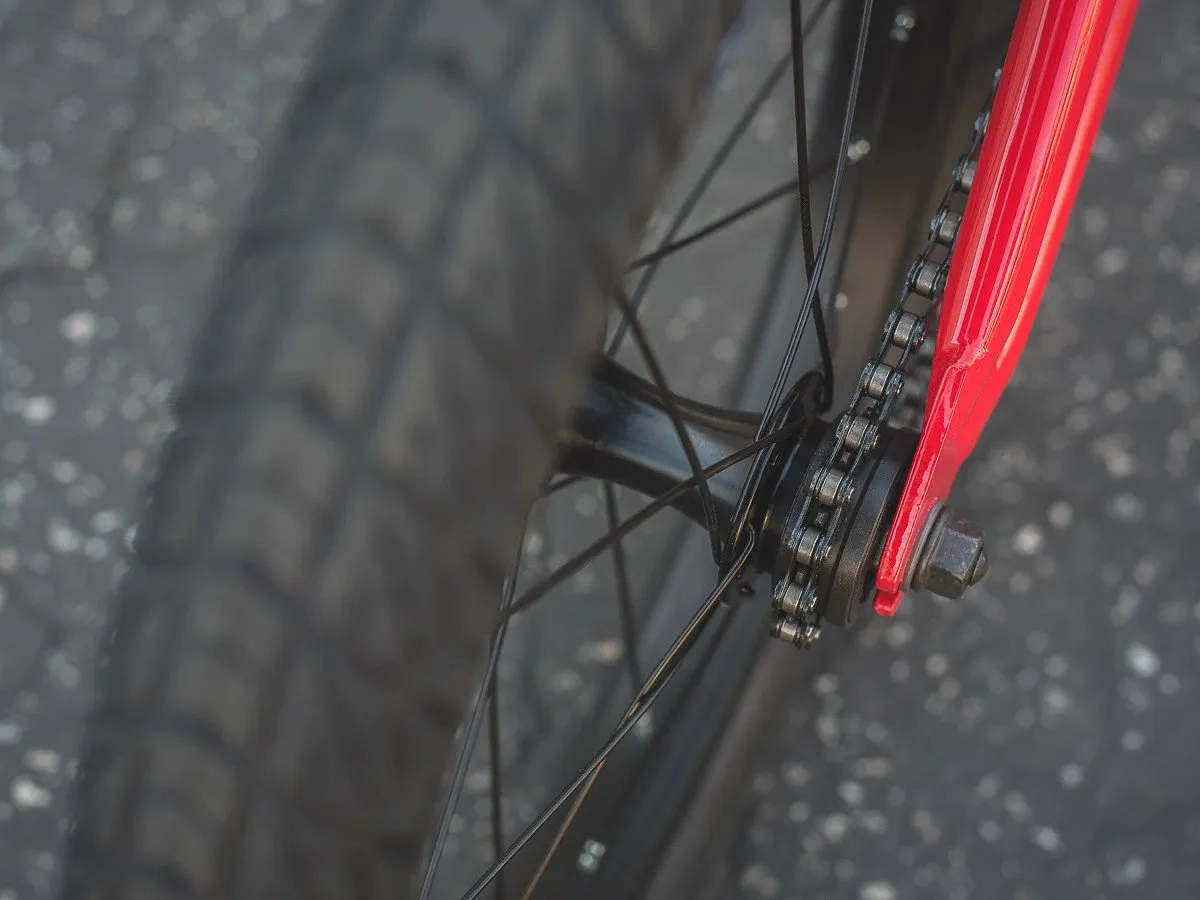

- Hub (rear): freewheel, loose ball, 10mm axle, 20H, 13T
- Rim (front): 16", Aluminum, 20H
- Rim (rear): 16", Aluminum, 20H
- Tire (front): Sunday "Current", 16" x 2.1"
- Tire (rear): Sunday "Current", 16" x 2.1"
- Pegs: -
