Ares Bikes "XX" BMX Frame
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 1.81kg / 3.99lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 23720
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

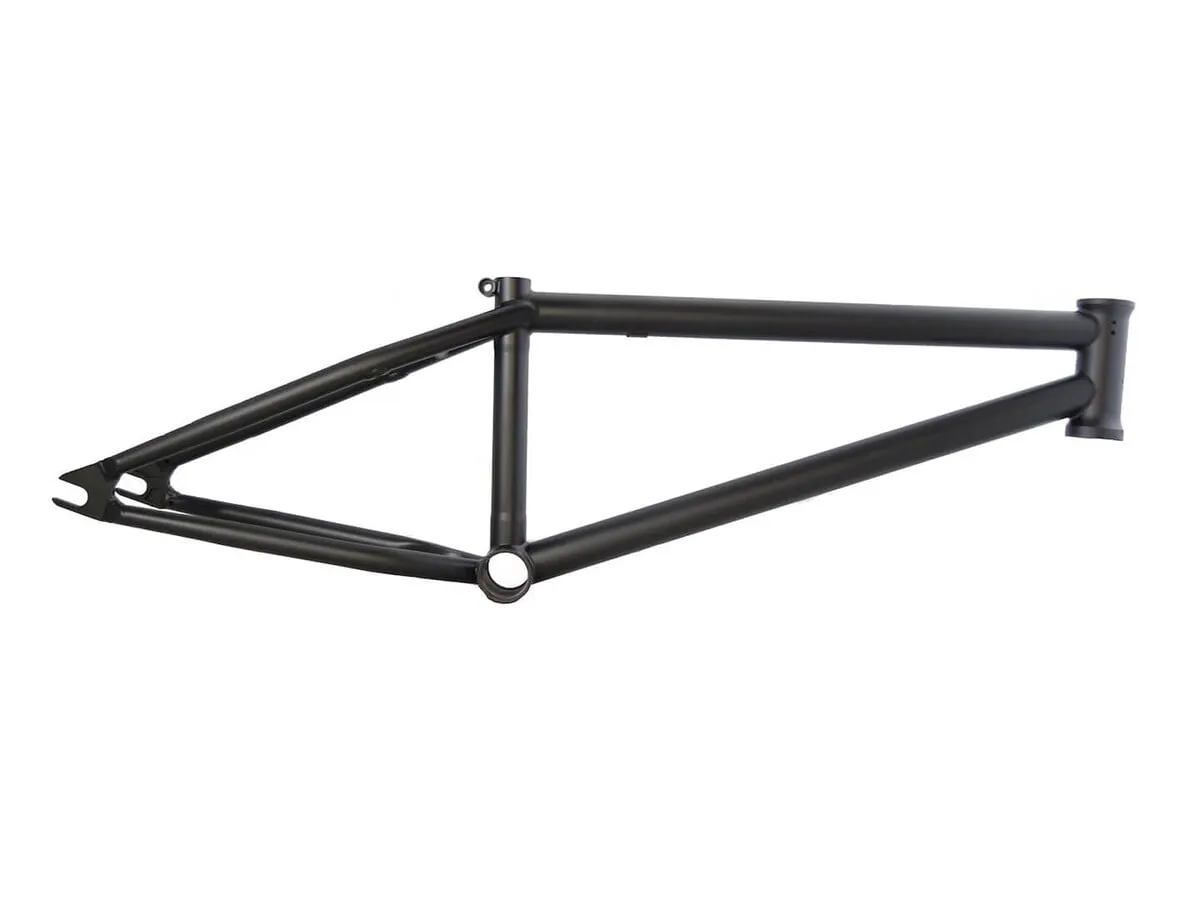

Ares Bikes "XX" BMX Frame
is a light professional BMX flatland frame with modern geometry. The dropouts are equipped with an integrated chain tensioner and the U-brake mounts can be screwed on.
Facts: Ares Bikes "XX" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, butted tubes, tapered chainstays and seattube, integrated headset
- Geometry:
- Top Tube Length (TT): 18.5"
- Chainstay Length (CS): 12.6" (32cm) - 13" (33cm)

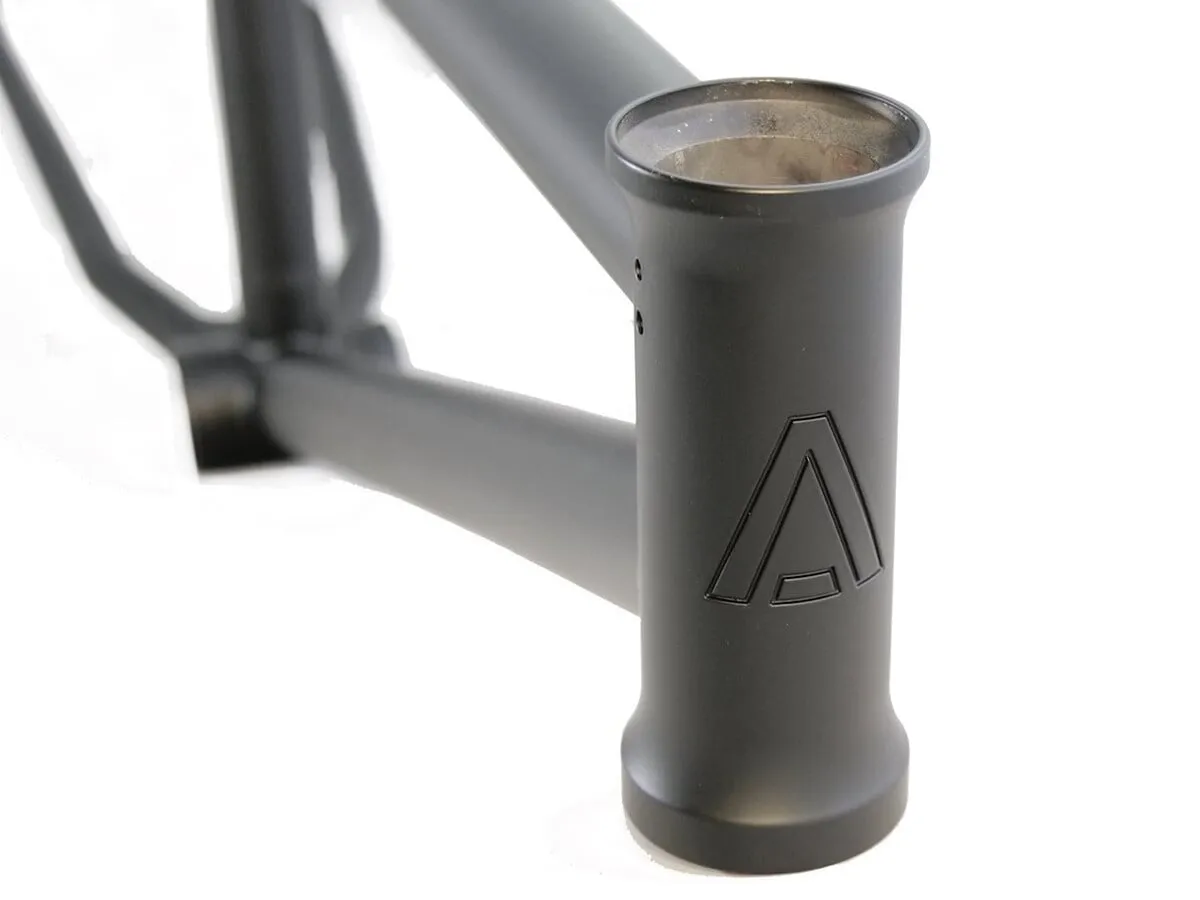

- Head Tube Length: 4.6" (11.68cm)
- Head Tube Angle (HA): 75°
- Seat Tube Angle (SA): 72°
- Bottom Bracket Height: 11.8" (29.97cm)
- Standover Height (SO): 8" (20.32cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Spanish BB

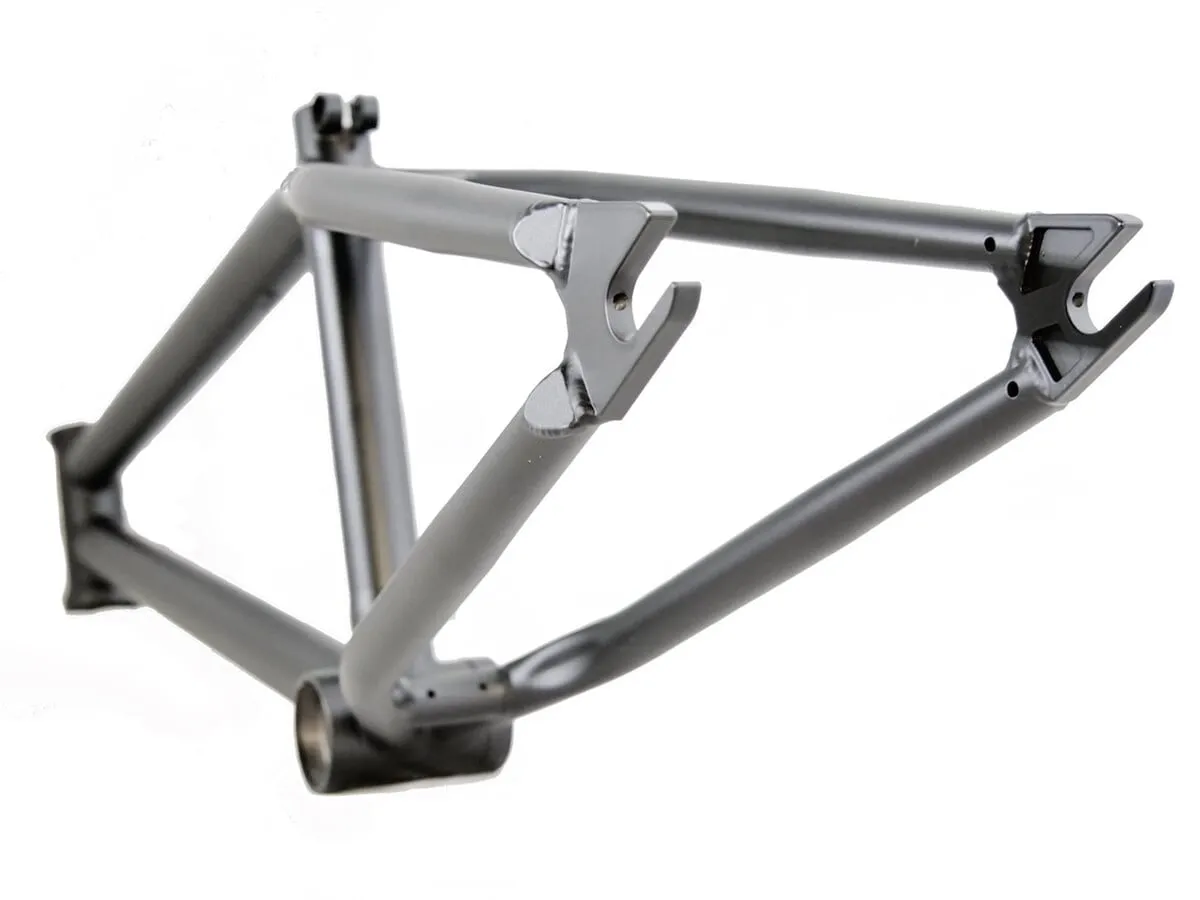

- Dropouts: 5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
