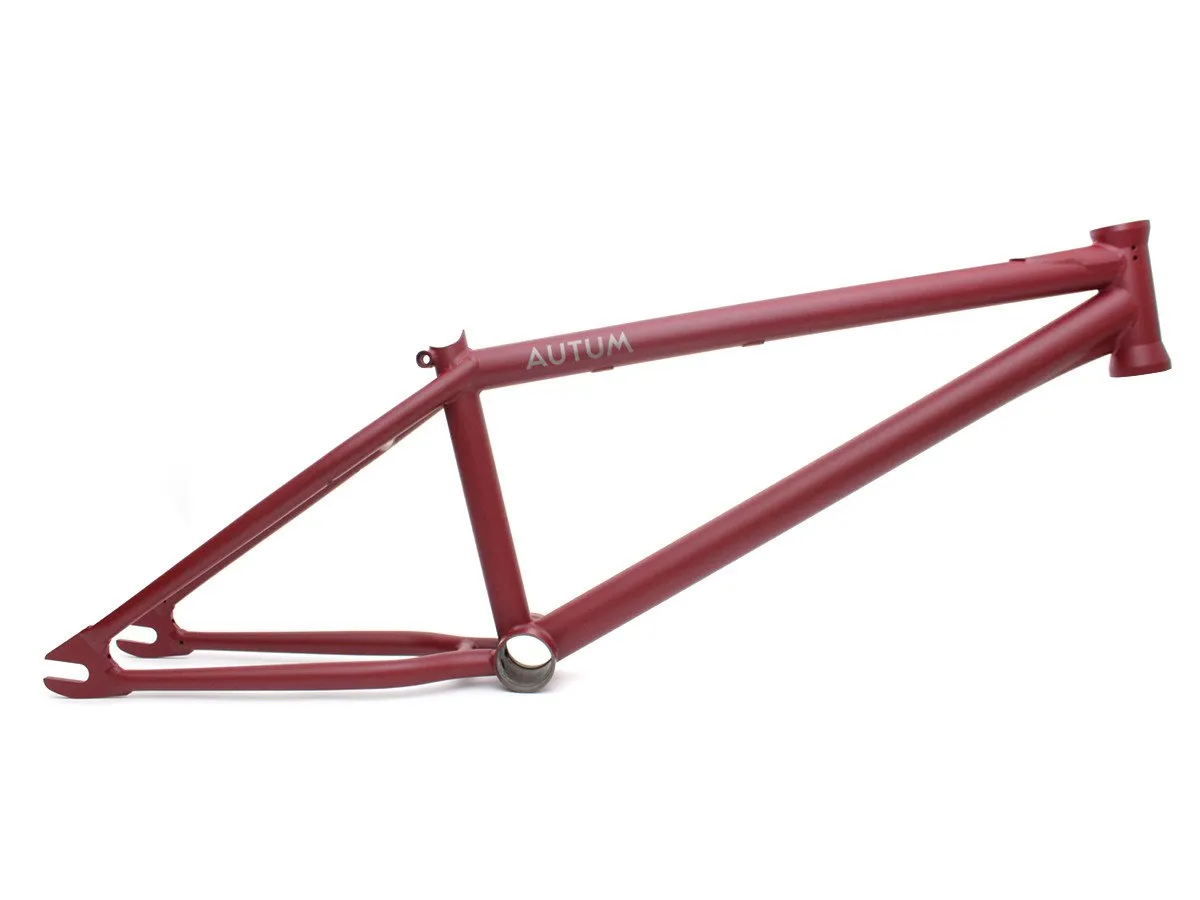

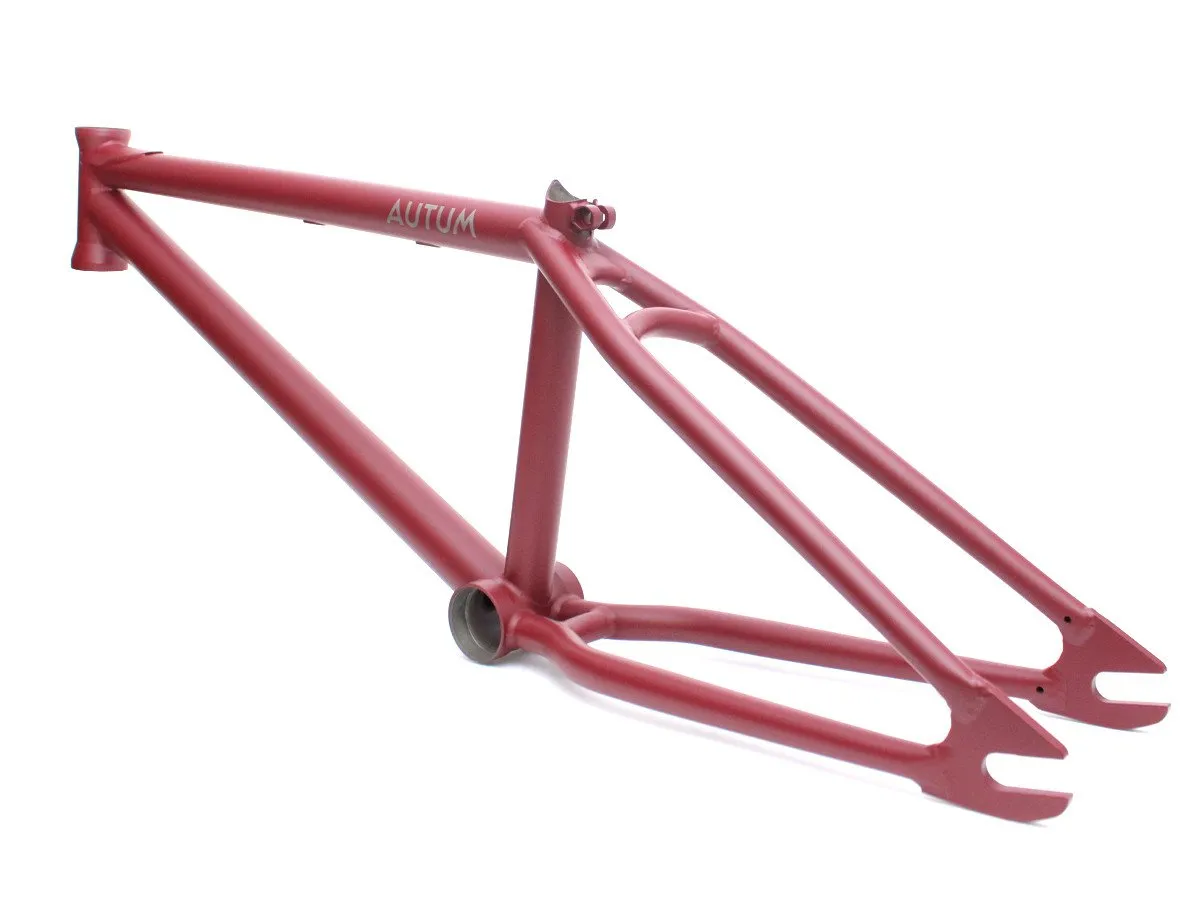

Autum Bikes "Katze Hydro" 2018 BMX Frame

429.95 EUR

[incl. 19% VAT excl. shipping]
Brake Mounts
Color
Toptube
Qty.

The Autum Bikes "Katze Hydro" 2018 BMX Frame is a real freestyle BMX frame because it mix the BMX diciplines for BMX flatland and BMX street. It's an allround frame for technical street riding and modern flatland. The Autum Bikes "Katze Hydro" 2018 BMX Frame is made of 100% Japanese Sanko CrMo, got a modern hydroformed downtube gusset and was heavily tested by there teamriders.

Facts: Autum Bikes "Katze Hydro" 2018 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, Hydroformed down tube gusset, integrated headset, integrated chaintensioners, removable brake hardware, Mid BB
  • Geometry:
    Top Tube (TT): 19.9", 20.5" or 21.0" (selectable as an option)
    Chain Stay (CS): 13.0"
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 72.5°
    Standover Height (SO): 8.7"
  • Seat Clamp: without
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: 14mm slots
  • Chain Tensioners: integrated
  • Brakemounts: removable, M8 (included with delivery)
  • Model Year: 2018


  • Weight (in kg): 2.22
  • Weight (in lbs): 4.89
  •
  • Packaging Unit: 1 Piece
  •
  • Product ID (PID): 13866
