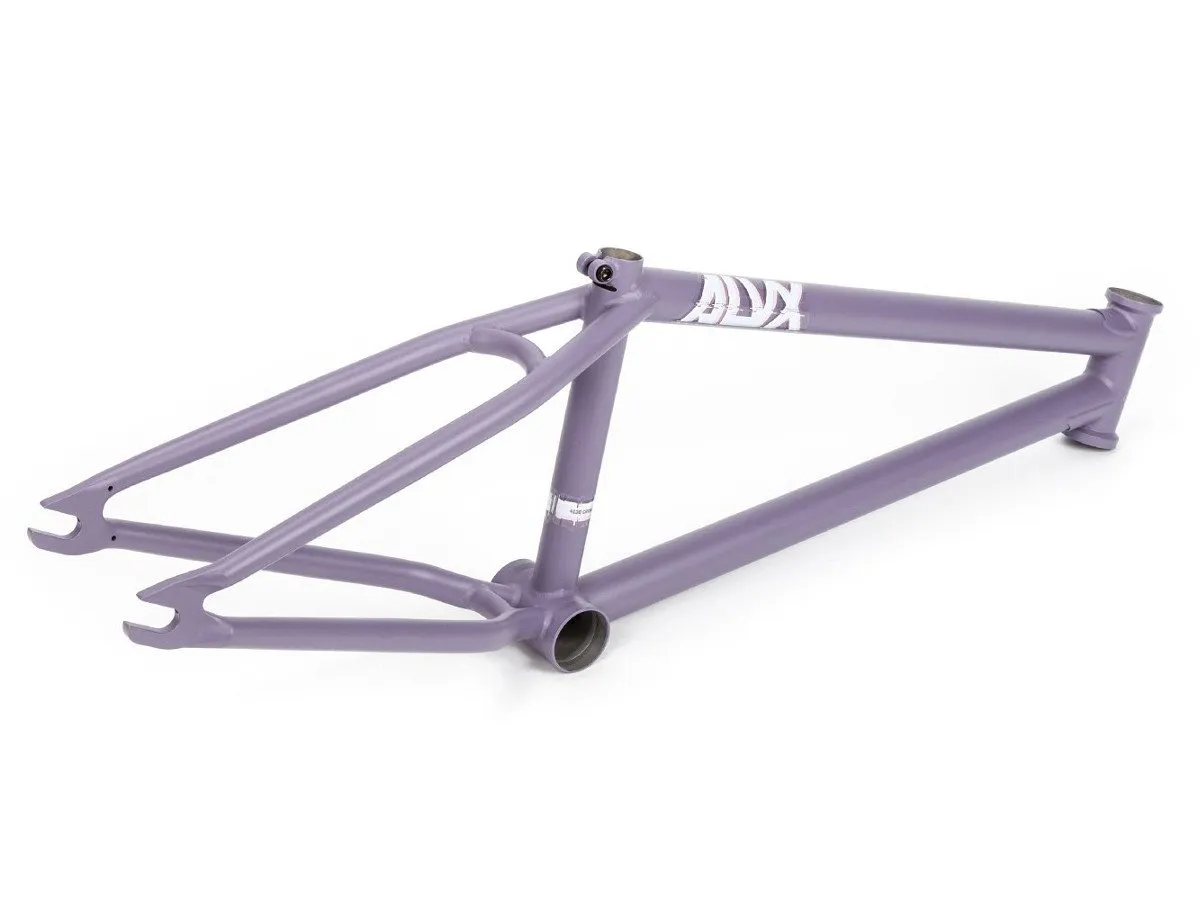

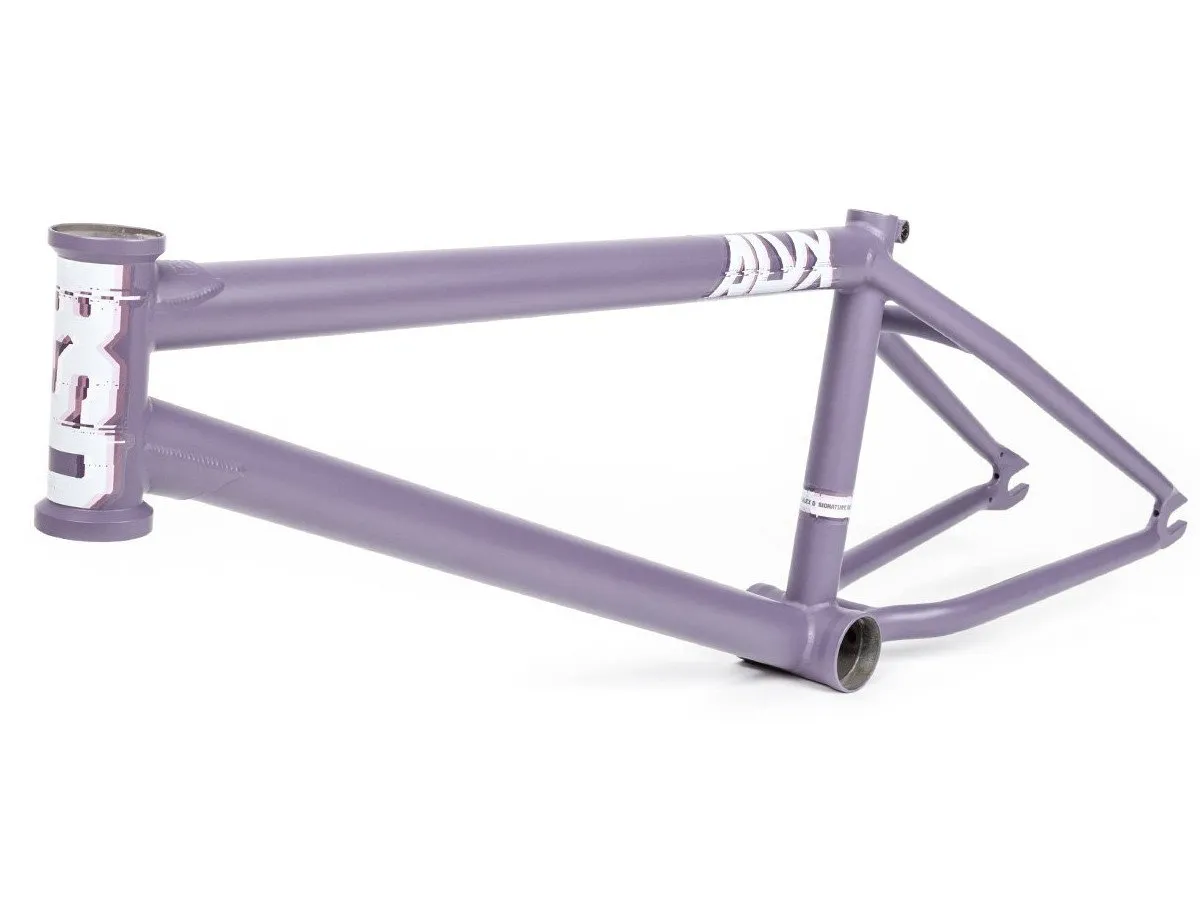

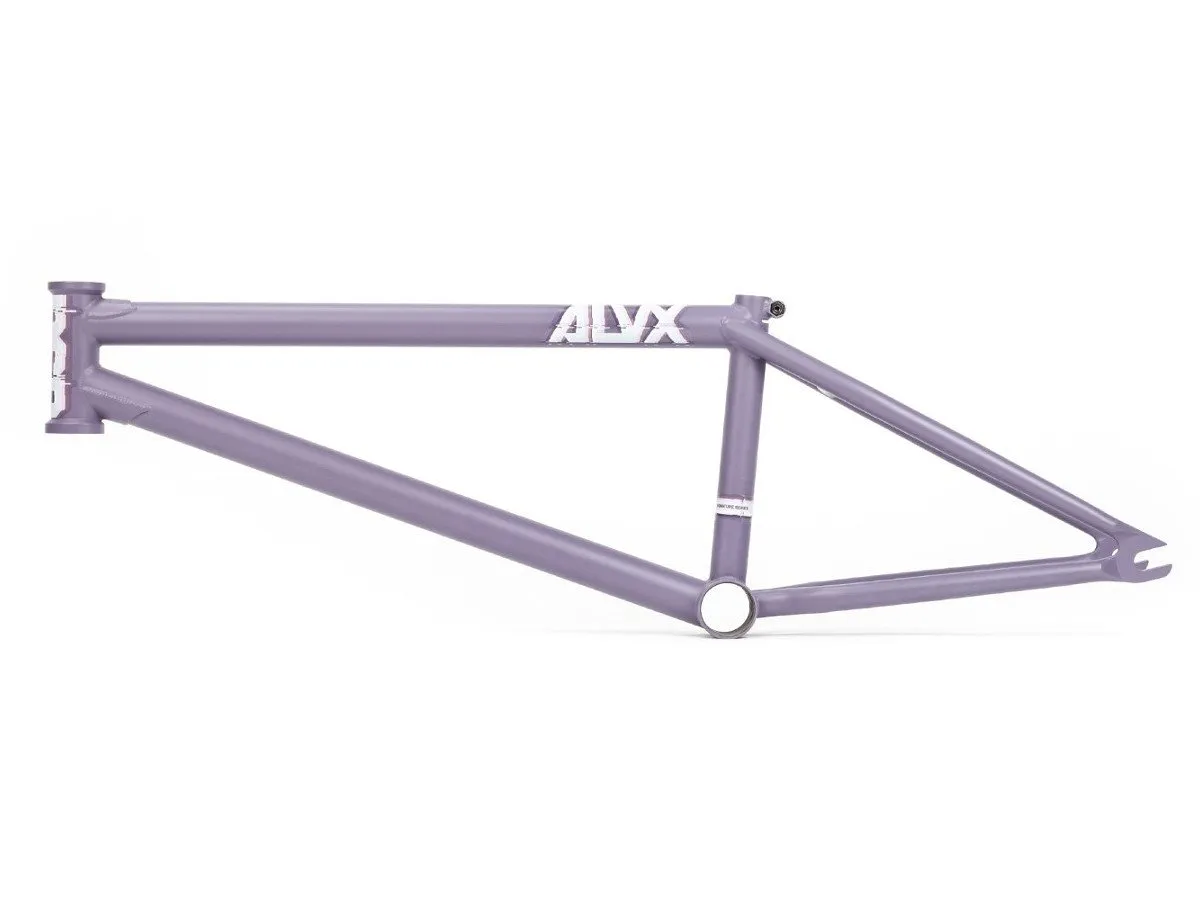

BSD "ALVX V3" 2018 BMX Frame

379.95 EUR

[incl. 19% VAT excl. shipping]
Brake Mounts
Color
Toptube
Qty.

The BSD "ALVX V3" 2018 BMX Frame is the Signature BMX frame of Alex Donnachie has because of a very short rear end (12.5") a modern geometry. The BSD "ALVX V3" 2018 BMX Frame is made for brakeless riding, has no U-brake sockets and comes as V3 with new 5mm thick dropouts with integrated Brakemounts.

Facts: BSD "ALVX V3" 2018 BMX Frame

  • Wheel Size: 20"

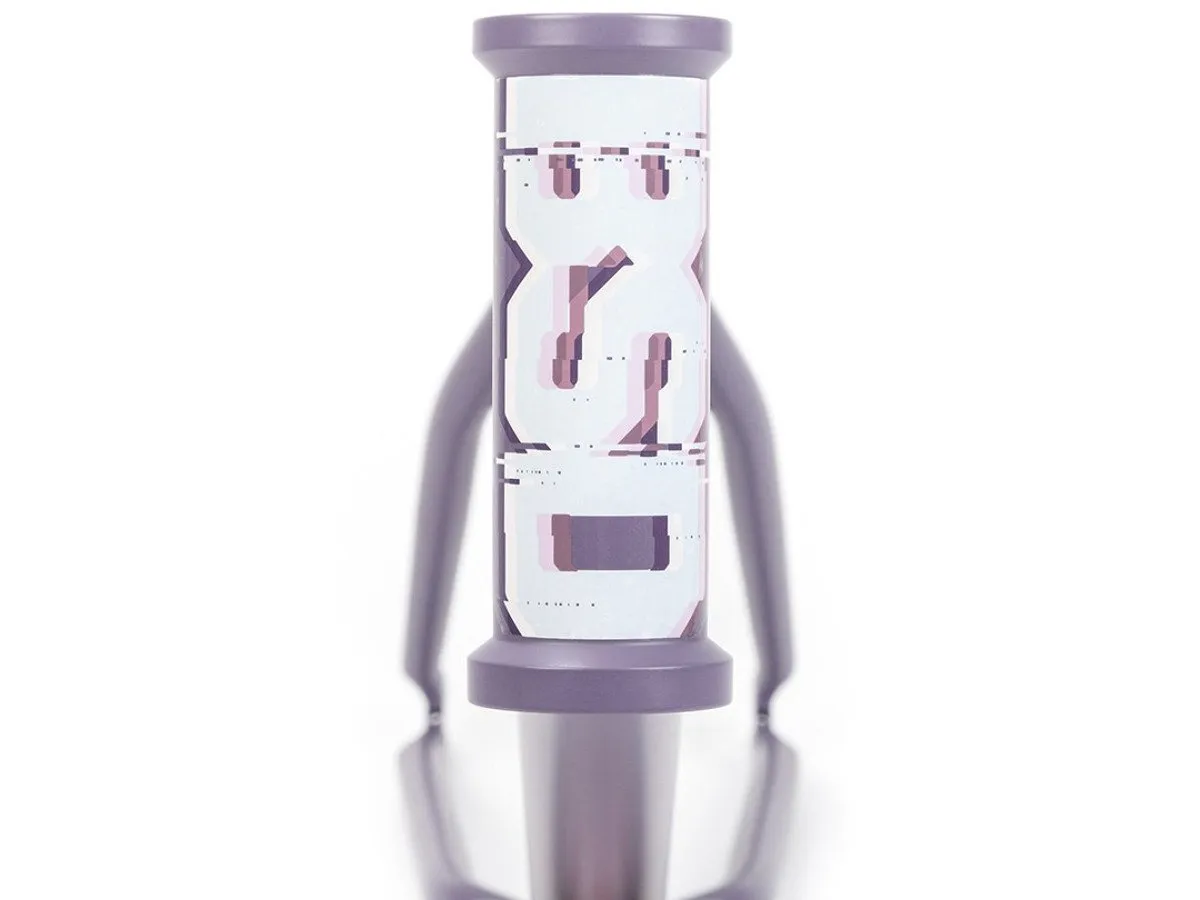

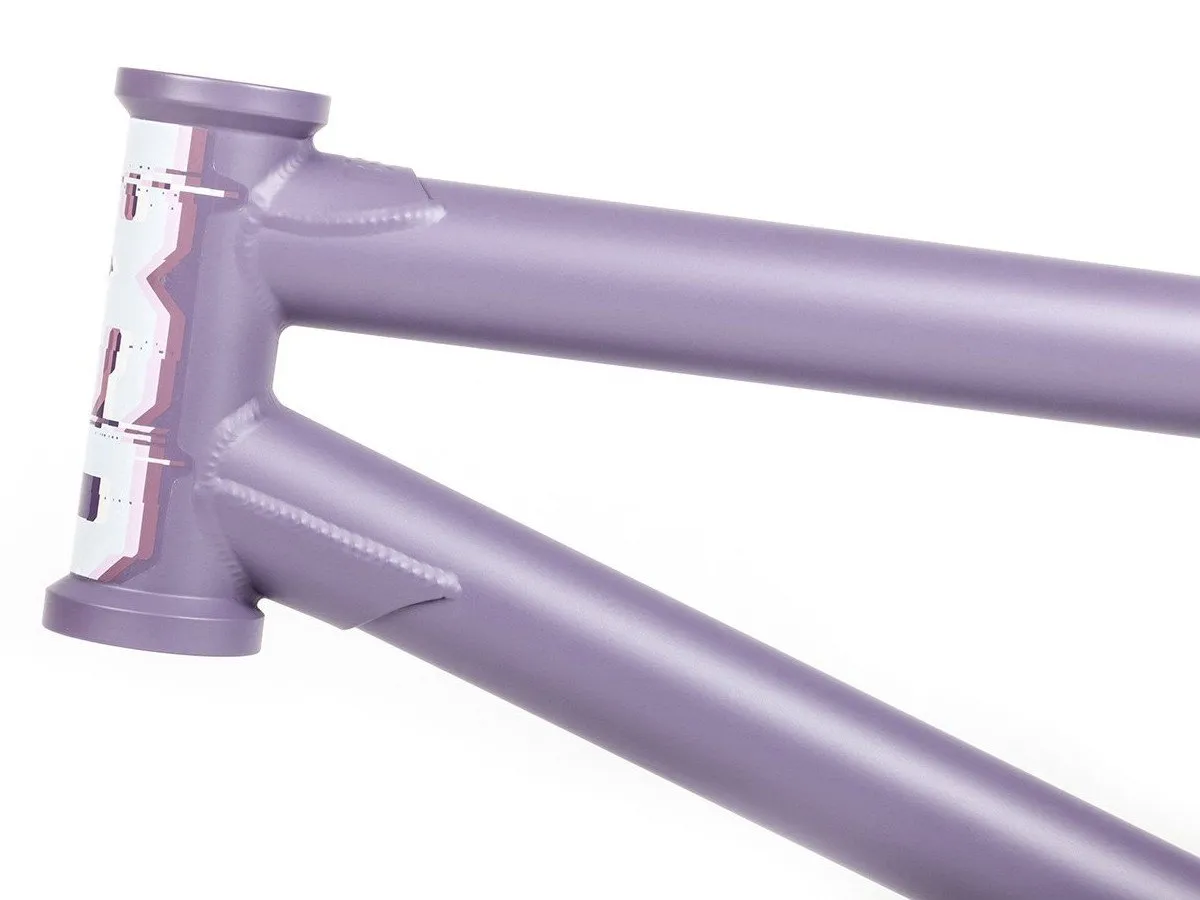

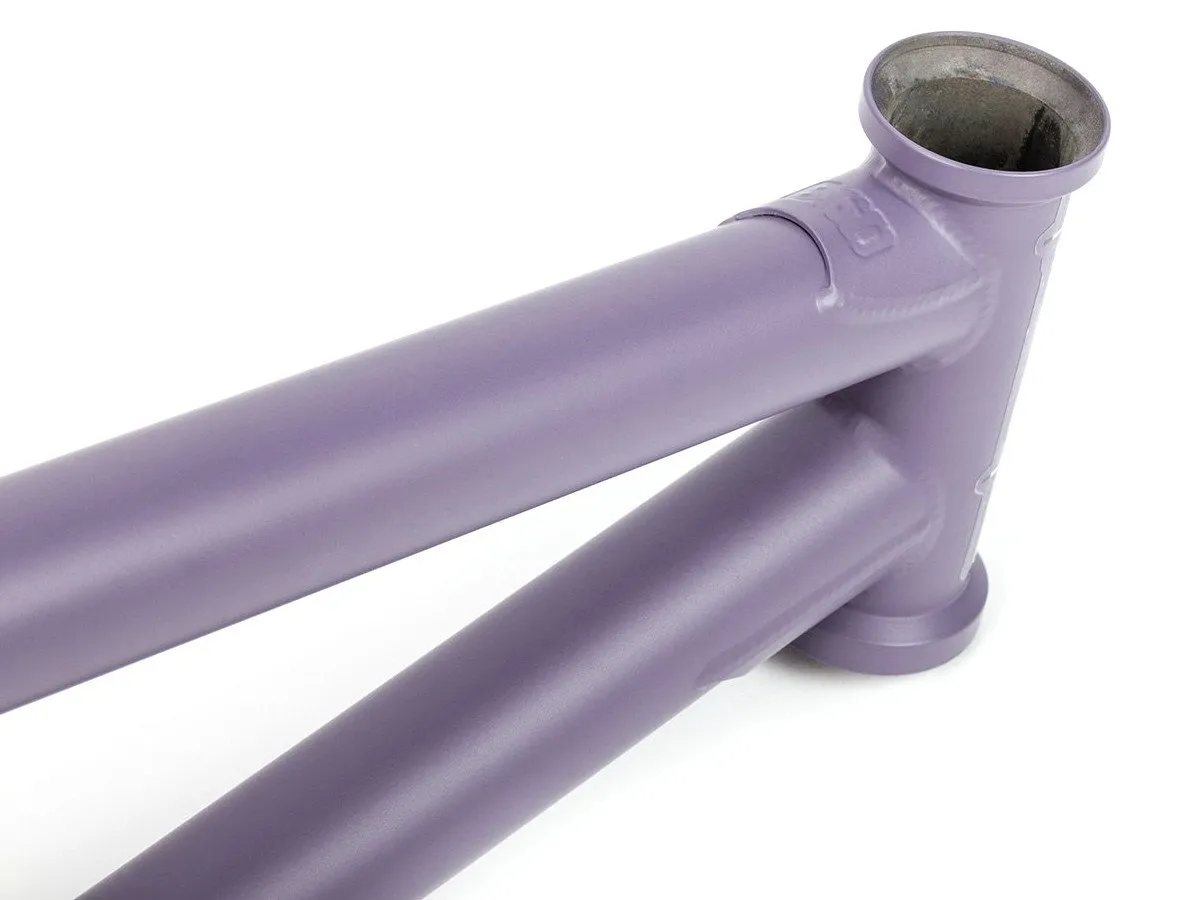

  • Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset
  • Geometry:
    Top Tube (TT): 20.8" or 21.0" (selectable as an option)
    Chain Stay (CS): 12.5" - 13"
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 71°
    BB Height: 11.7"
    Standover Height (SO): 8.7"

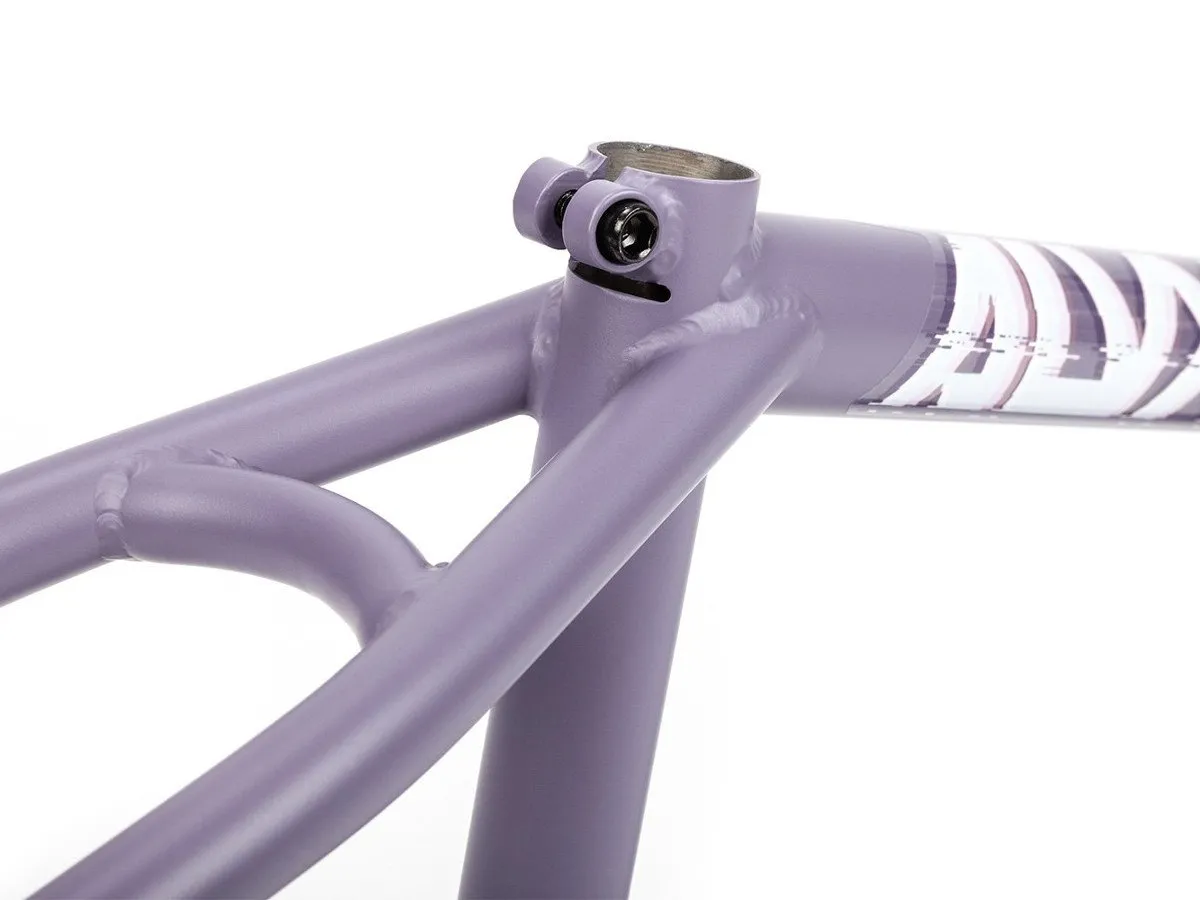

  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm

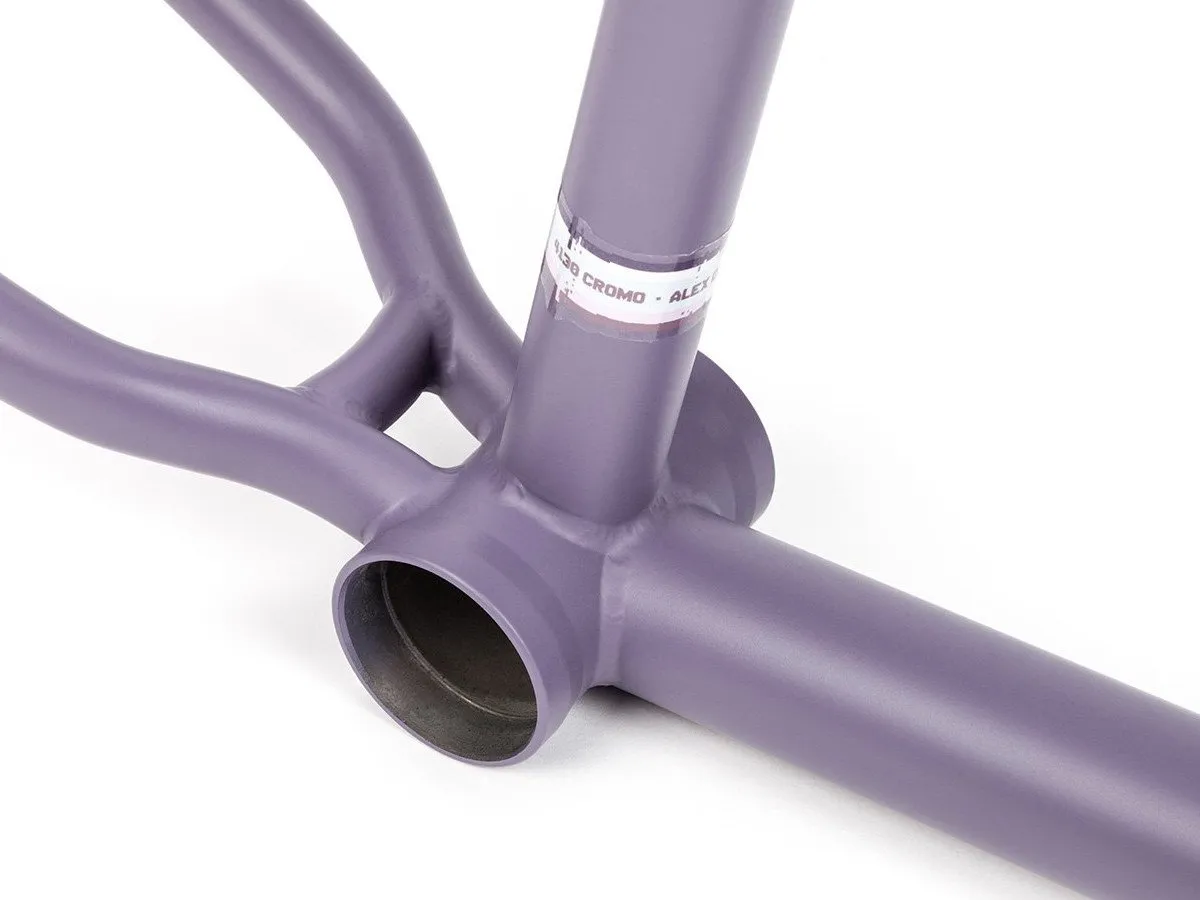

  • Bottom Bracket: Mid BB

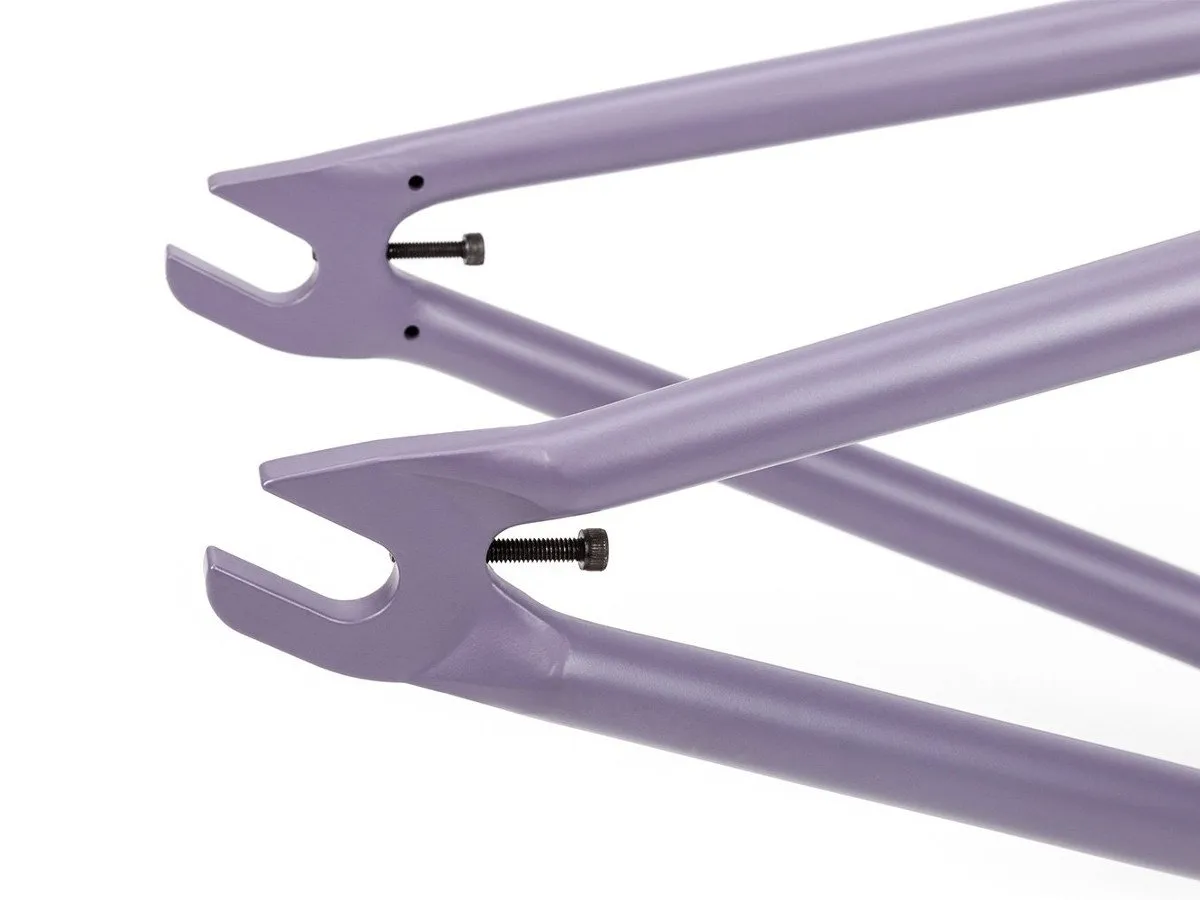

  • Dropouts: 5mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brakemounts: without (Brakeless)
  • Extras: Alex Donnachie Signature frame, wide rear end for fat 2.4" tires
  • Model Year: 2018


  • Weight (in kg): 2.26
  • Weight (in lbs): 4.98
  •
  • Packaging Unit: 1 Piece
  •
  • Product ID (PID): 13513
