BSD "Freedom" 2020 BMX Frame

369.95 EUR

[incl. 19% VAT excl. shipping]
Color | Brake Mounts | Toptube
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Shop Stuttgart: Please select a product option!
Shop Berlin: Please select a product option!
  • Weight (in kg): 2.26
  • Weight (in lbs): 4.98
  • Packaging Unit: 1 Piece
  • Product ID (PID): 17876

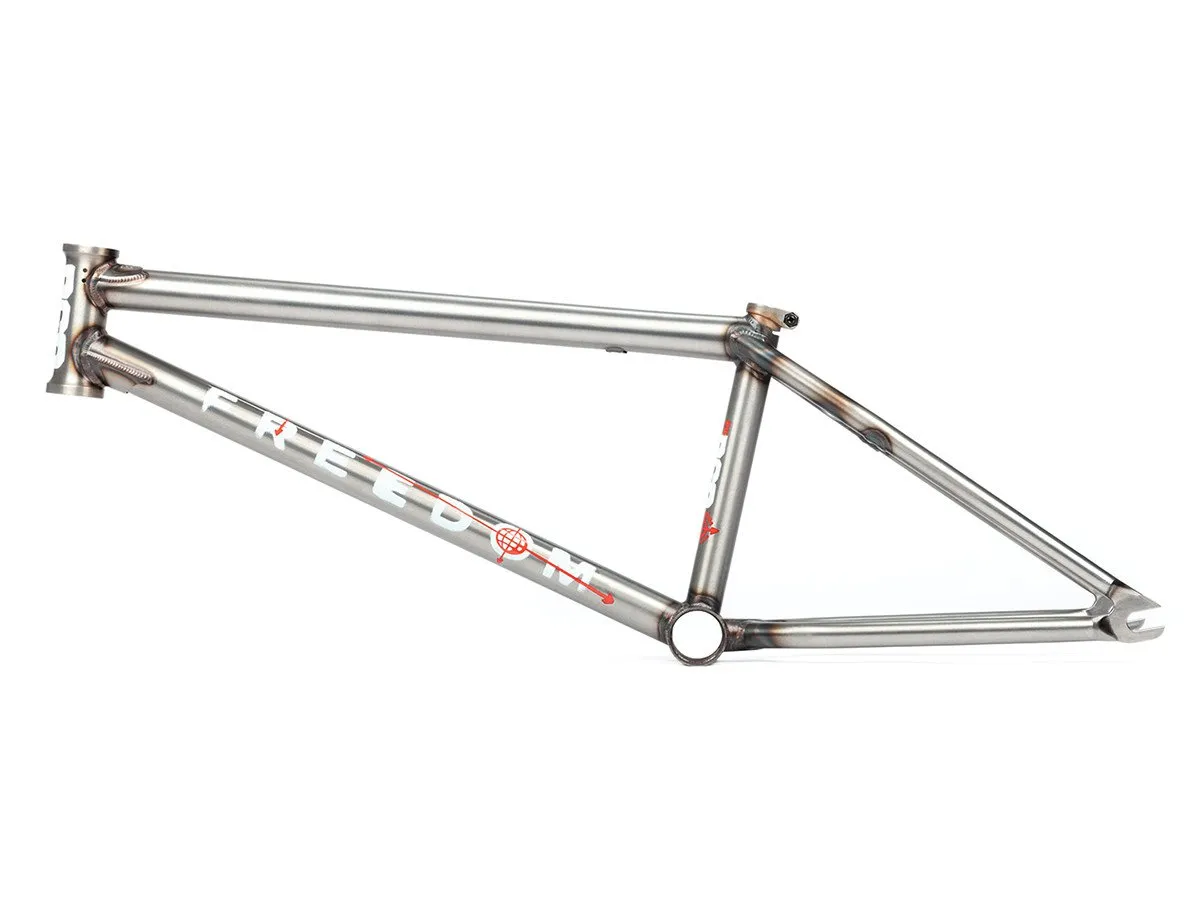

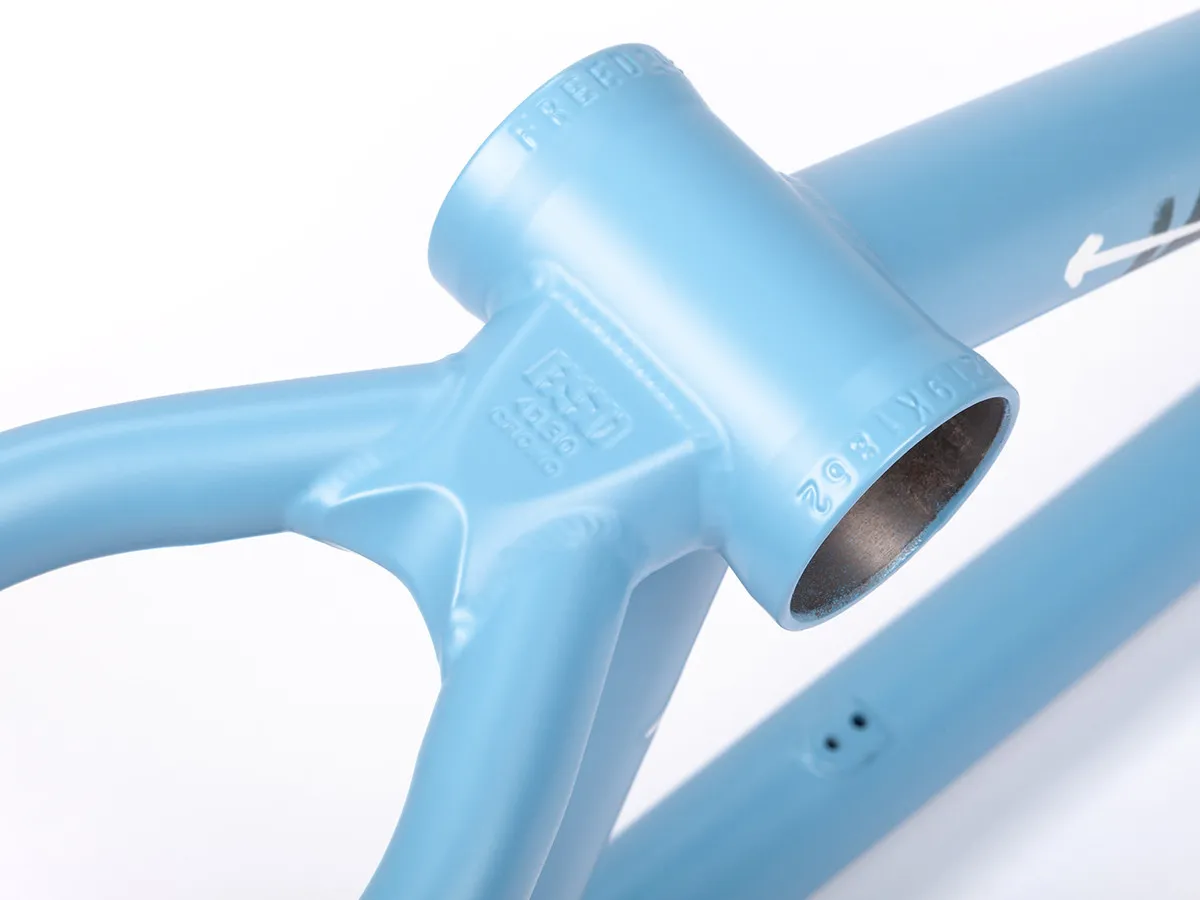

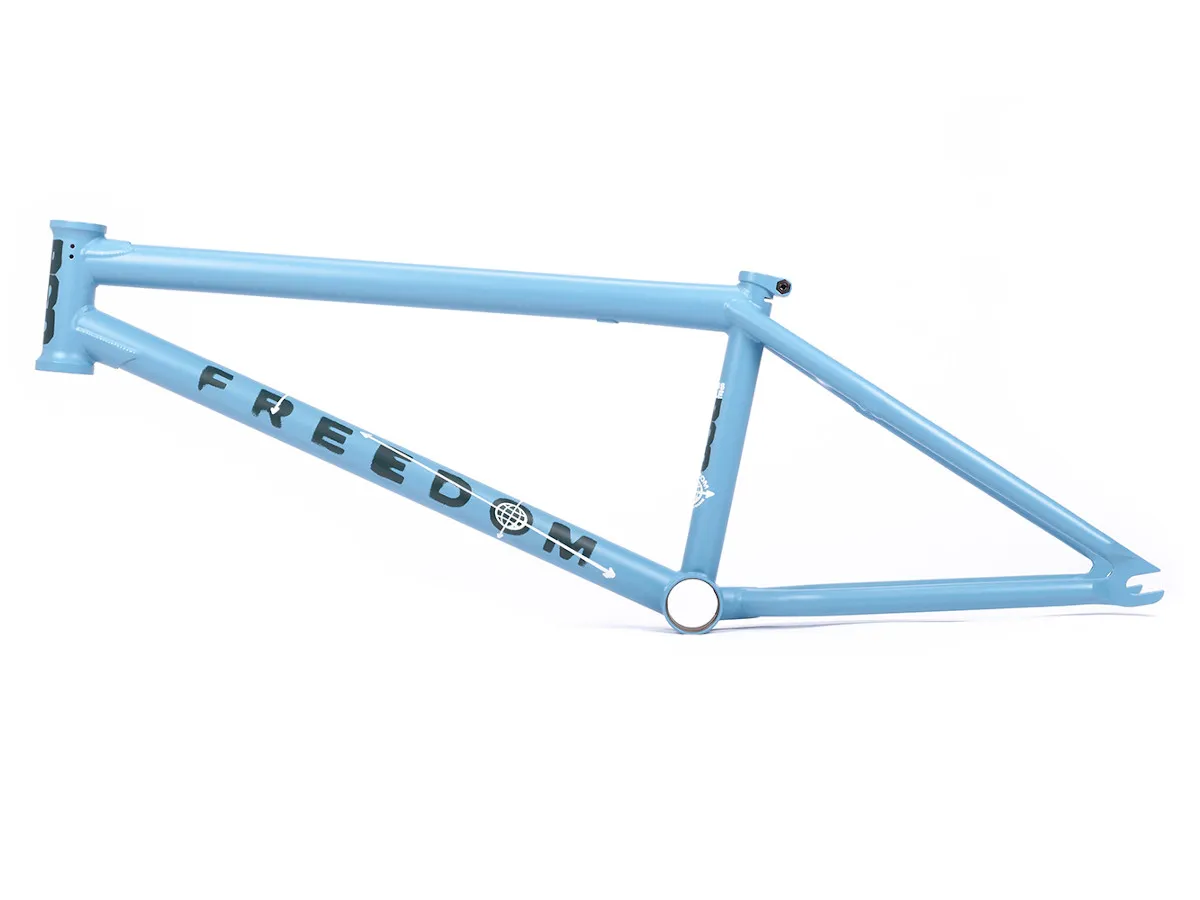

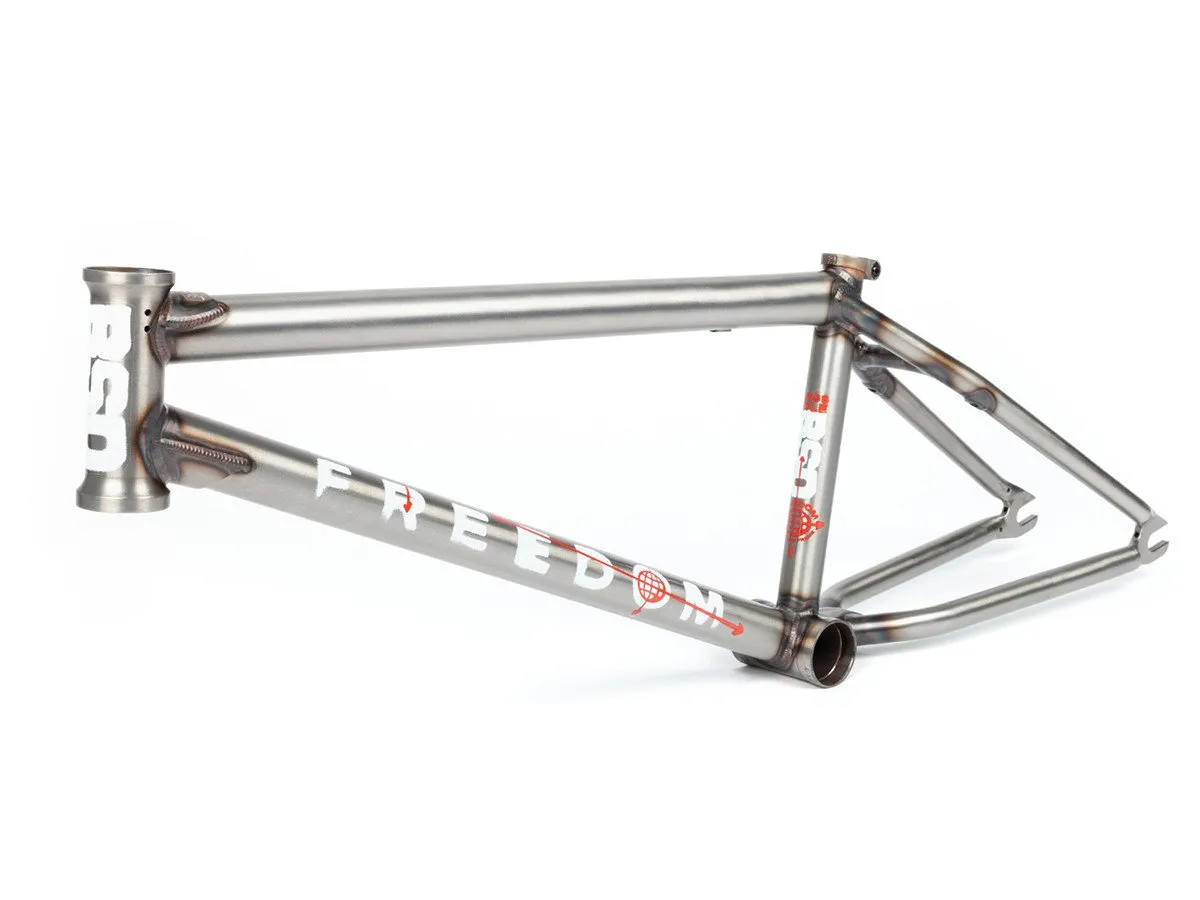

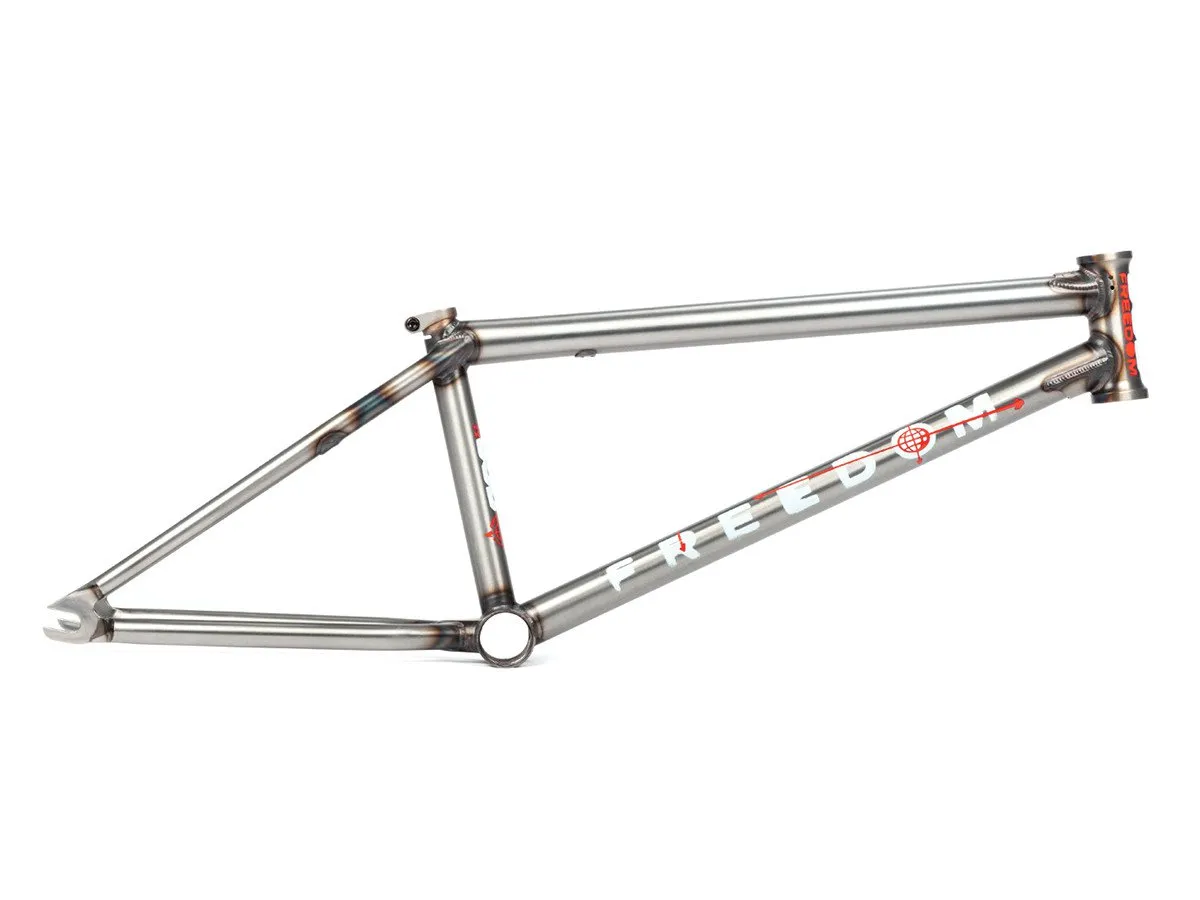

The BSD "Freedom" 2020 BMX Frame is Kriss Kyle's signature frame and was in accordance to his wishes and his riding style designed and manufactured for modern and technical riding in all terrains. The BSD "Freedom" 2020 BMX Frame is made from best quality, 100% Sanko Japanese seamless 4130 CrMo and a steep 75° degrees head tube paired with a new invest cast wishbone, seatstay bridge and 7mm thick dropouts with built in chain tensiners.

Facts: BSD "Freedom" 2020 BMX Frame

  • Wheel Size: 20"
  • Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, integrated headset, invest cast wishbone & seatstay bridge
  • Geometry:
    Top Tube (TT): 20.5" or 20.8" (selectable as an option)
    Chain Stay (CS): 13.2" - 13.625"
    Head Tube Angle (HA): 75°
    Seat Tube Angle (SA): 69.5°
    BB Height: 11.5"
    Standover Height (SO): 9"
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: Investment cast, 7mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brakemounts: removable, M6, not included with delivery, removable brake kit available separately
  • Extras: Kriss Kyle Signature frame, wide rear end for fat 2.4" tires
  • Model Year: 2020
