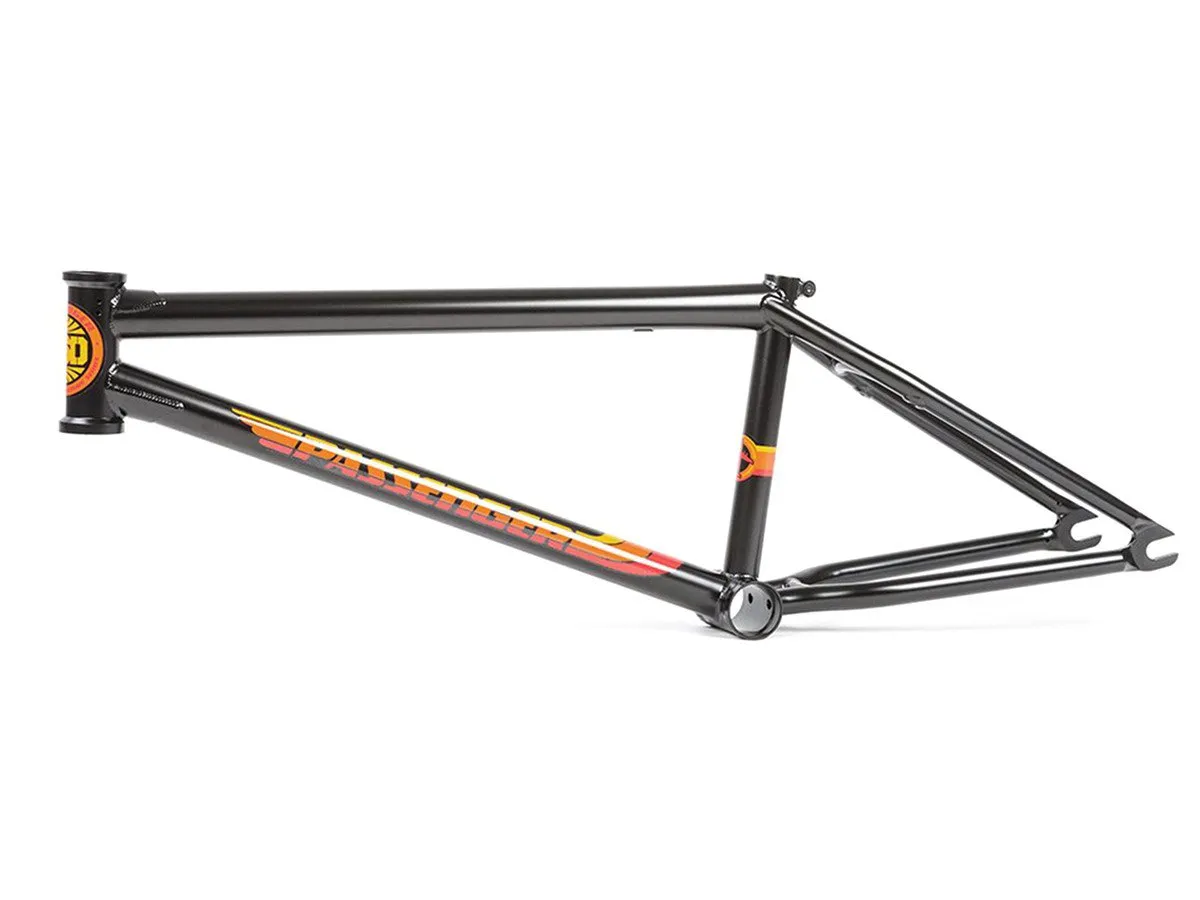

BSD "Passenger V3" 2017 BMX Frame

369.90  EUR- 22 %

289.95 EUR

[incl. 19% VAT excl. shipping]
Brake Mounts
Color
Toptube
Qty.
  • Weight (in kg): 2.22
  • Weight (in lbs): 4.89
  • Packaging Unit: 1 Piece
  • Product ID (PID): 11120

This BSD "Passenger V3" 2017 BMX Frame is Kriss Kyle's signature frame and was in accordance to his wishes and his riding style designed and manufactured for modern and technical Pro level street or skatepark riding. The BSD "Passenger V3" 2017 BMX Frame is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75° degrees head tube paired with a new incet cast 7mm thick dropouts with built in chain tensiners.

Facts: BSD "Passenger V3" 2017 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset
  • Geometry:
    Top Tube (TT): 20.8" or 21.1" (selectable as an option)
    Chain Stay (CS): 13.2" - 13.625" or 13.4" - 13.825" (21.5" TT)
    Head Tube Angle (HA): 75°
    Seat Tube Angle (SA): 69°
    BB Height: 11.5"
    Standover Height (SO): 9"
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: Investment cast, 7mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brakemounts: removable, M6, not included with delivery
  • Extras: Kriss Kyle Signature frame, wide rear end for fat 2.4" tires
  • Model Year: 2017
