BMX Shop & Mailorder - Frames - EnglishLanguage

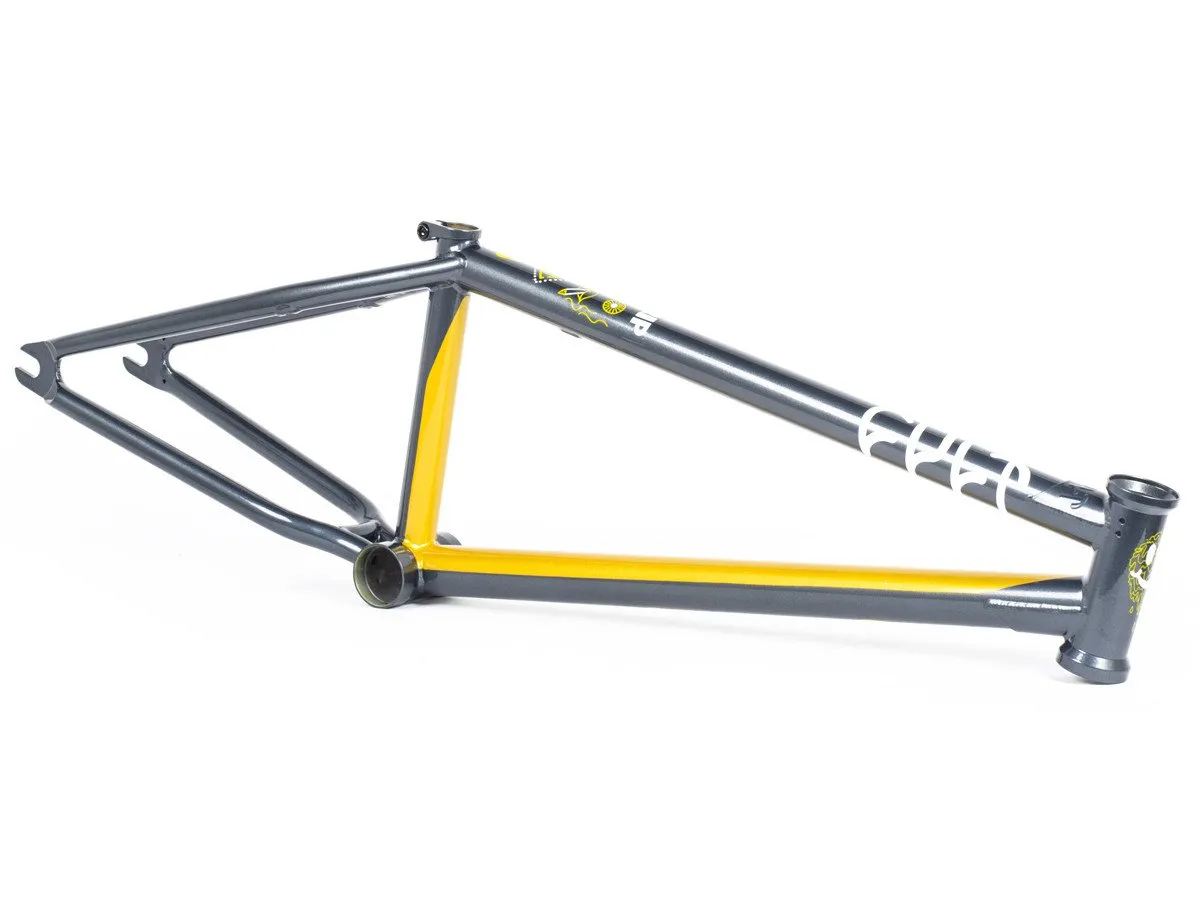

Cult "Andrew Castaneda Shorty" 2019 BMX Frame

339.95 EUR

[incl. 19% VAT excl. shipping]
Toptube
Color
Brake Mounts
Qty.
  • Weight (in kg): 2.3
  • Weight (in lbs): 5.07
  • Packaging Unit: 1 Piece
  • Product ID (PID): 16059

This Cult "Andrew Castaneda Shorty" 2019 BMX Frame is the signature colorway of german BMX pro Kilian Roth and was manufactured for top modern and technical Pro level street riding. Of course this Cult "Andrew Castaneda Shorty" 2019 BMX Frame is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75.5° degrees head tube paired with a medium short 13" inch rear end and a 11.7" inch high bottom bracket make this high quality Street-allround frame very maneuverable. This Frame includes removable brake hardware and of course offers room for fat 2.4" inch tires.

Facts: Cult "Andrew Castaneda Shorty" 2019 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, top and downtube gusset, headtube for integrated head sets, integrated investment cast seat clamp, investment cast seat stay bridge, tappered seat stays, removable brakehardware, wide rear end for wide 2.4" tires
  • Geometry:
    Top Tube (TT): 20.5", 20.75", 21.0" or 21.25" (selectable as an option)
    Chain Stay (CS): 13" - 13.3"
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 70°
    BB Height: 11.7"
    Standover Height (SO): 8.75"
  • Bottom Bracket: Mid BB, externally CNC machined

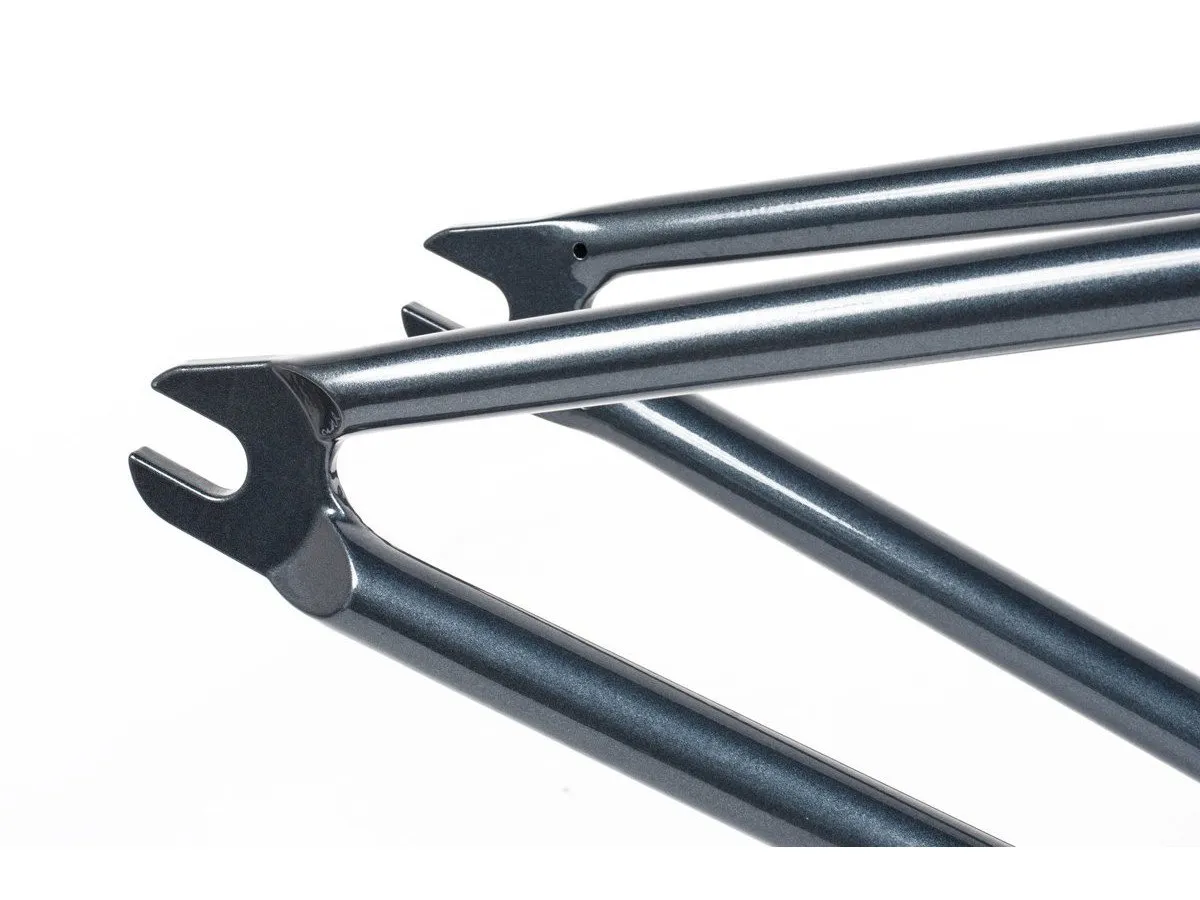

  • Dropouts: Investment cast, 5mm thick, 14mm slots
  • Chain Tensioners: without
  • Brakemounts: removable, M6 (not included)
  • Extras: Andrew Castaneda Signature Colorway, modern BMX street and allround frame, Wide rear end for 2.4" tires
  • Model Year: 2019
