Diamondback "Script" 2016 BMX Bike
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 11.7kg / 25.79lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 9243
Found an error? Report it. 5 EUR voucher if confirmed.
This

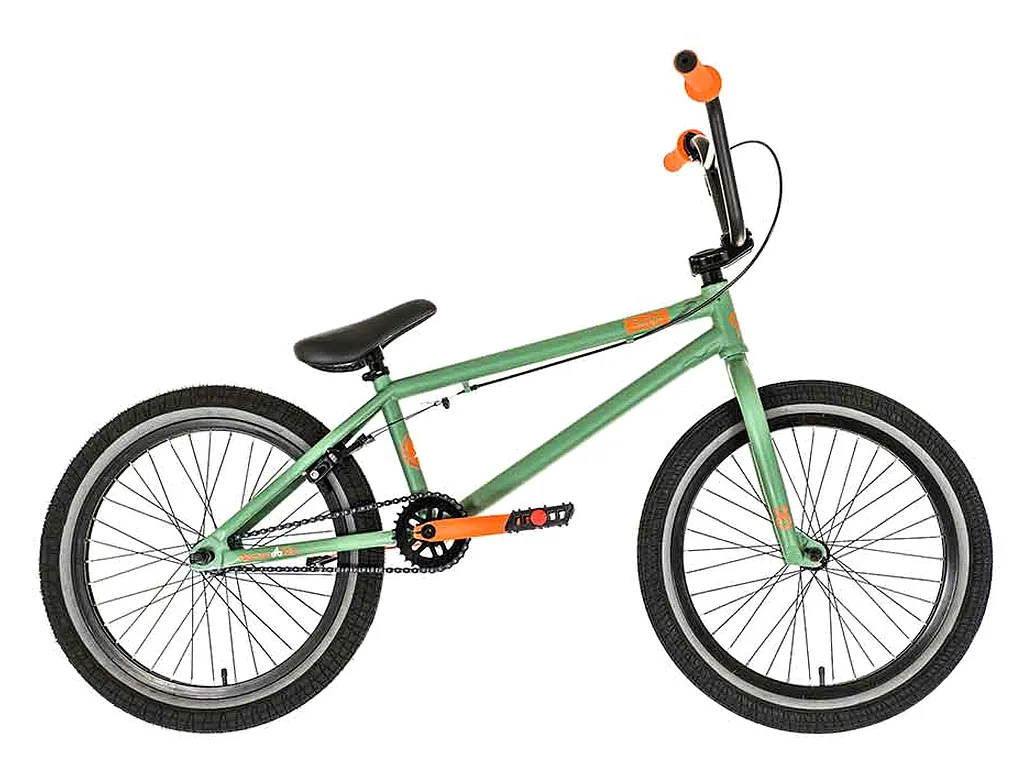

Diamondback "Script" 2016 BMX Bike
is an upscale entry level BMX complete bike with 20" inch wheels and a frame with a 20.75" inch long top tube which is aimed to boys and girls with a body hight of approx 1.60m - 1.80m. Here you already get a frame including stable main tubes made of 4130 CrMo with integrated headset (sealed bearing), removable U-brake sockets and Mid BB (sealed bearing) which is today's standard on modern BMX frames and which makes installation, adjustment and maintance easy. This
Diamondback "Script" 2016 BMX Bike
has all you do expect from a modern upscale entry level BMX bike. It is equipped with a 3-pc. CrMo Crank, a half link chain, a rear cassette hub, with modern 25T/9T gearing, a high toploader stem and 2.3" inch wide tires. But here you also will get some aftermarket parts like a preinstalled Odyssey "Springfield" U-Brake and Odyssey "Twistet" plastic pedals for a good price-performance ratio.
Facts: Diamondback "Script" 2016 BMX Bike

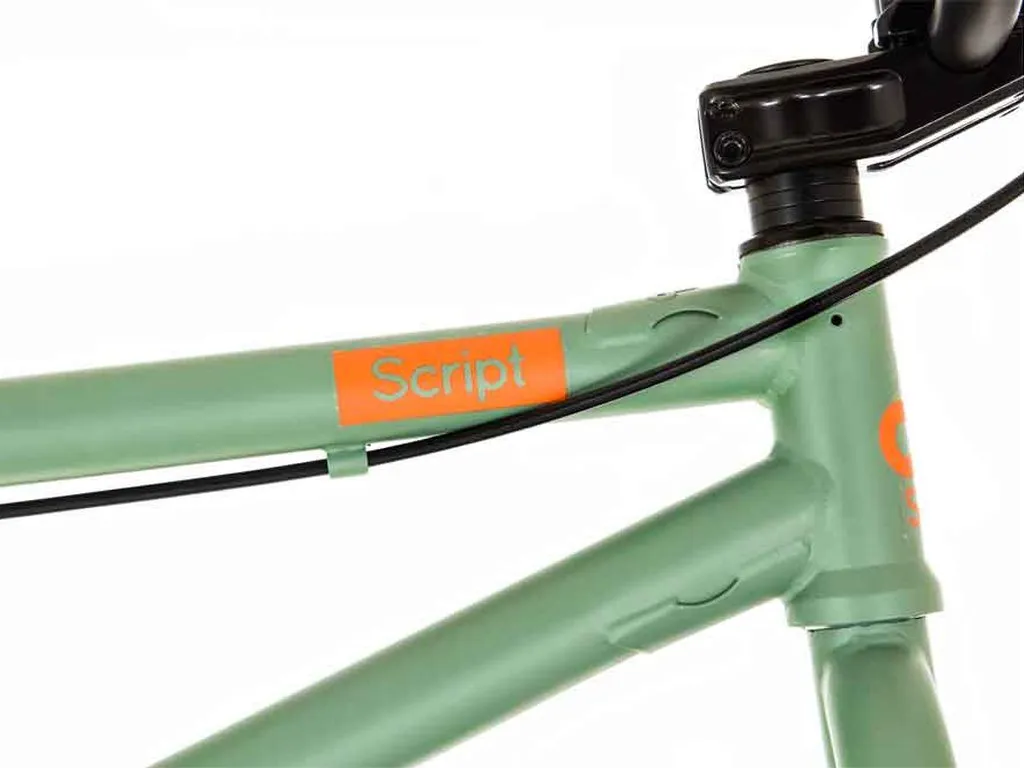

- BMX Frame:
- 4130 CrMo maintubes, 1020 HiTen, downtube and top tube gusset, tappered chainstays, integrated headset, removable U-brake sockets, Mid BB
- Top Tube (TT): 20.75"
- Chain Stay (CS): 13.25"
- Head Tube (HA): 74.5°
- Seattube (SA): 71°
- BB-High (BB): -
- Frame Hight: -
- Standover (SO): - - BMX Fork: Diamondback, 1020 HiTen, 1-1/8" threadless steerer, tapered fork legs
- BMX Bar:
- Diamondback, 1020 HiTen, 2-pc.
- Height: 8"
- Width: 28.25"
- Backsweep: 12"
- Upsweep: 2° - Grips: Diamondback "Viper", rubber, PVC barends
- Stem: Diamondback "MX1", toploader, aluminium
- Headset: Integrated, sealed bearing
- Gyro: -
- Brake Lever: Tektro, aluminium, 2-finger

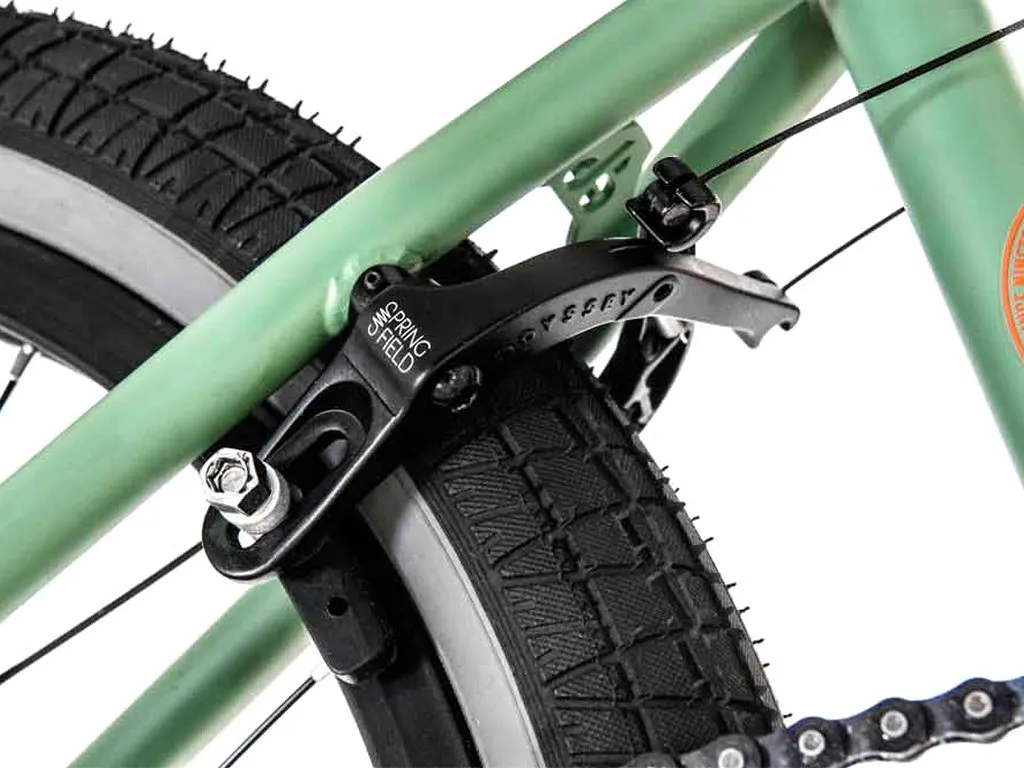

- Brake: Odyssey "Springfield" U-Brake

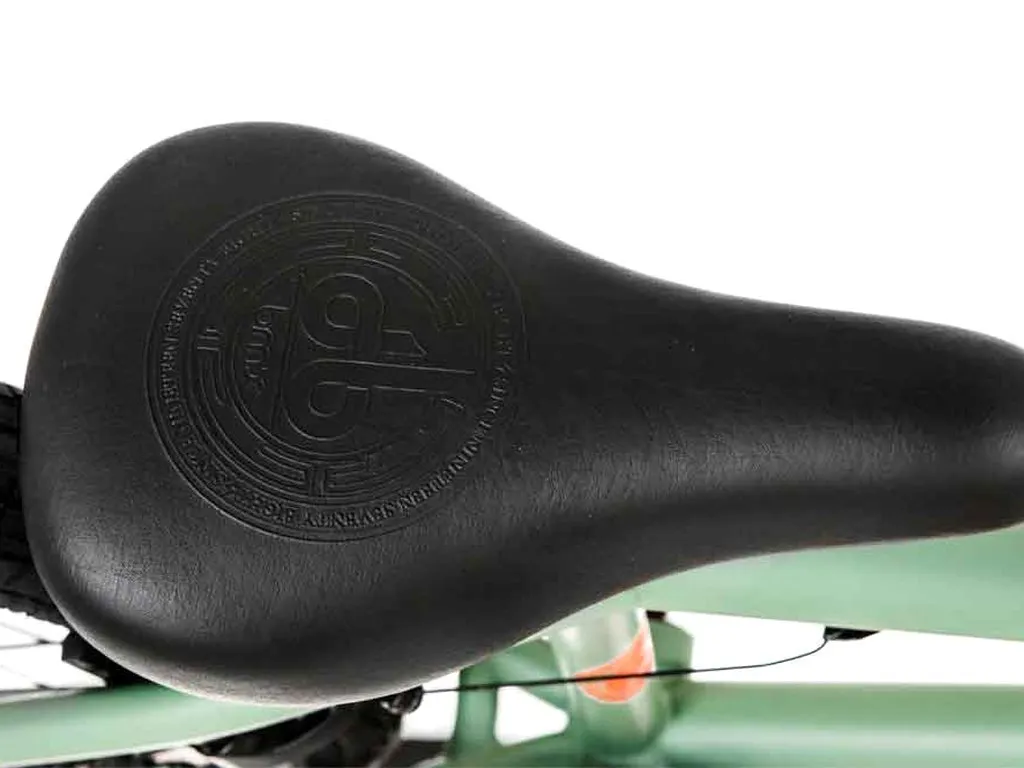

- Seat: Diamondback, combo, slim padded
- Seat Post: Diamondback, combo, aluminium
- Seat Clamp: Aluminium, 1-bolt
- Pedals: Odyssey "Twisted", plastic

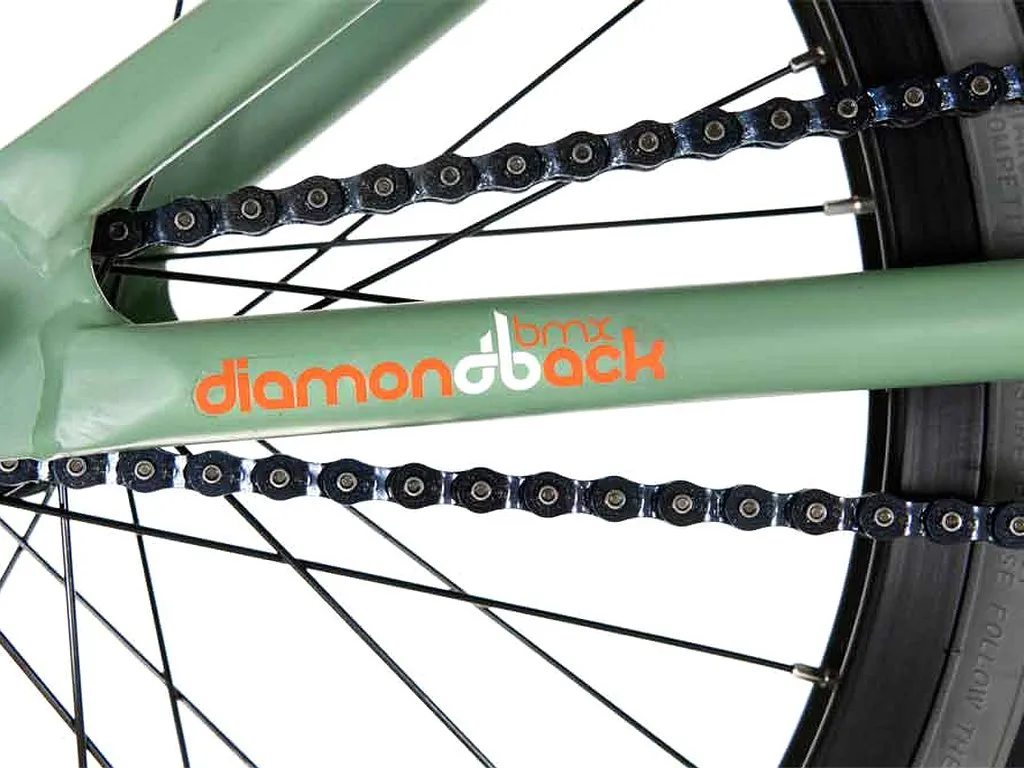

- Chain: Diamondback "HalfLink"
- Sprocket: Steel, 25T

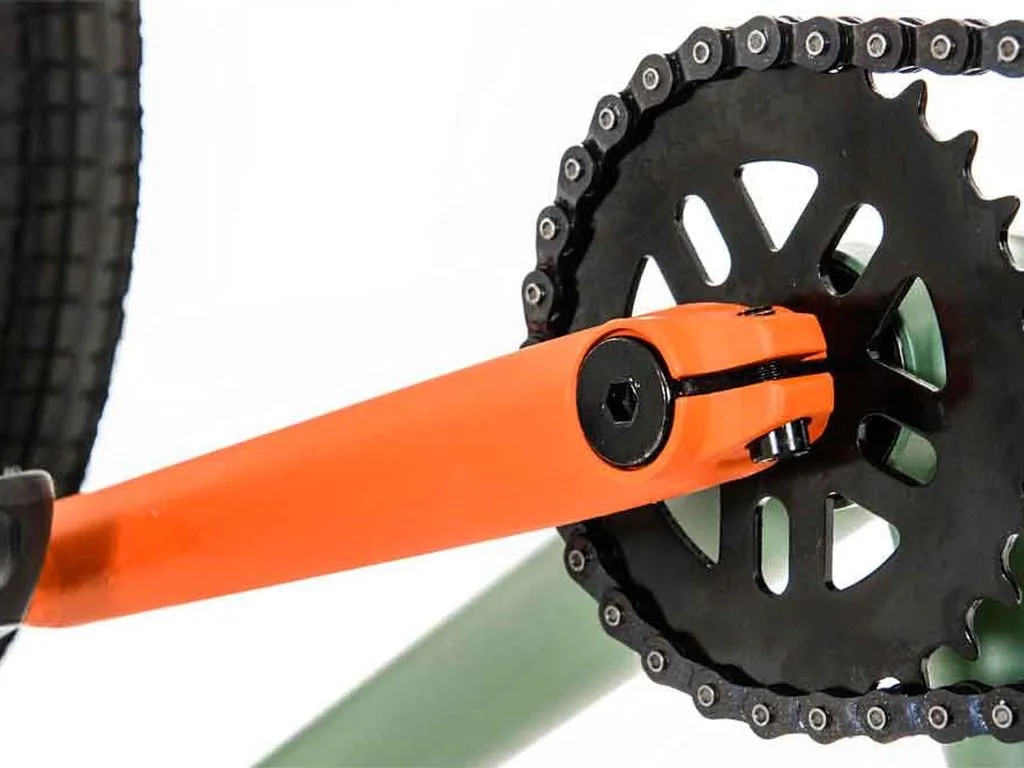

- Crank: 3-pc., 4130 CrMo, 8 spline, 175mm
- Bottom Bracket: Mid BB, sealed bearing
- Hub (front): Aluminium, 10mm (3/8") steel axle, loose ball, 36H
- Hub (rear): Cassette hub, 14mm steel axle, loose ball, 36H, 9T, sealed bearing
- Rim (front): Aluminium, single wall, 36H
- Rim (rear): Aluminium, single wall, 36H
- Tire (front): Freestyle, 20" x 2.3"
- Tire (rear): Freestyle, 20" x 2.3"
- Pegs: -
