eclat "Onyx" Topload Stem
- Weight : 0.36kg / 0.79lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 13378
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/eclat-onyx-topload-stem-p-13378
Printed: 11/15/2026
Printed: 11/15/2026

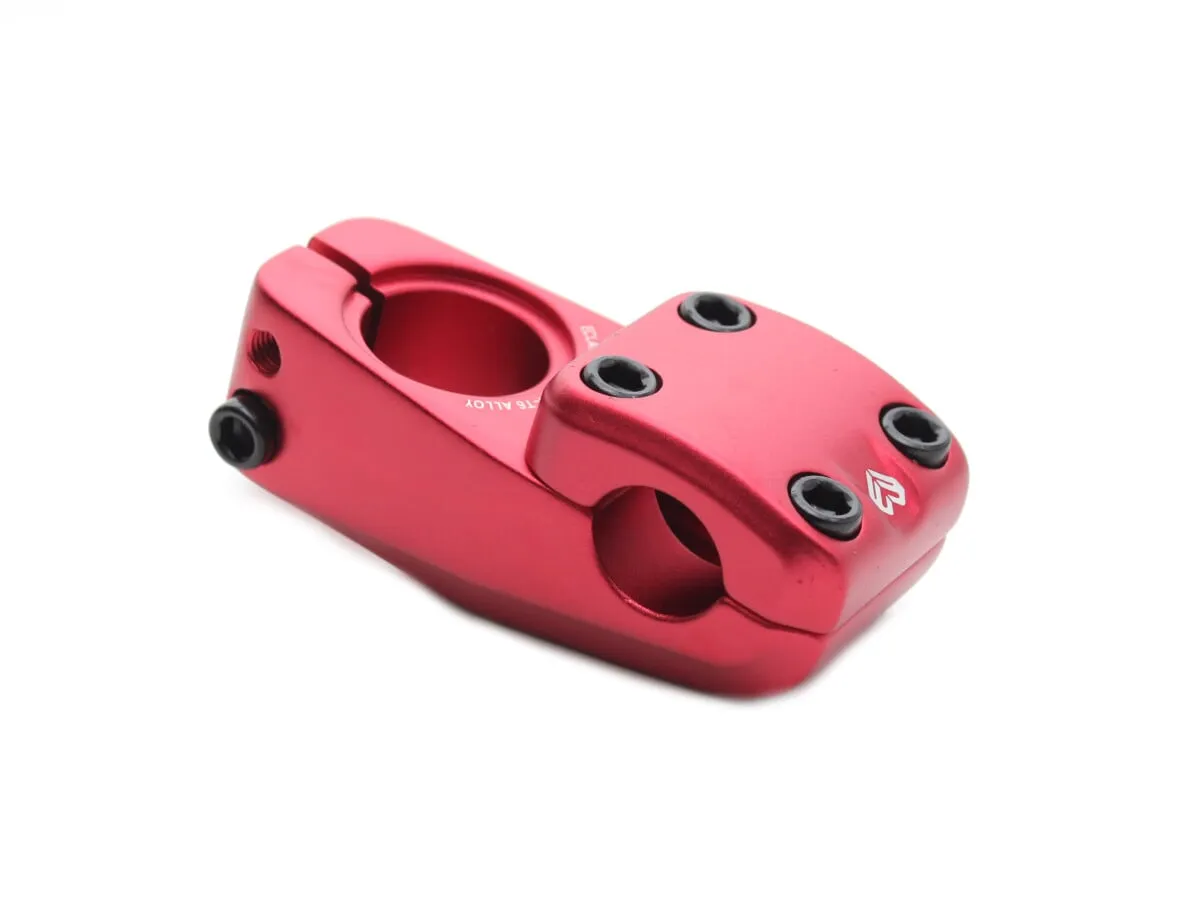

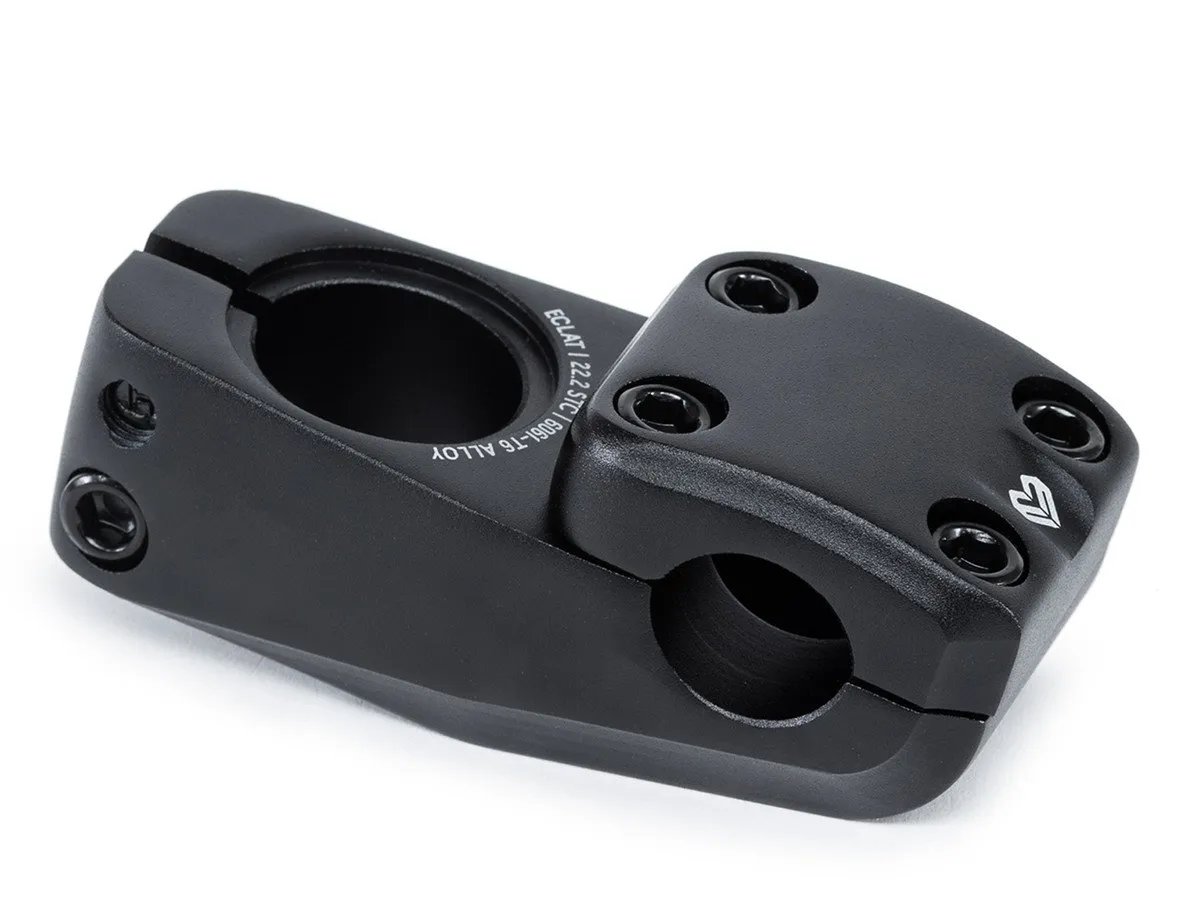

The
eclat "Onyx" Topload Stem
is made of cold forged 6061-T6 aluminum. Cutouts in the interior and the surface area provide a clean finish for the top bolt head and weight savings without sacrificing stability. The use of massive allen bolts with 11mm wide heads and the linear knurling inside the faceplate on this
eclat "Onyx" Topload Stem
provide best clamping properties and high stability for high and wide handle bars. The 48mm wide overall design also provides a secure fit for high and wide handlebars.
Facts: eclat "Onyx" Topload Stem
- Stem-Type: Ahead Stem
- Stem-Style: Topload Stem
- Stem-Material: 6061 Aluminum
- Manufacturing-Method: forged
- Reach: 50mm
- Rise: 33mm
- Bar-Clamp: 22.2mm
- Fork-Clamp Diameter: 1-1/8" (28.6mm)
- Recommended for: Street, Park or Trails
- Stack Height: 32.5mm
- Bolts: CrMo, massiv, metric Thread, 6mm Allen Key, 11mm Bolt Head Diameter
- Extras: wide bar clamping area, internally and externally machined, linear knurling inside the faceplate for better hold on handlebar knurling (Shark Tooth Clamping = STC)
