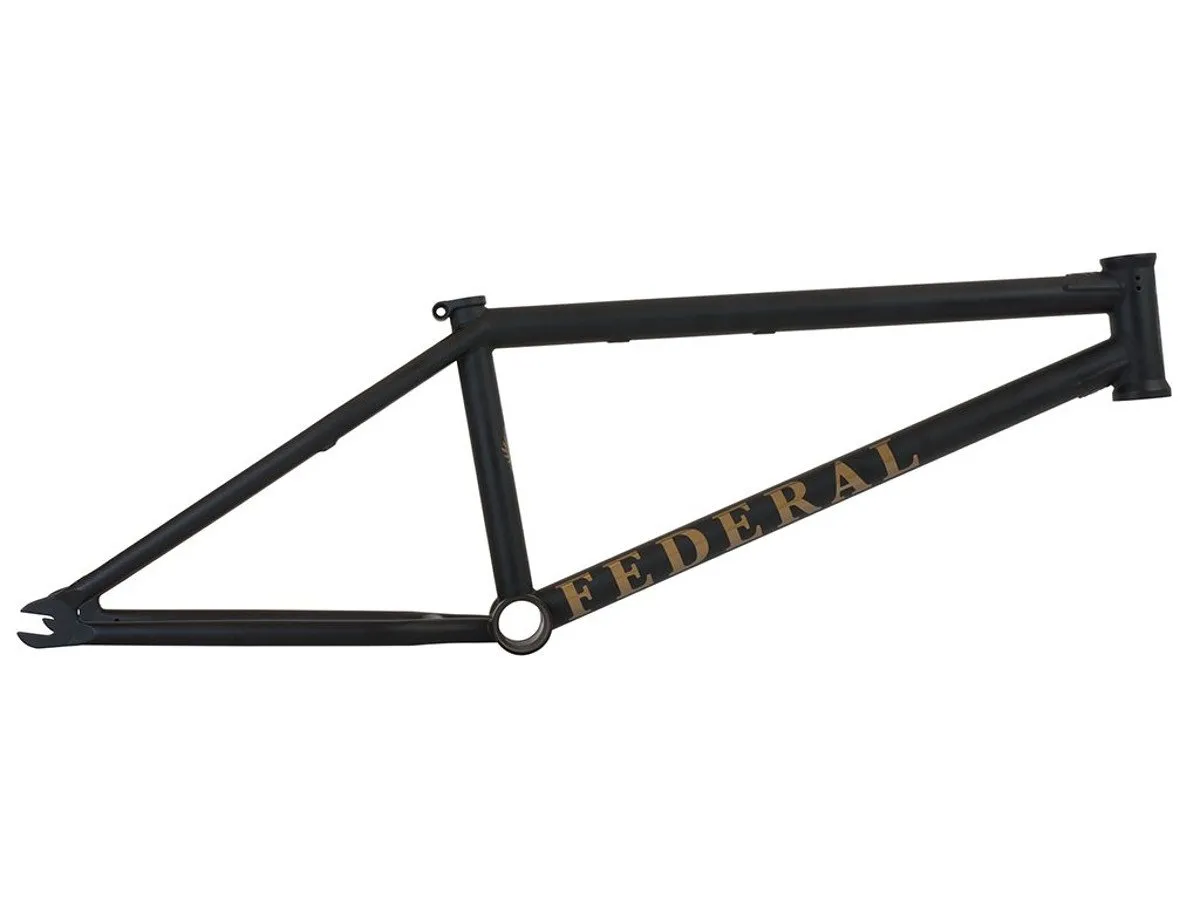

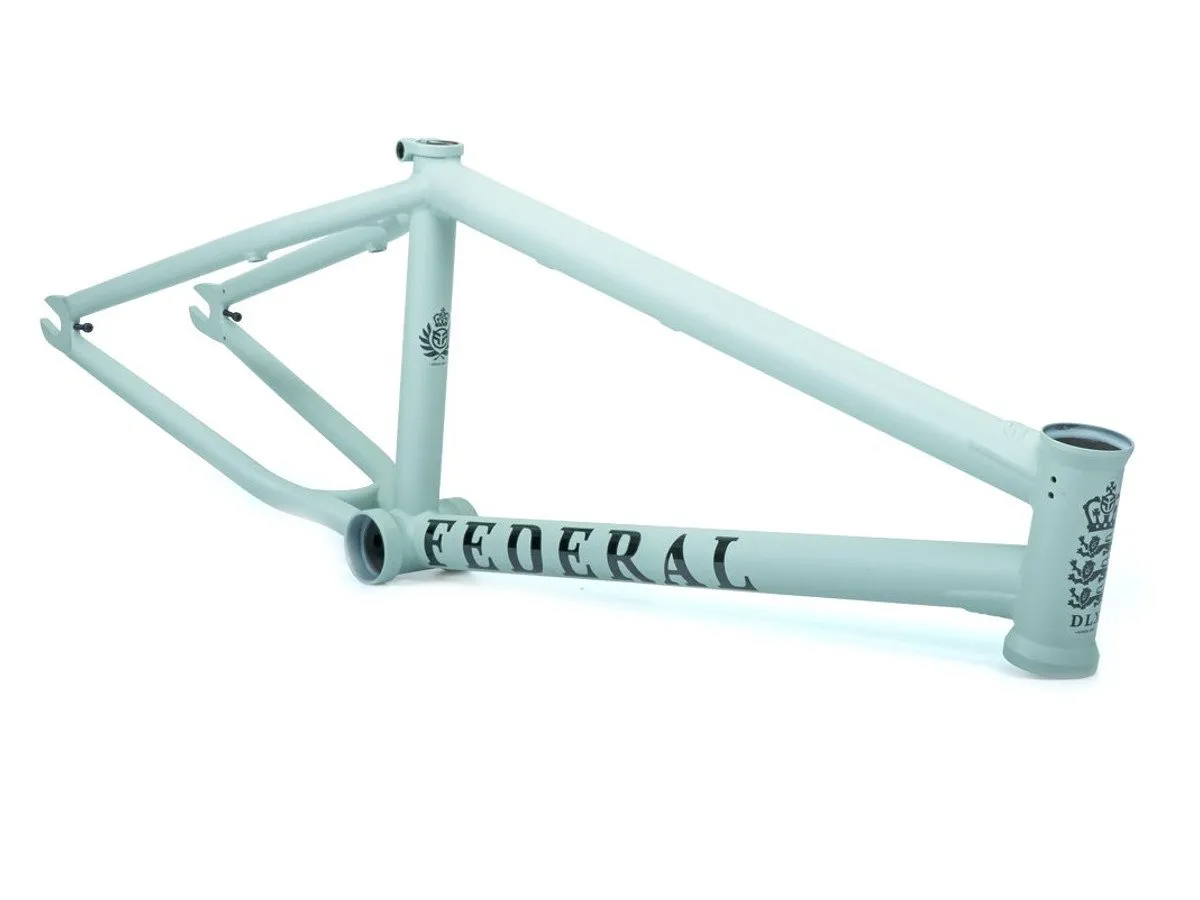

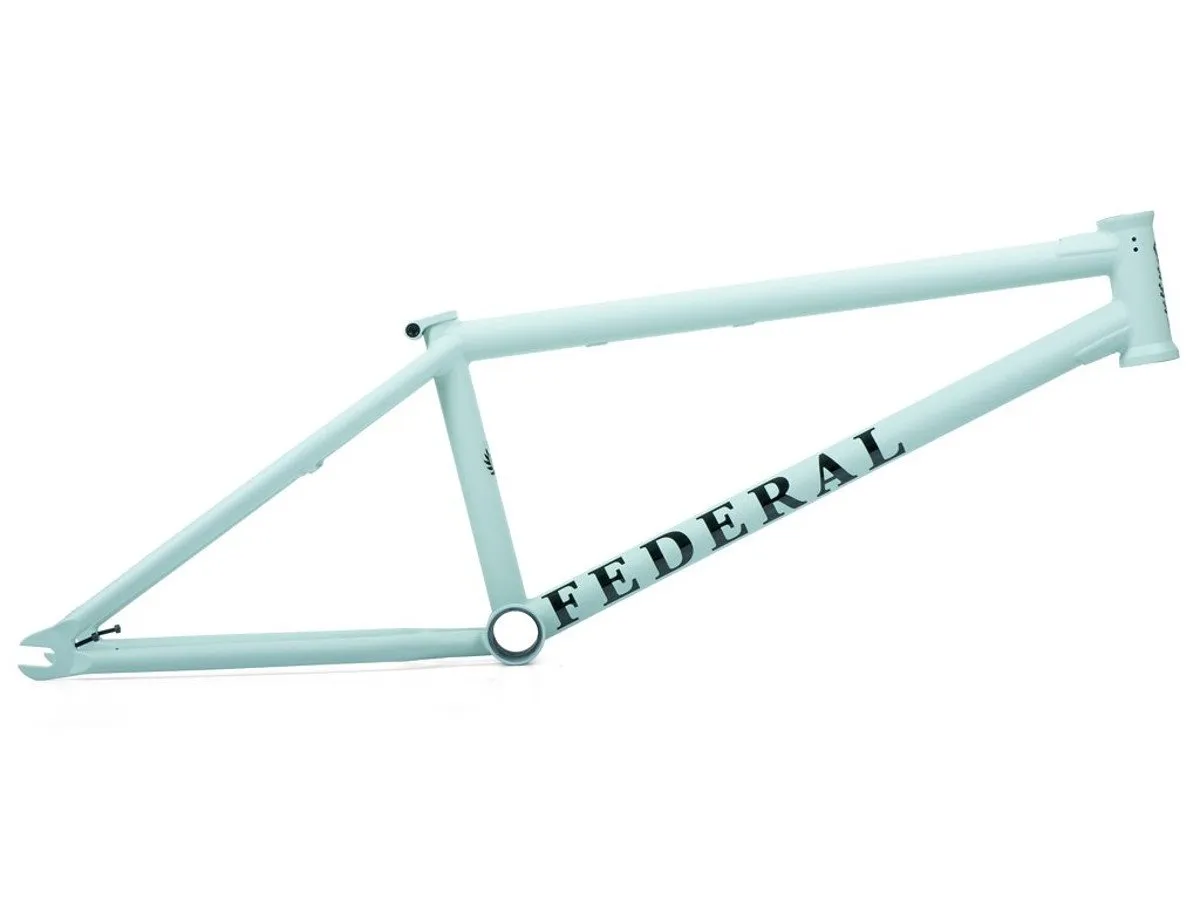

Federal Bikes "DLX" 2019 BMX Frame

349.95  EUR- 10 %

313.95 EUR

[incl. 19% VAT excl. shipping]
Color | Brake Mounts | Toptube
  • Please Select
Qty.
  • Weight (in kg): 2.18
  • Weight (in lbs): 4.81
  • Packaging Unit: 1 Piece
  • Product ID (PID): 16623

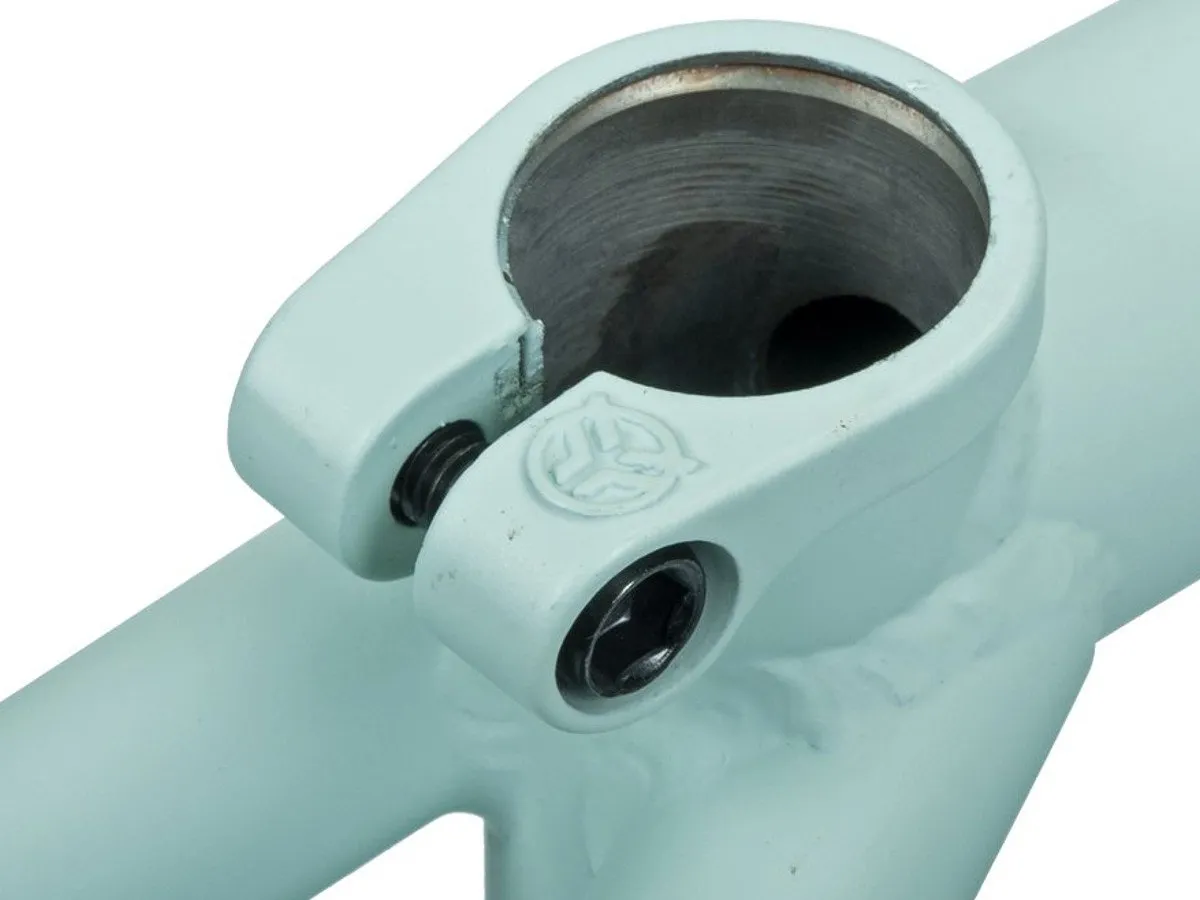

The Federal Bikes "DLX" 2019 BMX Frame is the signature frame of Dan Lacey. The Federal Bikes "DLX" 2019 BMX Frame is a very high quality Street frame made of 100% 4130 CrMo. This Federal Bikes "DLX" 2019 BMX Frame is equipped with Investment Cast dropouts and seat clamp. Integrated chain tensioner makes adjusting the rear wheel easy and the rear end of this frame is 13.75" long.

Caution:The delivery of the frame is without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.

Facts: Federal Bikes "DLX" 2019 BMX Frame

  • Material: 100% 4130 CrMo, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated chaintensioners, including investment cast seatclamp, removable brake hardware, Mid BB
  • Geometry:
    Top Tube (TT): 20.75" or 21" (selectable as Option)
    Chain Stay (CS): 13.75" (Slammed)
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 71°
    BB Height: 11.8"
    Standover Height (SO): 9"
  • Bottom Bracket: Mid BB, tappered

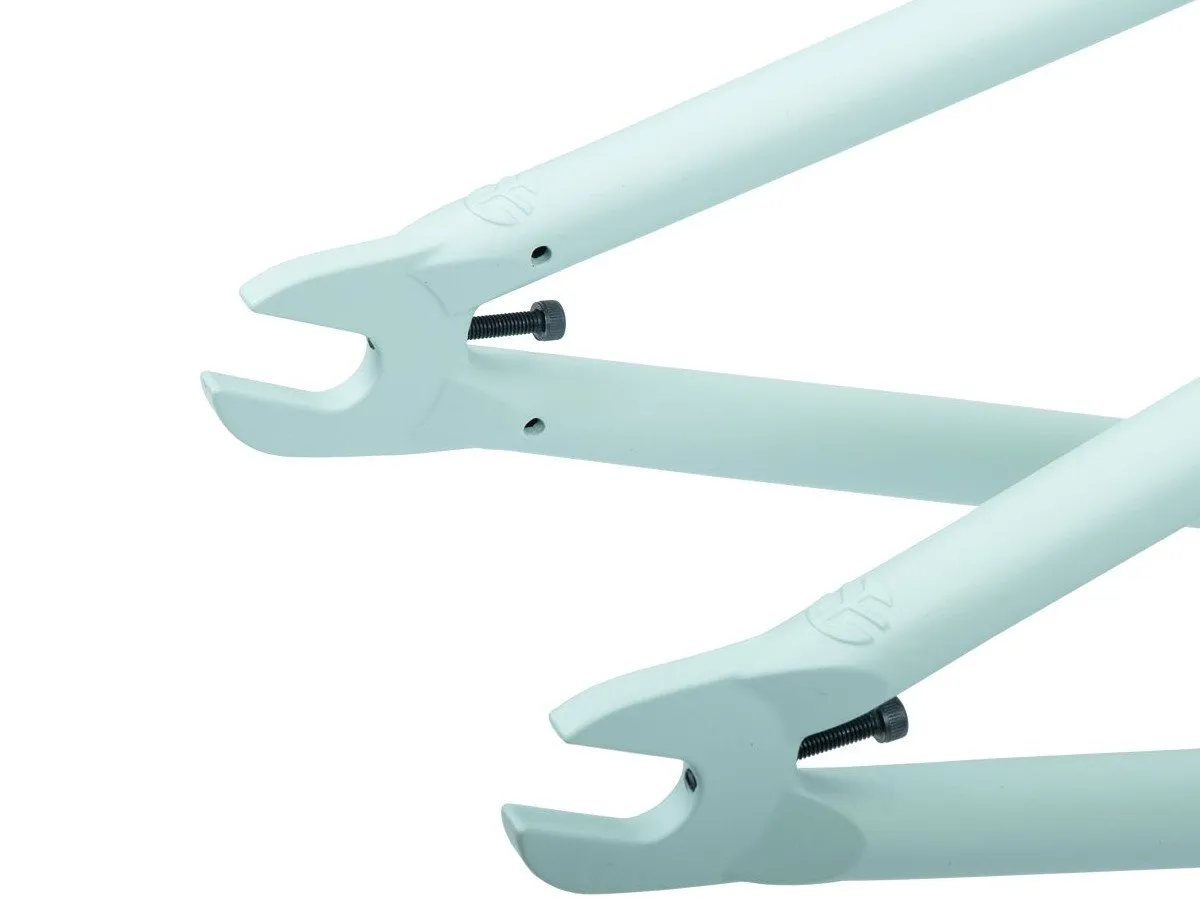

  • Dropouts: Investment cast, 6.5mm thick, 14mm slots, integrated chain tensioners
  • Extras: Dan Lacey Signature frame, wide rear end for fat 2.4" tires
