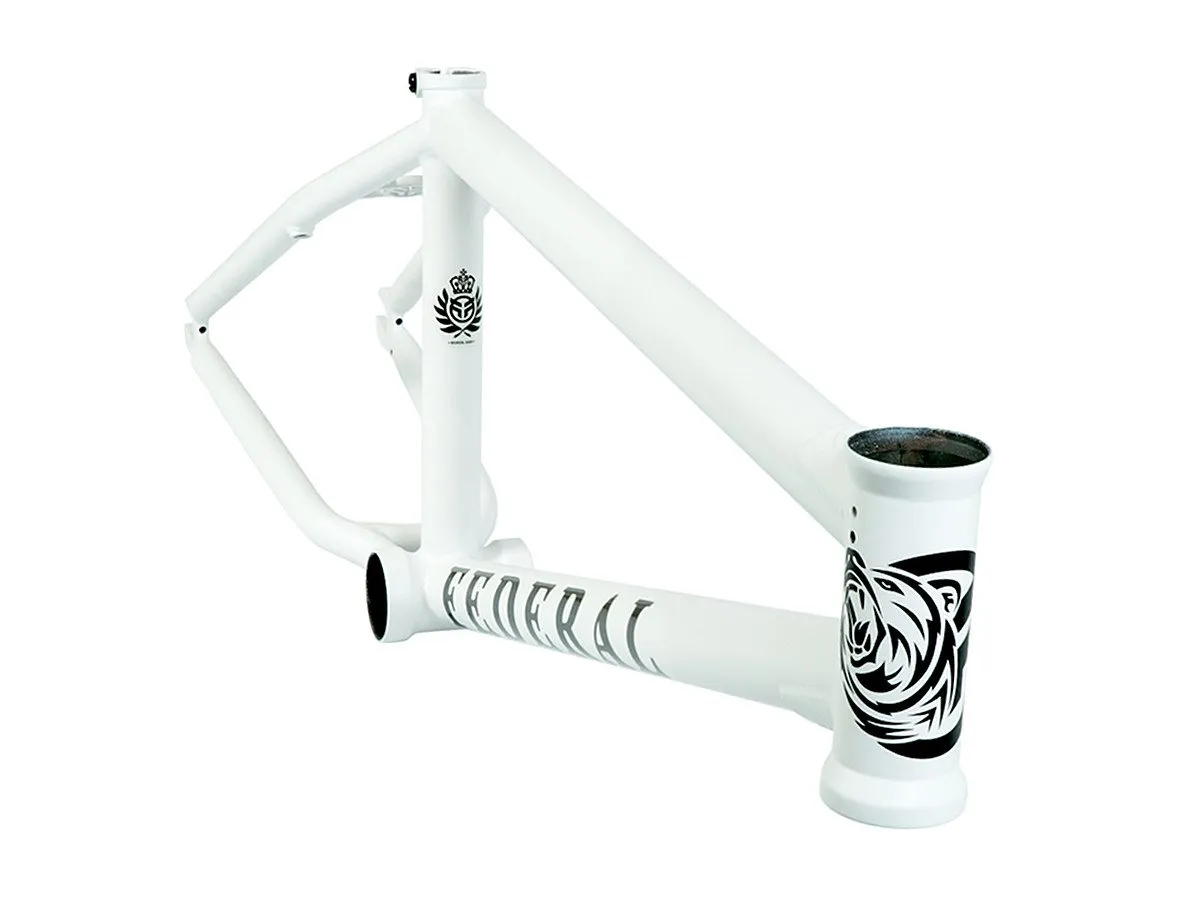

Federal Bikes "DLX x Love" 2017 BMX Frame

369.95 EUR

[incl. 19% VAT excl. shipping]
Brake Mounts
Color
Toptube
Qty.

The Federal Bikes "DLX x Love" 2017 BMX Frame is a one off collaboration between Mark Love and the Lacey DLX frame and a very high quality BMX frame made of 100% 4130 CrMo. This Federal Bikes "DLX x Love" 2017 BMX Frame is equipped with Investment Cast dropouts and seat clamp. Integrated chain tensioner makes adjusting the rear wheel easy and the rear end of this frame is 13.75" - 14.25" long.

Caution:The delivery of the frame is without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.

Facts: Federal Bikes "DLX x Love" 2017 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
  • Geometry:
    Top Tube (TT): 20.85"
    Chain Stay (CS): 13.75" - 14.25"
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 71°
    BB Height: 11.8"
    Standover Height (SO): 9"
  • Seat Clamp: integrated investment cast
  • Seat Post Diameter: 25.4mm

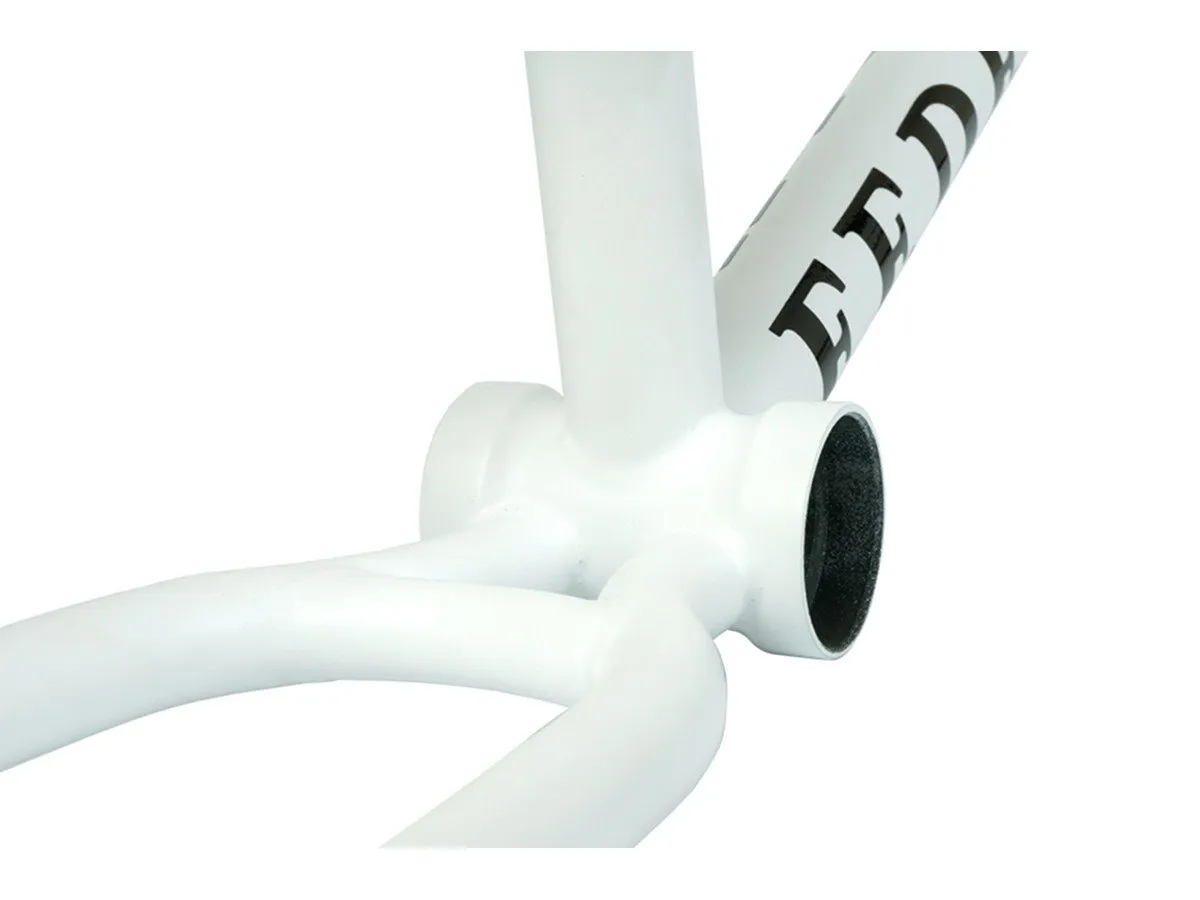

  • Bottom Bracket: Mid BB, heat treated, CNC machined
  • Dropouts: Investment cast, 6.5mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brakemounts: removable, M8, not included with delivery
  • Extras: Dan Lacey and Mark Love Signature frame, wide rear end for fat 2.4" tires, Graphics designed by Rich Forne
  • Model Year: 2017


  • Weight (in kg): 2.18
  • Weight (in lbs): 4.81
  •
  • Packaging Unit: 1 Piece
  •
  • Product ID (PID): 12474
