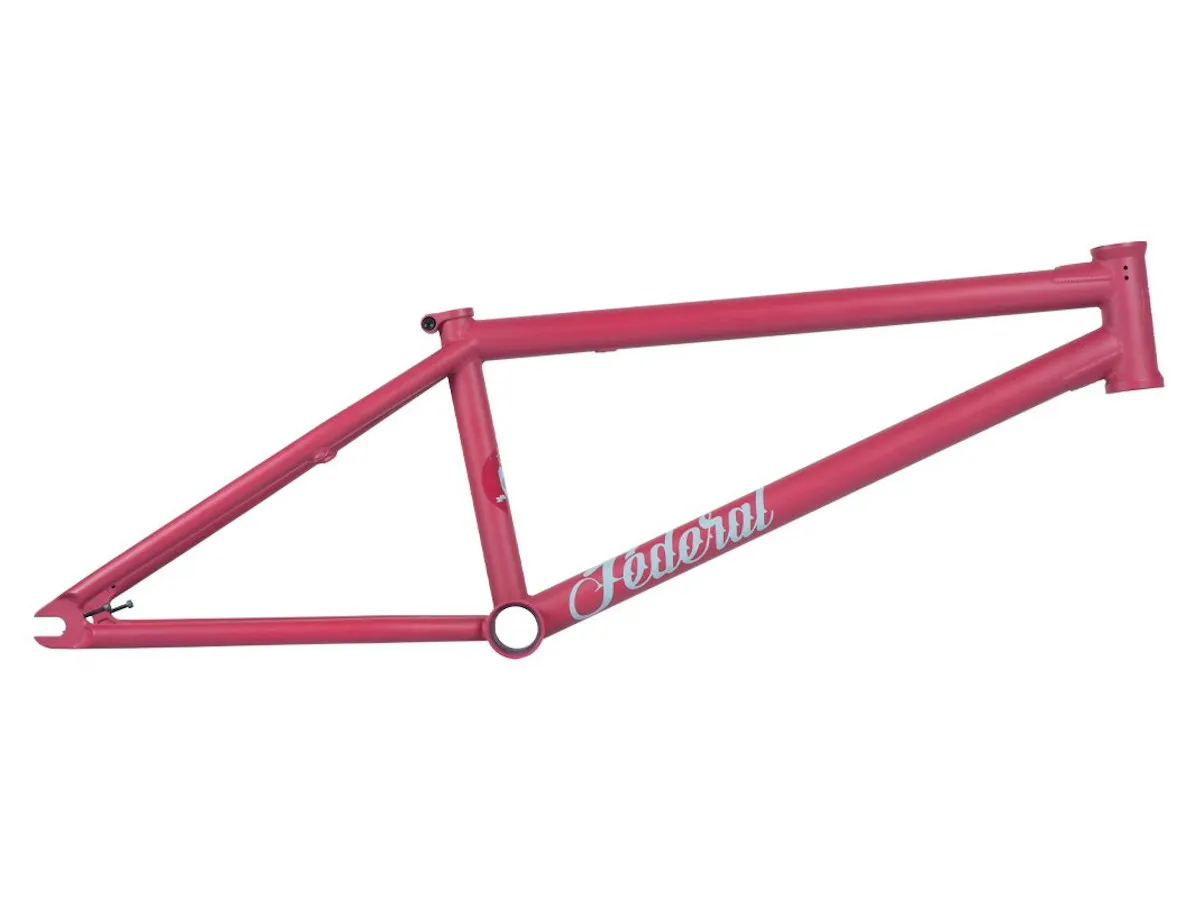

Federal Bikes "Lacey" 2020 BMX Frame

307.52  EUR- 18 %

252.06 EUR

Color | Brake Mounts | Top Tube Length
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
Berlin Please select a product option!
  • Weight (in kg): 2.18
  • Weight (in lbs): 4.81
  • Packaging Unit: 1 Piece
  • Product ID (PID): 18716

The Federal Bikes "Lacey" 2020 BMX Frame is the signature frame of Dan Lacey. The Federal Bikes "Lacey" 2020 BMX Frame is a very high quality Street frame made of 100% 4130 CrMo. This Federal Bikes "Lacey" 2020 BMX Frame is equipped with Investment Cast dropouts and seat clamp. Integrated chain tensioner makes adjusting the rear wheel easy and the rear end of this frame is 13.75" long.

Caution:The delivery of the frame is without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.

Facts: Federal Bikes "Lacey" 2020 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated chaintensioners, including investment cast seatclamp, removable brake hardware, Mid BB
  • Geometry:
    Top Tube Length (TT): 20.75" or 21.0"
    Chainstay Length (CS): 13.75" (34.92cm) - 14.1" (35.81cm)
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 71°
    Bottom Bracket Height: 11.8" (29.97cm)
    Standover Height (SO): 9" (22.86cm)
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: Investment cast, 6.5mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brake Type: U-Brake
  • Brakemounts: with (screwable, M8)
  • Brakemounts included with delivery: No
  • Gyro compatible: Yes
  • Features: Dan Lacey Signature frame, wide rear end for fat 2.4" tires
  • Model Year: 2020
