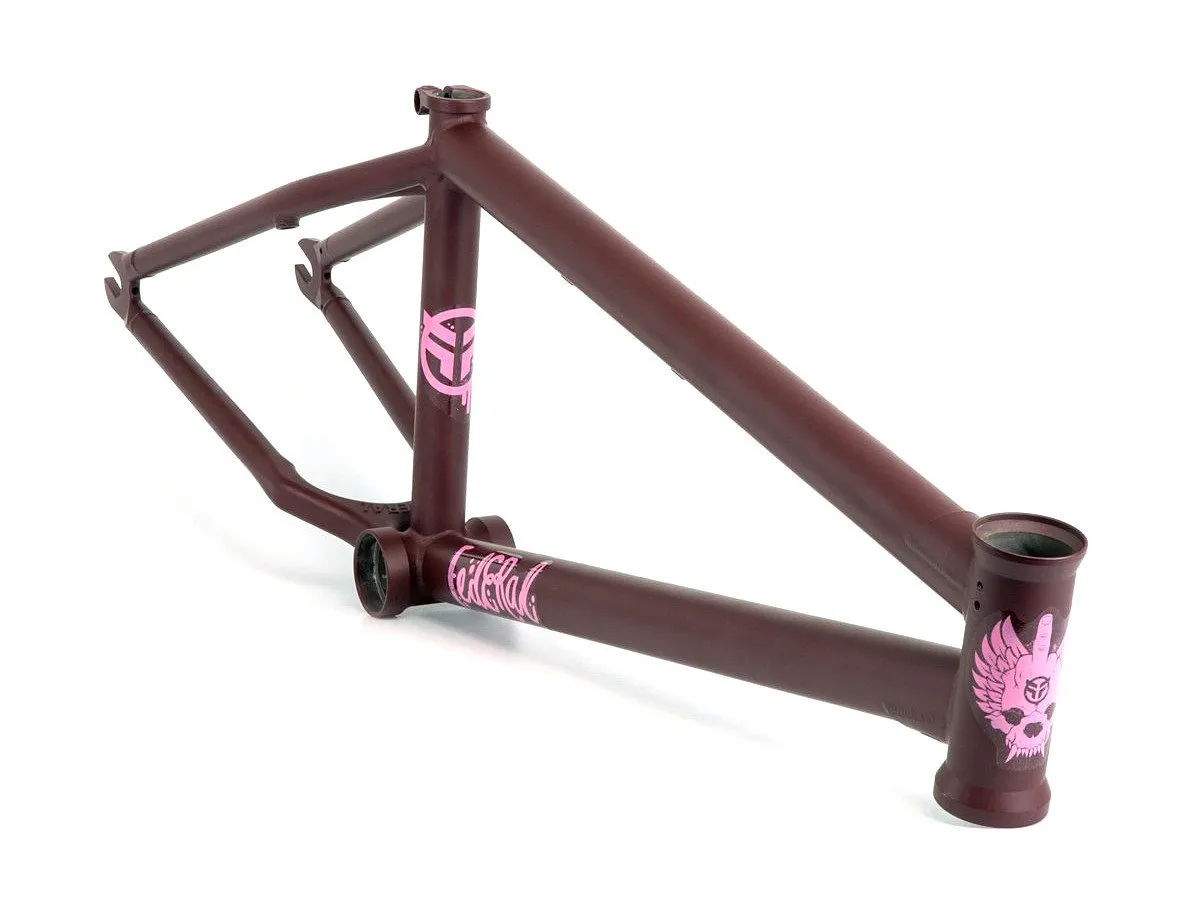

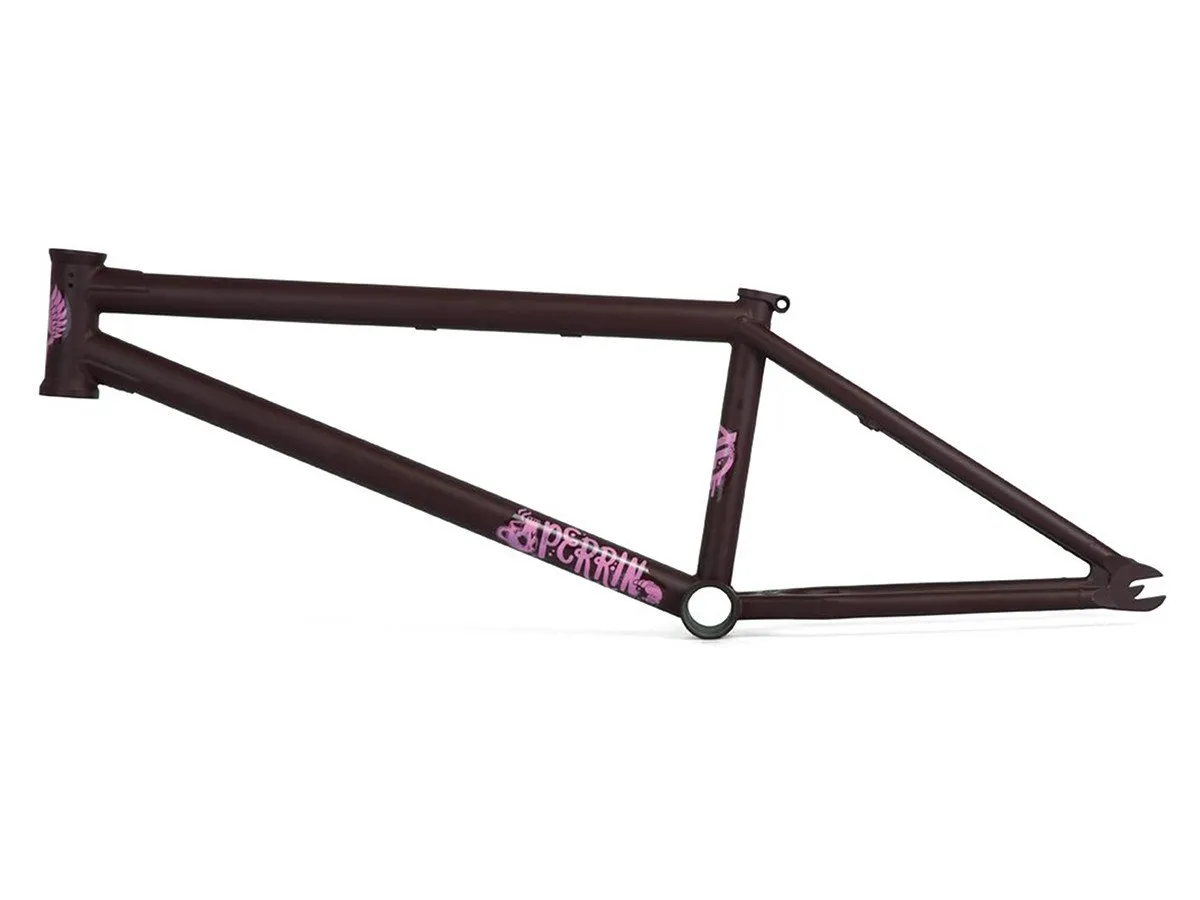

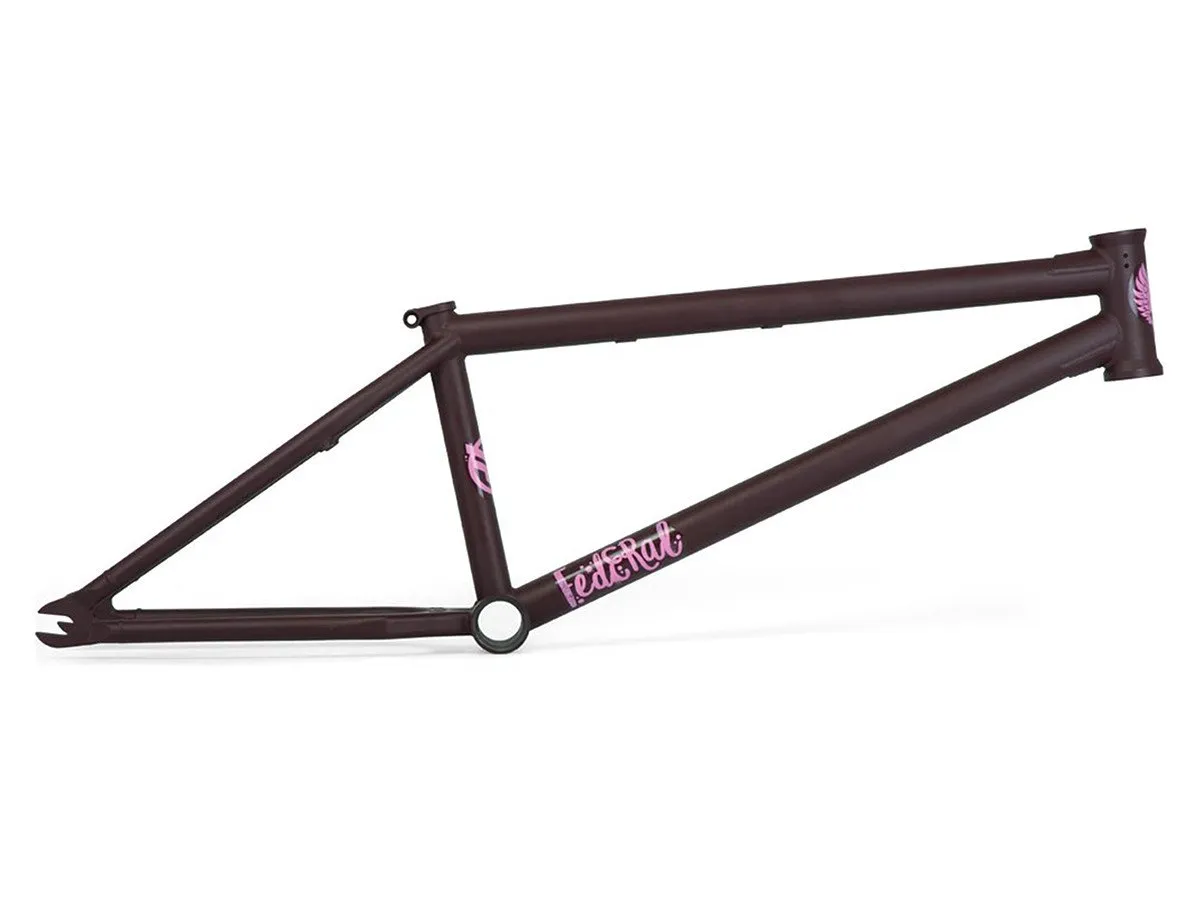

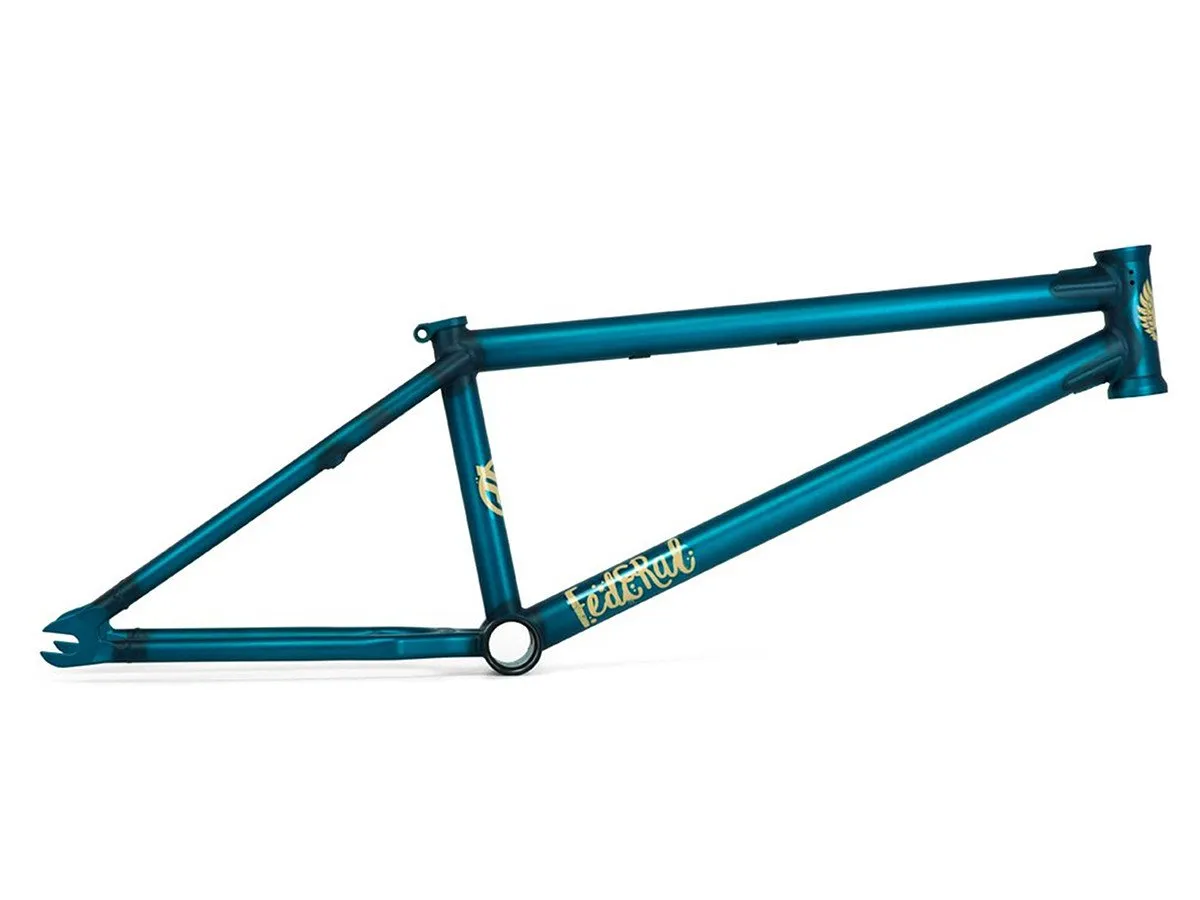

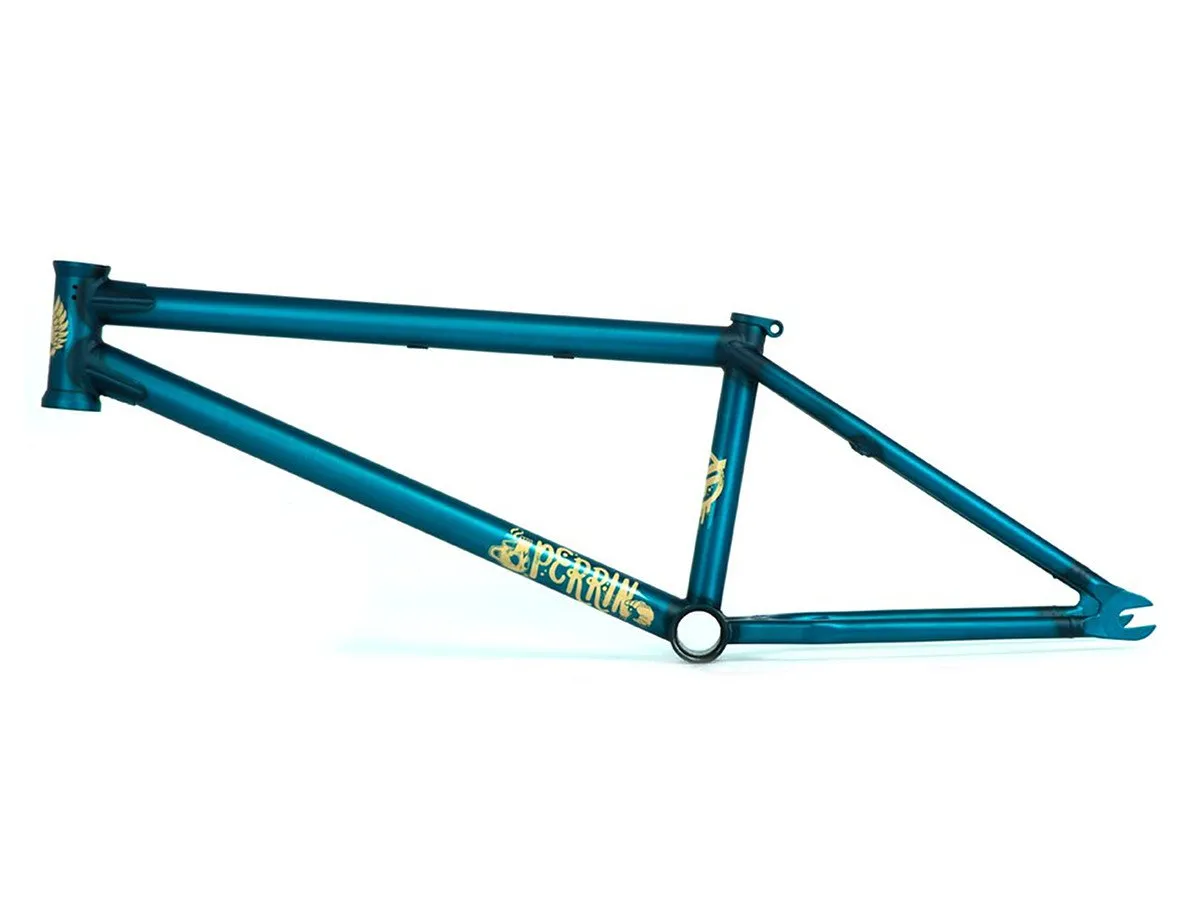

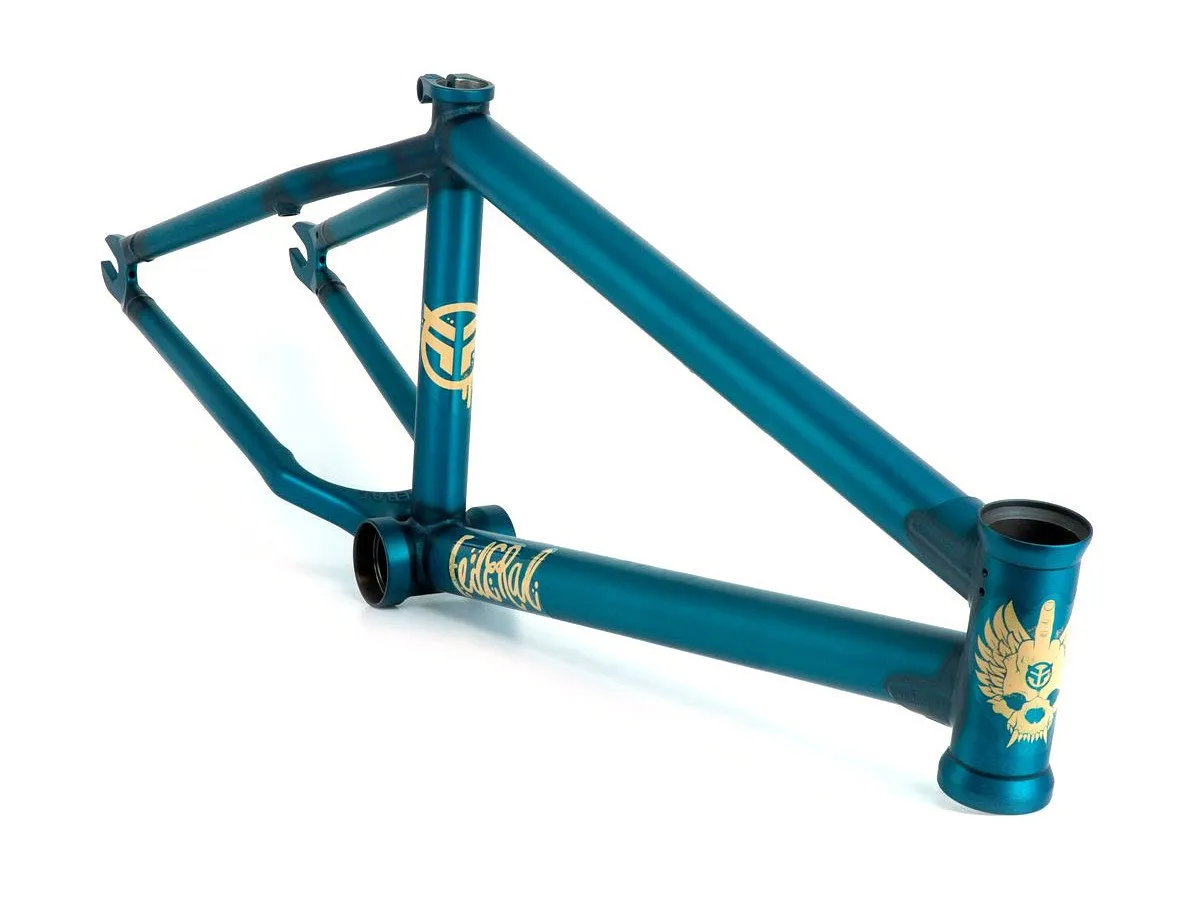

Federal Bikes "Perrin ICS" 2018 BMX Frame

399.95 EUR

[incl. 19% VAT excl. shipping]
Brake Mounts
Color
Toptube
Qty.
  • Weight (in kg): 2.40
  • Weight (in lbs): 5.29
  • Packaging Unit: 1 Piece
  • Product ID (PID): 14559

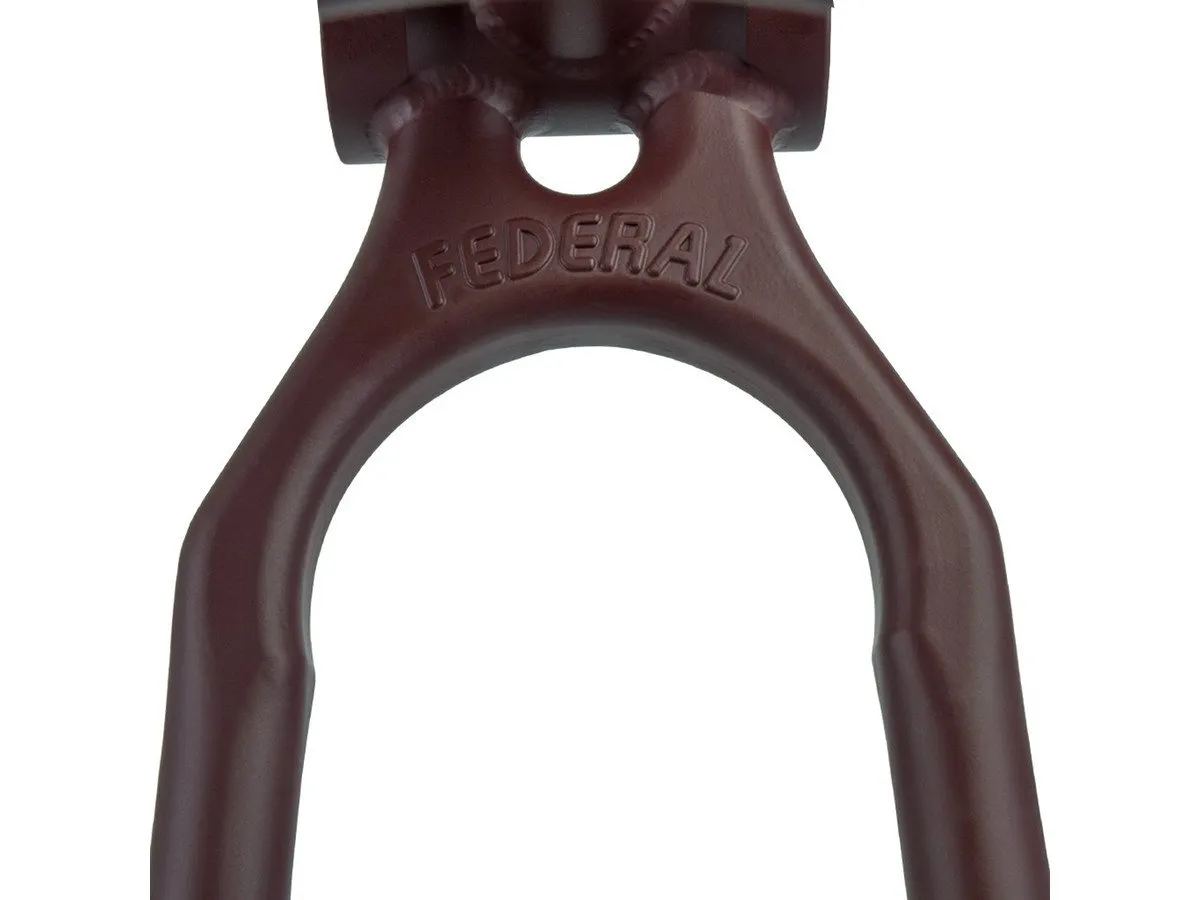

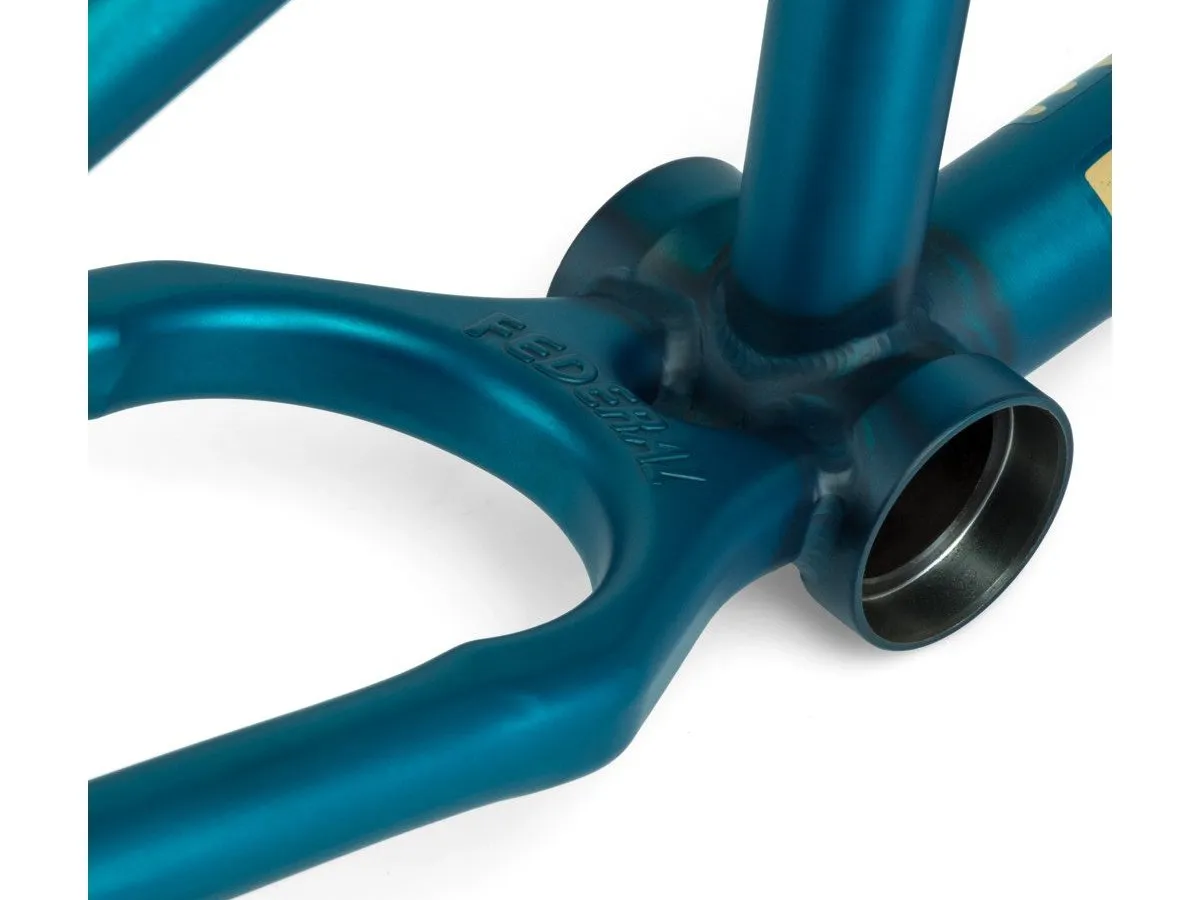

This Federal Bikes "Perrin ICS" 2018 BMX Frame is Anthony Perrin's signature frame and was in accordance to his riding style designed and manufactured for top modern and technical Pro level BMX Street riding. The Federal Bikes "Perrin ICS" 2018 BMX Frame has been completely redesigned with a shorter rear end which is 12.9" slammed. This frame is also the first to feature the new investment cast (ICS) chain stay wishbone to allow better clearance for wide tyres. The Federal Bikes "Perrin ICS" 2018 BMX Frame has also been updated to include IC dropouts, seat clamp and seat stay bridge and features all new graphics by Rich Forne.

Caution: The delivery of the frame is without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.

Facts: Federal Bikes "Perrin ICS" 2018 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated seatclamp, removable brake hardware, Mid BB, investment cast (ICS) chain stay wishbone
  • Geometry:
    Top Tube (TT): 20.75" or 21.0" (selectable as an option)
    Chain Stay (CS): 12.9" (Slammed)
    Head Tube Angle (HA): 75.2°
    Seat Tube Angle (SA): 71°
    BB Height: 11.8"
    Standover Height (SO): 8.9"
  • Seat Clamp: integrated investment cast
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB, tappered
  • Dropouts: 4130 CrMo, 5mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brake Type: U-Brake
  • Brakemounts: removable, M8, not included with delivery
  • Extras: Anthony Perrin Signature frame, wide rear end for fat 2.5" tires, new investment cast (ICS) chain stay wishbone, new graphics by Rich Forne
