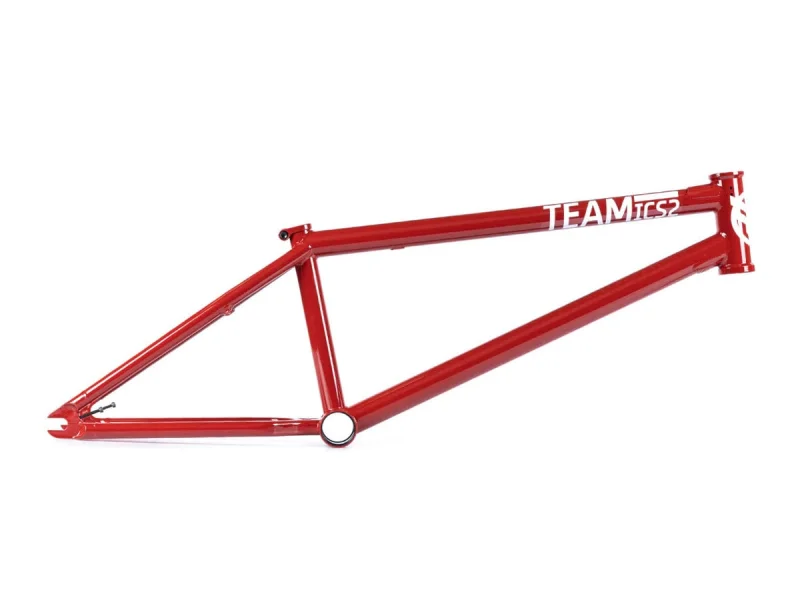

Federal Bikes "Team ICS2" 2023 BMX Frame
-
Weight : 2.45kg / 5.40lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 25761
The Federal Bikes "Team ICS2" 2023 BMX Frame comes with a modern ICS2 chainstay. The Federal Bikes "Team ICS2" 2023 BMX Frame is a very high quality Street frame made of 100% 4130 CrMo. This Federal Bikes "Team ICS2" 2023 BMX Frame is equipped with Investment Cast dropouts and seat clamp. Integrated chain tensioner makes adjusting the rear wheel easy.
Facts: Federal Bikes "Team ICS2" 2023 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated chaintensioners, including investment cast seatclamp, Mid BB, ICS2 chainstay
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 12.9" (32.77cm) - 13.4" (34.04cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.6" (29.46cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots, integrated chain tensioners
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts included with delivery: No
- Features: wide rear end for fat 2.4" tires
- Model Year: 2023
