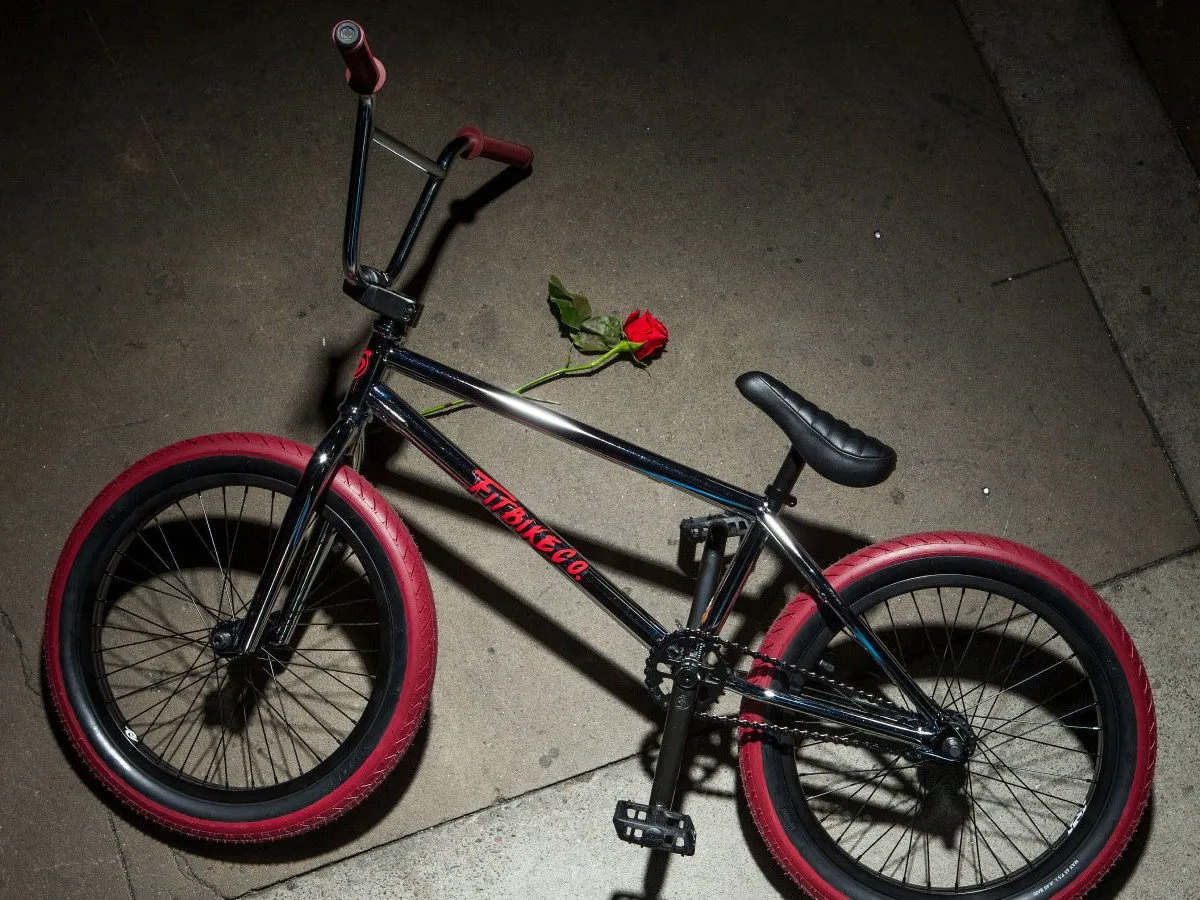

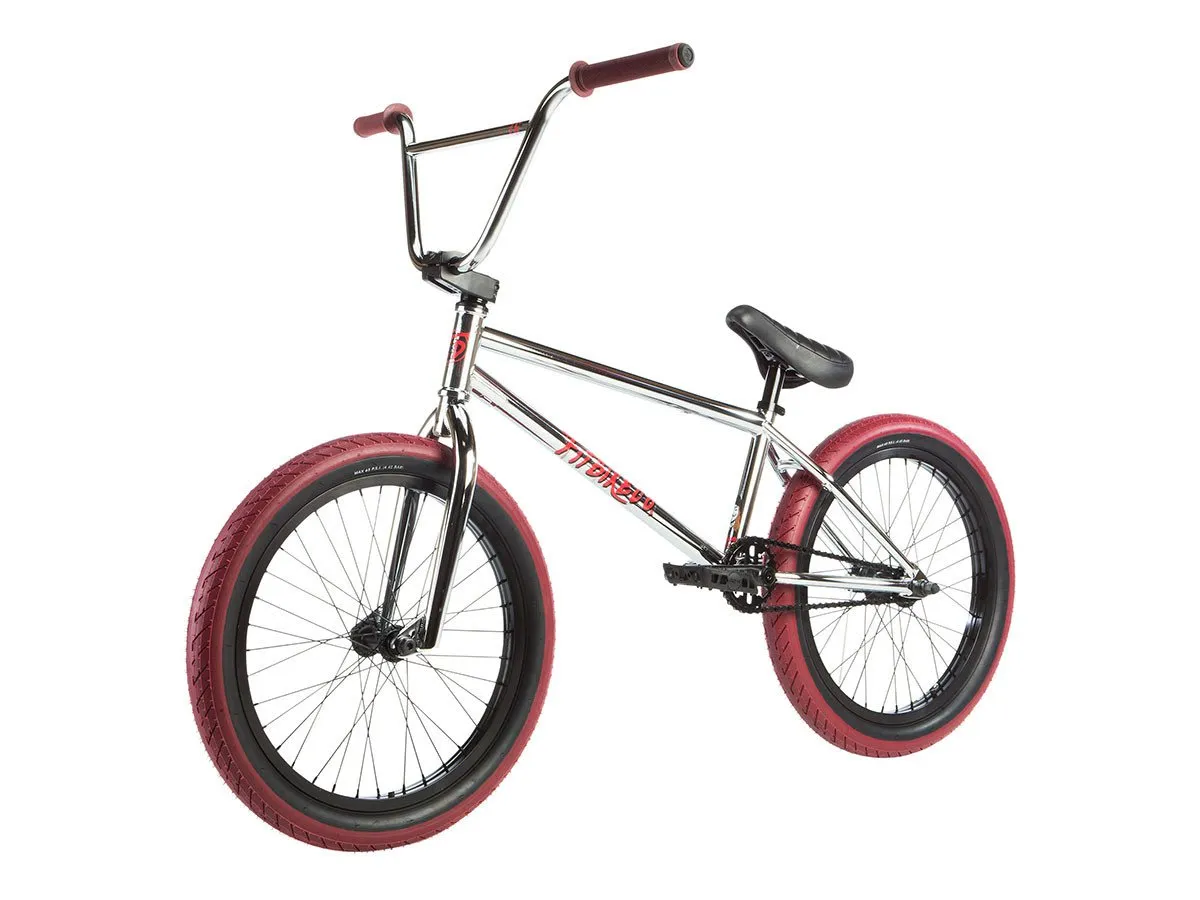

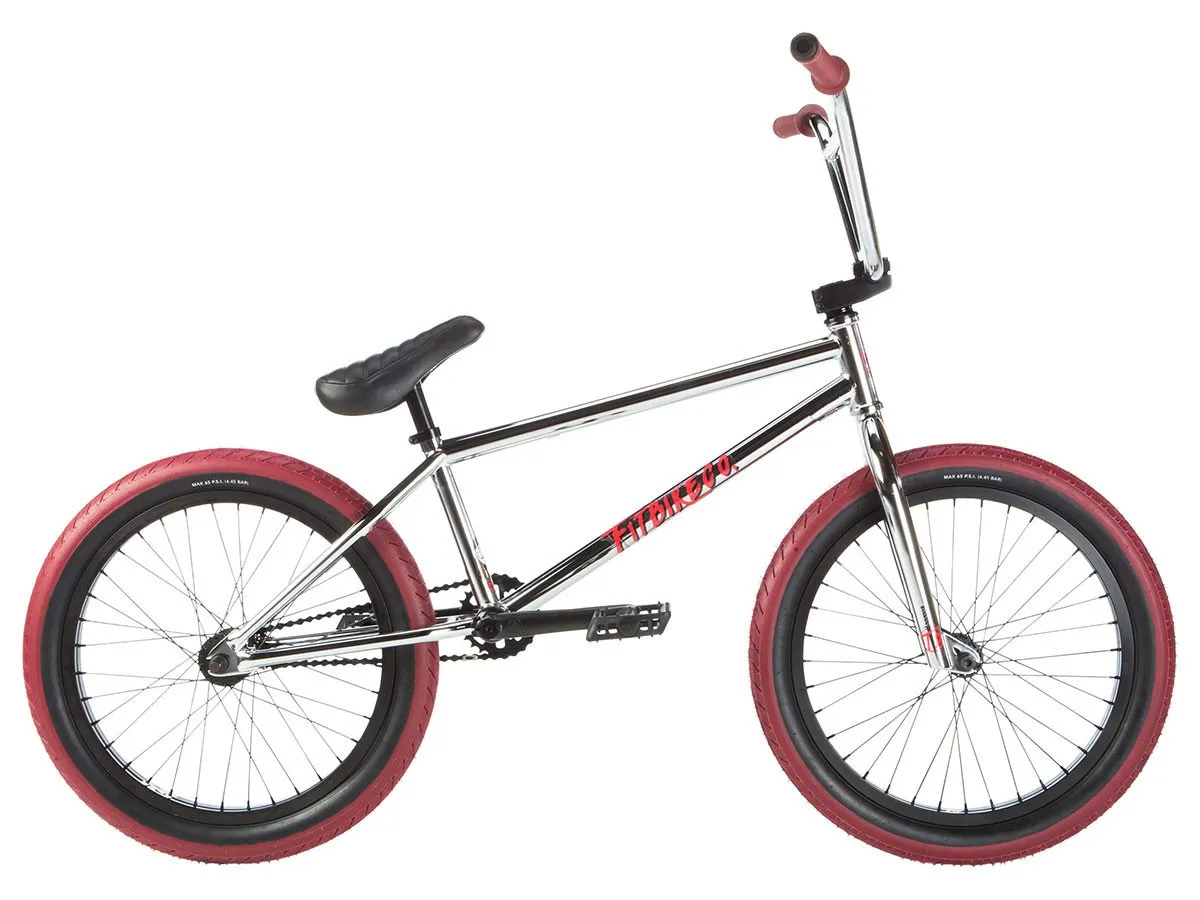

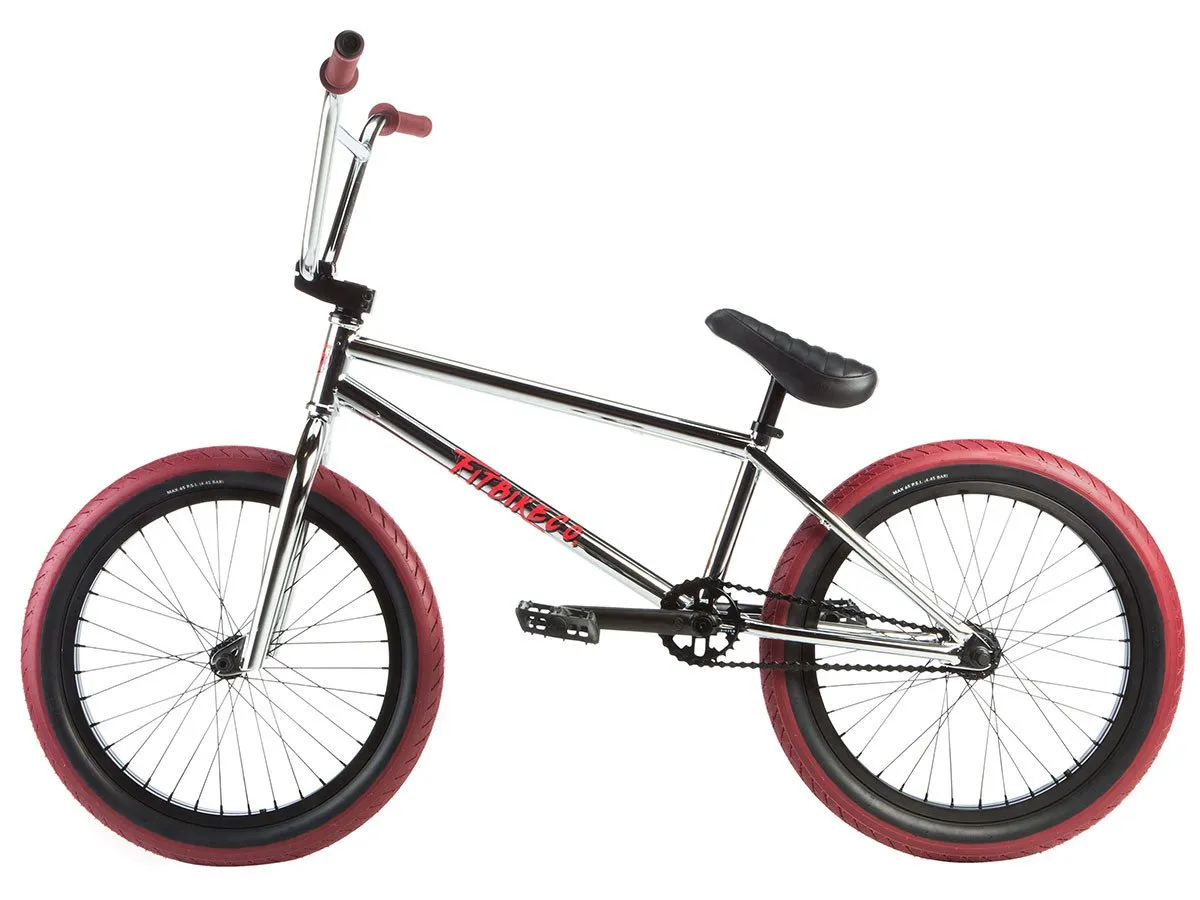

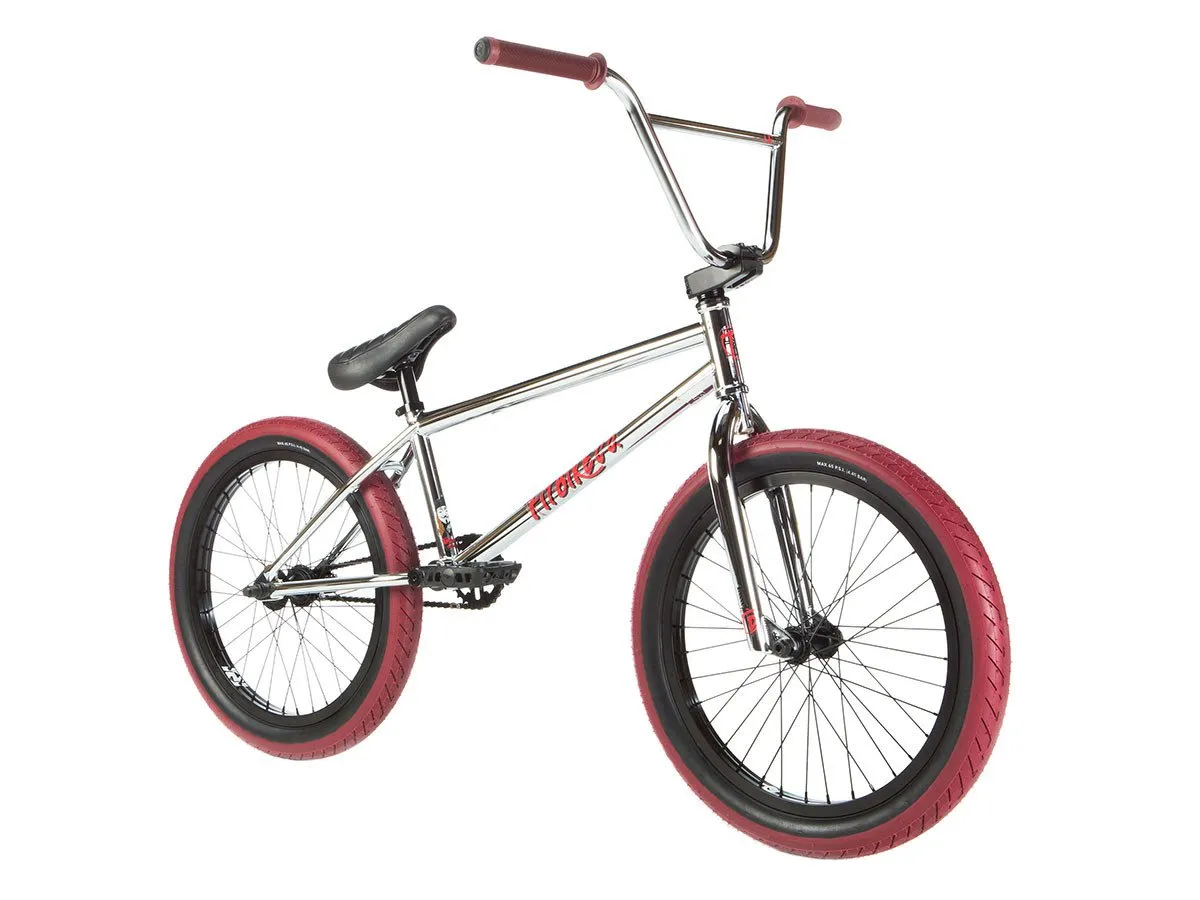

Fit Bike Co. "Dugan" 2019 BMX Bike - LHD - Chrome
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 11.84kg / 26.10lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 15464
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The geometry and design of the
Fit Bike Co. "Dugan" 2019 BMX Bike - LHD - Chrome

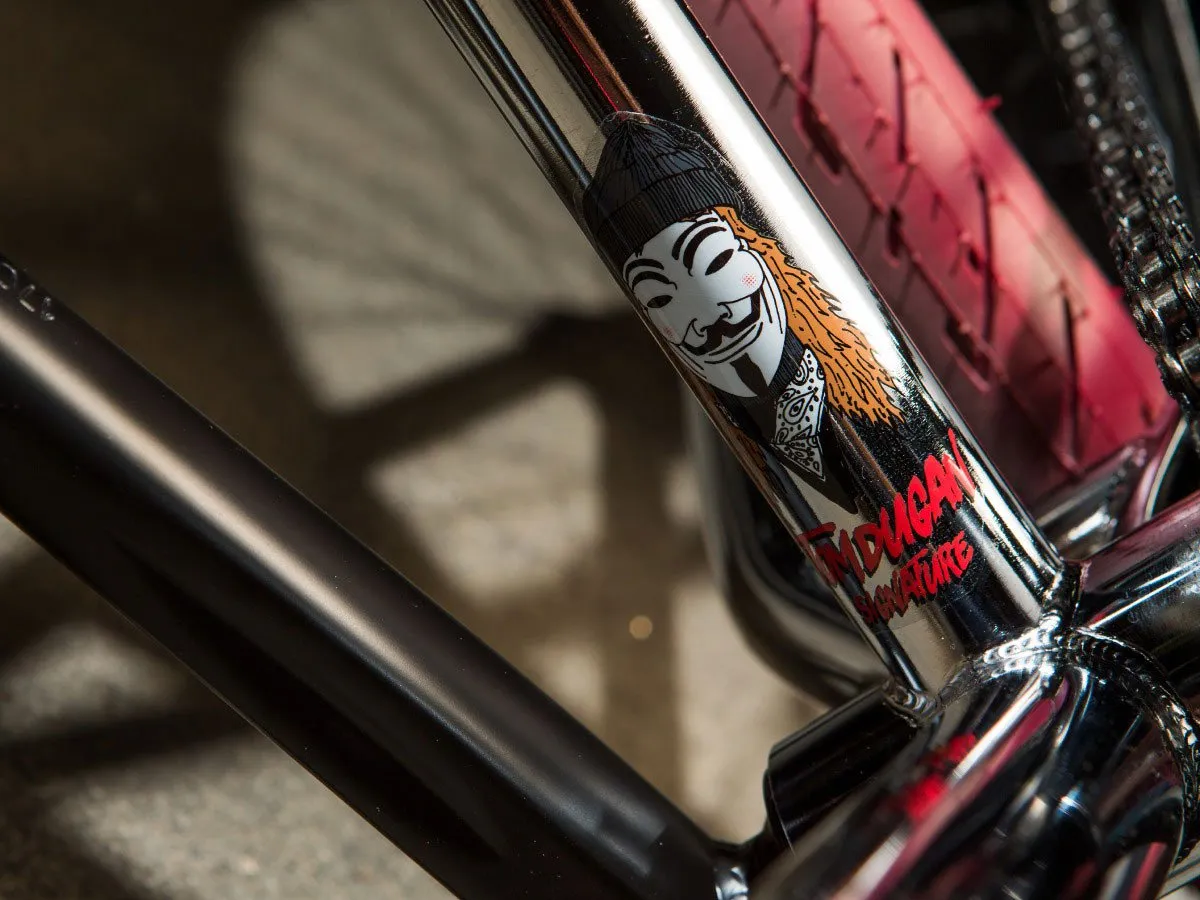

is inspired by BMX Pro Tom Dugan.
The
Fit Bike Co. "Dugan" 2019 BMX Bike - LHD - Chrome
offers you a 100% 4130 CrMo equipment quality at frame and bar and includes a integrated headset and Mid BB but also a completely removable brake hardware. A solid rear wheel with LHD cassette hub (Drivetrain chain, sprocket, driver are on the left side), Odyssey "Twisted" pedals and a 3-piece CrMo crankset. But also a high rised handlebar-stem setup offers you a great complete bike package at a great price-performance ratio for Advanced.
Note: The BMX bike comes with preassembled rear brake (U-Brake)
Note: The BMX bike comes with preassembled rear brake (U-Brake)
Facts: Fit Bike Co. "Dugan" 2019 BMX Bike - LHD - Chrome
- Wheel Size: 20"
- BMX Frame:
- 100% 4130 CrMo, gusset at downtube, integrated headset, removable brakehardware, Mid-BB
- Top Tube (TT): 20.75"
- Chain Stay (CS): 13.11"
- Head Tube (HA): 75°
- Seattube (SA): 71°
- BB-Height (BB): 11.6"
- Standover (SO): 8.6" - BMX Fork: 4130 CrMo 1-1/8" steerer, 1020 Hi-Ten arms, 10mm (3/8") dropouts, 33mm offset
- BMX Bar:
- 100% 4130 CrMo, 2-piece BMX bar
- Height: 9.25"
- Width: 30"
- Backsweep: 11°
- Upsweep: 1°
- Clamping Diameter: 22.2mm - Grips: Fit "Savage" Grips, with flange

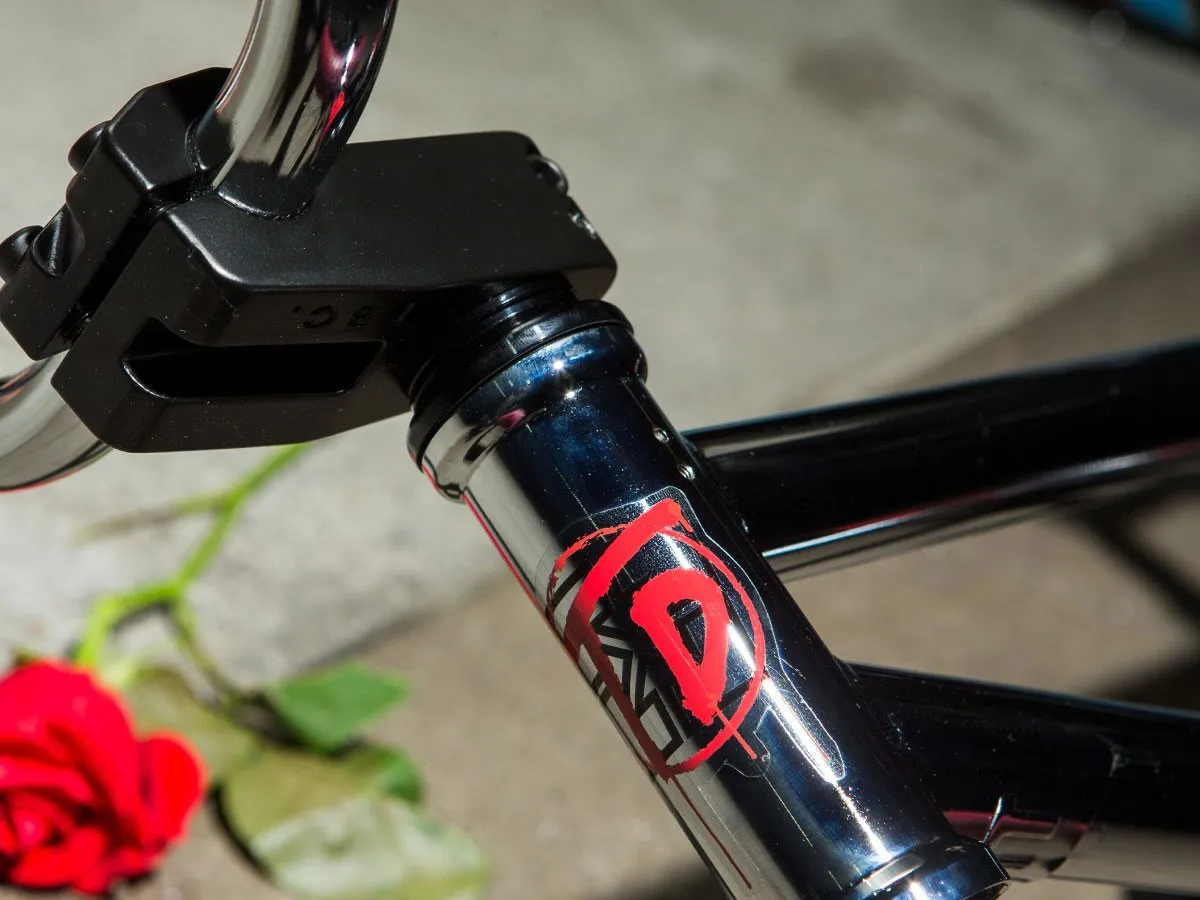

- Stem: Fit "Forged" Topload, aluminum
- Headset: Integrated, sealed bearing
- Gyro: -
- Gyro compatible: Yes
- Brake Lever: Aluminum, 2-finger, hinged
- Brake Cable: Slic
- Brake: Aluminum, 990 U-Brake

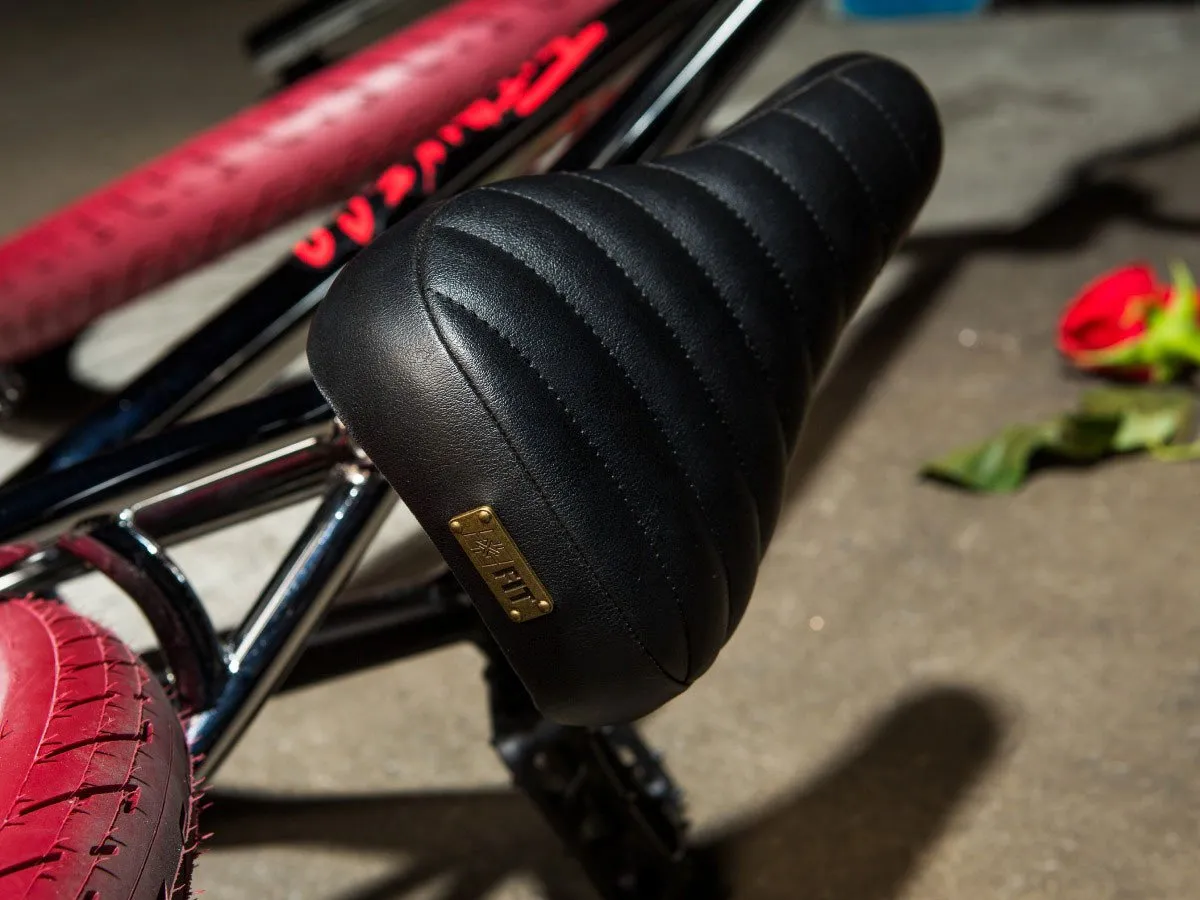

- Seat: Fit "Cafe" Tripod seat, mid padded
- Seat Post: Tripod, aluminum, 200mm long, 25.4mm
- Seat Clamp: integrated
- Pedals: Odyssey "Twisted", nylon
- Chain: KMC "Z410H"
- Sprocket: Fit "CrMo Key", steel, 25T

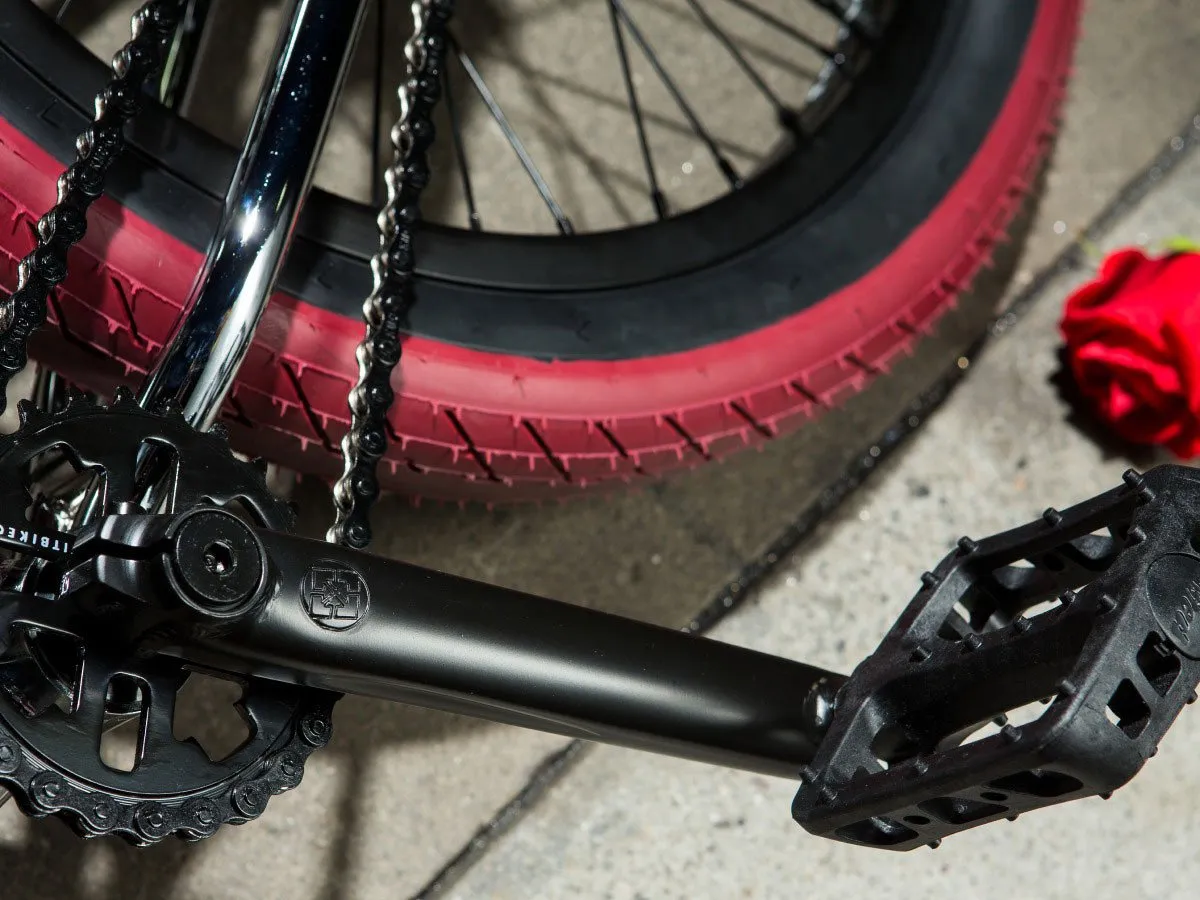

- Crank: LHD, 3-piece CrMo, 8 Spline 19mm, 170mm
- Bottom Bracket: MID BB, sealed bearing
- Hub (front): Aluminum, Female axle with 10mm (3/8") female bolts, sealed bearing, 36H
- Hub (rear): LHD, Cassette hub, aluminum, semi-sealed bearing, 14mm male axle, 36H, 9T, CrMo, sealed bearing
- Rim (front): 20", Fit "S1W", Single wall, 36H
- Rim (rear): 20", Fit "OEM", Double wall, 36H
- Spokes: Stainless steel 14G, brass nipples
- Tire (front): Fit "T/A" BMX Tire, 65 PSI, 20" x 2.4"
- Tire (rear): Fit "T/A" BMX Tire, 65 PSI, 20" x 2.4"
- Pegs: -
