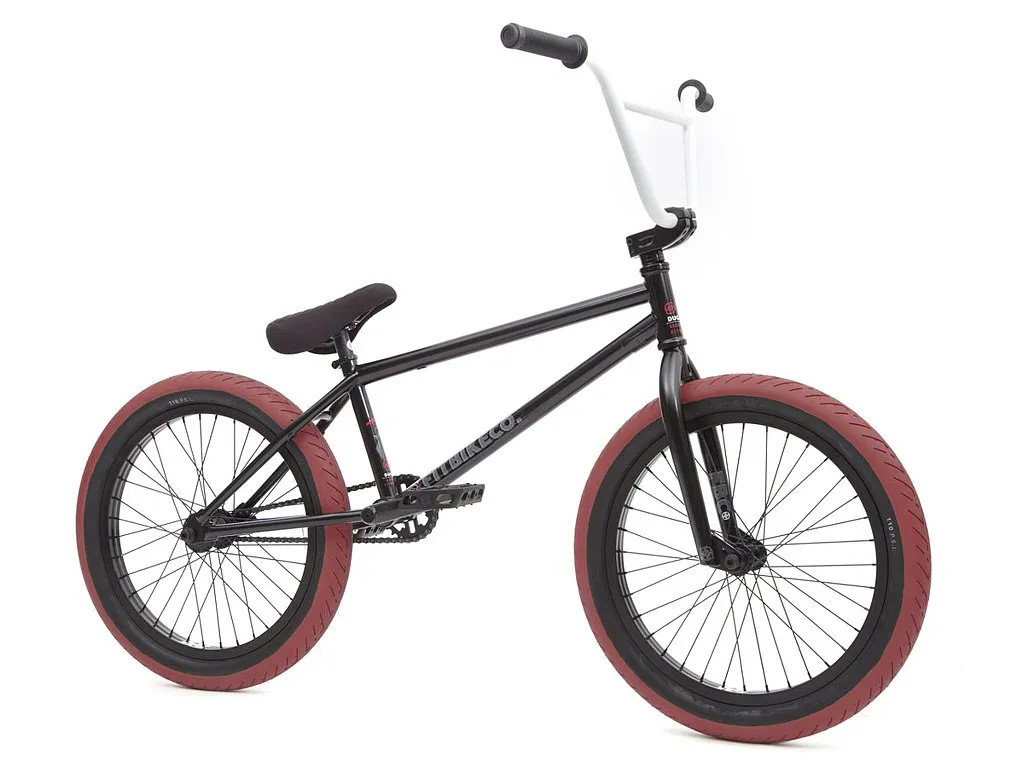

Fit Bike Co. "Dugan Signature" 2016 BMX Bike - Gloss Black
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 11.33kg / 24.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 9393
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
This
Fit Bike Co. "Dugan Signature" 2016 BMX Bike - Gloss Black
is the high-end model of the Fit Bike complete bike series and provides you with a frame, fork and handlebar setup in high grade 4130 CrMo quality. The LHD drive unit consists of a sturdy 3-pc. CrMo crank, grippy Fit "MAC" plastic pedals, a halflink chain and a wheelset with quality Revenge "OHM" double wall rims, as well as fully sealed female front and female cassette hub. Parts like the Fit "High-Top" Toploader stem and the Fit "Key" sprocket offer CNC machined precision quality as well as the Tripod seat combo and a pair of 2.4" inch wide Fit "T/A" high-pressure tires are of course standard in this price class. The 21" inch top tube frame of this
Fit Bike Co. "Dugan Signature" 2016 BMX Bike - Gloss Black
has a 75° degrees steep head tube and a 13.3" inch short rear end and together with the high stem-handlebar setup this high-end BMX bike will offer you best allround characteristics.
Facts: Fit Bike Co. "Dugan Signature" 2016 BMX Bike - Gloss Black
- BMX Frame:
- 100% 4130 CrMo, down tube gusset, integrated headset and seat clamp, removable U-brake sockets, Mid BB
- Top Tube (TT): 21.0"
- Chain Stay (CS): 13.3"
- Head Tube (HA): 75°
- Seat Tube (SA): 71°
- Standover: 8.75"
- BB Height: 11.6" - BMX Fork: 1-pc. CNC machined 4130 CrMo 1-1/8" steerer, tapered 4130 CrMo legs and dropouts, aluminium top bolt
- BMX Bar:
- 100% 4130 CrMo, 2-pc. street bar
- Height: 9"
- Width: 29"
- Backsweep: 12°

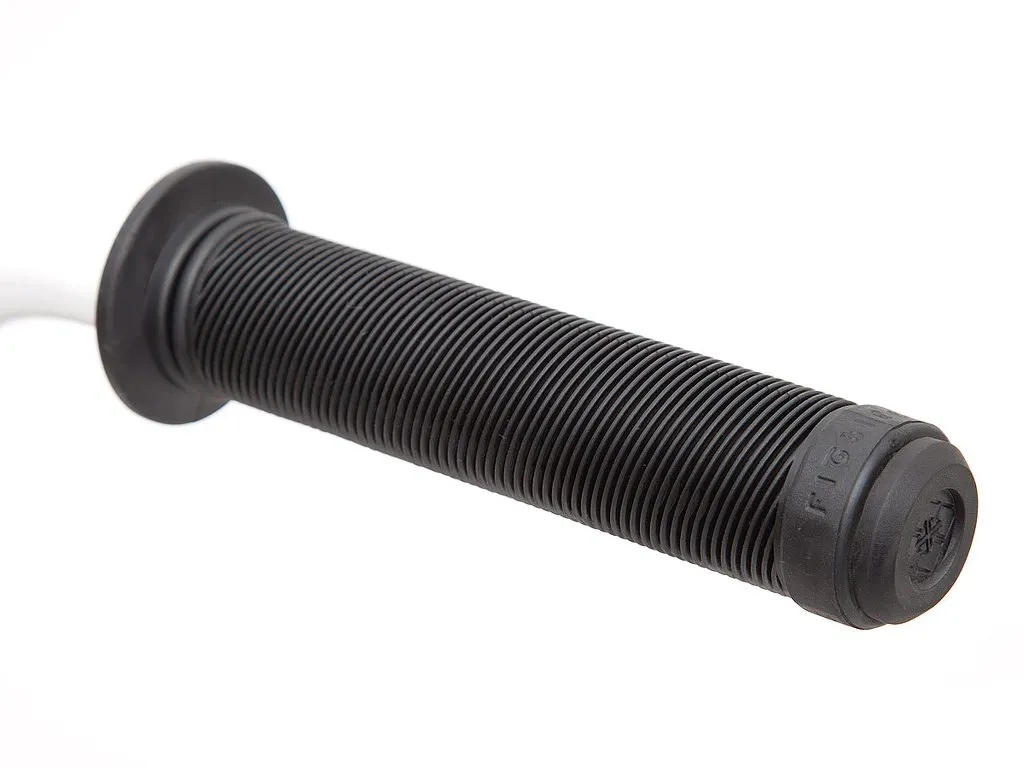

- Upsweep: 1° - Grips: Fit "Savage"

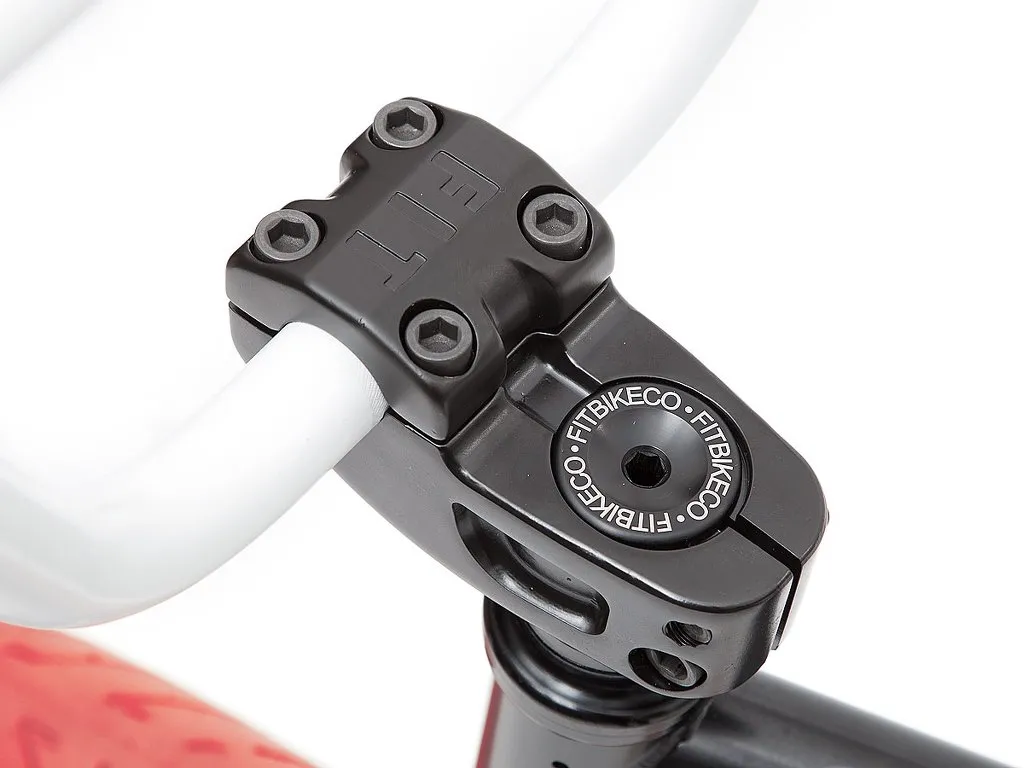

- Stem: Fit "High-Top" Toploader, 6061-T6 aluminium, CNC machined, 52mm
- Headset: Integrated, sealed bearing
- Gyro: -
- Brake Lever: Aluminium, 2-finger
- Brake Cable: Slic
- Brake: Aluminium, 990 U-Brake, soft compound brake pads
- Seat: Fit "Solo", Tripod, mid padded
- Seat Post: Fit, Tripod, aluminium, 200mm
- Seat Clamp: Integrated

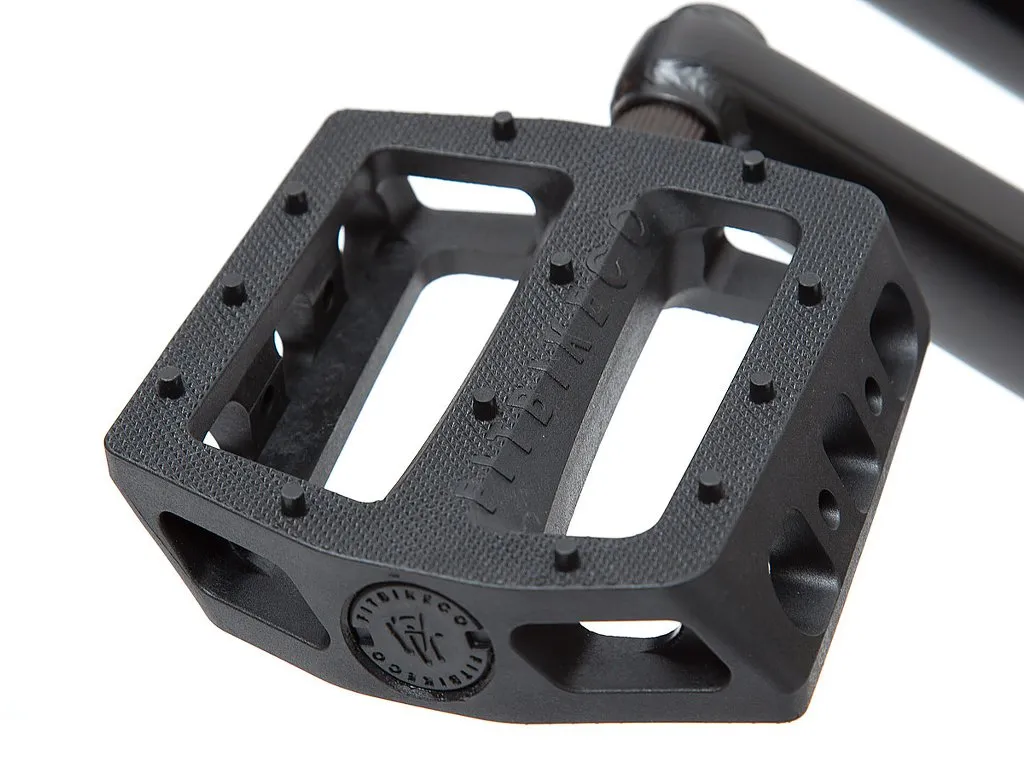

- Pedals: Fit "MAC", plastic
- Chain: Half Link "PYC-P121"

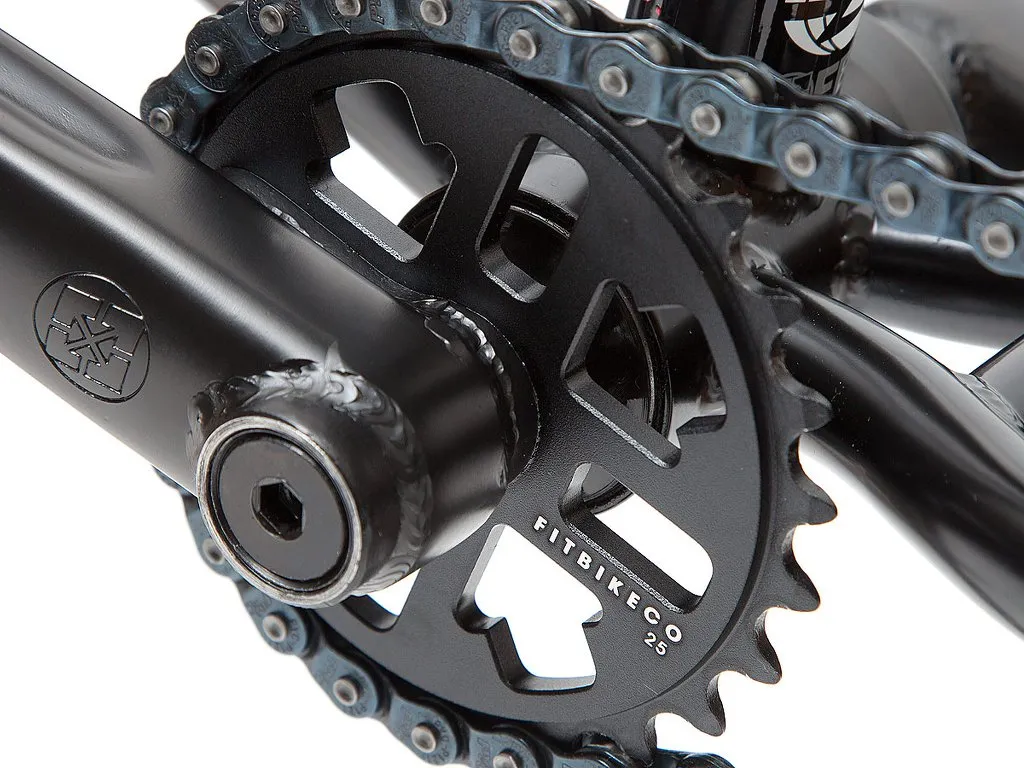

- Sprocket: Fit "Key", 7075 T-6 aluminium, CNC machined, 25T
- Crank: Fit, 3-pc. CrMo, LHD, 48 Spline, 175mm
- Bottom Bracket: Mid BB, sealed bearing
- Hub (front): Aluminium, 14mm CrMo female axle, sealed bearing, 36H

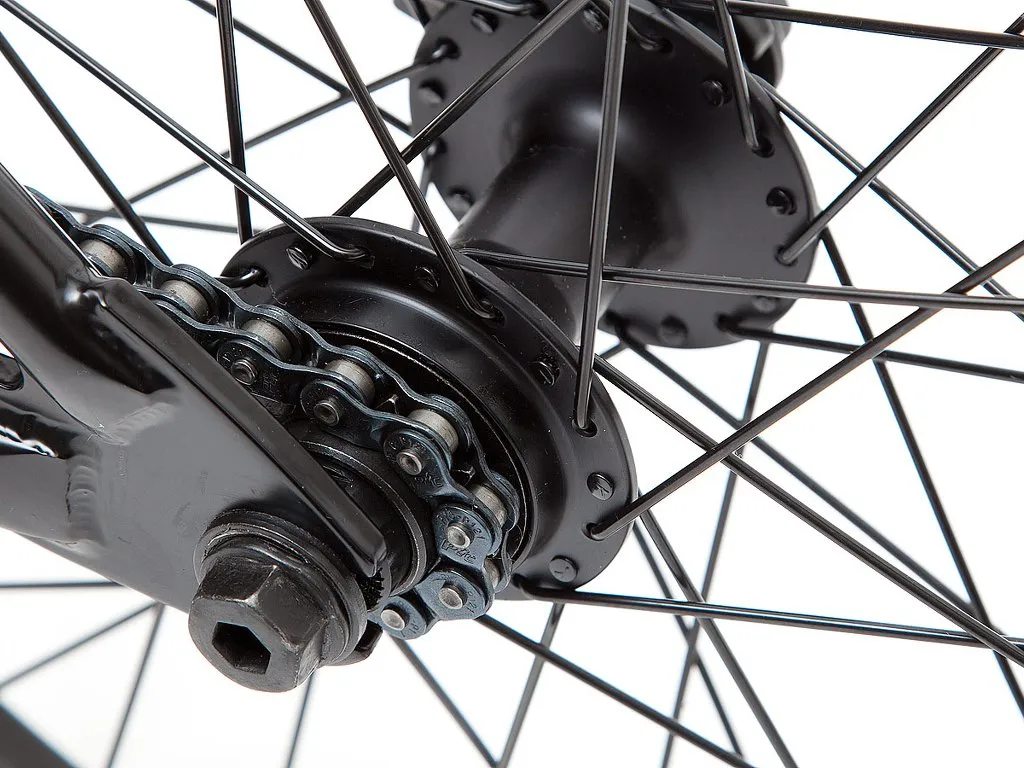

- Hub (rear): Cassette hub, LHD, 14mm female axle, sealed bearing, 36H, 9T, CrMo, sealed bearing
- Rim (front): 20" inch, Revenge "OHM", double wall, 36H
- Rim (rear): 20" inch, Revenge "OHM", double wall, 36H
- Spokes: Stainless steel 14G, brass nipples

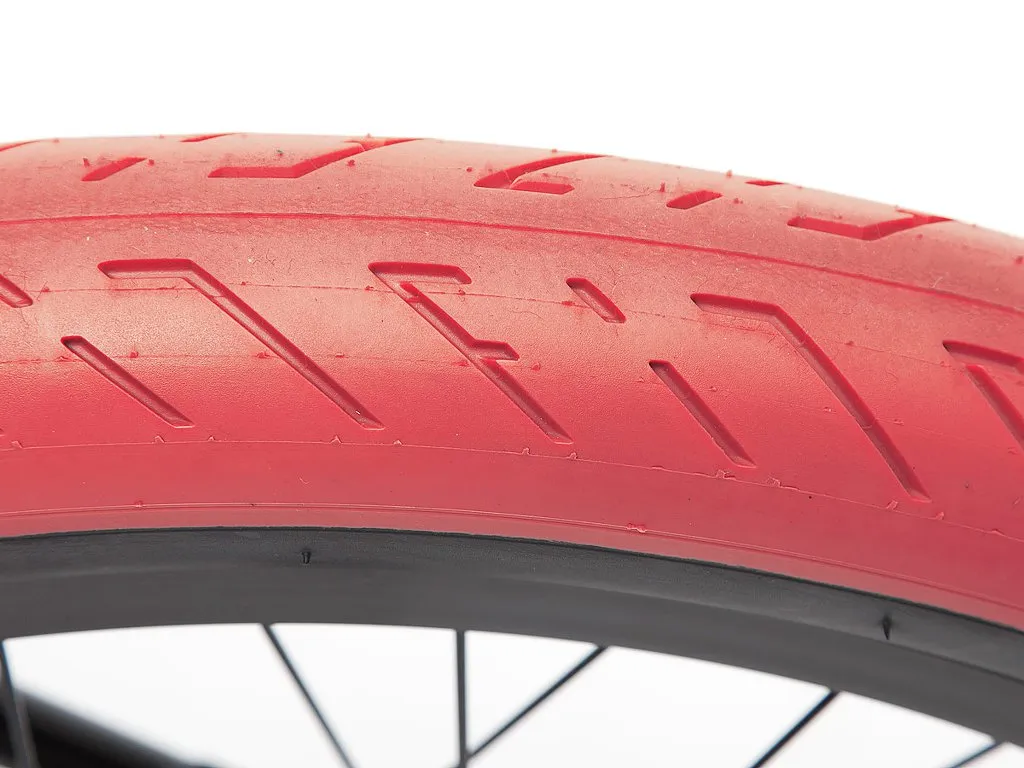

- Tire (front): Fit "T/A", 110 PSI / 7.5 Bar, 20" x 2.4"
- Tire (rear): Fit "T/A", 110 PSI / 7.5 Bar, 20" x 2.4"
- Pegs: -
