Fit Bike Co. "Hartbreaker" BMX Frame (Chris Harti Signature)
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.37kg / 5.22lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 22716
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

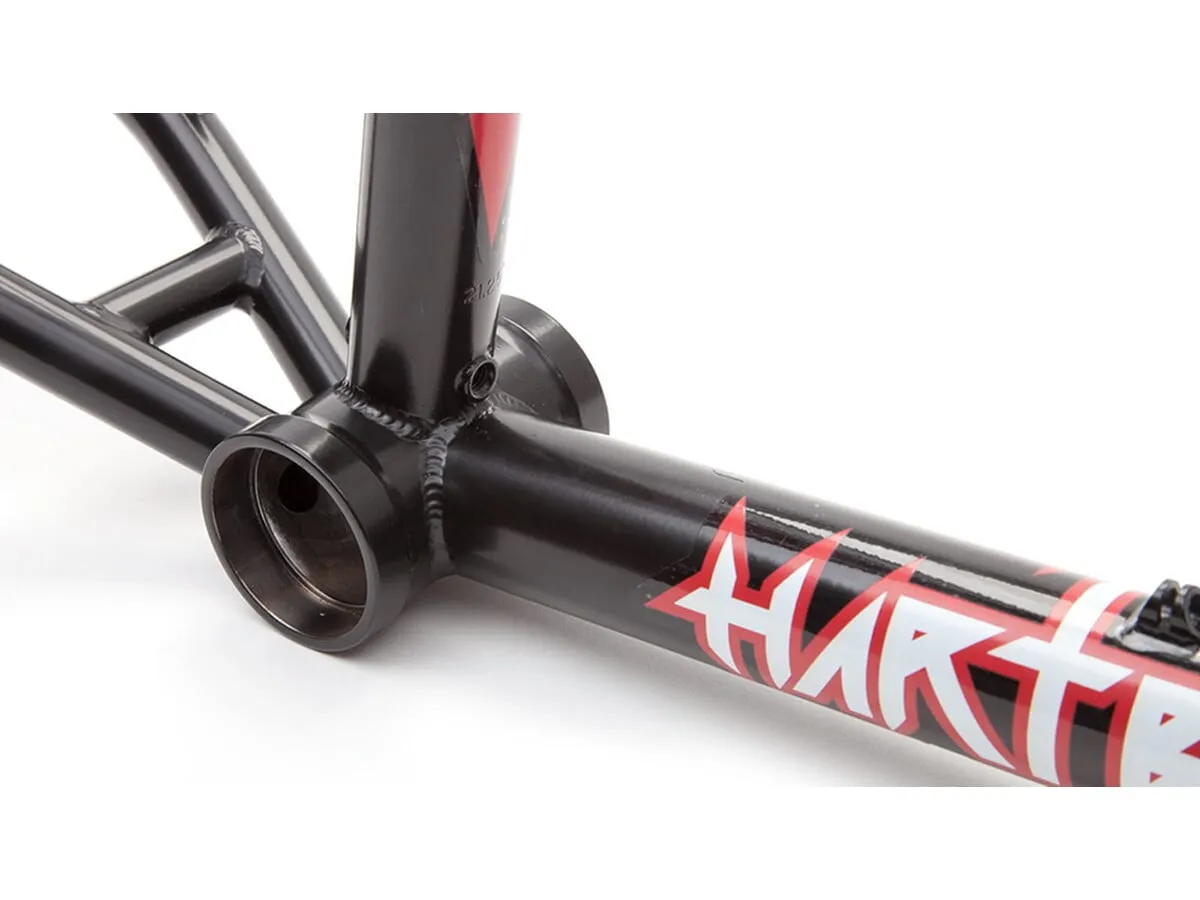

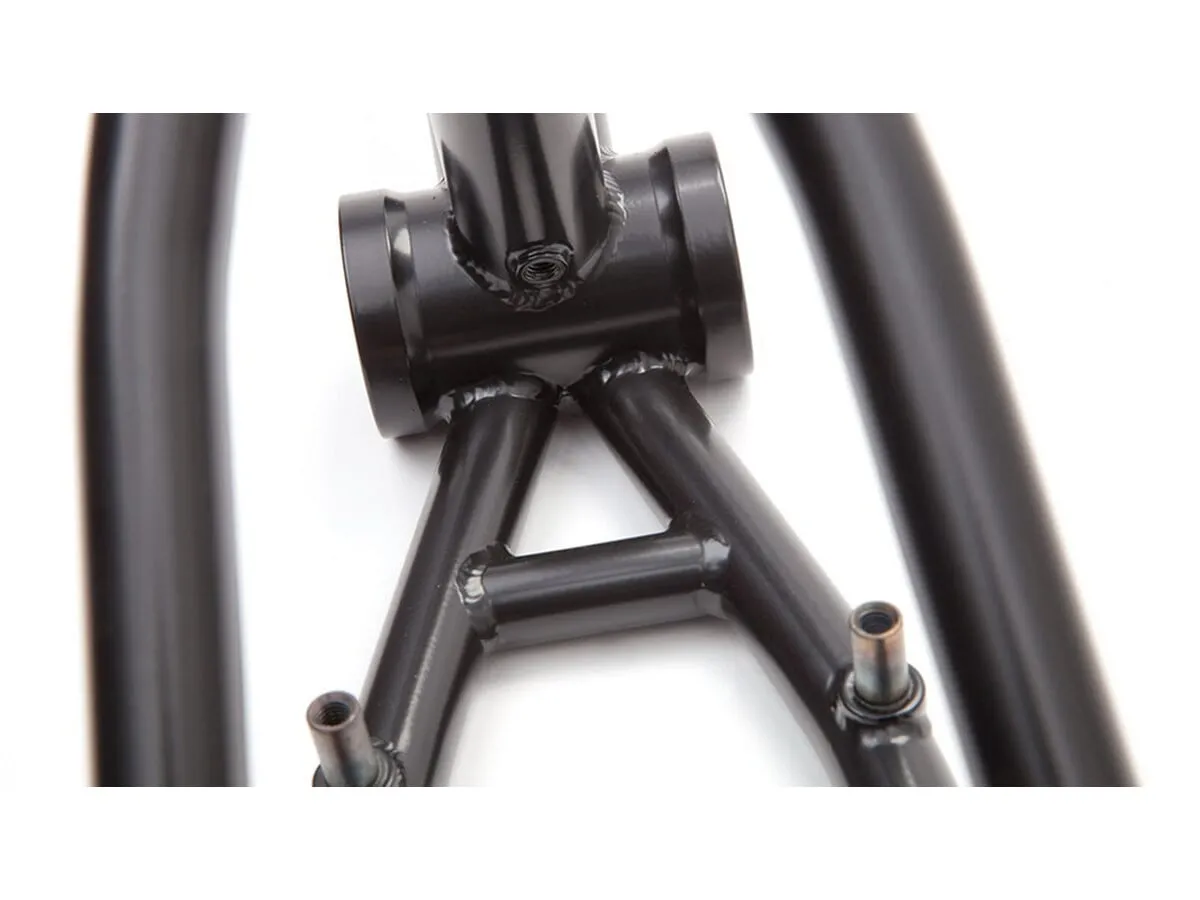

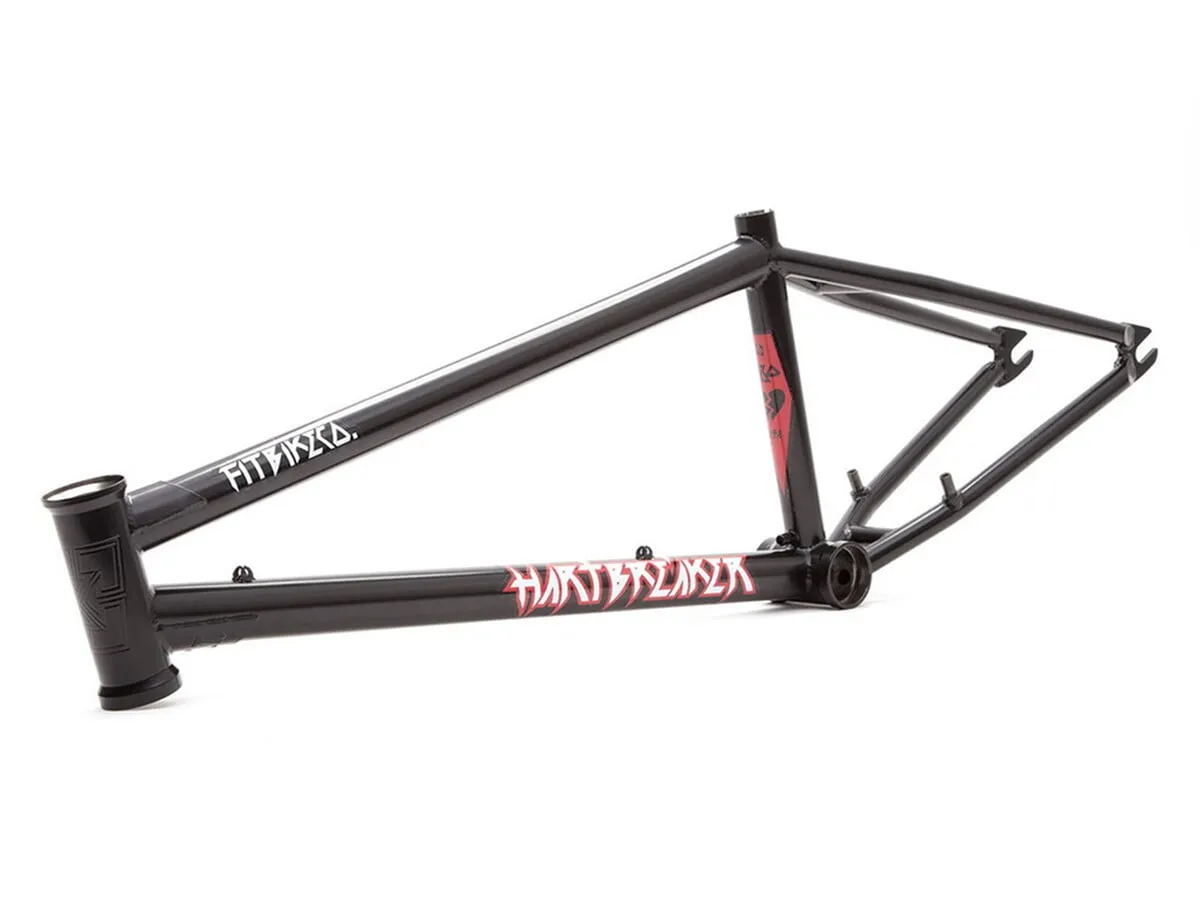

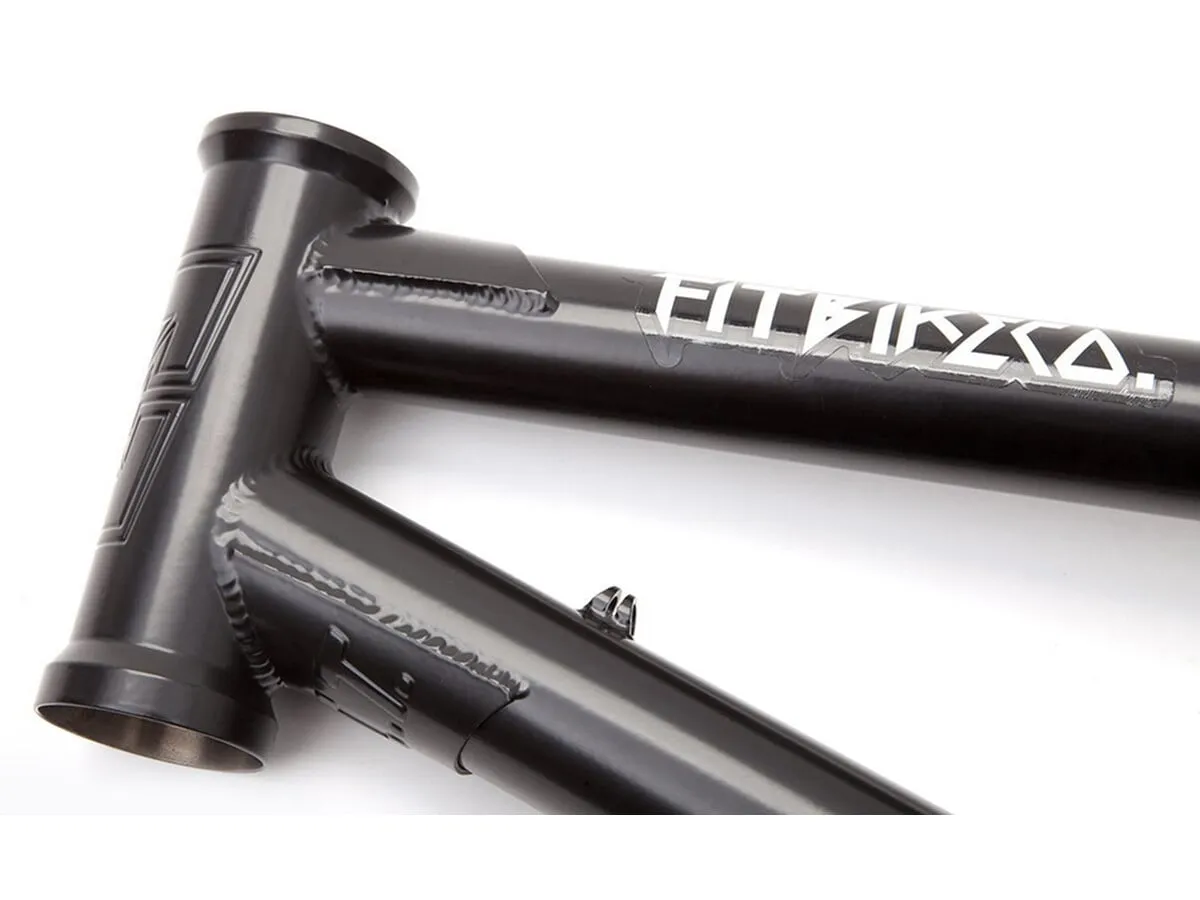

Fit Bike Co. "Hartbreaker" BMX Frame (Chris Harti Signature)
is Chris Harti’s long, low and laid back shred sled designed for going fast and big at the trails with stability. Cable routing thru the seat tube keeps your straddle hanger from slapping your down tube and works really well on this frame since the chain stays are pretty long. The 14mm drop out slot instead of the traditional 3/8" trail frame slot allow you a larger variety of affordable rear hubs to choose from. Single bend chain stays, straight stay bridges and lack of welded on seat clamp are all classic touches on this modern frame designed for timeless BMX riding.
Facts: Fit Bike Co. "Hartbreaker" BMX Frame (Chris Harti Signature)
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, integrated headset
- Geometry:
- Top Tube (TT): 21.0", 21.25" or 21.5"
- Chain Stay (CS): 13.8" - 14.5"
- Head Tube Angle (HA): 74.5°
- Seat Tube Angle (SA): 71°
- BB Height: 11.35"
- Standover Height (SO): 9.15" - Seat Clamp: without
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 3/16" thin, 14mm slots
- Chain Tensioners: integrated
- Brakemounts: not removable
- Extras: Chris Harti signature frame, Wide rear end for fat 2.5" tires
- Model Year: 2020
