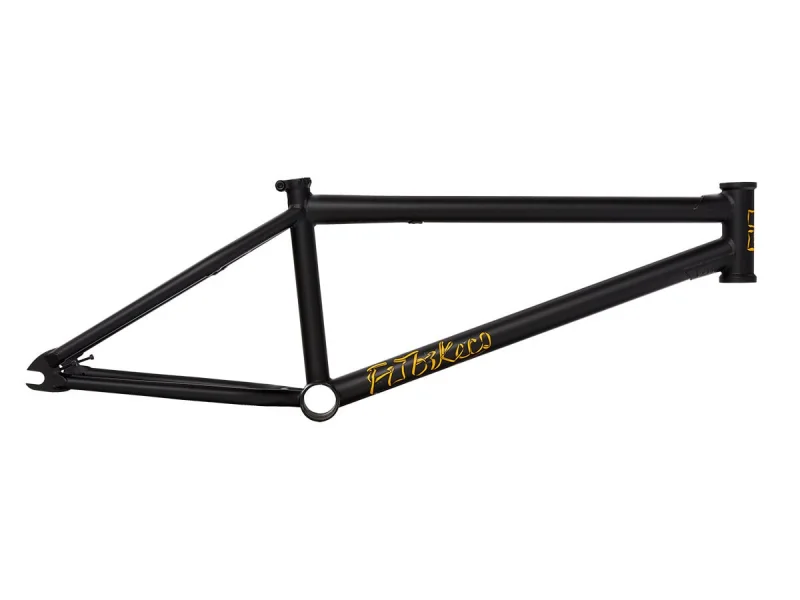

Fit Bike Co. "Mixtape V2" BMX Rahmen
-
Weight : 2.14kg / 4.72lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 22741
The
Fit Bike Co. "Mixtape V2" BMX Rahmen
was designed and manufactured for modern and technical pro level street riding. It's made of the highest quality, partly heat-treated 100% 4130 CrMo. In addition, the 75.5° steep head tube paired with the short 12.65" rear end and 9" high standover ensure stable handling of your BMX.
Note: This frame has threads to install brakemounts but they are not included.
Facts: Fit Bike Co. "Mixtape V2" BMX Rahmen
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 12.65" (32.13cm) - 13" (33cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 14 mm, 4Q-Baked
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: wide rear end for fat 2.4" tires
