Flybikes "Aire V3" BMX Frame
-
Weight : 2.37kg / 5.22lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20501

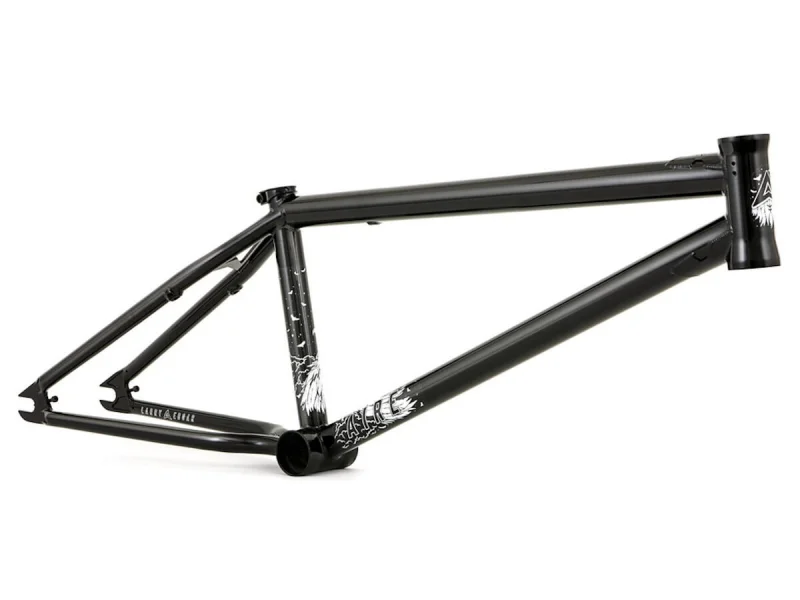

The Flybikes "Aire V3" BMX Frame is the signature frame of Larry Edgar and comes as 2018er version with a top- and downtube gusset and a standover height of 9.25". The Flybikes "Aire V3" BMX Frame is made by 100% 4130 CrMo and is made for professionell use.
Facts: Flybikes "Aire V3" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset
Top Tube Length (TT): 21.8"
Chainstay Length (CS): 13.8" (35.05cm) - 14.2" (36.07cm)
Head Tube Length: 4.45" (11.30cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9.25" (23.49cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: removable, M8, not included with delivery
- Extras: Larry Edgar Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2024
