Flybikes "Geo XL" 2017 BMX Frame
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.33kg / 5.14lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 11142
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

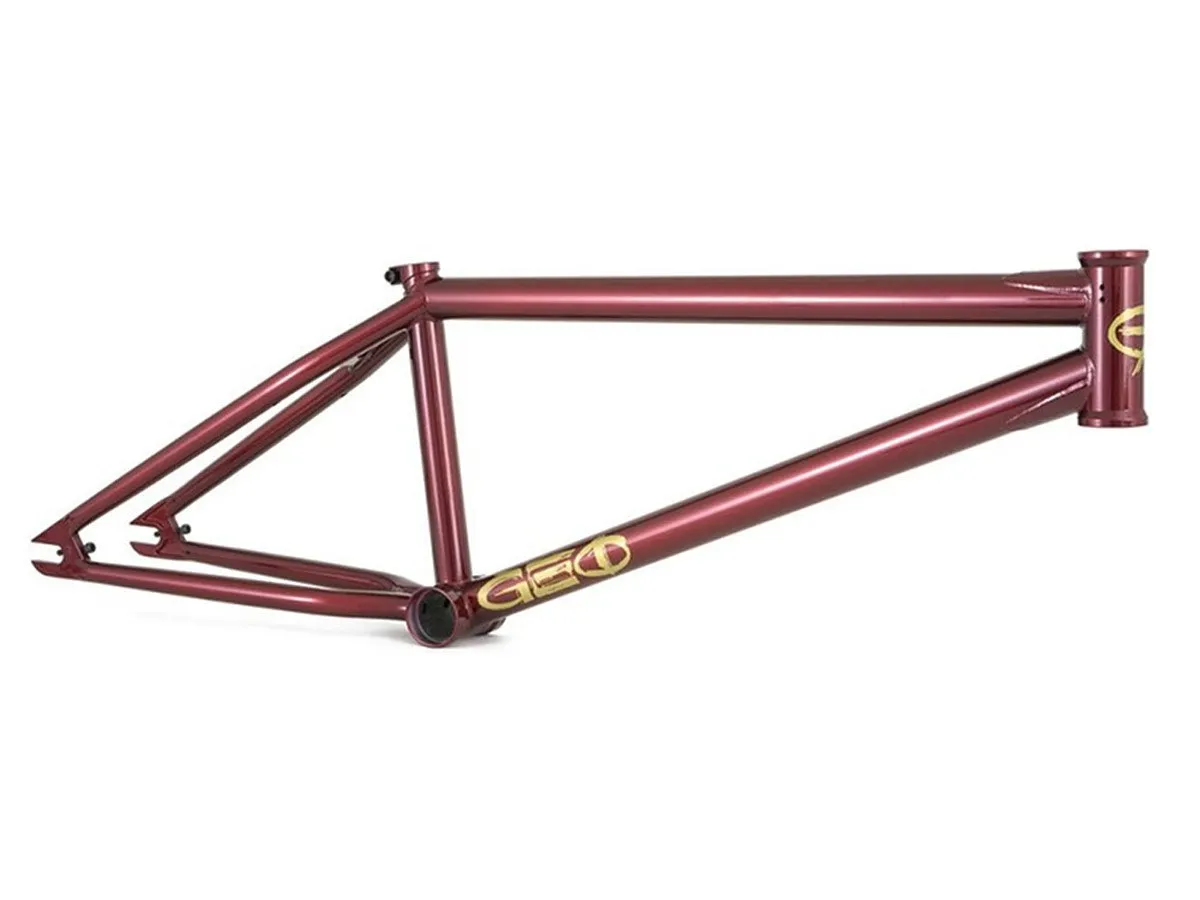

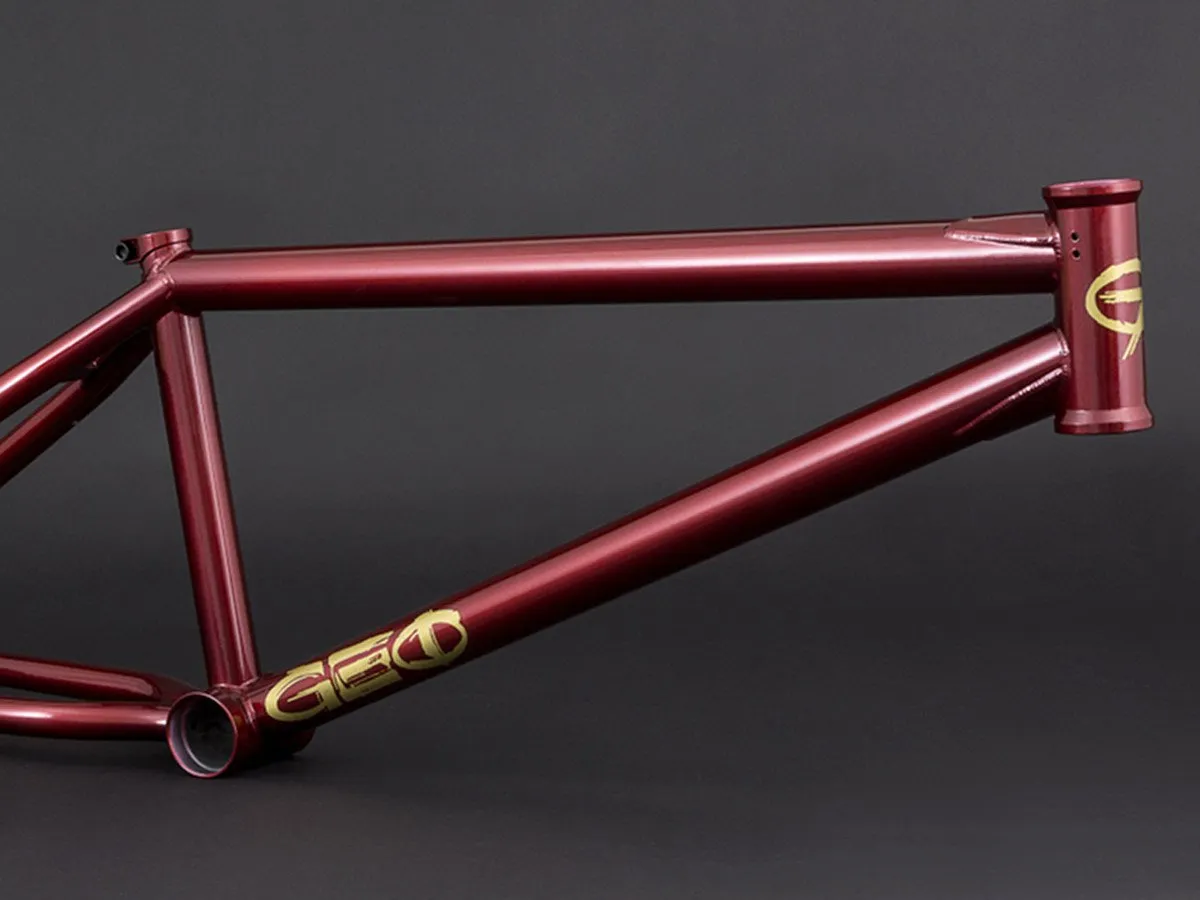

Flybikes "Geo XL" 2017 BMX Frame
is available in a XL Larry Edgar version with a longer 13.8" rear end and a mellower 74.5° head-tube angle for those that like to go fast, high and demand stability in the air
The
Flybikes "Geo XL" 2017 BMX Frame
comes with M8 Brakemount system.
Facts: Flybikes "Geo XL" 2017 BMX Frame
- Wheel Size: 20"

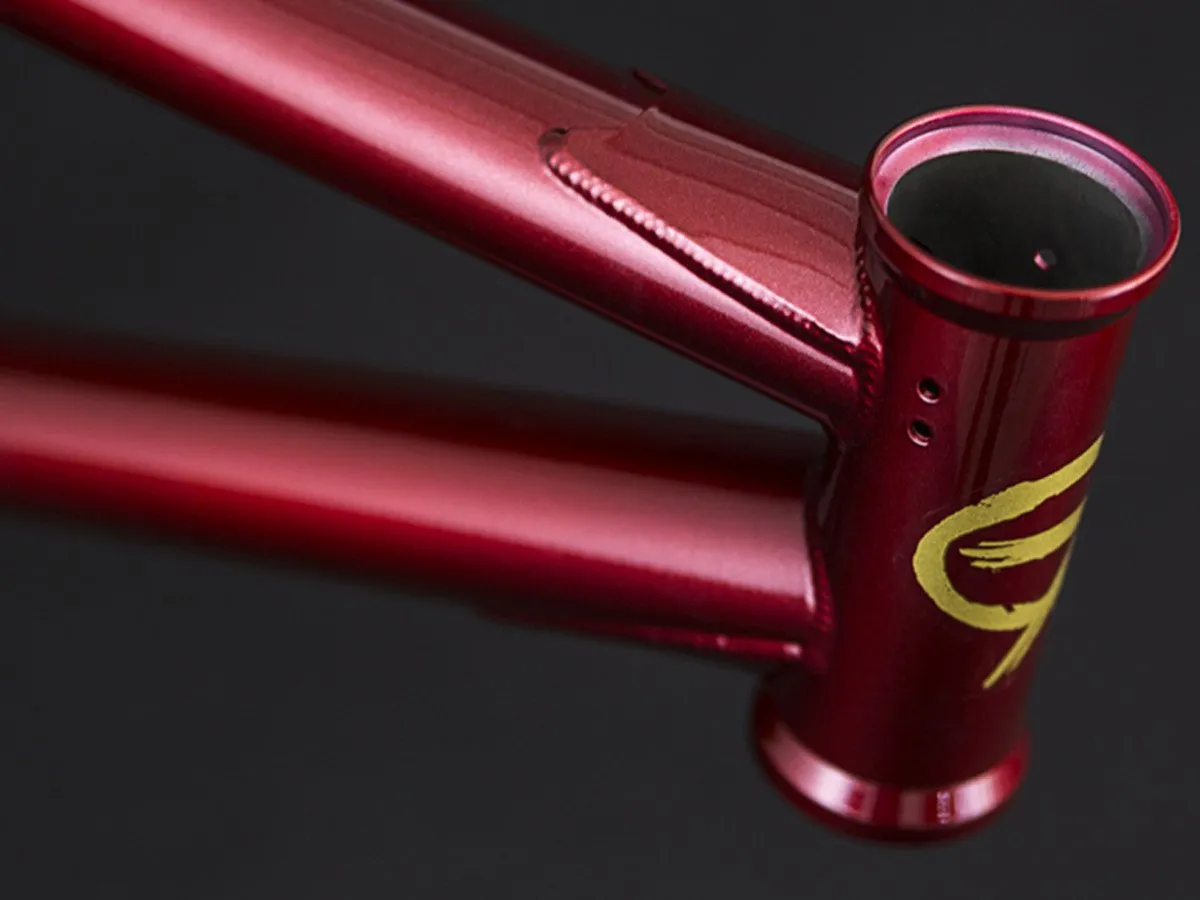

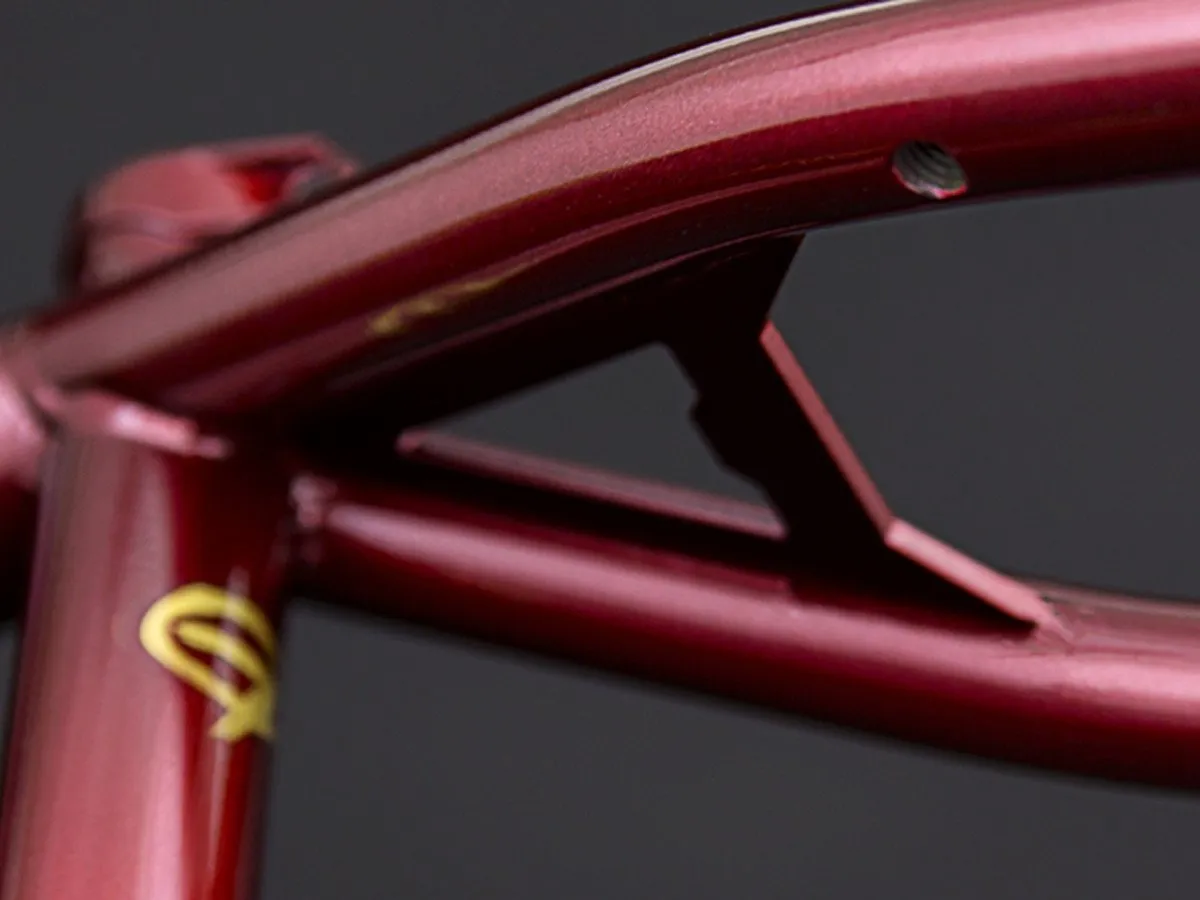

- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset
- Geometry:
- Top Tube (TT): 21.0"
- Chain Stay (CS): 13.8"
- Head Tube Angle (HA): 74.5°
- Seat Tube Angle (SA): 71°
- BB Height: 11.75"
- Standover Height (SO): 9.25" - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

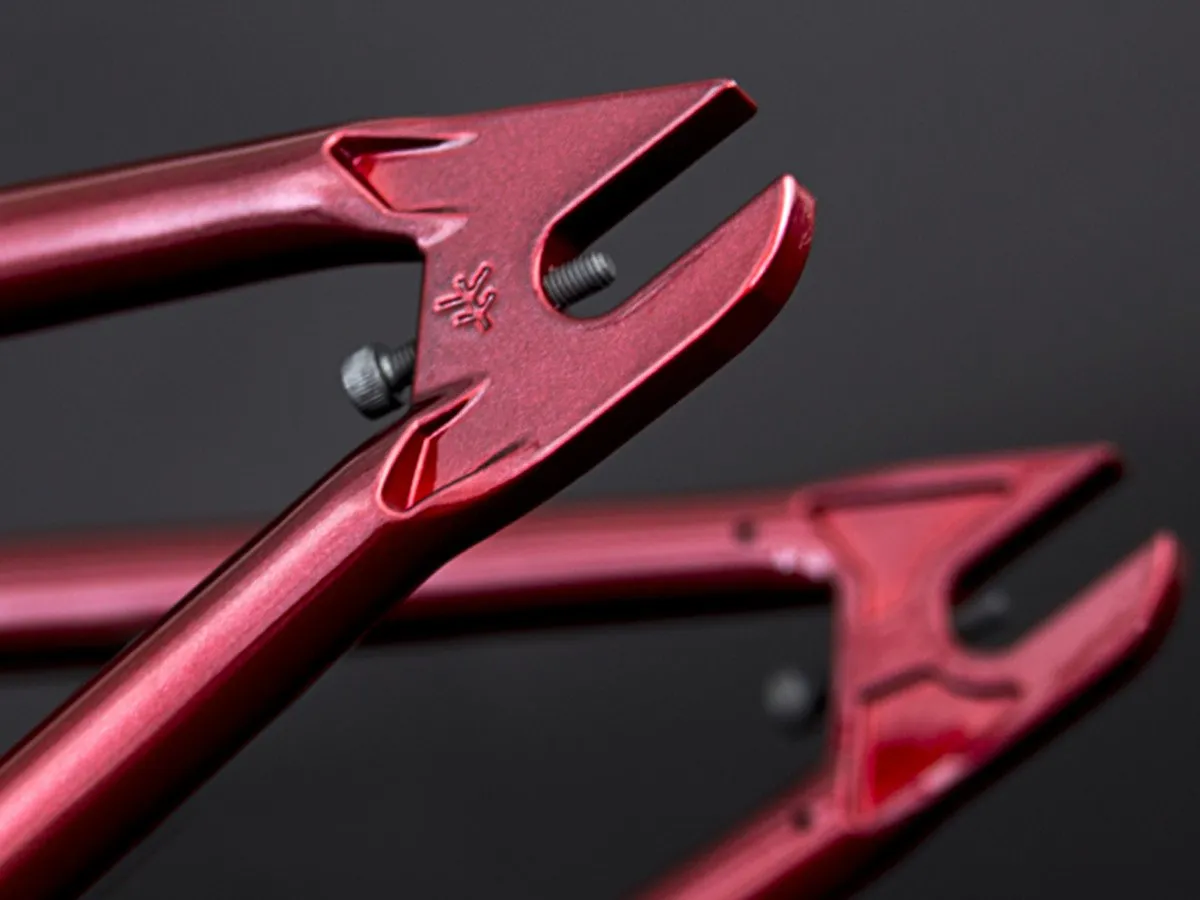

- Dropouts: Investment cast, 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brakemounts: removable, M8, included with delivery
- Model Year: 2017
