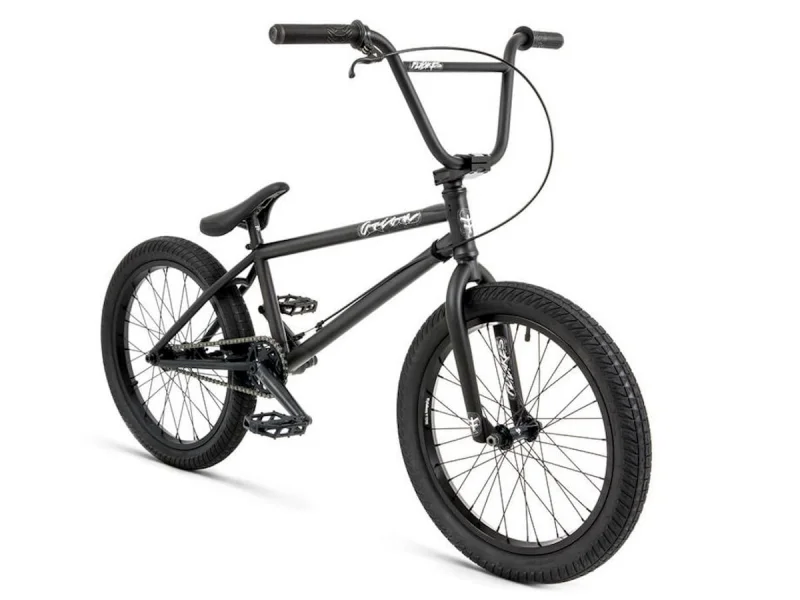

Flybikes "Orion" BMX Bike - Flat Black | RHD
-
Weight : 11.4kg / 25.13lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 25333
The Flybikes "Orion" BMX Bike - Flat Black | RHD provides 100% 4130 CrMo quality at frame, fork and handle bar, high quality parts of Flybikes and Trebol and a solid allround geometry which will work for skatepark, trails and street. The Flybikes "Orion" BMX Bike - Flat Black | RHD is equipped with a CNC machined Flybikes "Volcano" Topload stem, a Trebol 3-piece CrMo crank set with CNC machined Flybikes "Tractor" sprocket (29T), a wheel set with fully sealed female front and cassette hub laced into stable Flybikes "Pyramide" double wall rims.
Facts: Flybikes "Orion" BMX Bike - Flat Black | RHD
- Wheel Size: 20"
- BMX Frame: 100% 4130 CrMo, top and down tube gusset, removable brake hardware, tapered chainstays, integrated headset, integrated seat clamp, integrated chain tensioners, Mid BB
Top Tube (TT): 21.0"
Chain Stay (CS): 13.7"
Head Tube (HA): 75°
Seat Tube (SA): 71°
BB Height: 11.75"
Standover: 9.25" - BMX Fork: 100% 4130 CrMo, 1-piece steerer, tappered legs, 32mm offset
- BMX Bar: 100% 4130 CrMo, 2-piece
Height: 9"
Width: 29"
Backsweep: 10°
Upsweep: 2°
Clamping Diameter: 22.2mm - Grips: Flybikes "Ruben V2" grips
- Stem: Flybikes "Volcano TT", Topload, CNC machined 6061-T6 aluminum, 50mm reach
- Headset: Trebol, integrated, sealed bearing
- Brake Lever: Trebol, aluminum, 2-finger
- Brake: Trebol "Springhanger", U-brake, aluminum
- Gyro: -
- Gyro compatible: Yes
- Seat: Flybikes "Sierra V3", Tripod, slim padded
- Seat Post: Flybikes, Tripod, aluminum
- Seat Clamp: Integrated
- Pedals: Flybikes "Ruben Graphite", plastic, 9/16“
- Chain: KMC "510"
- Sprocket: Flybikes "Tractor", CNC machined 7075 aluminum, 29T
- Crank: Trebol, 3-piece, 100% CrMo, 175mm, RHD
- Bottom Bracket: Mid BB, sealed bearing
- Hub (front): Trebol "Bueno", sealed bearing, female axle with 10mm CrMo bolts, 36H
- Hub (rear): Trebol "Bueno", cassette hub, RHD, 6061-T6 aluminum CNC body and cones, sealed bearing, female axle with 10mm CrMo bolts, 36H
Driver: 9T, RHD, sealed bearing - Rim (front): Flybikes "Pyramide", double wall, 6061-T6 aluminum, 36H
- Rim (rear): Flybikes "Pyramide", double wall, 6061-T6 aluminum, 36H
- Tire (front): Flybikes "Ruben Ligera" BMX tire
Width: 20" x 2.40" - Tire (rear): Flybikes "Ruben Rampera" BMX tire
Width: 20" x 2.25" - Pegs: -
