BMX Shop & Mailorder - BMX Middle Class - EnglishLanguage

Flybikes "Proton" 2019 BMX Bike - Gloss Trans Blue | LHD

559.95 EUR

[incl. 19% VAT excl. shipping]
  • Weight (in kg): 11.2
  • Weight (in lbs): 24.69
  • Packaging Unit: 1 Piece
  • Product ID (PID): 15696

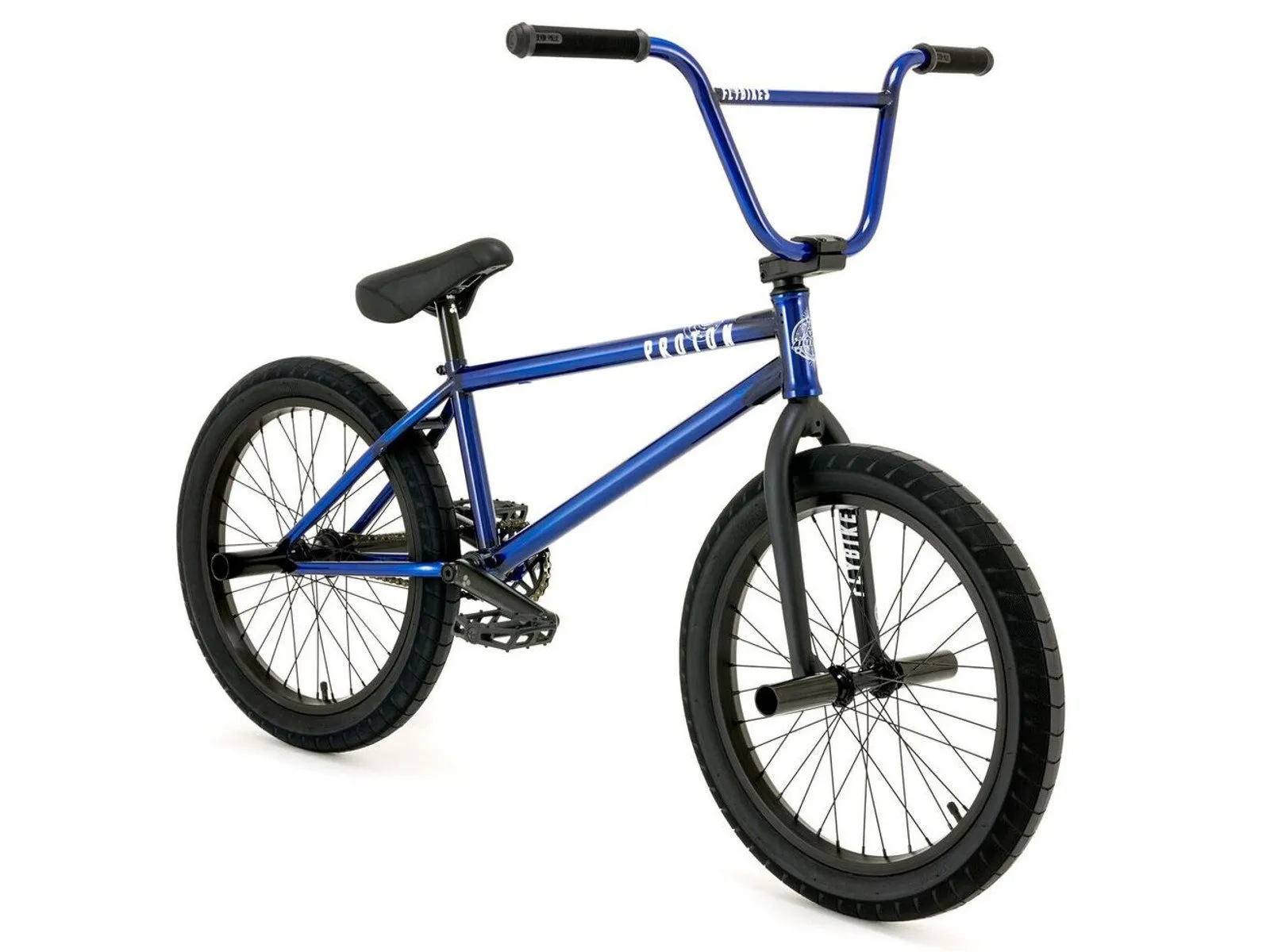

This Flybikes "Proton" 2019 BMX Bike - Gloss Trans Blue | LHD is a mid level BMX complete bike with a LHD-Drivetrain (sprocket, chain, driver on the left side) and a 21" long top tube and 13" short rear end. This BMX Bike is aimed even to advanced riders with a body height of approx. 170m and higher. The Flybikes "Proton" 2019 BMX Bike - Gloss Trans Blue | LHD provides 100% 4130 CrMo quality at frame, fork and handle bar but also high quality parts of Trebol and Flybikes. Further more you get here a 3-piece CrMo crank set, a wheel set with fully sealed female front hub and cassette hub with 14mm CrMo axle, a Tripod seat, 2.35" inch wide Trebol tires, a Flybikes "Manual Springhanger" rear U-brake with Flybikes "Manual" lever.

Facts: Flybikes "Proton" 2019 BMX Bike - Gloss Trans Blue | LHD

  • Wheel Size: 20"

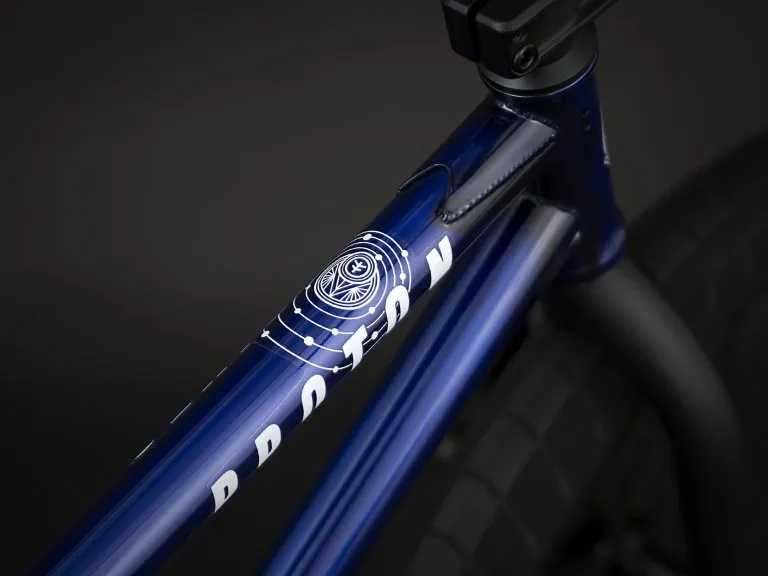

  • BMX Frame: 100% 4130 CrMo, top and down tube gusset, removable brake hardware, tapered chainstays, integrated headset, integrated seat clamp, Mid BB
    Top Tube (TT): 21"
    Chain Stay (CS): 13"
    Head Tube (HA): 75°
    Seat Tube (SA): 71°
    BB Height: 11.75"
    Standover: 9.25"
    Clamping Diameter: 22.2mm
  • BMX Fork: 100% 4130 CrMo, tapered legs, 30mm offset
  • BMX Bar: 100% 4130 CrMo, 2-piece
    Height: 8.75"
    Width: 29"
    Backsweep: 10°
    Upsweep: 2°
  • Grips: Flybikes "Devon" grips
  • Stem: Trebol, Topload, forged 6061-T6 aluminum, 50mm reach
  • Headset: integrated, sealed bearing
  • Brake Lever: Flybikes "Trebol", aluminium, 2-finger
  • Brake: Flybikes "Trebol Springhanger", U-brake, aluminum
  • Gyro: -
  • Gyro compatible: Yes

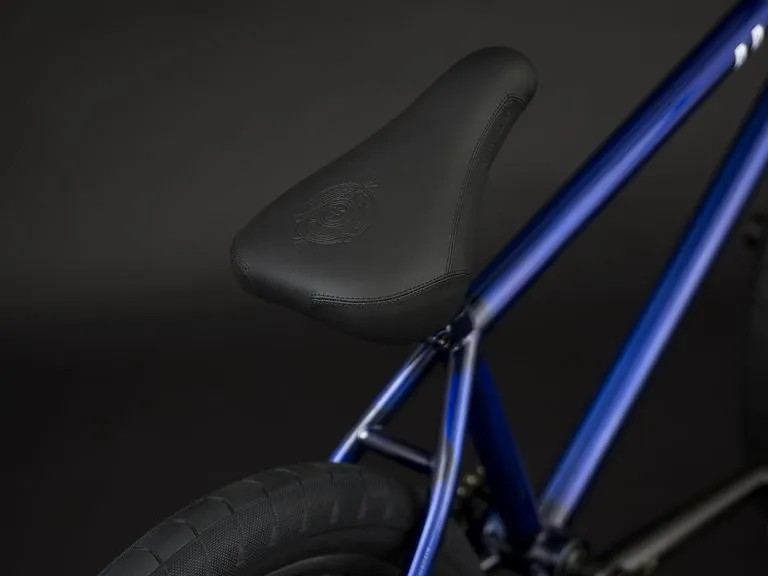

  • Seat: Flybikes "Proton", Tripod, mid padded
  • Seat Post: Trebol, Tripod, aluminum, 25.4mm
  • Seat Clamp: Integrated
  • Pedals: Flybikes "Ruben Graphite", plastic, 9/16"
  • Chain: KMC "410"

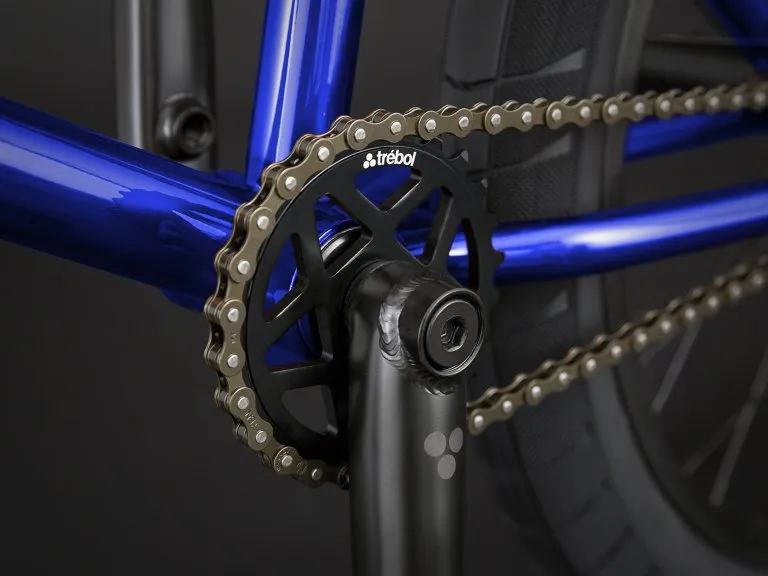

  • Sprocket: Trebol, aluminum, 25T
  • Crank: Trebol, 3-piece, 100% CrMo, 8 spline 19mm spindle, 175mm
  • Bottom Bracket: Mid BB, sealed bearing

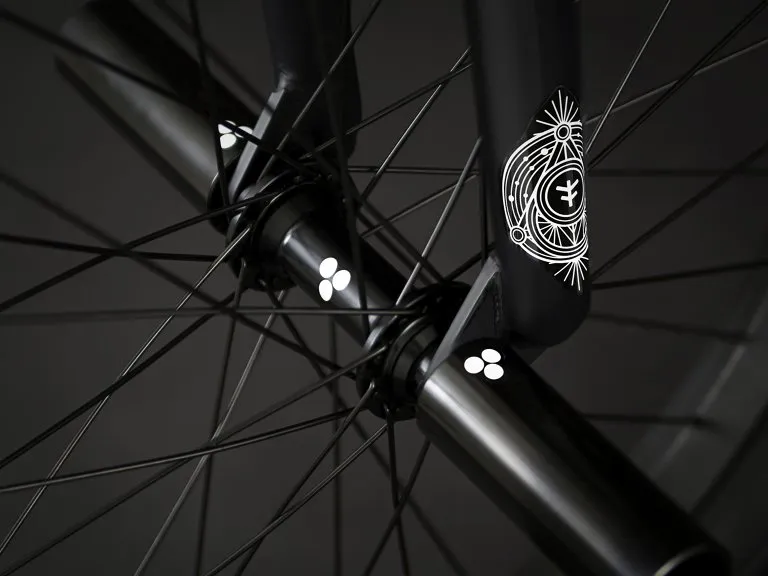

  • Hub (front): Trebol "Bueno", sealed bearing, 14mm female axle, 10mm CrMo bolts, 36H

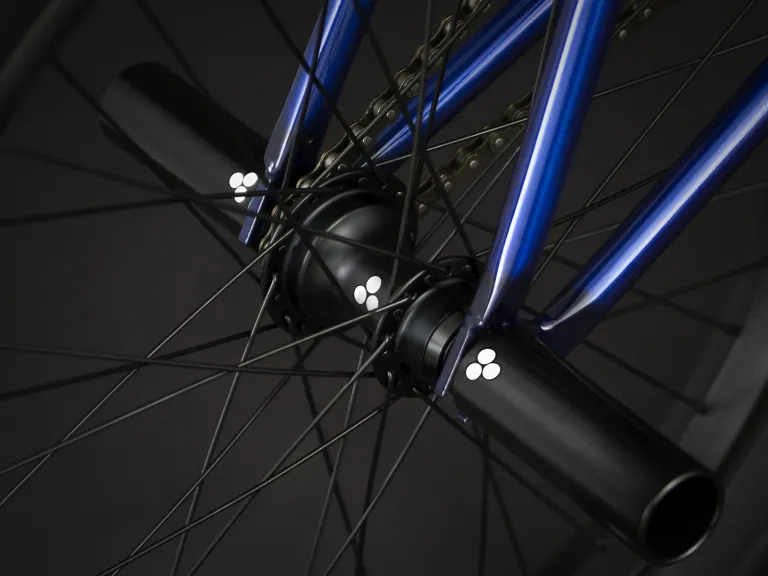

  • Hub (rear): Trebol, cassette hub, LHD, 6061 T6 Aluminium CNC body and cones, sealed bearing, 14mm axle, 36H
    Driver: 9T, LHD, sealed bearing
  • Rim (front): Trebol, double side walls, aluminum, 36H
  • Rim (rear): Trebol, double side walls, aluminum, 36H
  • Tire (front): Trebol BMX tire
    Width: 20" x 2.35"
  • Tire (rear): Trebol BMX tire
    Width: 20" x 2.35"
  • Pegs: 1 pair, Trebol Steel Pegs
