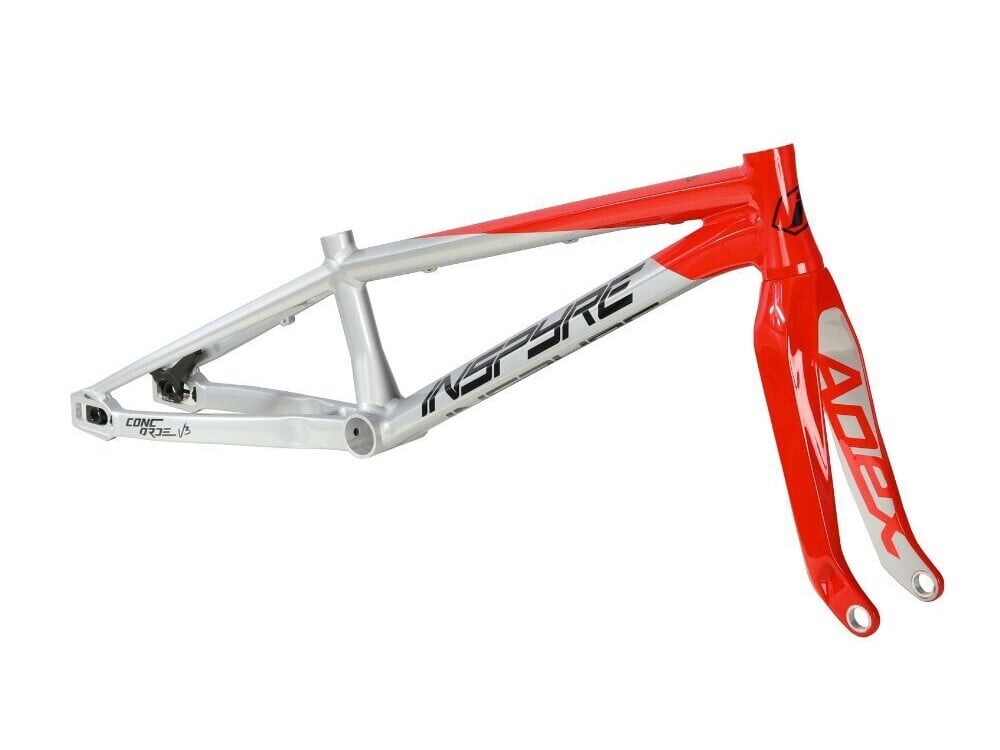

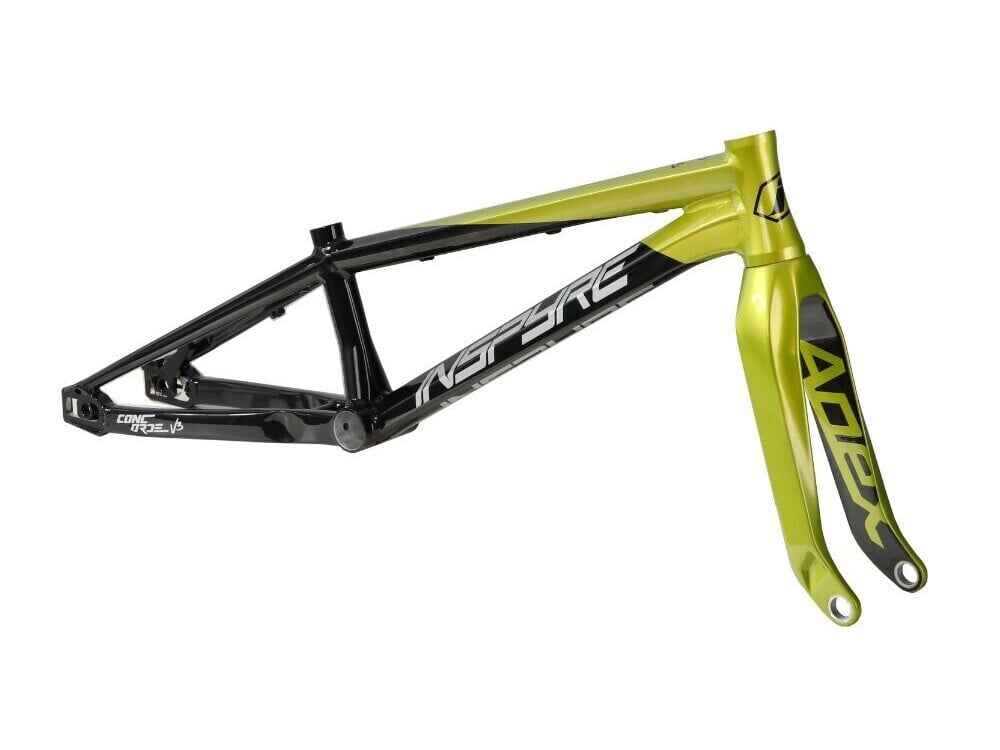

Inspyre Bicycles "Concorde V3 Pro" BMX Race Frame + Fork Set

This product is currently sold out. The date of new availability is unknown. Show similar products

979.95 EUR

Color | Top Tube Length
  • Please Select
Back in stock? We'll let you know!

Enter your email address. We'll notify you once as soon as this product is back in stock.

Unavailable options

These product options are currently unavailable. Should they come back in, we can let you know!

Color | Top Tube Length
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
  • Weight : 2.16kg / 4.76lbs
  • Packaging Unit: 1 Set
  • Product ID (PID): 29121
  • Product safety

Product safety

Manufacturer
INSPYRE BICYCLES
116 chemin du Colombier, 69590 St Symphorien sur Coise, France
[email protected]

Information pursuant to the EU General Product Safety Regulation (GPSR).

Report a product error

Spotted an error in the product data? Let us know, we'll check your report. If the error is confirmed you'll receive a 5 EUR voucher as a thank you (max. 1 voucher per week and customer, applies to the first confirmed report of an error).

We only use your email address to get back to you about this report and to send the voucher.

The Inspyre Bicycles "Concorde V3" BMX Race Frame is the result of over two years of intensive development in collaboration with elite BMX athletes. This high-performance frame sets new standards in the aluminum BMX race category – lighter, stiffer, and more precise than ever before. Featuring new hydroformed tubes (with the exception of the top tube), the frame offers a perfect balance between low weight, high stiffness, and aerodynamic efficiency. Thanks to the widened and reinforced bottom bracket area, power transfer is direct and the response to pedal strokes is lightning-fast.

After months of intensive research, countless lab tests, and the toughest trials on World Cup tracks around the globe, the Pride "Apex" Fork has been personally validated by world-class rider Jeremy Rencurel and now offers every rider a professional-grade performance. Its unique, aerodynamic design was specially developed to deliver superior stiffness for an incomparably direct response, with every curve engineered for minimal drag and maximum speed. Inside, an intelligent construction specifically utilizes different types of carbon fibers depending on the load zone to optimally manage lateral forces, torsion, and hard impacts. This is complemented by a high-strength steerer tube, which ensures extreme stability and durability even under the harshest racing conditions.

Facts: Inspyre Bicycles "Concorde V3 Pro" BMX Race Frame + Fork Set

  • Inspyre Bicycles "Concorde Pro" BMX Race Frame
    Wheel Size: 20"
    Material: 100% 6061-T6 Aluminum, hydroformed multi-butted tubes

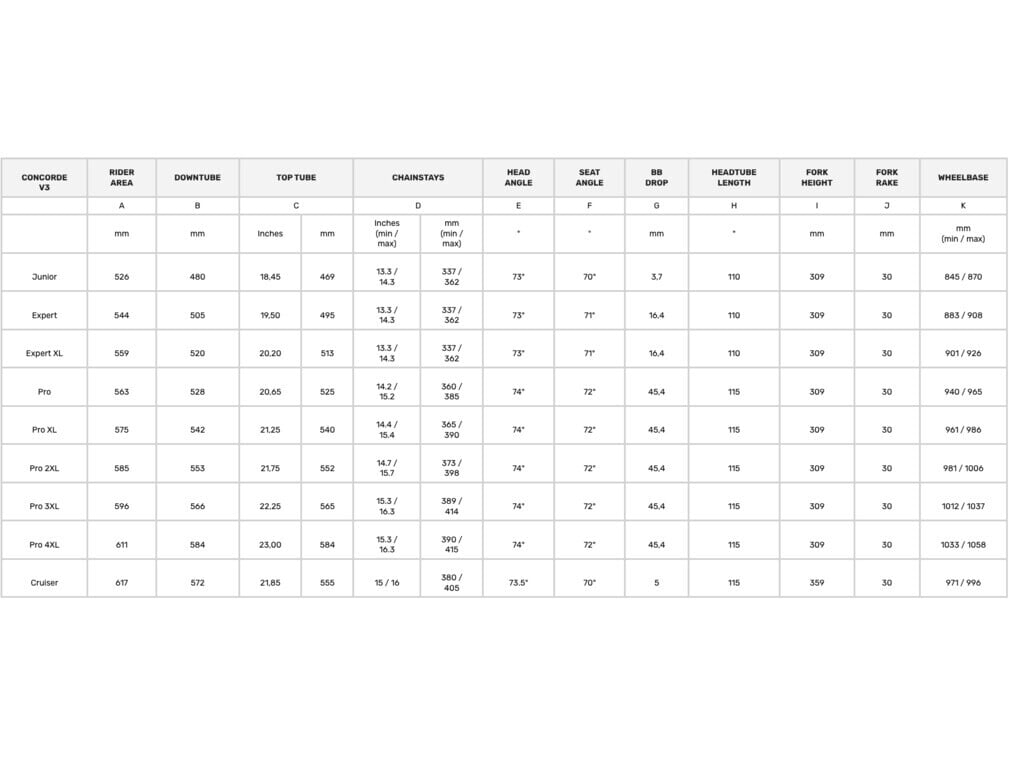

    Geometry:
    - Top Tube (TT): 20.65"
    - Chainstay (CS): 14.2"-15.2"
    - Head Tube Angle (HA): 74°
    - Seat Tube Angle (ST): 72°
    Headtube Size: Tapered 1-1/8" - 1.5"
    Dropouts: 15mm (incl. chain tensioners for 10mm)
    Seat Clamp: without
    Seat Post Diameter: 22.2mm
    Bottom Bracket: Pressfit BB86
    Chainring Size (Max): 50T
    Chain Tensioners: Included
    Tire Size (Max): 20x1.85"
    Brake Type: Disc, 120mm, post mount
    Brake Mounts: Compatible with hydraulic "post mount" brakes

  • Pride Racing "Apex" BMX Race Fork
    Material: Torayca® HM Carbon (Fork legs), 7075-T6 Aluminum (Steerer tube)
    Steerer Diameter: Tapered 1-1/8" - 1.5"
    Steerer Length: 170mm
    Dropouts: Standard 20mm thru-axle (6061-T6 Aluminum)
    Offset: 30mm
    Wheel Size: 20 x 1.75" (ETRTO 406) & 20 x 1-3/8" (ETRTO 451)
    Fork Height: 307mm
    Weight: 695g (without top cap)
    Includes: Compression bolt
    Important: Always use a torque wrench to assemble the fork. We recommend regular checks of the tightening torque.
