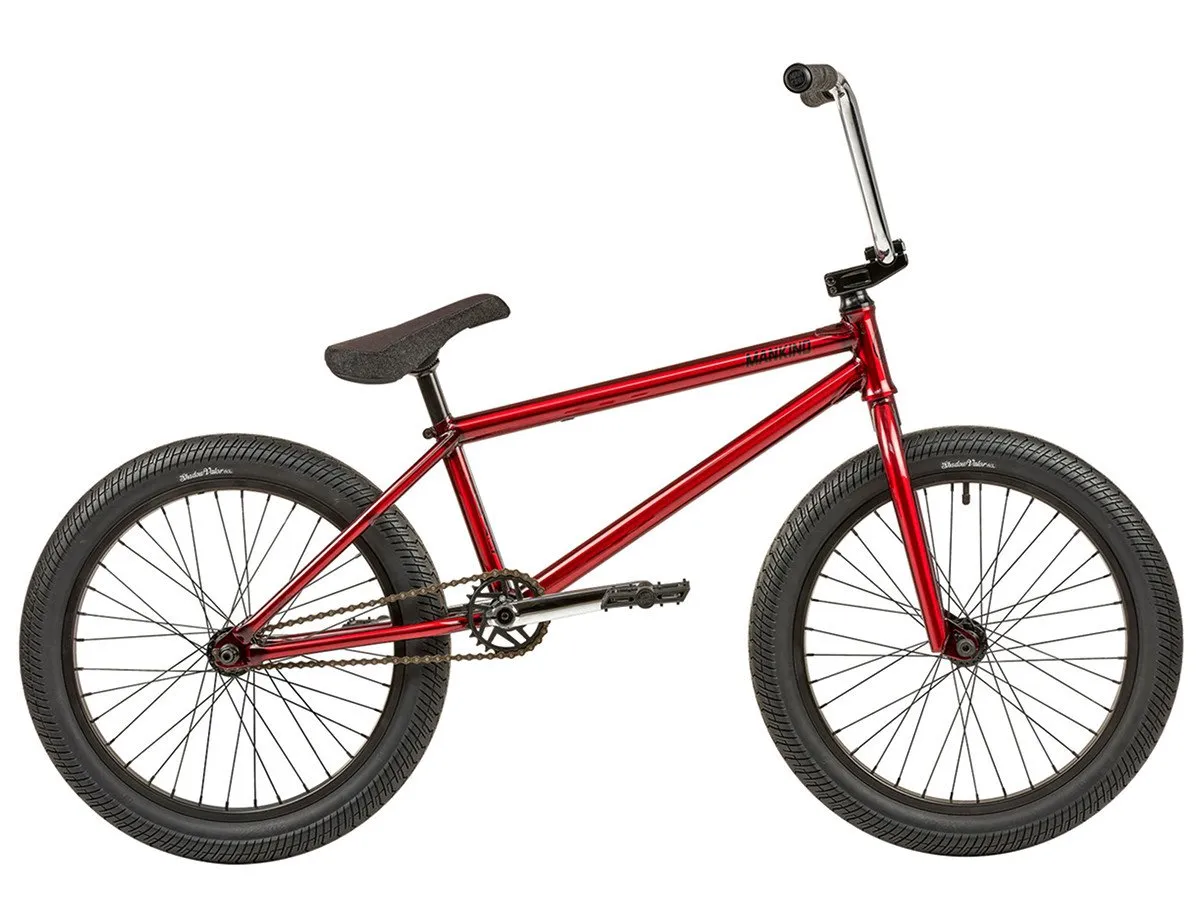

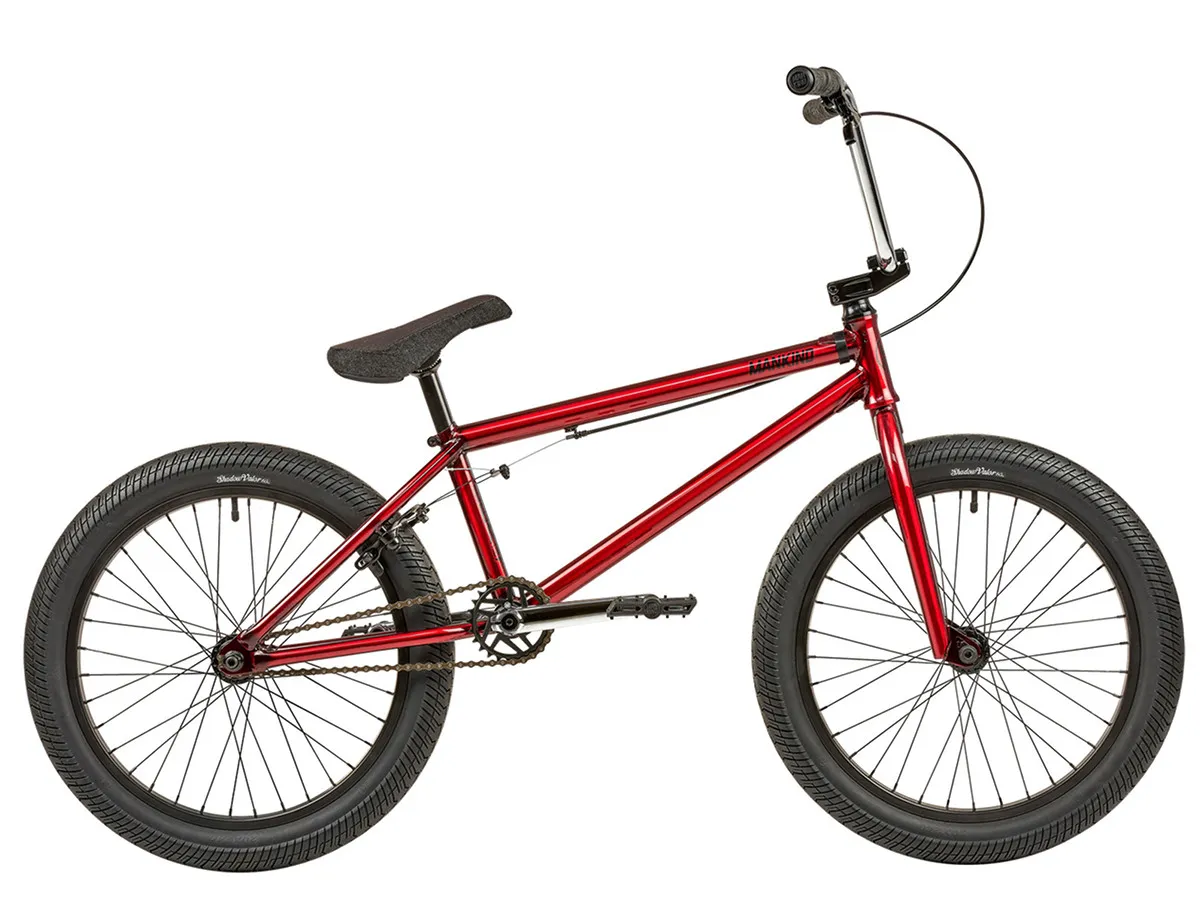

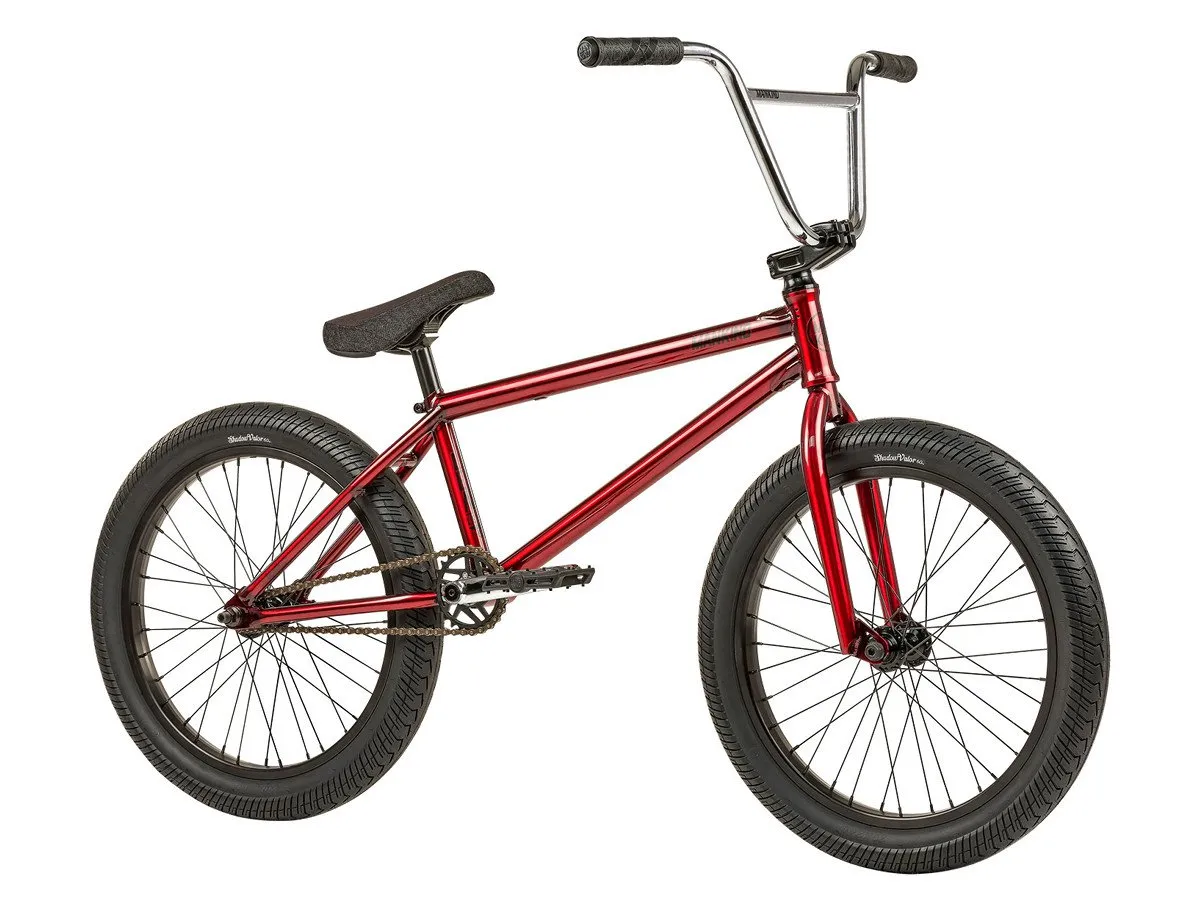

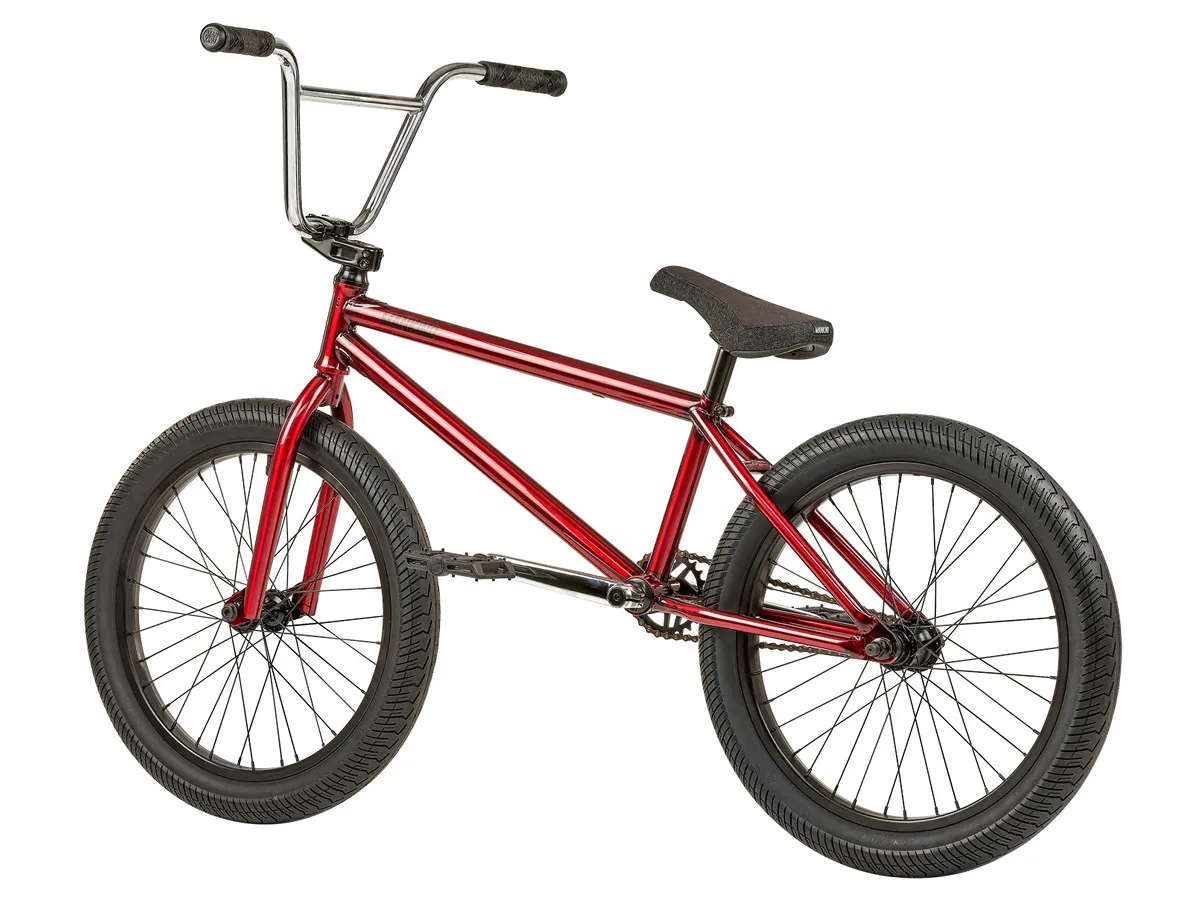

Mankind Bike Co. "Libertad 20" 2019 BMX Bike - Trans Red
The Mankind Bike Co. "Libertad 20" 2019 BMX Bike - Trans Red gives you all you need, 100% CrMo frame, fork and bar, fully sealed front hub, fully sealed rear Cassette Hub, sealed integrated Headset and sealed mid bottom bracket. The Mankind Bike Co. "Libertad 20" 2019 BMX Bike - Trans Red also features The Shadow Conspiracy Valor LP 2.4" tires, double wall and welded rims and Mankind Control 25t Alloy sprocket. Viva la Libertad!
Facts: Mankind Bike Co. "Libertad 20" 2019 BMX Bike - Trans Red
- Wheel Size: 20"
- BMX Frame: 100% 4130 CrMo, Gusset at top- and downtube, removable U-brake sockets, integrated headset, integrated seatclamp, Mid BB
Top Tube (TT): 20.5"
Chain Stay (CS): 13.25"
Head Tube (HA): 75°
Seattube (SA): 71°
BB-High (BB): 11.75"
Standover (SO: 9" - BMX Fork: 100% 4130 CrMo, 1-1/8", 1-piece steerer, tapered legs, 28mm offset
- BMX Bar: 100% 4130 CrMo, 2-piece
Height: 8.9"
Width: 29"
Backsweep: 12°
Upsweep: 2°
Clamping Diameter: 22.2mm - Grips: Mankind "Asadi Flangeless" grips, rubber, plastic barends

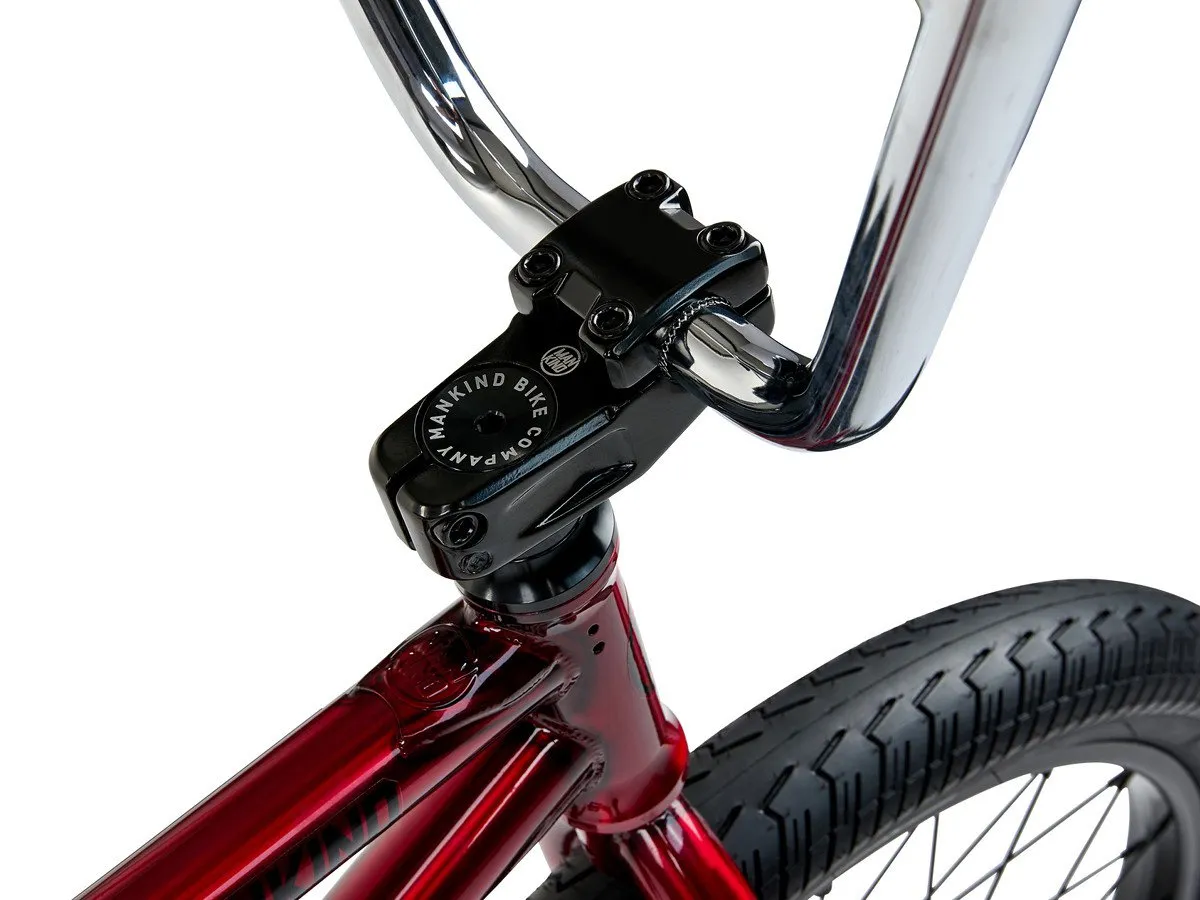

- Stem: Mankind "Control", topload, aluminum, 50mm reach
- Headset: Mankind "Control", 1-1/8" integrated, sealed bearing (SB)
- Gyro: -
- Brake Lever: aluminum, 2-finger, hinged
- Brake: U-brake, aluminum, rear
- Seat: Mankind "Libertad Mid" Pivotal Seat, mid padded
- Seat Post: Pivotal, aluminum
- Seat Clamp: integrated

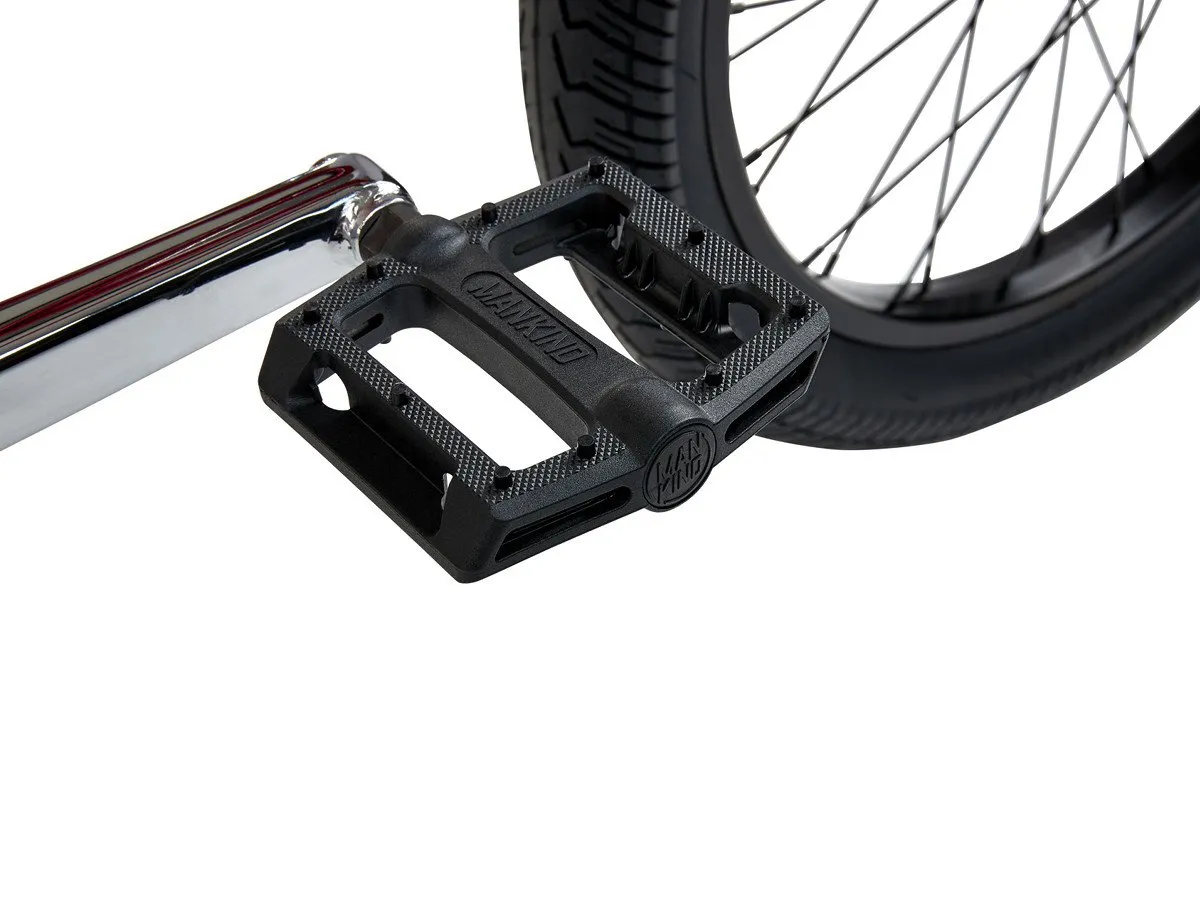

- Pedals: Mankind "Control", plastic
- Chain: PYC "410"
- Sprocket: Mankind "Control", aluminum, 25T
- Crank: CrMo, 3-pieces, 8 spline 19mm spindel, 170mm
- Bottom Bracket: Mid BB, 19mm, sealed bearing (SB)

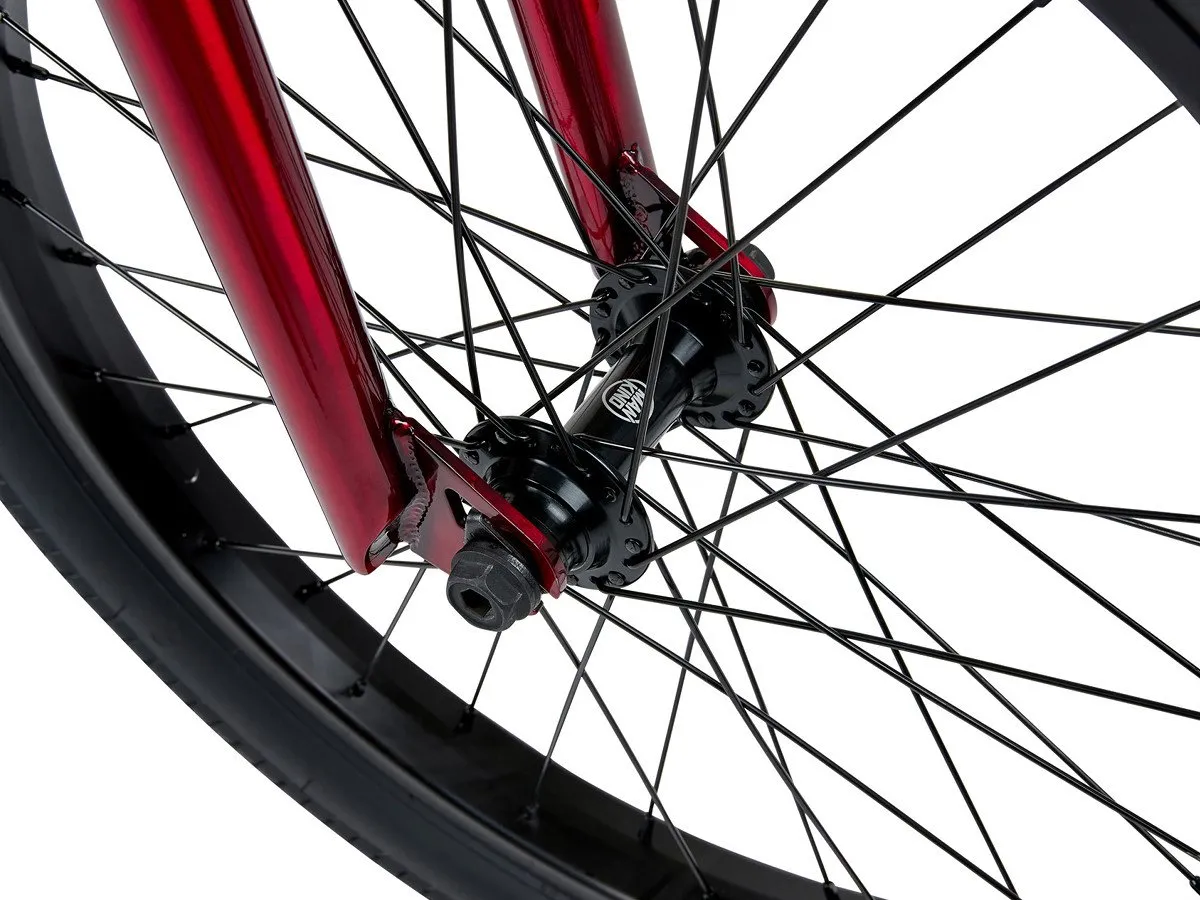

- Hub (front): Mankind "Control", female axle with 10mm (3/8") CrMo bolts, sealed bearing (SB), 36H
- Hub (rear): Mankind "Control", Cassette hub, 14mm CrMo male axle, sealed bearing (SB), 36H
Driver: 9T, sealed bearing (SB) - Rim (front): 20", 6061 aluminum, double wall, welded, 36H
- Rim (rear): 20", 6061 aluminum, double wall, welded, 36H

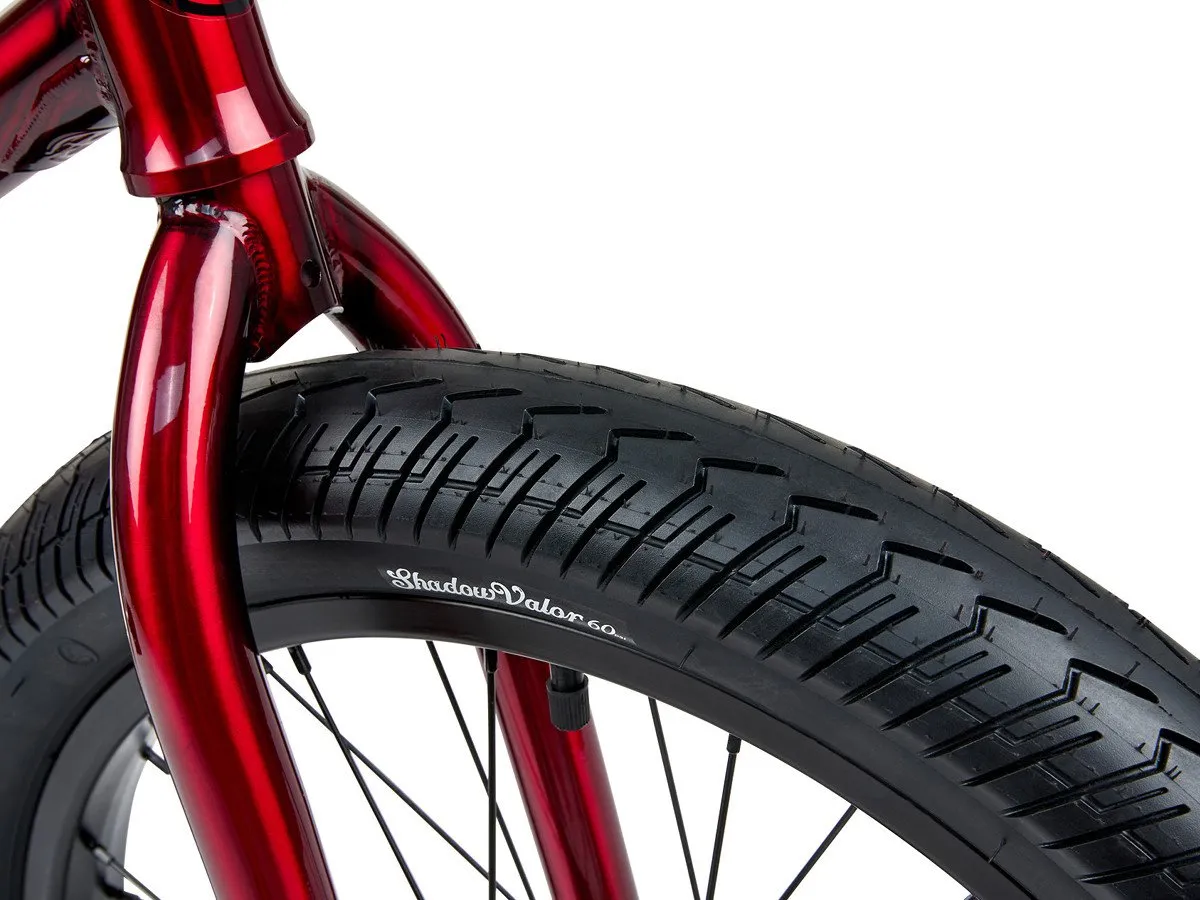

- Tire (front): Shadow "Valor LP" BMX tire
Width: 20" x 2.4" (60 PSI) - Tire (rear): Shadow "Valor LP" BMX tire
Width: 20" x 2.4" (60 PSI) - Pegs: -
- Weight (in kg): 11.70
- Weight (in lbs): 25.79
- Packaging Unit: 1 Piece
- Product ID (PID): 14115
