Meybo "HSX Alumium Pro 23" 2025 BMX Race Frames
-
Weight : 1.65kg / 3.64lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28802
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

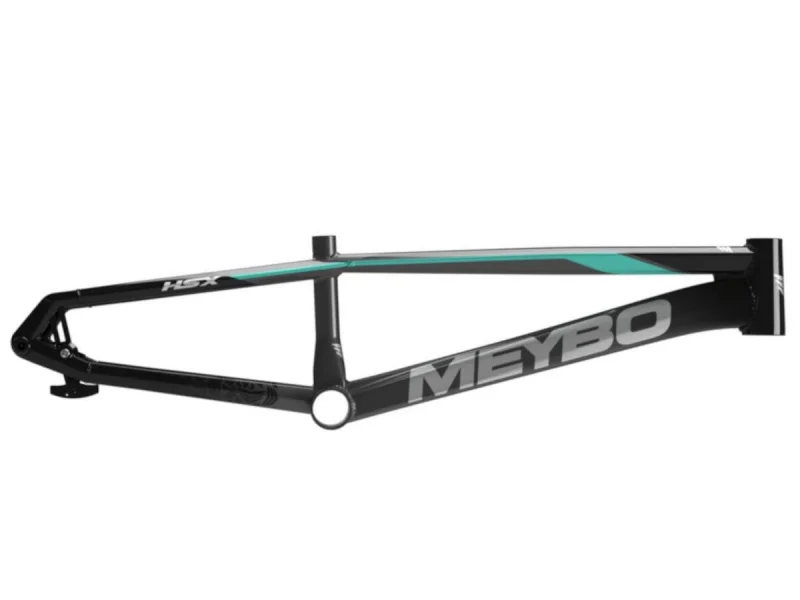

Meybo "HSX Alumium Pro 23" 2025 BMX Race Frames
is the perfect choice for anyone looking for a high-performance aluminum BMX race frame. Thanks to increased stiffness and state-of-the-art technology with hydroformed tubing, this new HSX aluminum frame is one of the fastest frames from Meybo. Lightweight, responsive, stable, and stiff – it offers all the benefits you want in a single frame. There are some important specifications to consider for the
Meybo "HSX Alumium Pro 23" 2025 BMX Race Frames.
In terms of braking, this frame is only compatible with flat-mount disc brakes. This means the brake caliper is mounted directly to the rear dropout of the frame. For optimal installation, two mounting bolts pass through the rear dropout to secure the caliper. This setup requires internal cable routing within the frame. It is essential to use a J-KIT or C-JET disc brake kit. With a flat-mount setup, the use of a brake kit with external cable routing is not possible.
The top tube length is suitable for riders with a height starting at 195cm.
The top tube length is suitable for riders with a height starting at 195cm.
Facts: Meybo "HSX Alumium Pro 23" 2025 BMX Race Frames
- Wheel size: 20"
- Material: 100% 6061-T6 aluminum, hydroformed tubes with multiple thicknesses
- Geometry:
Toptube (TT): 22.9"
Chainstay (CS): 15.7"
Headtube Angle (HA): 74.3°
Seattube angle: 71°
Dropouts: 15mm (including chain tensioner for 10mm), supplied with a fixed 15mm through axle for the rear wheel in Aluminum 7005 (CNC-machined) - Seat clamp: without
- Seat post diameter: 27.2mm
- Bottom Bracket: Press Fit (BB386)
- Chain tensioners: Included
- Brake style: Disc, flatmounted
- Brake ahrdware: Compatible with "flatmounted" hydraulic brakes
