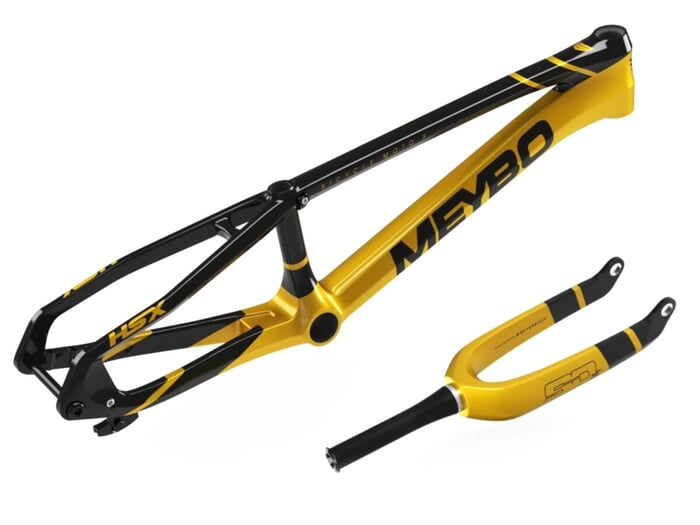

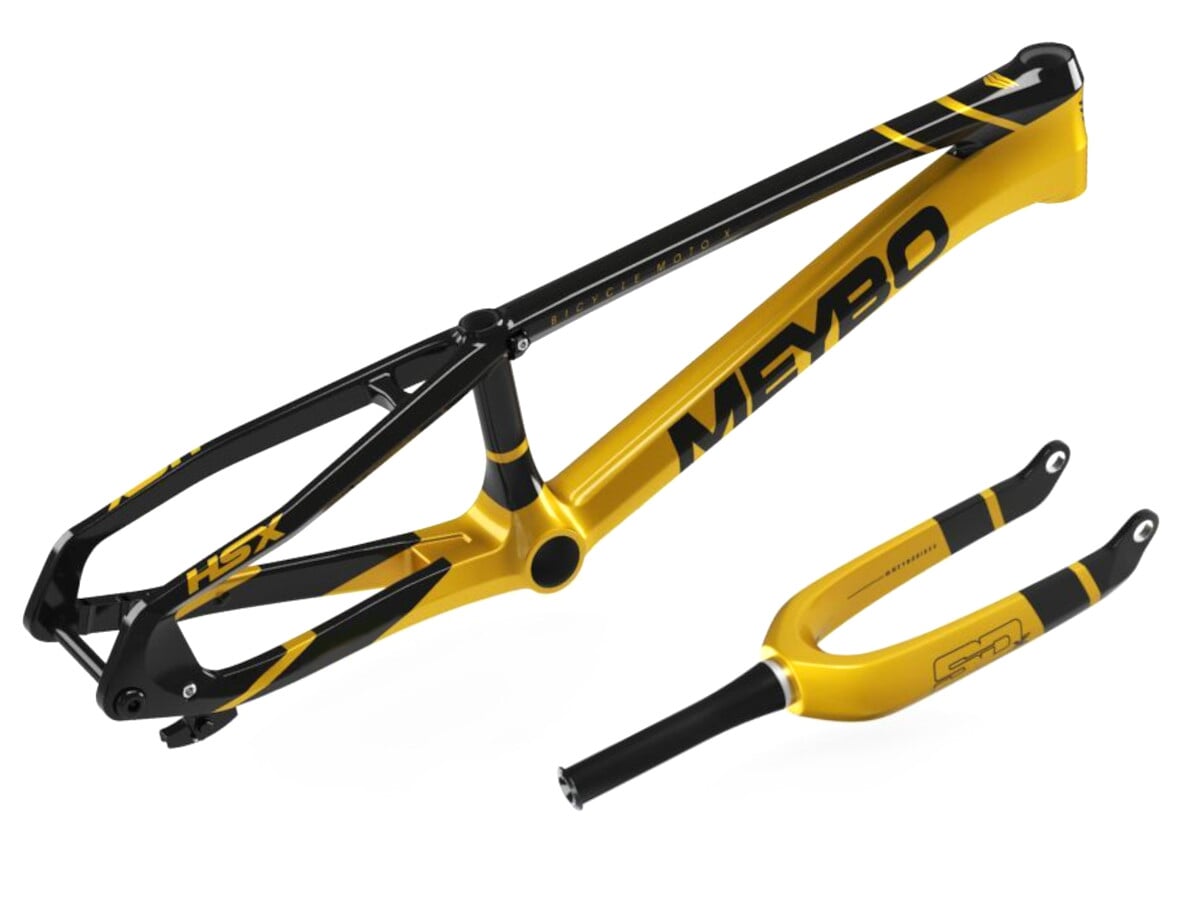

Meybo "HSX Carbon Pro 22" 2025 BMX Race Frame + Fork Set
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.3kg / 5.07lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 29088
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The Meybo "HSX Carbon Pro 22" 2025 BMX Race Frame + Fork Set is the fastest frame in the lineup of the Dutch brand. Its geometry has been specifically developed for championship and World Cup tracks, offering a perfect balance between agility and stability at high speeds. There are some important specifications to consider for the
Meybo "HSX Carbon Pro 22" 2025 BMX Race Frame + Fork Set.
In terms of braking, this frame is only compatible with flat-mount disc brakes. This means the brake caliper is mounted directly to the rear dropout of the frame. For optimal installation, two mounting bolts pass through the rear dropout to secure the caliper. This setup requires internal cable routing within the frame. It is essential to use a J-KIT or C-JET disc brake kit. With a flat-mount setup, the use of a brake kit with external cable routing is not possible. The fork of the
Meybo "HSX Carbon Pro 22" 2025 BMX Race Frame + Fork Set
is made of carbon and a 7075‑T6 aluminum head tube, has a 30mm offset, and a total length of 310mm.
The top tube length is suitable for riders up to height of 185cm and above.
The top tube length is suitable for riders up to height of 185cm and above.
Facts: Meybo "HSX Carbon Pro 22" 2025 BMX Race Frame + Fork Set
- Frame: Meybo "HSX Carbon Cruiser Pro 22" BMX Race Frame
Wheel size: 20"
Material: 100% Toray T800 Carbon

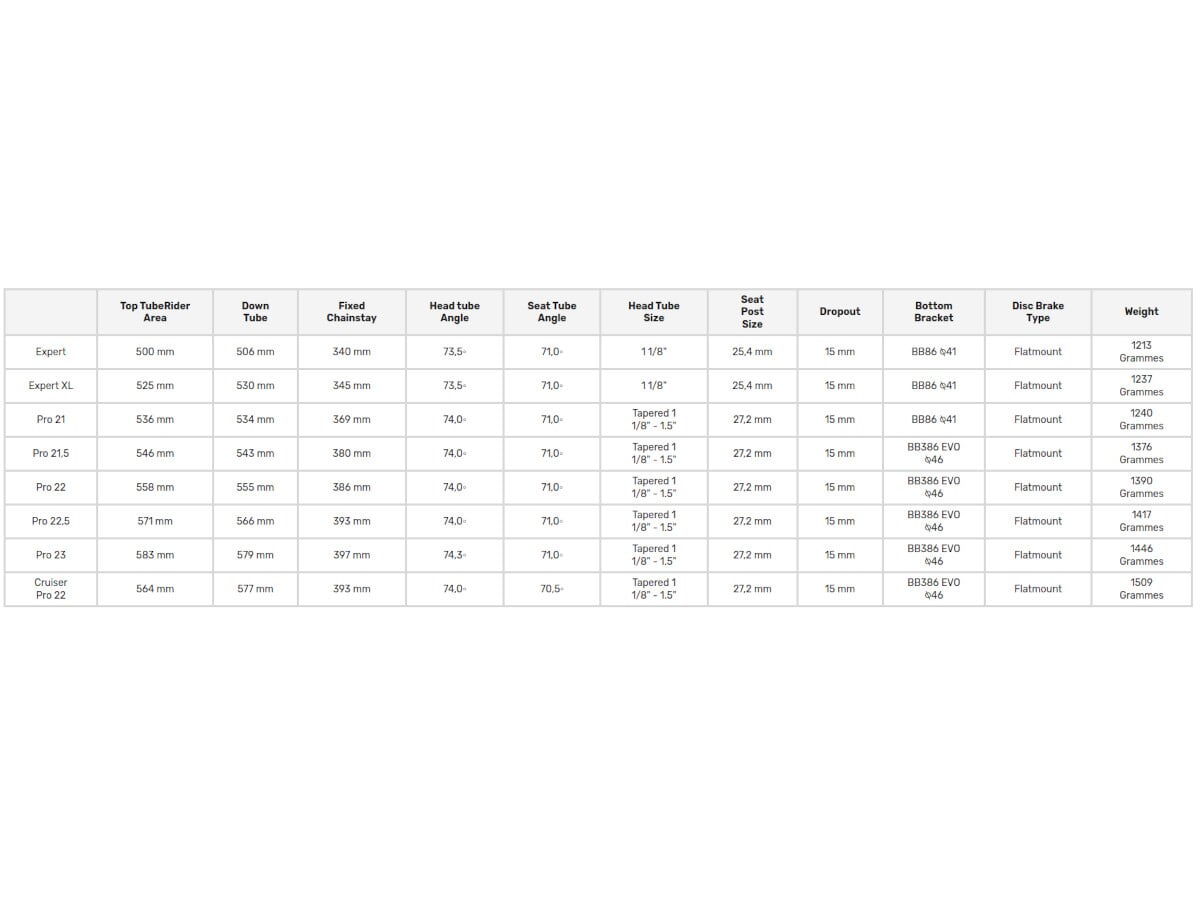

Geometry:
- Toptube (TT): 22"
- Chainstay (CS): 14.52"
- Headtube Angle (HA): 74°
- Seattube angle: 71°
- Dropouts: 15mm (including chain tensioner for 10mm), supplied with a fixed 15mm through axle for the rear wheel in Aluminum 7005 (CNC-machined) - Seat clamp: Integrated
Seat post diameter: 27.2mm
Bottom Bracket: Press Fit (BB386), compatible with 24mm and 30mm axles
Chain tensioners: Included
Brake style: Disc, flatmounted
Brake ahrdware: Compatible with "flatmounted" hydraulic brakes
Info: Not compatible with 140mm brake discs
- Fork: Meybo "HSX Carbon Cruiser Pro 22" BMX Race Fork
Wheel Size: 20"
Material: Carbon (Legs), 7075-T6 Aluminum (Head Tube)
Stem Diameter: 1 1/8 to 1.5"
Stem Length: 180mm, Aluminum
Top Bolt: Yes, M22
Dropouts: 20mm thru-axle mount, 8mm thick
Ride: 30mm
Bearing Race: One
Recommended for: Race
