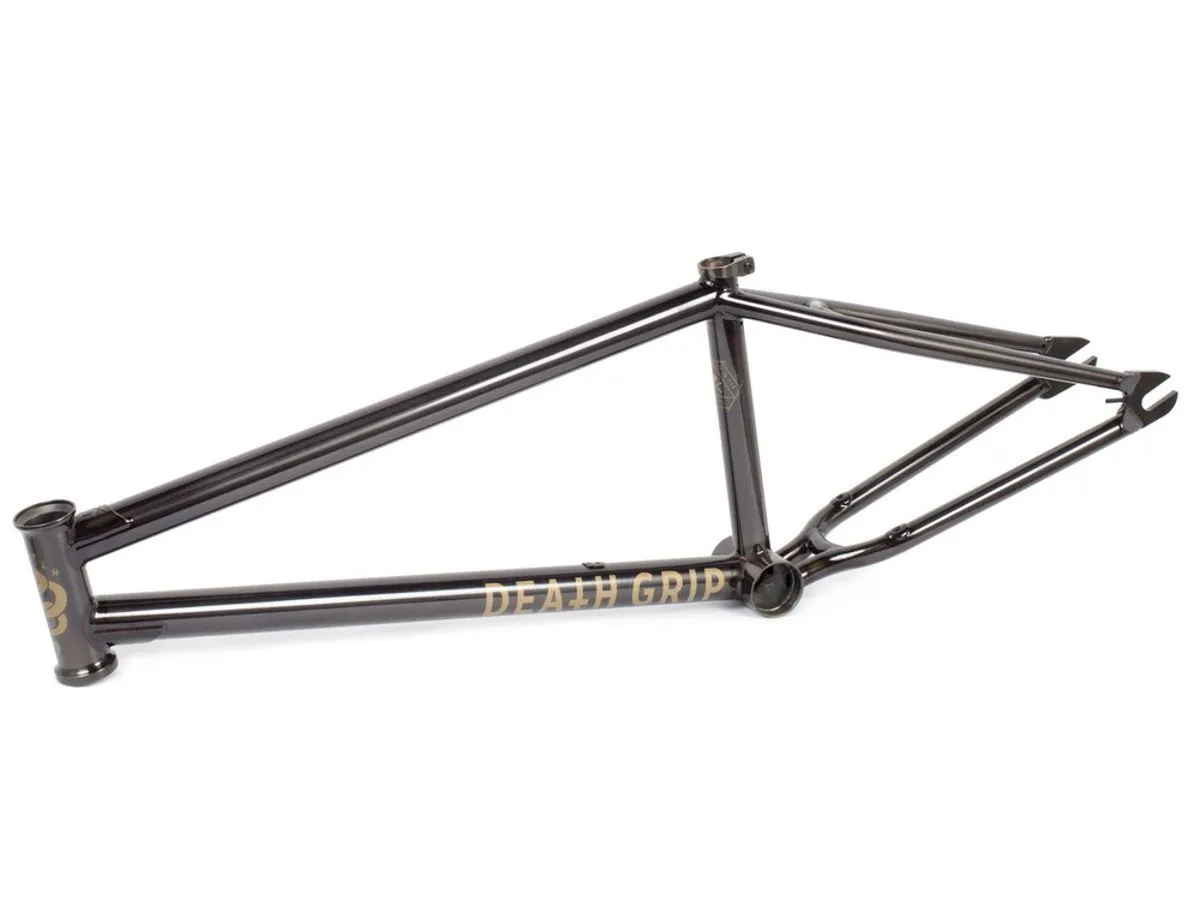

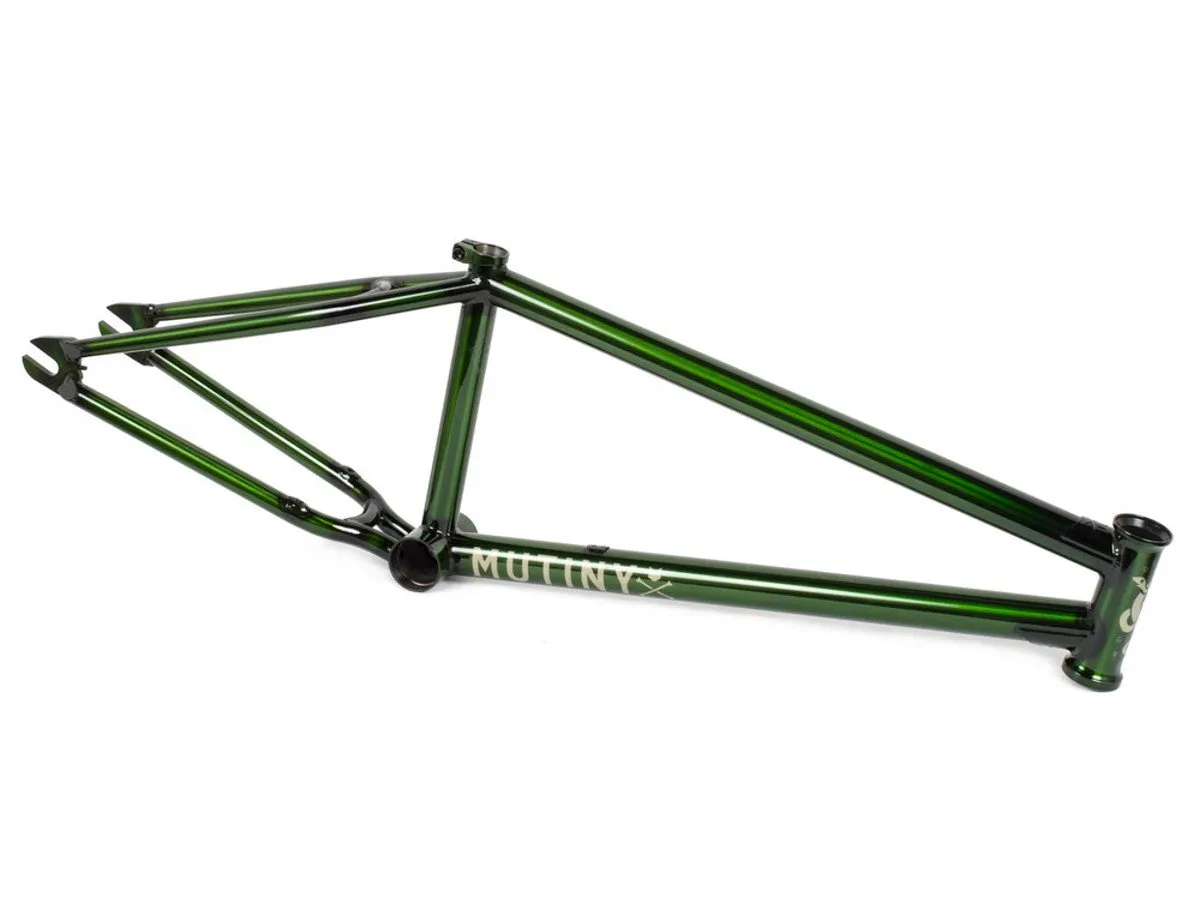

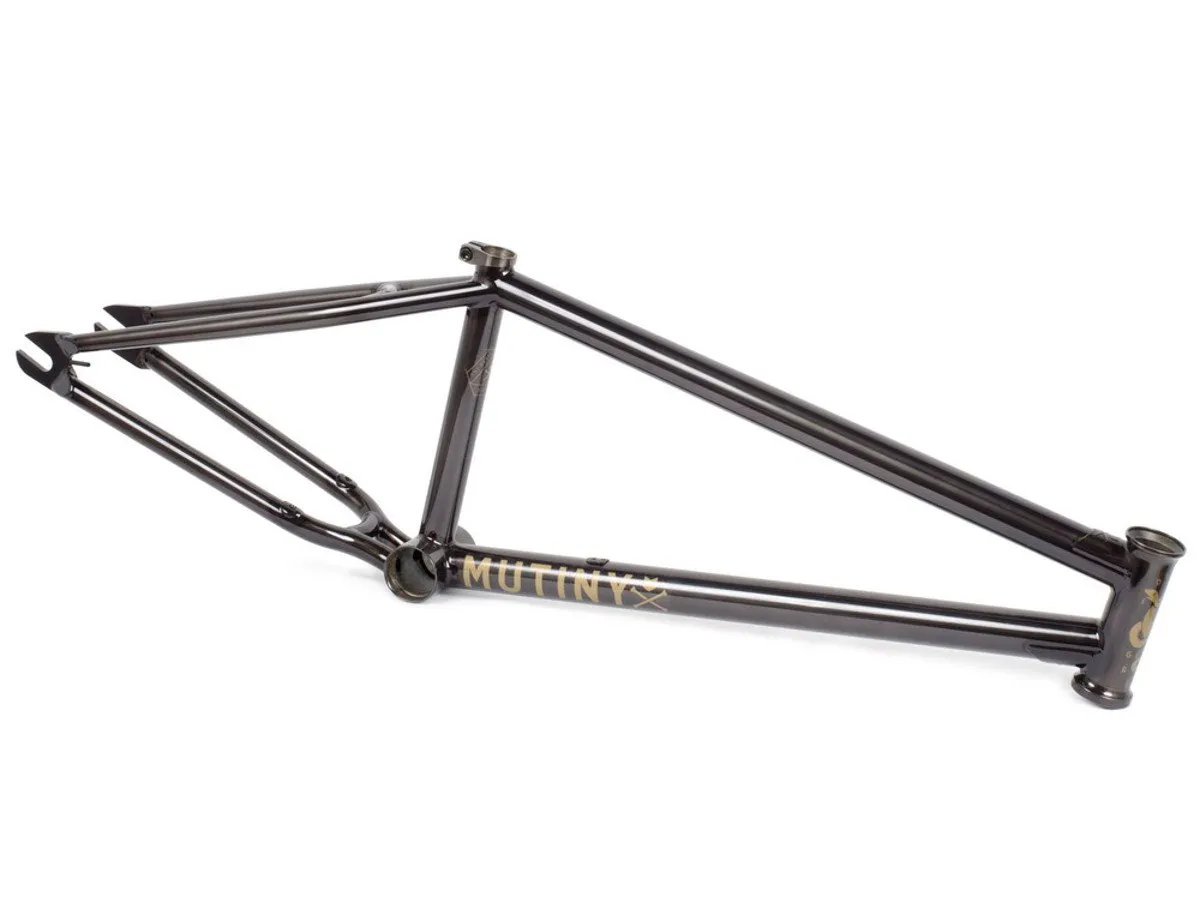

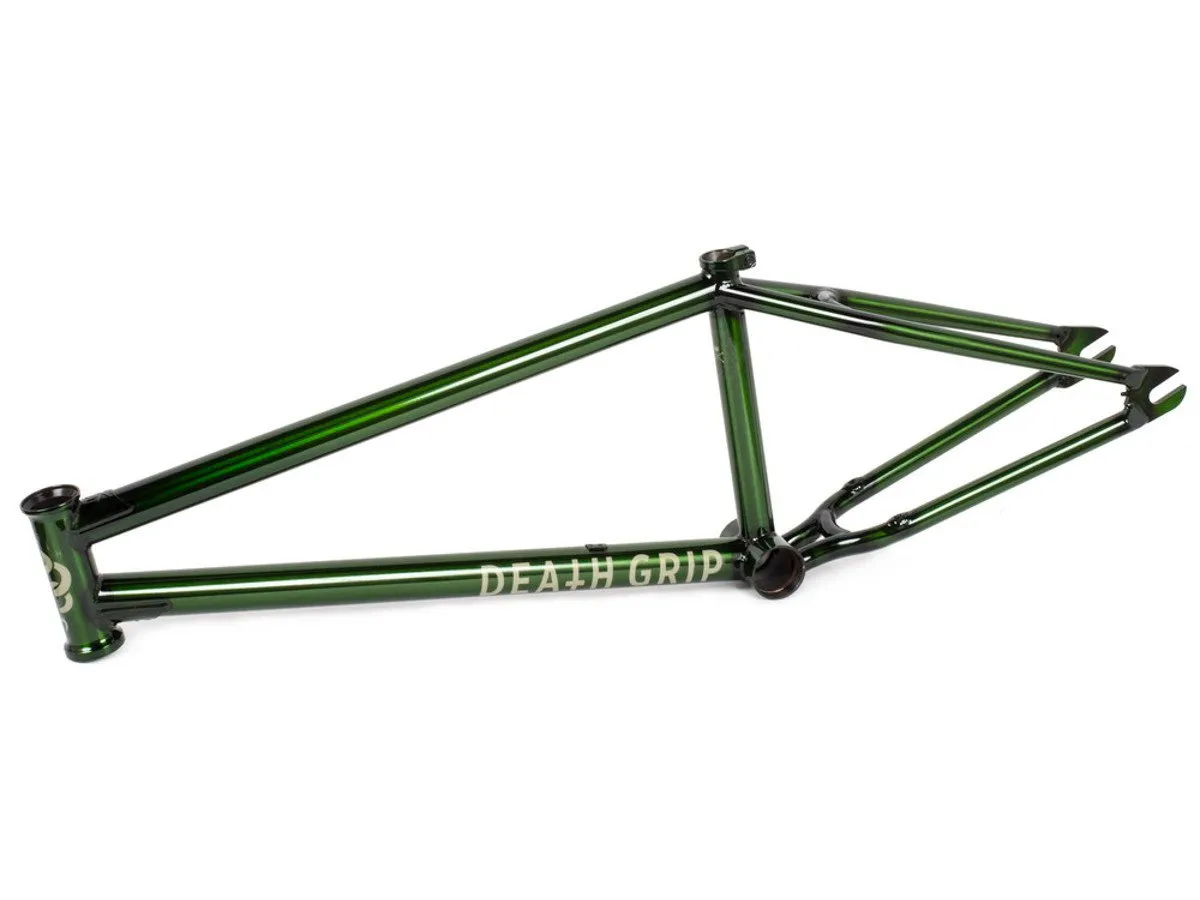

Mutiny Bikes "Death Grip" BMX Frame
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.35kg / 5.18lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 13323
Found an error? Report it. 5 EUR voucher if confirmed.
The
Mutiny Bikes "Death Grip" BMX Frame
is the signature frame of dylan lewis, which is made for the bowl and dirtriders out there. The longer toptube and chainstay promises you an relaxed airtime. The
Mutiny Bikes "Death Grip" BMX Frame

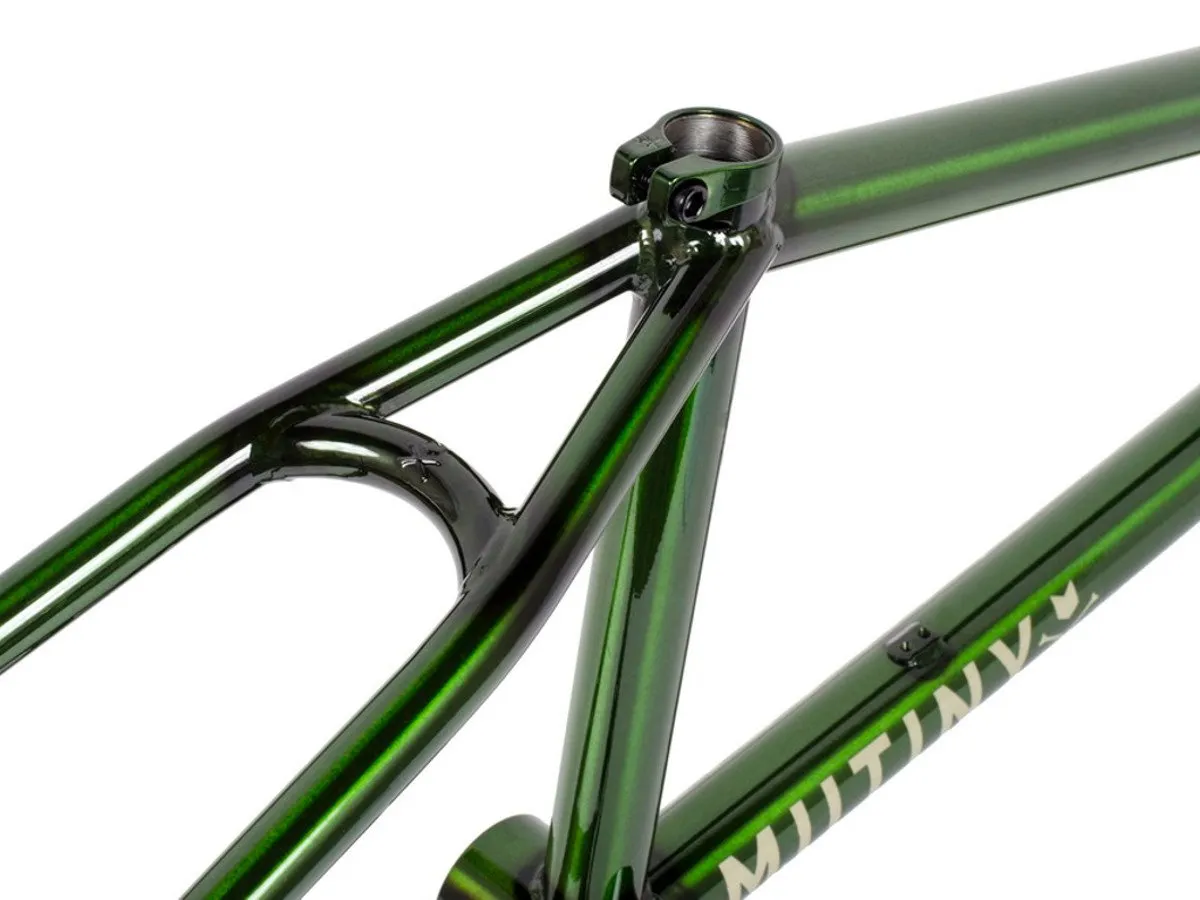

is made of high quality 4130 Sanko CrMo and got heat treaded with Mutinys "420 BAKED" process for more stability includes a 4130 CrMo seat clamp with 6mm bolt and horizontal clamp slot on seat tube to give better clamping power with less torque. The rear end includes holders for screwable U-Brake sockets.
Caution:
The U-Brake sockets are not included but are separately available in our shop.
Caution:
The U-Brake sockets are not included but are separately available in our shop.
Facts: Mutiny Bikes "Death Grip" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 Sanko CrMo, top tube and down tube gussets, 420 Baked heat treated headtube and bottom bracket, integrated headset
- Geometry:
- Top Tube (TT): 21.6"
- Chain Stay (CS): 13.7" - 14.2"
- Head Tube Angle (HA): 74.5°
- Seat Tube Angle (SA): 71°
- BB Height: 11.65"
- Standover Height (SO): 9.15" - Seat Clamp: integrated, 4130 CrMo with 6mm allen key
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

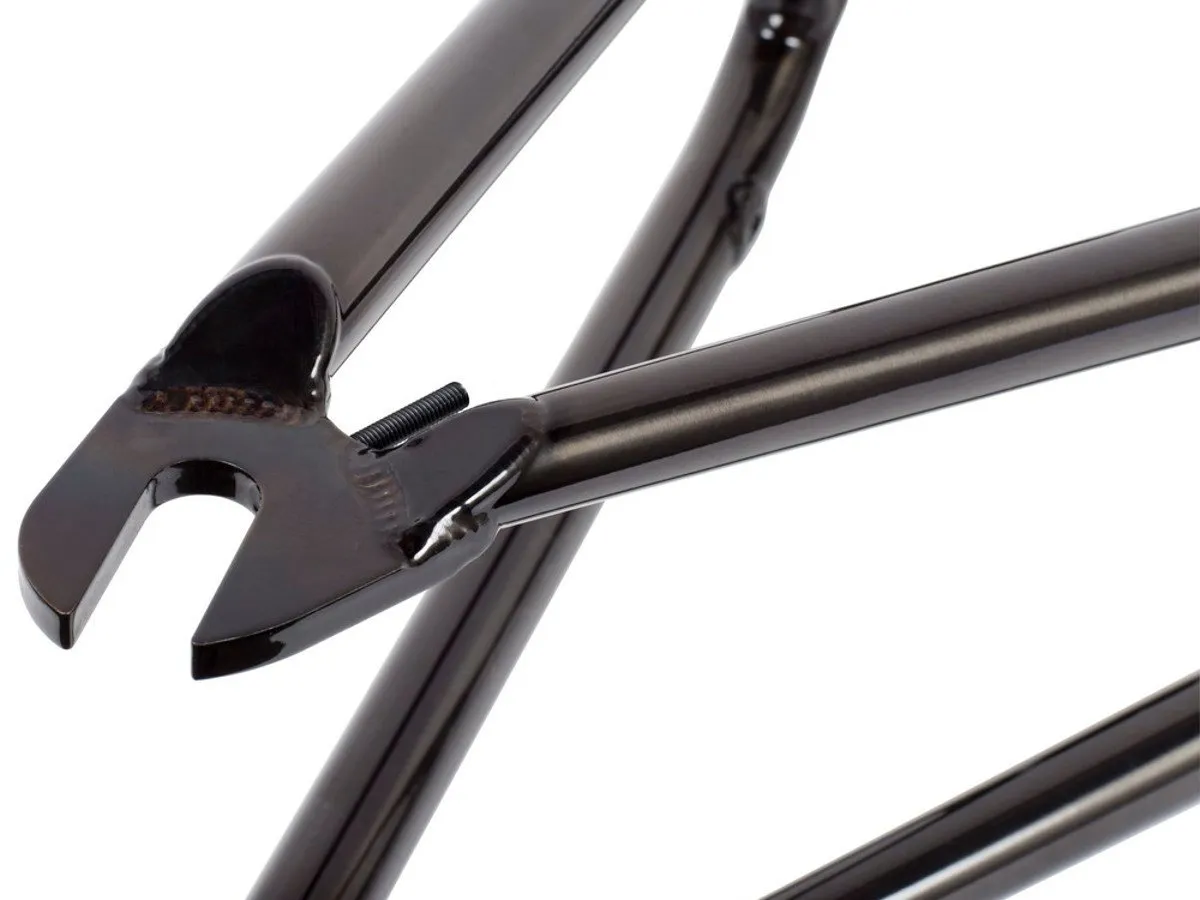

- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brakemounts: removable, M6, not included with delivery
- Extras: Dylan Lewis signature frame, wide rear end for fat 2.4" tires, 125mm long headtube
- Model Year: 2018
