Stay Strong "Race" BMX Race Sprocket
-
Weight : 0.1kg / 0.22lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 31397

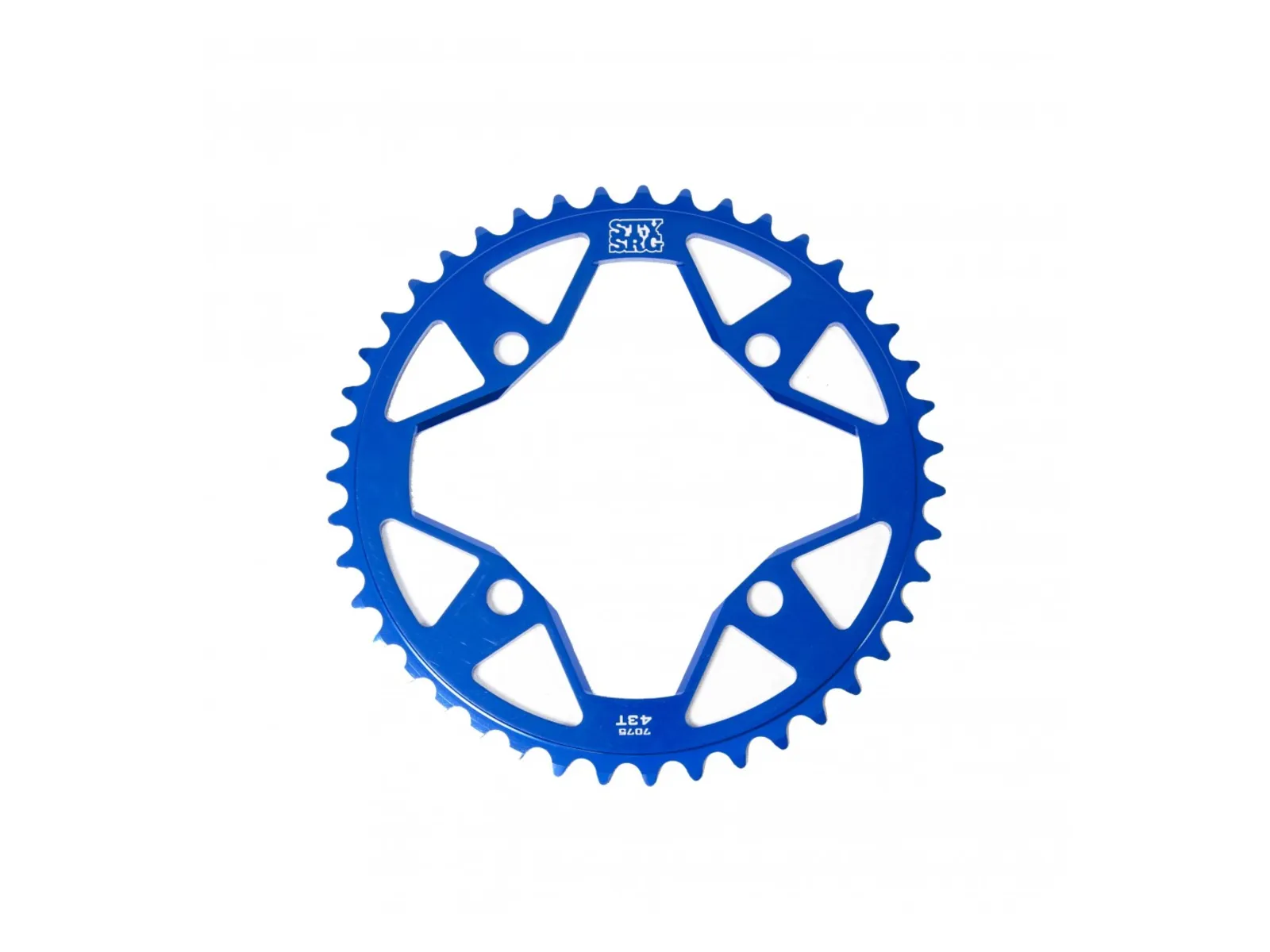

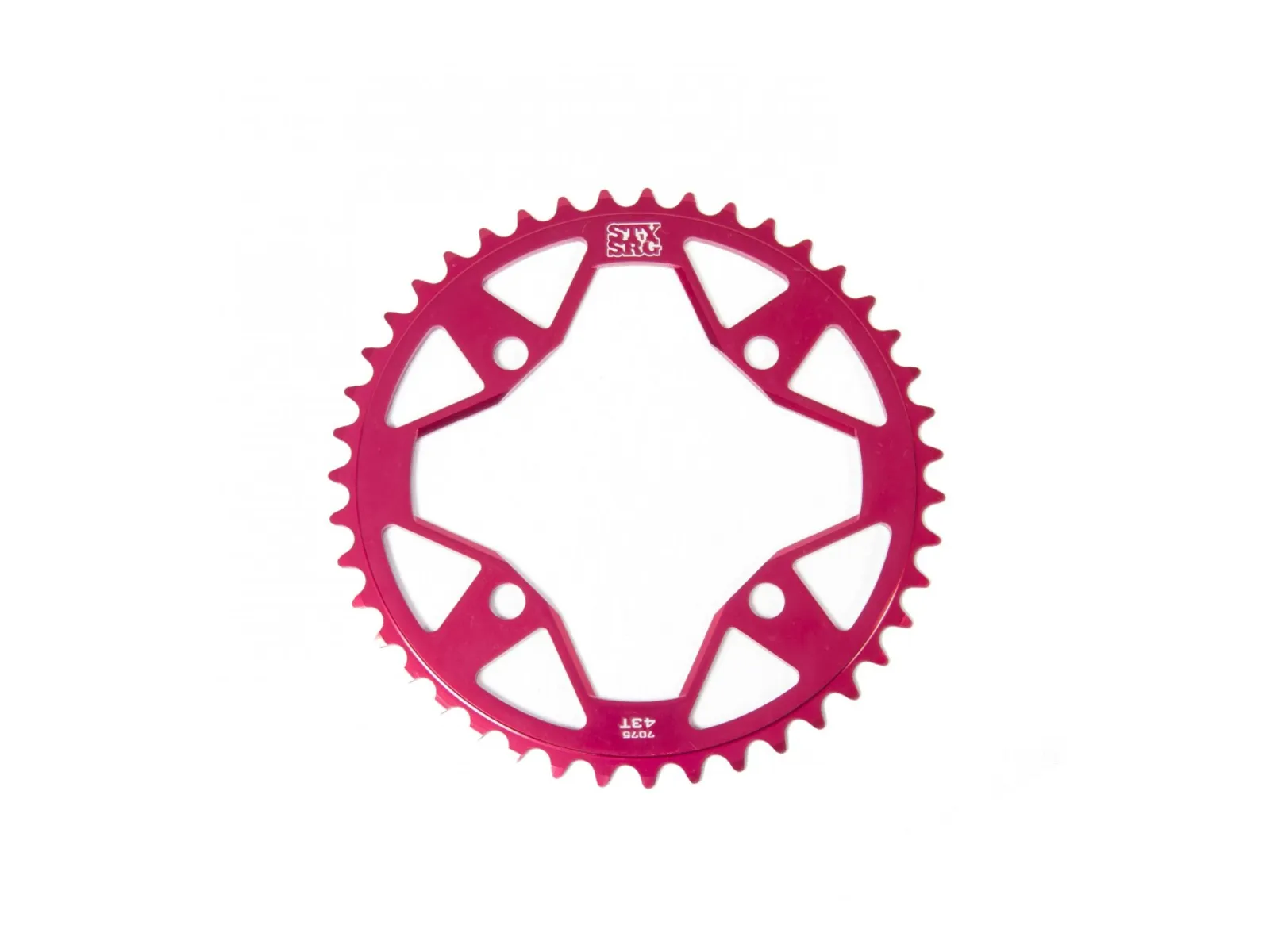

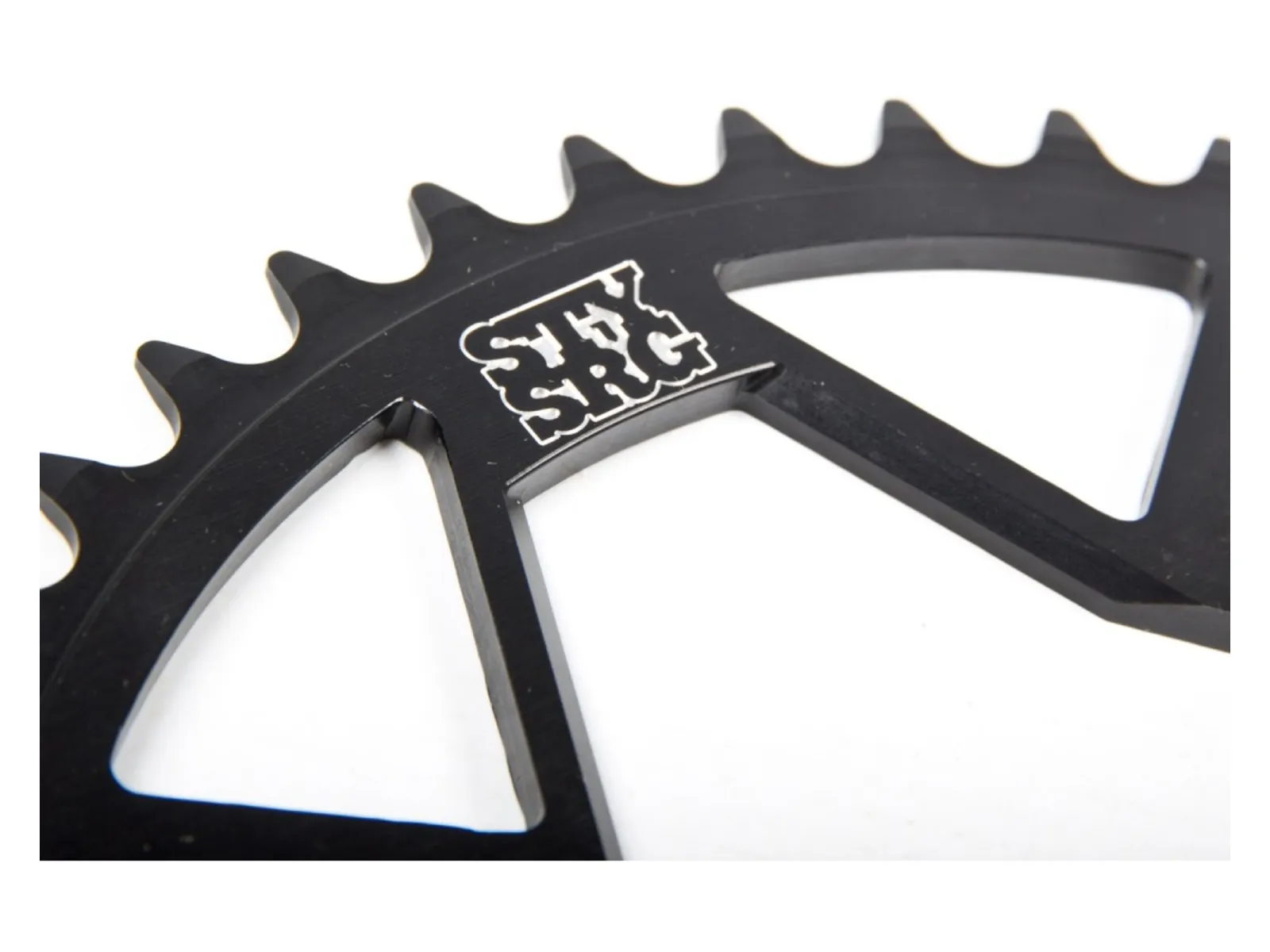

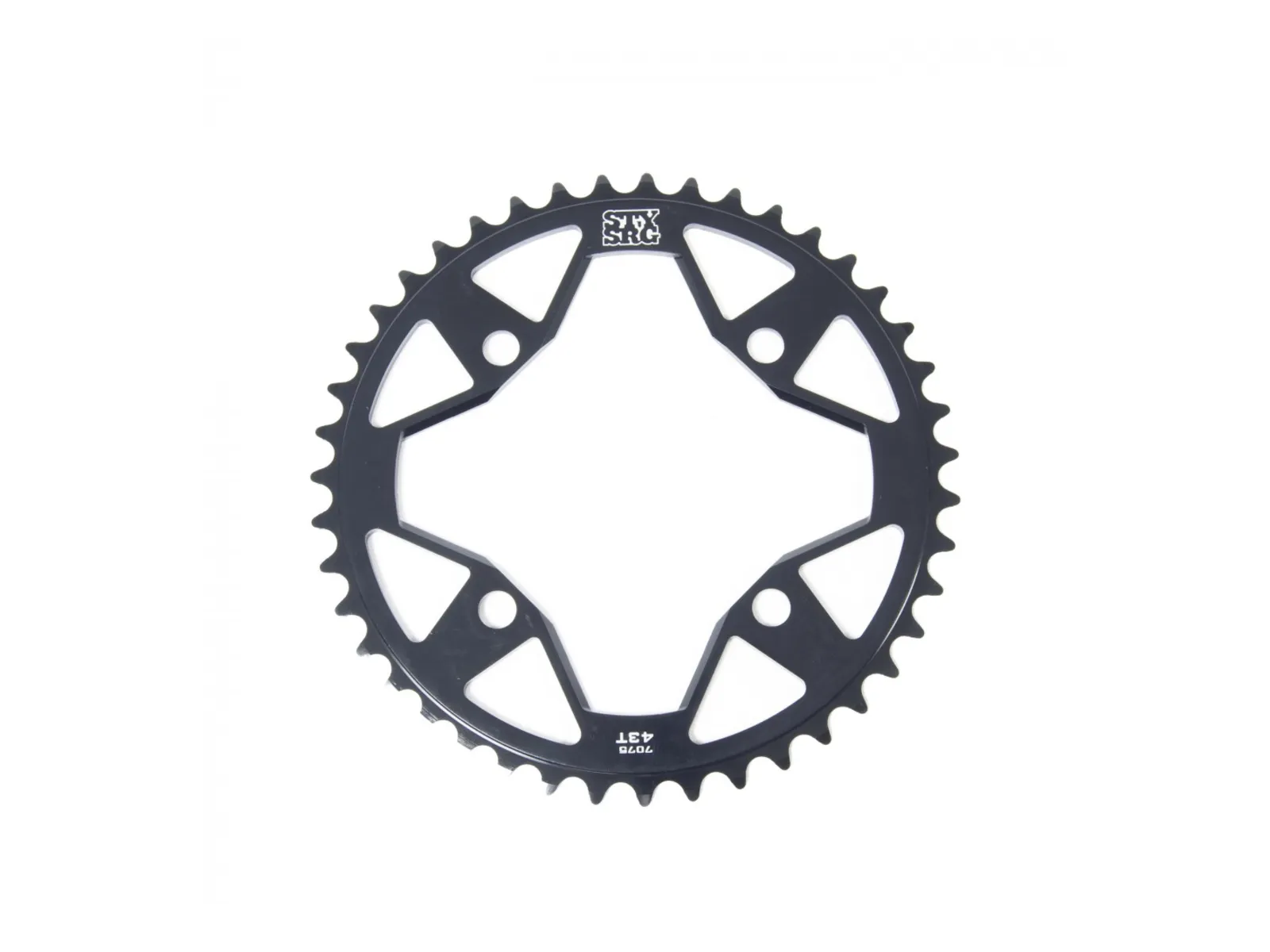

The Stay Strong "Race" BMX Race Sprocket is a high-quality BMX race sprocket made from CNC-machined aluminium (7075-T6 / 6061-T6) with a heat-treated 4130 CrMo Spline Drive insert, offering compatibility with 19mm, 22mm and 24mm crank axles via a 48-spline interface – adapter ring included. The offset machining ensures precise chain retention, while support for both 1/8" and 3/32" chains alongside the distinctive 4-star design makes the Stay Strong "Race" BMX Race Sprocket a versatile and sharp-looking race component. Whether you run Microdrive or standard chainring bolts, you're covered either way.
Facts: Stay Strong "Race" BMX Race Sprocket
- Version: Bolt Drive / Spline Drive (Fine Tooth)
- Material: 4130 CrMo, heat treated, 7075-T6 / 6061-T6 Aluminium, CNC machined, with CrMo Spline Drive insert, with hole for chainring bolts
- Sizes: 42T, 44T or 48T
- Axle Diameter: Fits 19mm, 22mm and 24mm crank axles [with 48 splines (fine tooth)], including adapter ring
- Thickness: 8mm, 7mm, 6mm, 5mm
- Chain Compatibility: 1/8", 3/32"
- Extras: Spline Drive (fine tooth) sprocket, hole for Microdrive chainring bolt (smaller than 23T) / regular chainring bolt mount (23T and larger), 4-star design, offset machining for improved chain retention
